Foundations — Time dilation — derivation, twin paradox

Before you can read the time dilation derivation you need to own every letter it uses. This page builds each one from nothing: plain words → the picture → why the topic can't live without it. Read top to bottom; each item leans on the one above it.

0. "Reference frame" — the word for whose viewpoint

Throughout this page there are only two viewpoints, and we name them once here so they never surprise you later:

• You (the watcher): you stand still and watch the clock zoom past. This is "your frame."
• The rider: an imagined person sitting on the clock, moving along with it, so to them the clock is not moving at all. This is "the clock's own frame" (the rider's frame).

Every "frame" mentioned below is one of these two. Keep the picture: two people, each with a ruler and a stopwatch, disagreeing about what those stopwatches read.

1. Speed — the idea that starts everything

Why does this matter? If you fix the speed but stretch the distance, the time is forced to grow. That trade-off is literally where time dilation comes from. Hold onto this fraction — everything below is a battle over its top and bottom.

2. $c$ — the speed of light (the one thing that never changes)

Look at the figure. A person standing still and a person on a fast train both clock the same light beam at $c$. In normal life speeds add up (throw a ball forward on a train and the ground sees it go faster). Light refuses to play that game — it is stubborn. That stubbornness is Einstein's second postulate, and it is the cause of every weird result that follows.

3. $v$ — the relative speed of the moving thing

Picture a clock zooming past you left-to-right at speed $v$. If $v=0$ nothing moves and there is no time-dilation effect at all. As $v$ creeps toward $c$, the effect gets enormous. So $v$ is the dial that controls how strong the whole phenomenon is.

4. $L$ — the mirror gap (a fixed length)

In the figure the two mirrors sit a height $L$ apart, and a photon (a single particle of light) bounces up and down between them. Why build such a strange clock? Because its ticking is made of light, so its tick-rate is chained directly to $c$. That makes it the perfect probe for testing what the constant $c$ does to time.

5. Right triangle & Pythagoras — the geometry tool

Why does a triangle show up in a physics problem about clocks? Because when the clock drifts sideways while the photon goes up, the photon's real path (in your frame) is a slanted diagonal — and that diagonal is the hypotenuse of a right triangle whose vertical side is $L$ and whose horizontal side is how far the clock drifted. Pythagoras is the tool that answers "how long is that diagonal?" — and its length, divided by $c$, is the moving clock's tick.

6. $\Delta t$ and $\Delta t_0$ — two different times

The Greek letter $\Delta$ (delta) means "the amount of" or "the change in." So $\Delta t$ literally reads "an amount of time." The topic uses two of these, and confusing them is the #1 error.

The whole derivation is just one equation connecting these two: $\Delta t$ is always bigger than $\Delta t_0$. How much bigger is answered by the next symbol.

7. $\gamma$ — the stretch factor (Lorentz factor)

Now that we own $c$, $v$, $L$, $\Delta t$ and $\Delta t_0$, we can actually build $\gamma$ instead of just quoting it. Watch it appear from the triangle. Throughout, "you" stay the watcher and "the rider" stays on the clock — the two frames we named in section 0.

Why we only analyse half a tick. A full tick is up then down. By the up-down symmetry of the picture, the downward diagonal is just the mirror-image of the upward one — same length, same drift, same time. So whatever we prove for the first half applies identically to the second half, and studying one half captures the whole tick.

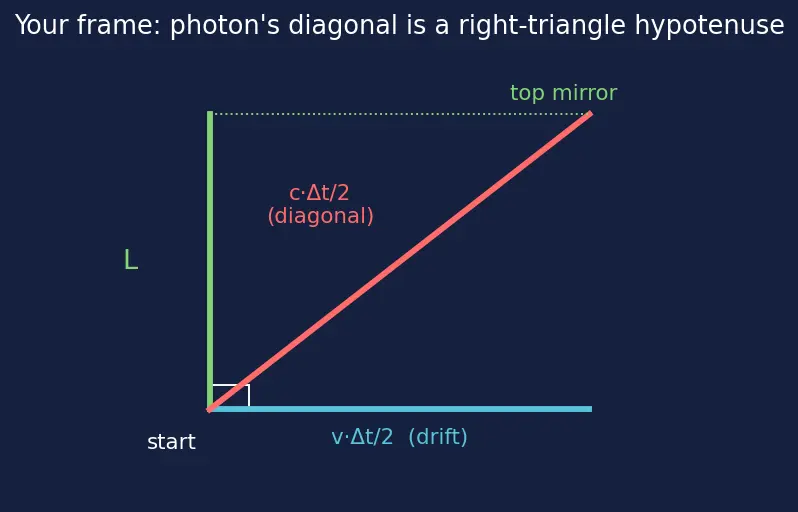

Why $c\Delta t/2$ is the hypotenuse. In your frame (the watcher's) the full tick takes time $\Delta t$, so each half lasts $\Delta t/2$. During that half the photon moves at speed $c$ the whole time (postulate 2). Distance = speed × time, so its slanted path is $c\Delta t/2$ long — that is the hypotenuse. During that same half the clock drifts sideways by $v\Delta t/2$ (distance = $v\times \Delta t/2$), and the photon still climbs the fixed gap $L$. So the right triangle has:

• vertical side $L$,
• horizontal side $v\Delta t/2$,
• hypotenuse $c\Delta t/2$.

Apply Pythagoras (hypotenuse² = side² + side²): ${\left(\frac{c\Delta t}{2}\right)}^2=L^2+{\left(\frac{v\Delta t}{2}\right)}^2$

Bring in the rider's clock. From the rider's frame the photon just goes straight up and back, distance $2L$ at speed $c$, so $\Delta t_0=2L/c$, i.e. $L=\frac{c\Delta t_0}{2}$. Substitute: $\frac{c^2\Delta t^2}{4}=\frac{c^2\Delta t_0^2}{4}+\frac{v^2\Delta t^2}{4}$

Clean it up. Multiply every term by $4$, then gather the $\Delta t$ terms on one side: $c^2\Delta t^2-v^2\Delta t^2=c^2\Delta t_0^2\Rightarrow \Delta t^2(c^2-v^2)=c^2\Delta t_0^2$

Solve for $\Delta t$ — carefully. First divide both sides by $(c^2-v^2)$. This is allowed because $v<c$, so $c^2-v^2>0$ (never dividing by zero): $\Delta t^2=\frac{c^2\Delta t_0^2}{c^2-v^2}$ Now divide the top and bottom of the fraction by $c^2$ to tidy it into fractions of $c$: $\Delta t^2=\frac{\Delta t_0^2}{1-v^2/c^2}$ Finally take the positive square root of both sides. We keep only the positive root because $\Delta t$ is a duration — a real elapsed time — and durations are never negative: $\Delta t=\frac{\Delta t_0}{\sqrt{1-v^2/c^2}}$

The messy factor multiplying $\Delta t_0$ has now earned its own name:

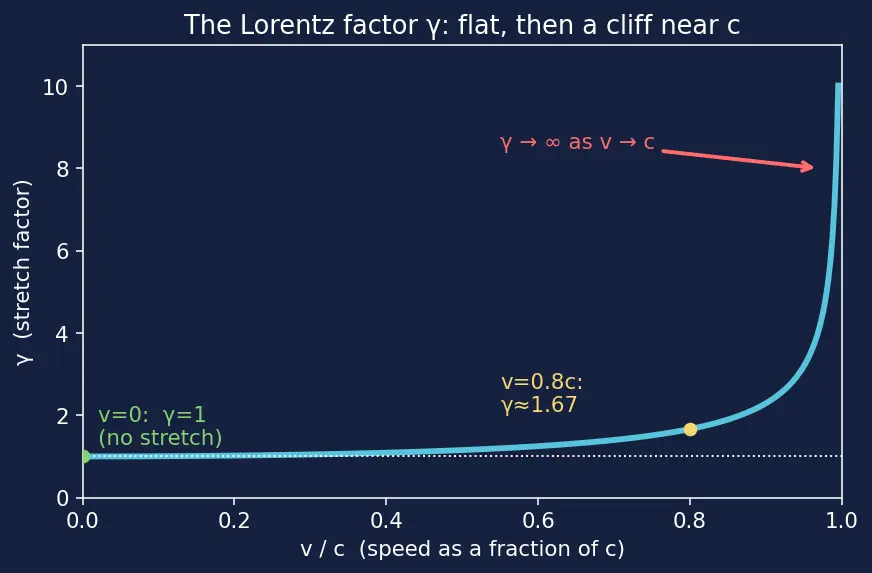

Read the figure like a graph of a rising cliff:

• When $v=0$: $v^2/c^2=0$, so $\gamma =1/\sqrt{1}=1$. No stretch — matches everyday life.
• When $v$ is small (say $0.01c$): $\gamma \approx 1.00005$. Barely any stretch — this is why Newton "worked."
• When $v\to c$: $v^2/c^2\to 1$, the square root $\to 0$, and dividing by nearly zero makes $\gamma \to \infty$. Time stretches without limit.
• $v$ can never equal $c$ for a clock, or we'd divide by exactly zero (infinite time) — a signpost that massive objects can't reach light speed.

The same $\gamma$ reappears in Lorentz Transformations, Length Contraction, and the Spacetime Interval.

Prerequisite map

Everything flows downward into the boxed formula, which then powers the twin paradox and (later) the Muon Decay Experiment.

Equipment checklist

Cover the right side and test yourself. If any answer surprises you, reread that section.
