Time dilation — derivation, twin paradox

WHY does time dilation exist at all?

WHAT is a "light clock"? (the tool we derive with)

HOW to derive the formula (from scratch)

Imagine the light clock with mirrors separated vertically by height $L$ , moving horizontally at speed $v$ past you. We track one round-trip (up then down).

Frame S′ (rider on the clock): the photon goes straight up to the top mirror and straight back down — total vertical distance $2L$ . $\Delta t_0 = \frac{2L}{c} \quad\Rightarrow\quad L = \frac{c\,\Delta t_0}{2}$ $\Delta t_0$ is the proper time — and this is legitimate proper time because emission and final-reception occur at the same place (the bottom mirror) in the clock's rest frame.

Why this step? For the rider, the clock isn't moving, so the photon travels straight up the gap $L$ and straight back down — total path $2L$ , both events at the same point.

Frame S (you, watching it fly past): while the photon makes its round-trip, the clock drifts sideways. The photon traces two diagonals — an upward-slanting one, then a downward-slanting one, forming a symmetric "Λ" (tent) shape.

Horizontal distance moved by clock during the full round-trip in your time $\Delta t$ : $\;v\,\Delta t$ .
Consider just the first half (going up): in your time $\Delta t/2$ the clock drifts $v\,\Delta t/2$ , the photon rises $L$ , and its diagonal path length is $c\,\Delta t/2$ .

Why this step? Postulate 2: I must also see the photon at speed $c$ , even on its longer diagonal route. So that half-path length is $c\cdot(\Delta t/2)$ , not something bigger.

Apply Pythagoras to the right triangle of the first half (vertical $L$ , horizontal $v\Delta t/2$ , hypotenuse $c\Delta t/2$ ): $\left(\frac{c\,\Delta t}{2}\right)^2 = L^2 + \left(\frac{v\,\Delta t}{2}\right)^2$

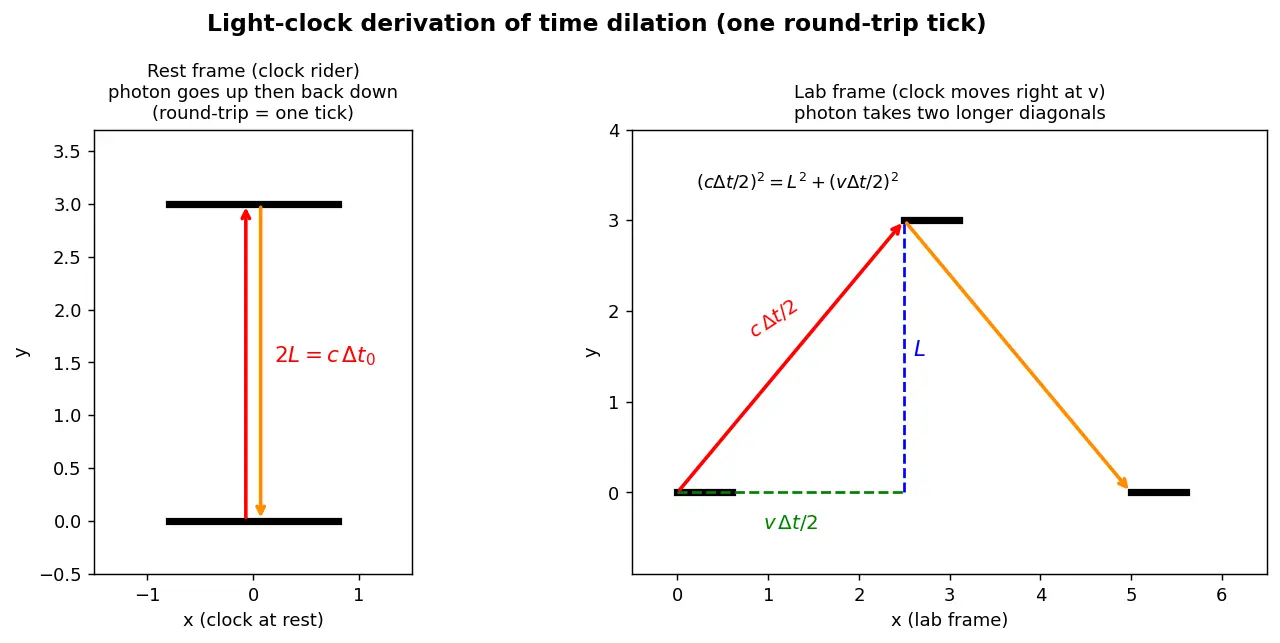

Figure — Time dilation — derivation, twin paradox

Substitute $L = \dfrac{c\,\Delta t_0}{2}$ : $\frac{c^2\Delta t^2}{4} = \frac{c^2\Delta t_0^2}{4} + \frac{v^2\Delta t^2}{4}$ Multiply through by $4$ : $c^2\Delta t^2 = c^2\Delta t_0^2 + v^2\Delta t^2$ $c^2\Delta t^2 - v^2\Delta t^2 = c^2\Delta t_0^2$ $\Delta t^2\,(c^2 - v^2) = c^2 \Delta t_0^2$ $\Delta t^2 = \frac{c^2\Delta t_0^2}{c^2 - v^2} = \frac{\Delta t_0^2}{1 - v^2/c^2}$

Worked examples

The Twin Paradox

Common mistake Steel-manned mistakes

Mistake 1: "Time dilation is symmetric, so the twins are the same age → contradiction." Why it feels right: While both move inertially, each genuinely sees the other's clock slow — that's true and symmetric. The fix: To compare ages you must reunite them at one place. To reunite, one twin must turn around (accelerate), breaking the symmetry. The traveler ages less. No contradiction.

Mistake 2: Plugging Earth time into $\Delta t_0$ . Why it feels right: "Earth is at rest, so use the easy variable." The fix: $\Delta t_0$ is always measured where the two events coincide in space (the moving clock's own frame). For the muon/ship, that's the particle/ship frame, not Earth.

Mistake 3: Thinking a fast clock looks "frozen" but mechanically broken. Why it feels right: It seems like a malfunction. The fix: Nothing is broken. Every process — chemical, biological, atomic — slows identically because time itself runs slower in that frame.

Recall Feynman: explain to a 12-year-old

Light is the fastest thing ever, and weirdly it goes the same speed no matter how you chase it. Imagine a clock that ticks by bouncing a light beam up to a mirror and back down. If I run past you carrying it, you see the light go in a slanted zig-zag — a longer trip. But light can't speed up, so each tick takes longer for you. That means my clock — and my whole body — runs in slow motion from your view. Now if I fly to a far star and come back, I had to turn my rocket around, and that makes me the one who ages slower. I'd come home younger than my stay-at-home twin. It's not magic or a trick — time really does stretch.

Active recall

Which Einstein postulate causes time dilation?

The invariance of the speed of light

c

in all inertial frames.

Define proper time

\Delta t_0

The time between two events measured in the frame where they occur at the same place (the moving clock's own rest frame, e.g. one full round-trip of the light clock).

State the time dilation formula.

\Delta t = \gamma \Delta t_0

with

\gamma = 1/\sqrt{1-v^2/c^2}

Why is

\Delta t \ge \Delta t_0

always?

Because

\gamma \ge 1

; moving clocks run slow.

In the light-clock derivation, why do we use one full round-trip?

So emission and final reception occur at the same place in the clock's rest frame, making

\Delta t_0

a true proper time.

What is

\Delta t_0

for one round-trip in the clock's rest frame?

\Delta t_0 = 2L/c

What equation results from Pythagoras (first half) in the derivation?

(c\Delta t/2)^2 = L^2 + (v\Delta t/2)^2

Resolve the twin paradox.

The traveling twin accelerates/turns around, switching inertial frames, so the situation isn't symmetric; the accelerating twin ages less.

Muon lifetime 2.2 µs at 0.99c — lab lifetime?

\gamma\approx7.09

, so

\Delta t\approx15.6\,\mu s

At 0.6c, what is

\gamma

1/\sqrt{1-0.36}=1/0.8=1.25

Why doesn't time dilation appear in daily life?

At everyday speeds

v\ll c

\gamma\approx1

Connections

Special Relativity Postulates
Length Contraction — the partner effect ( $L = L_0/\gamma$ )
Lorentz Transformations — general framework time dilation falls out of
Relativistic Velocity Addition
Muon Decay Experiment — experimental confirmation
Spacetime Interval — why proper time is frame-invariant

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, time dilation ka core idea ek hi baat pe tika hai: light ki speed $c$ sabke liye same hoti hai, chahe tum ruke ho ya bhaag rahe ho. Ab ek "light clock" socho jisme ek photon do mirrors ke beech upar jaata hai aur wapas neeche aata hai. Hum ek "tick" ko ek pura round-trip maante hain — upar aur wapas neeche. Isse start aur end dono ek hi mirror pe hote hain, yaani ek hi jagah — isliye yeh sahi "proper time" hai. Jo banda clock ke saath chal raha hai, uske liye photon seedha upar-neeche jaata hai (total $2L$ ). Lekin agar woh clock tumhare paas se tezi se nikal raha hai, to tumhe photon do tirchi (diagonal) lines me dikhega — jo lambi hain. Light apni speed nahi badha sakti, isliye lambe raaste ke liye zyada time lagega. Matlab tumhare hisaab se woh moving clock dheere chal raha hai. Yahi hai time dilation: $\Delta t = \gamma\,\Delta t_0$ , aur $\gamma$ hamesha $\ge 1$ .

Derivation me bas Pythagoras lagta hai, ek half (upar jaane wala part) pe: $(c\Delta t/2)^2 = L^2 + (v\Delta t/2)^2$ , aur $L = c\Delta t_0/2$ daal do — bas formula nikal aata hai. Yaad rakho $\Delta t_0$ "proper time" hai, jo wahan napti hai jahan dono events ek hi jagah hote hain (yaani moving object ke apne frame me, round-trip ke start aur end). Students yahin galti karte hain — Earth ka time ko $\Delta t_0$ maan lete hain. Aisa mat karna.

Twin paradox: ek twin Earth pe rukta hai, doosra rocket me door jaake wapas aata hai. Lautne wala twin chhota (younger) reh jaata hai. Log puchte hain — "dono ke liye doosra move kar raha tha, to symmetric hona chahiye na?" Nahi! Jo twin wapas aaya, usko rocket ghumana pada — yaani accelerate karna pada, frame change karni padi. Isliye situation symmetric nahi hai. Simple rule: "jo ghoomta hai, wahi jawan rehta hai." Yeh sab real hai — muon experiment isko roz prove karta hai.
