Foundations — Particle in a box — solving TISE, energy levels, wavefunctions

This page assumes you have seen nothing. Before we can even read the parent note's central equation, we must earn every letter in it. We go symbol by symbol, each with plain words, a picture, and the reason the topic needs it. We will not write that equation down until every one of its symbols has already been built — the whole point of this page.

0. What are we building toward?

By the end of this page you will be able to read the parent note's master equation without a single unknown symbol. That equation ties together eight ideas, which we build in this order: position in the box, the wave $\psi$ that lives there, the idea of curvature (how sharply that wave bends), the potential $V$ that shapes the trap, the physical dials mass $m$ and Planck's constant $\hslash$, the energy $E$, and finally the boundary conditions at the walls. We meet them one at a time, in an order where each rests on the one before, and only in the final section — once all eight are defined — do we assemble them.

Notice: we have not written any formula yet, and we have deliberately named these ideas in plain words (no derivative symbol, no Greek soup) precisely because nothing has been defined. Each gets its own section below.

Look at the figure: a straight corridor from $x=0$ to $x=L$ with two solid walls. Everything we do lives on this picture.

1. Position $x$ — where along the box

Picture: the horizontal ruler in the figure above. $x=0$ is the left wall, $x=L$ is the right wall.

Why the topic needs it: everything else — the wave height, the potential — is a function of where you are, so we need a name for "where".

2. The box length $L$ — how wide the trap is

Picture: the full width of the corridor.

Why the topic needs it: $L$ is the only size in the whole problem. Later you will see energies shrink as $\frac{1}{L^2}$ — a bigger box is a gentler trap. Without $L$ there is no "how confined am I?" question to answer.

3. The wavefunction $\psi (x)$ — a wave, not a particle-dot

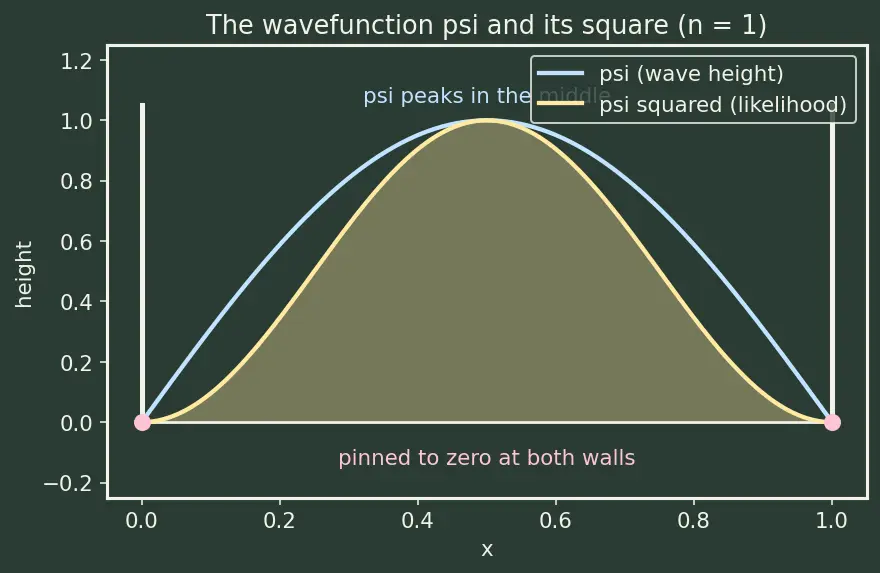

Picture: the smooth curve in the next figure, rising above and dipping below the corridor floor.

Why the topic needs it: the whole problem is "which wave shapes are allowed in this box?" $\psi$ is the unknown we solve for.

4. Probability density $|\psi {|}^2$ and normalisation — where the particle is likely found

Picture: in the figure above, the pale-yellow humped curve below the wave is $|\psi {|}^2$ — always $\ge 0$, tallest where the wave swings widest.

Why the topic needs it: this is the rule that connects the abstract wave to something measurable — where the electron actually is.

5. The derivative $\frac{d\psi }{dx}$ — steepness of the wave

Picture: imagine a tiny surfer standing on the wave. The derivative is the tilt of the ground under their feet.

Why here and not something else? We need a tool that measures change in space. "Slope" is exactly that tool. Nothing simpler captures how quickly the wave bends.

6. The second derivative $\frac{d^2\psi }{d{x}^2}$ — curvature (this is the star)

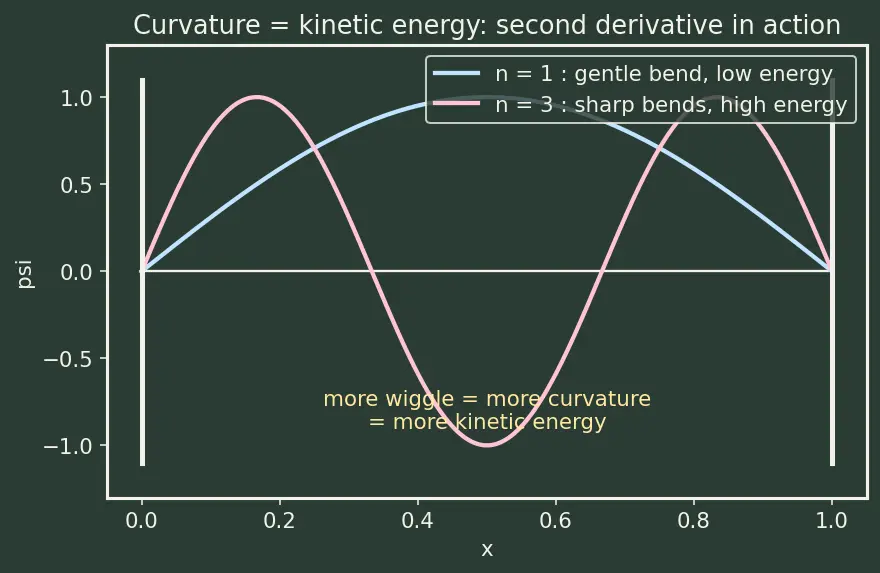

Picture: in the figure, two waves — a lazy one-hump wave (low curvature, blue) and a rapid three-hump wave (high curvature, pink). The pink one bends much harder.

Why the second derivative and not the first? Sines and cosines have the magic property that their second derivative gives back the same shape, flipped and scaled: $\frac{d^2}{d{x}^2}\sin (kx)=-k^2\sin (kx)$. The whole problem is a statement about this "self-returning" property — only the second derivative reveals it.

7. Potential energy $V(x)$ — the shape of the trap

Picture: two infinitely tall cliffs at $x=0$ and $x=L$, flat valley floor ($V=0$) in between. See the first figure's walls.

Why the topic needs it: $V$ is the trap. Change $V$ and you get a different problem — a spring (Quantum Harmonic Oscillator) or a leaky box (Quantum Tunnelling and Finite Well).

8. Mass $m$ and Planck's constant $\hslash$ — the physical dials

Picture: think of $\hslash$ as the exchange rate between "how wiggly a wave is" and "how much energy that costs". Small $\hslash$ = the quantum world is a fine grain we don't notice at human scale.

Why the topic needs them: together with $L$, these constants set the scale of every energy in the box — they are the dials that turn a wave-shape into a number of joules.

9. Energy $E$ — the total energy of one allowed wave

Picture: a horizontal line drawn at a height representing that wave's energy. Different allowed waves sit at different heights — a ladder of levels.

Why the topic needs it: $E$ is what we ultimately solve for. The headline result of the whole topic is that only certain values of $E$ are allowed.

10. Boundary conditions — the rule the walls impose

Picture: the two pink dots in figure 2 where the wave touches down onto the floor exactly at $x=0$ and $x=L$ — like a jump rope tied at both ends.

Why the topic needs it: without a boundary condition the equation has infinitely many smooth solutions and no quantisation. The walls are the referee.

11. The quantum number $n$ and wavelength $\lambda$ — labelling each allowed wave

Picture: a ladder of horizontal lines, one per $n$. Because energy will turn out to grow as $n^2$, the rungs sit at heights $1,4,9,16,\dots$ — spreading apart as you climb.

Why the topic needs it: $n$ is the symbol of quantisation — the single integer that indexes every allowed state — and $\lambda$ is the bridge between "how many arches fit" and "how much curvature (hence energy) that costs".

12. Assembling the master equation

Now — and only now — every symbol is defined, so we may finally read the parent note's central equation:

You are now equipped to read the parent note from line one.

How the foundations feed the topic

The map below shows the dependency order we followed. Read it top-down: the geometry ($x$, $L$) hosts the wave $\psi$; the wave has a curvature and a probability meaning; the trap $V$ imposes boundary conditions; the physical constants $m$ and $\hslash$ set the scale; all of these assemble into the TISE; solving it forces a quantised label $n$, which delivers the allowed energies and wave shapes — the whole topic. If you can trace every arrow and name every node, you are ready.

Equipment checklist

Below, each line is a question followed by its answer, separated by the ::: marker (cover everything to the right of the marker and test yourself). If any answer is fuzzy, that is exactly the piece to reread above before tackling the parent note.
