EM spectrum — all bands and applications: Visual walkthrough

Step 1 — What a travelling wave even is

Figure — EM spectrum — all bands and applications

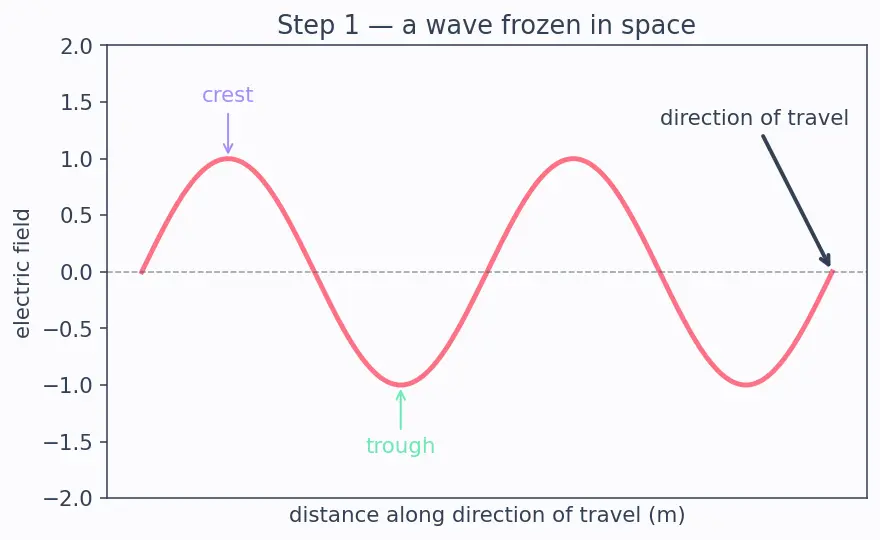

WHAT we drew: a snapshot of the wave frozen at one instant — a repeating up-down curve stretched along the direction of travel (the arrow points where it moves).

WHY freeze it: to measure a length you need everything to hold still. A photograph lets us read off the spatial size of one repeat.

PICTURE: the red curve rises to a crest (top), falls to a trough (bottom), and comes back. The horizontal distance from one crest to the very next crest is the one length that matters. We give it a name in Step 2.

Step 2 — Naming the length: wavelength $λ$

WHAT we did: put a ruler on the frozen snapshot and marked the span of exactly one repeat.

WHY this and not, say, crest-to-trough: crest-to-trough is only half a repeat. The pattern only truly "starts over" after crest-to-crest, so that is the honest unit of the wave's length.

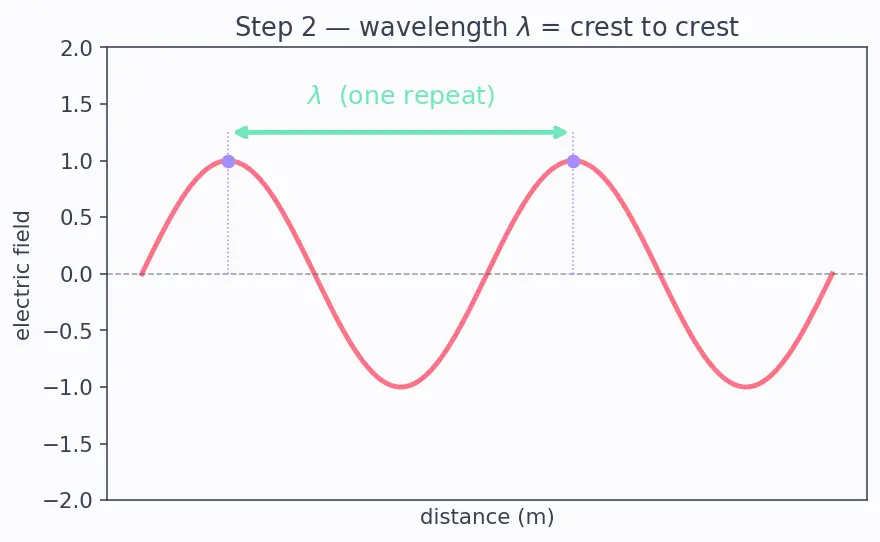

PICTURE: the mint double-arrow labelled $λ$ spans crest-to-crest. Notice — a stretched-out wave (few crests per metre) has a big $λ$ ; a scrunched-up wave has a small $λ$ . Hold that thought; it becomes the whole spectrum.

Step 3 — Naming the rhythm: period $T$ and frequency $ν$

Step 1 froze space. Now freeze one spot and watch it over time.

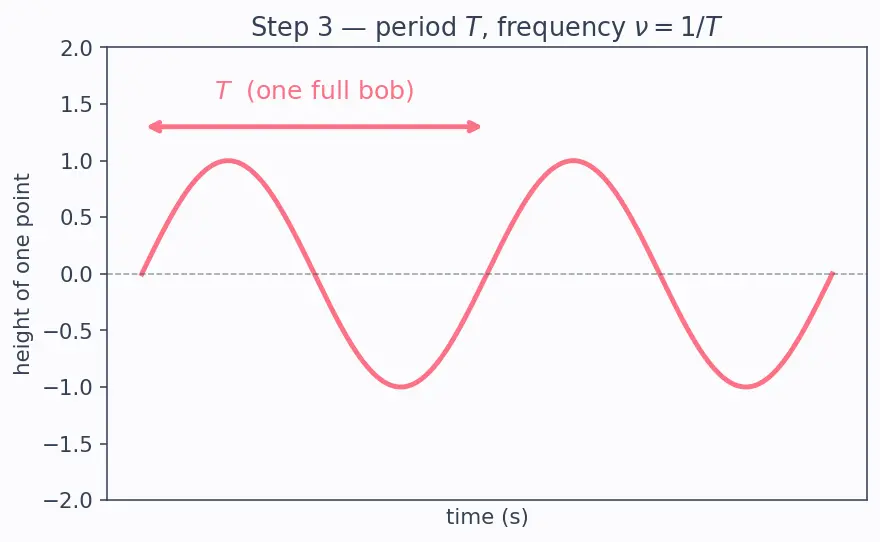

WHAT we did: plotted the height of a single point as time runs. Same up-down shape as Step 1 — but the horizontal axis is now time, not space.

WHY the reciprocal relation: if one bob takes $T = 0.5 s$ , then in one second you fit $1/0.5 = 2$ bobs, so $ν = 2 Hz$ . "Seconds per cycle" and "cycles per second" are just the same fact read upside down.

PICTURE: the coral double-arrow spans one period $T$ along the time axis. Fast bobbing = short $T$ = big $ν$ . Slow bobbing = long $T$ = small $ν$ .

Step 4 — The wave marches: linking length to rhythm

Here is the key move. The wave does not just wiggle in place — it travels. How far does it travel in the time of one full wiggle?

WHAT we did: took the frozen crest and let one whole period $T$ tick by. In that time the crest advances forward by exactly one wavelength $λ$ — the crest that was one slot behind now sits where the first crest was.

WHY exactly one wavelength: after one full period, every point has completed one full cycle and the pattern looks identical to how it started — but shifted forward by one repeat. One repeat of the pattern is, by definition (Step 2), one wavelength.

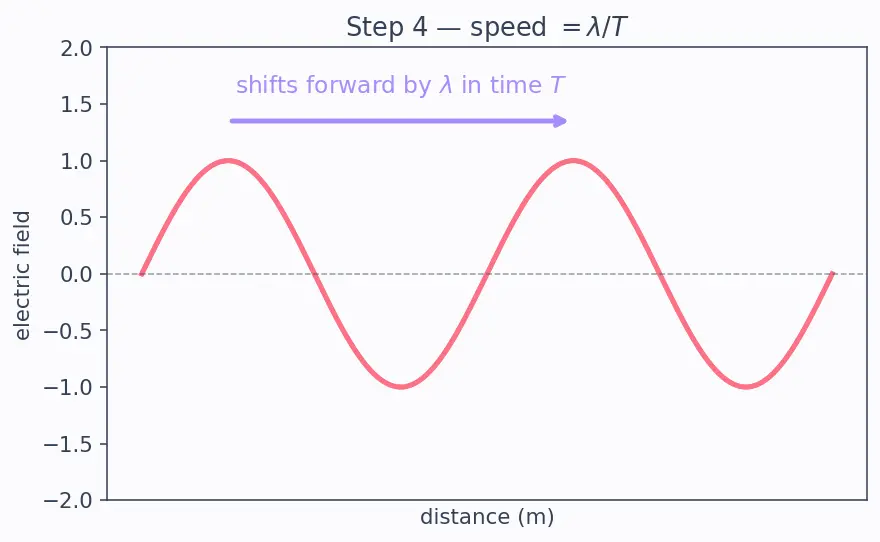

PICTURE: the faded curve is the "before"; the solid curve is one period later. The lavender arrow shows the whole pattern slid right by $λ$ .

Now use the plainest definition of speed there is: $speed = \frac{distance travelled}{time taken}$

distance travelled in one period $= λ$ (the whole pattern shifted by one wavelength),
time taken $= T$ (one period).

So the wave's speed is $speed = \frac{λ}{T} .$

Why divide? Speed is a rate — "how much distance per unit of time." Division is exactly the operation that turns " $λ$ metres in $T$ seconds" into "metres per one second." No other operation answers that question.

Step 5 — The first master relation: $c = ν λ$

For EM waves in vacuum, that speed has a fixed value we call $c = 3 \times 1 0^{8} m/s$ — the same for every EM wave (a fact forced by Maxwell's Equations).

Start from Step 4 and swap $T$ for $ν$ using the reciprocal from Step 3 ( $T = 1/ ν$ ):

$c = \frac{λ}{T} = \frac{λ}{1/ ν} = ν λ$

WHAT the equation says: the product $ν λ$ is pinned at $c$ . If one factor grows, the other must shrink to keep the product fixed.

WHY a see-saw and not two independent knobs: because $c$ is a constant, $ν$ and $λ$ are inversely locked — you cannot raise both. This is the see-saw in the figure: push frequency up (right end), wavelength drops (left end).

PICTURE: the see-saw with $ν$ on one seat and $λ$ on the other, the pivot labelled " $c$ = fixed." Radio sits on the low- $ν$ /high- $λ$ side; gamma sits on the high- $ν$ /low- $λ$ side. This see-saw IS the ordering of the whole spectrum.

Recall

Why can't $ν$ and $λ$ both increase for an EM wave in vacuum? ::: Because $ν λ = c$ is fixed; raising one forces the other down.

Step 6 — Light comes in lumps: introducing the photon

So far the wave is smooth and continuous. But experiment (the photoelectric effect) shows light delivers its energy in indivisible packets called photons. One photon is one "click" of light energy.

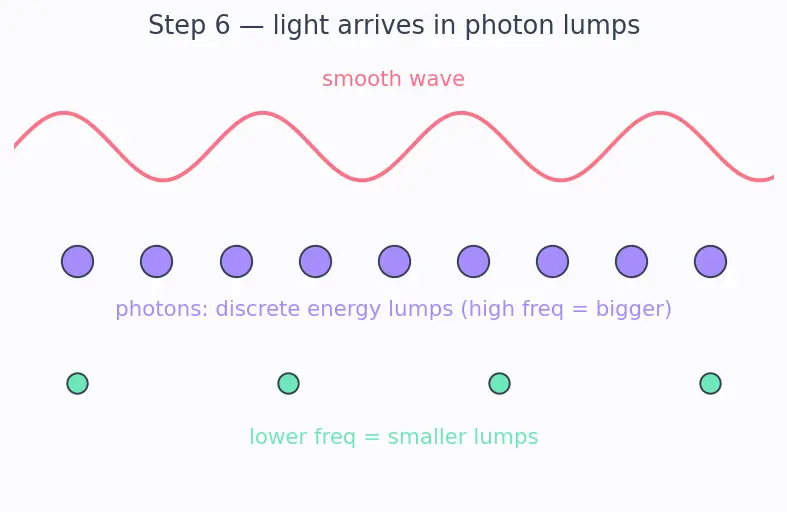

WHAT we drew: the smooth wave stream on the left; the same light as a train of discrete energy lumps on the right.

WHY we need this idea at all: nothing in $c = ν λ$ mentions energy. To explain why UV burns skin but radio doesn't, we need a rule connecting a wave's rhythm to the energy per lump. That rule is the next step.

PICTURE: each lump is a small filled circle; higher-frequency light (top, tight lumps) has bigger, brighter lumps — foreshadowing Step 7.

Step 7 — The second master relation: $E = h ν$

Planck and Einstein found the connection is astonishingly simple: each photon's energy is directly proportional to the wave's frequency.

$E = h ν$

WHAT the equation says: energy climbs in a straight line as frequency climbs. Double the frequency, double the photon energy.

WHY proportional (a straight line through zero) and not, say, squared: experiment demands it — the photoelectric stopping voltage rises linearly with frequency, and its slope measures $h$ . A straight line through the origin is exactly what " $E$ proportional to $ν$ " looks like.

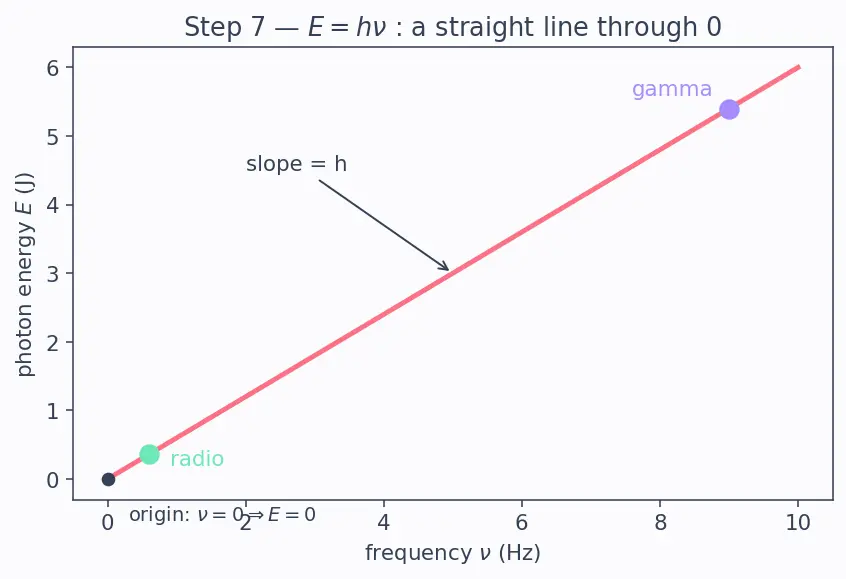

PICTURE: the straight coral line $E$ vs $ν$ ; the slope is $h$ . Mark radio near the origin (near-zero energy) and gamma far up the line (huge energy). At $ν = 0$ the line passes through the origin: zero frequency = zero photon energy, the sensible degenerate case.

Step 8 — Fusing both relations: $E = h c / λ$

We now have two boxes. One links $E$ to $ν$ (Step 7); the other links $ν$ to $λ$ (Step 5). Chain them to express energy through wavelength — often the handier variable.

From Step 5, solve for frequency: $c = ν λ \Rightarrow ν = \frac{c}{λ} .$ Why rearrange? We want to eliminate $ν$ and speak in $λ$ . Dividing both sides by $λ$ isolates $ν$ .

Substitute into $E = h ν$ : $E = h ν = h \cdot \frac{c}{λ} = \frac{h c}{λ} .$

WHAT we did: substituted one equation into the other to remove $ν$ .

WHY this form matters: it kills the single most common mistake — thinking "long wavelength = high energy." The $λ$ downstairs makes the opposite true. Tiny gamma wavelengths (bottom of the curve's input) give enormous energies.

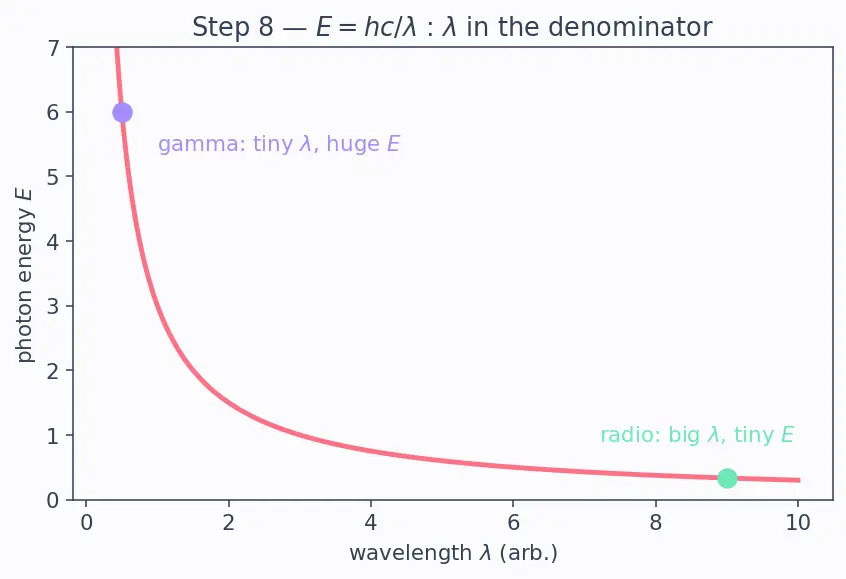

PICTURE: the curve of $E$ against $λ$ is a steep drop (a $1/ λ$ hyperbola). As $λ \to 0$ (gamma), $E$ shoots up; as $λ \to \infty$ (radio), $E$ sinks toward zero — the two limiting cases, both shown at the ends.

Step 9 — The edge cases, made explicit

WHAT we drew: the full $E (λ)$ curve with its two arms — the exploding gamma arm and the flattening radio arm.

WHY show the limits: a reader must never hit a scenario you didn't cover. These four cases (both infinities, zero, and "inside glass") are exactly the boundaries of the formulas.

PICTURE: left arm rockets upward (gamma), right arm hugs the axis (radio), and a dashed vertical line marks where our eyes' narrow visible slit sits — a reminder that "visible" is just one thin stripe.

Worked check (numbers you can trust)

The one-picture summary

This compresses all nine steps: a single wave feeds into the see-saw ( $ν λ = c$ ), the see-saw's frequency output feeds the straight line ( $E = h ν$ ), and the combined result is the $1/ λ$ energy curve ( $E = h c / λ$ ) — with radio at one end and gamma at the other. Follow the arrows and you have re-derived the entire spectrum.

Recall Feynman retelling — the whole walkthrough in plain words

Picture shaking a rope. Take a photo (space): the gap between two humps is the wavelength $λ$ . Now watch one spot instead (time): how long one full bob takes is the period $T$ , and how many bobs per second is the frequency $ν$ — just $T$ flipped over.

Let the wave march: in exactly one bob-time $T$ , the whole pattern slides forward by one hump, i.e. by $λ$ . Distance over time is speed, so speed $= λ / T$ . For light this speed is always the same number $c$ , and flipping $T$ into $ν$ gives $c = ν λ$ — a see-saw: shake faster, the humps get shorter.

Light also comes in tiny lumps called photons, and here's the magic rule: a lump's energy is just its frequency times a fixed tiny number $h$ , so $E = h ν$ — shake faster, harder punch. Swap frequency for wavelength ( $ν = c / λ$ ) and you get $E = h c / λ$ : short waves punch hard, long waves are gentle.

That's the whole spectrum. Radio: enormous lazy waves, feeble lumps, harmless. Gamma: microscopic frantic waves, wrecking-ball lumps, deadly. Same rope, same speed, only the shaking rate changes.

Recall

State the three boxed relations and how each was derived. ::: $c = ν λ$ (speed = distance $λ$ over time $T$ , with $T = 1/ ν$ ); $E = h ν$ (photon energy proportional to frequency, experiment); $E = h c / λ$ (substitute $ν = c / λ$ into $E = h ν$ ).
