Foundations — EM spectrum — all bands and applications

Before you can enjoy the parent note EM Spectrum, you must own every symbol it throws at you. This page builds each one from absolute zero — plain words, then a picture, then why the topic cannot live without it.

1. The wave itself: what is "oscillating"?

For light, the "thing wobbling" is not rope — it is the electric field (which pushes charges) and the magnetic field (which pushes moving charges), locked together, wiggling as they fly forward. You do not need the full Maxwell's Equations yet; just hold the picture: two fields, wiggling, moving.

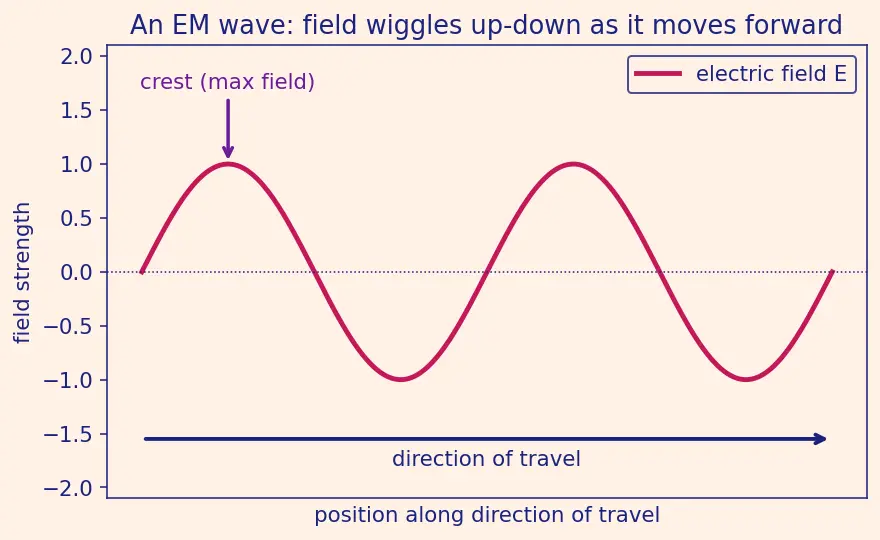

Look at the figure. The magenta curve is the electric field strength at each point along the direction of travel. The height of a bump is how strong the field is; the horizontal spacing between bumps is what we will call the wavelength.

2. $\lambda$ — wavelength (a length in space)

Why the topic needs it. The whole spectrum is ordered by $\lambda$ — from kilometre-long radio waves down to sub-picometre gamma rays. When the parent note says "X-rays have $\lambda \sim 0.1$ nm $\approx$ atomic spacing", that comparison of two lengths is exactly why X-rays diffract off crystals (Bragg diffraction).

3. $T$ — period, and $\nu$ — frequency (a rate in time)

They are two views of the same clock, so they are reciprocals:

$\nu =\frac{1}{T},T=\frac{1}{\nu }.$

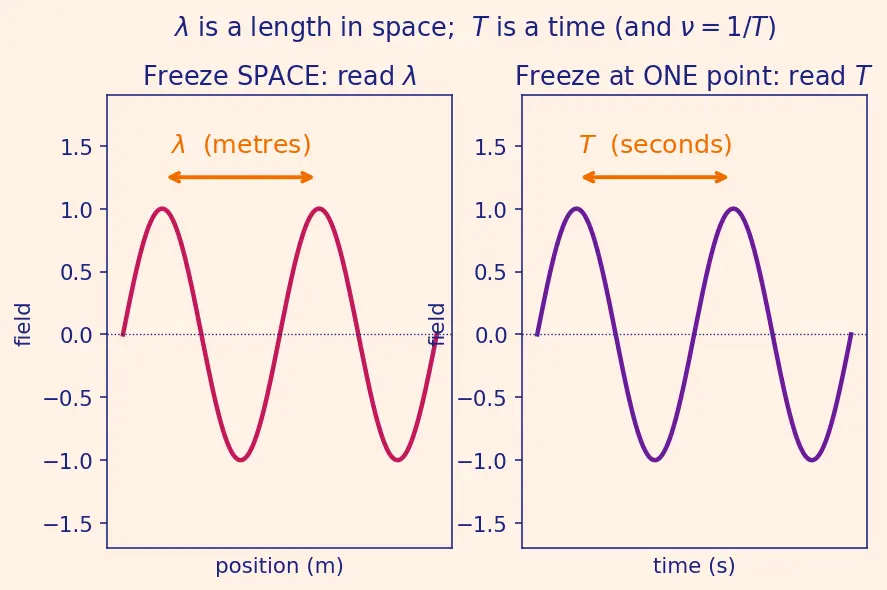

Look at the figure. Left panel: freeze space, read $\lambda$ off the ruler (a length). Right panel: freeze at one point, watch time pass, read $T$ off the clock (a time). Different axes, different meaning — do not mix them up.

Why the topic needs $\nu$. The parent note's ONE idea is that frequency alone distinguishes every band. $\nu$ is the star of the whole show.

4. $c$ — the speed of light (the locked constant)

Now substitute $T=1/\nu$:

$c=\frac{\lambda }{T}=\lambda \nu ⟹\boxed{c=\nu \lambda }$

This is the Wave speed c = νλ relation. Because $c$ is locked, $\nu$ and $\lambda$ must trade off: push $\nu$ up and $\lambda$ must shrink to keep the product fixed.

5. $h$ and $E$ — photon energy (light comes in lumps)

Planck and Einstein found the energy of one photon is directly proportional to its frequency:

$\boxed{E=h\nu }\text{and, using }\nu =\frac{c}{\lambda },E=\frac{hc}{\lambda }.$

This is Photon energy E = hν.

Why the topic needs $h$ and $E$. Every "what is it used for?" answer is really an energy answer: UV ($\sim$ eV) can break DNA bonds, X-rays ($\sim$ keV) slip through soft tissue, visible ($\sim 2$ eV) matches Atomic spectra electron transitions.

6. eV — a friendly unit for tiny energies

7. Powers of ten (scientific notation) — because the numbers are wild

How it all fits together

Every box on the left is a foundation; they all funnel into the single topic box at the bottom.

Worked warm-up (test the machinery)

Equipment checklist

Cover the right side and check you can produce each on demand.
