1.8.35Electromagnetism

EM spectrum — all bands and applications

2,137 words10 min readdifficulty · medium
🇮🇳 Yeh note Hinglish mein padho →

WHY does a "spectrum" even exist?

The bands are not physically distinct kinds of light. They overlap and there are no hard walls — a "soft X-ray" and a "hard UV photon" can have the same energy.

The master relations (derive, don't memorise)

HOW the speed–frequency–wavelength relation arises. Speed = distance per time. In one period TT the wave advances exactly one wavelength λ\lambda. So

c=distancetime=λT.c = \frac{\text{distance}}{\text{time}} = \frac{\lambda}{T}.

Since frequency ν=1/T\nu = 1/T (cycles per second is the reciprocal of seconds per cycle),

c=νλ\boxed{c = \nu\lambda}

Why this step? We just substituted T=1/νT = 1/\nu. Big ν\nu ⇒ small λ\lambda — they trade off because their product is locked at cc.

HOW photon energy comes in (Planck–Einstein). Light is quantised into photons. Planck found energy comes in lumps proportional to frequency:

E=hν=hcλ\boxed{E = h\nu = \frac{hc}{\lambda}}

with h=6.63×10−34 J⋅sh = 6.63\times10^{-34}\,\text{J·s}.

Why this step? Used ν=c/λ\nu = c/\lambda. The punchline: higher frequency = shorter wavelength = more energetic photon. This single chain (ν↑⇒λ↓⇒E↑\nu\uparrow \Rightarrow \lambda\downarrow \Rightarrow E\uparrow) explains all the applications below.

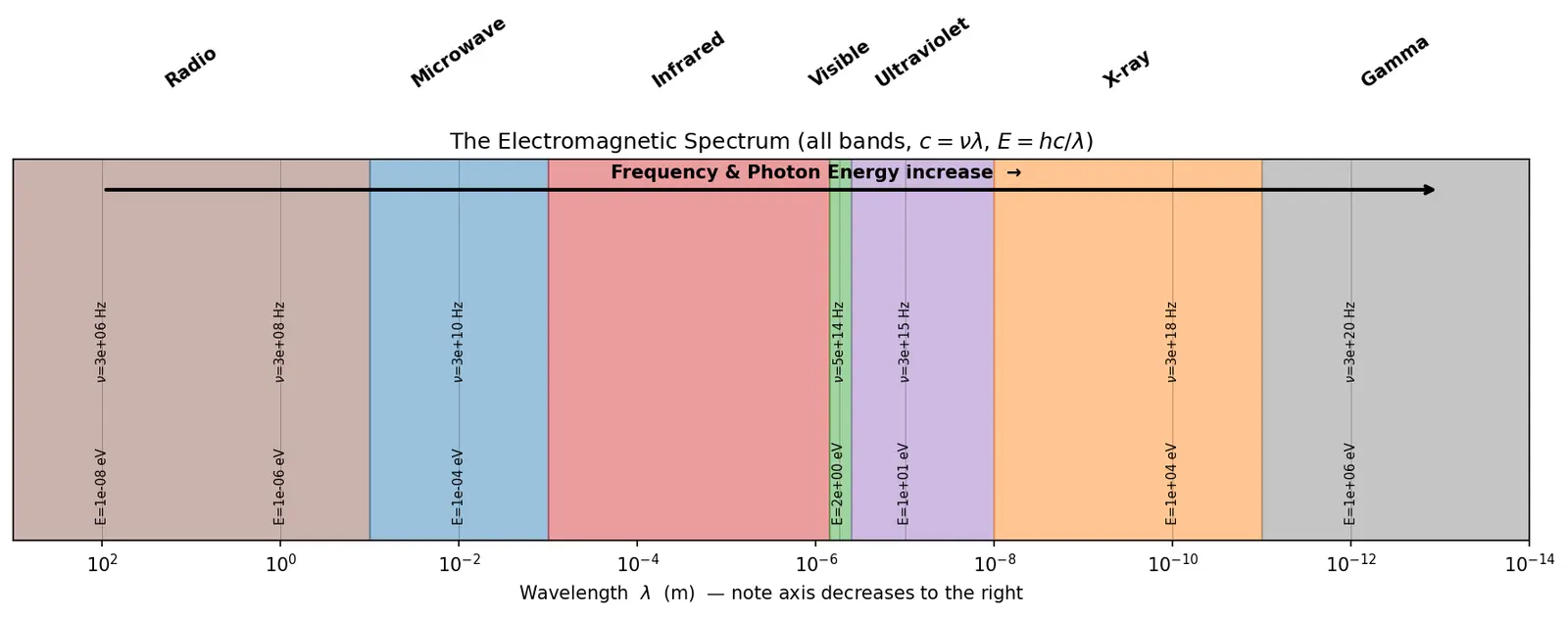

Figure — EM spectrum — all bands and applications

The bands (in order of increasing frequency / energy)

Band λ\lambda (rough) How produced Key applications
Radio >0.1>0.1 m LC oscillators, accelerating charges in antennas AM/FM, TV, mobile, MRI (RF coils)
Microwave 1 mm – 0.1 m Klystrons, magnetrons Radar, microwave ovens (dielectric heating of water), satellite & Wi-Fi
Infrared (IR) 700 nm – 1 mm Hot bodies, molecular vibrations Thermal imaging, remote controls, optical fibre, heating
Visible 400–700 nm Atomic electron transitions, hot solids Vision, photography, lasers
Ultraviolet (UV) 10–400 nm Very hot bodies (Sun), gas discharges Sterilisation, vitamin D, fluorescence, sunburn
X-ray 0.01–10 nm Sudden deceleration of fast electrons (Bremsstrahlung), inner-shell transitions Medical imaging, crystallography
Gamma <0.01<0.01 nm Nuclear transitions, radioactive decay Cancer therapy, sterilising medical tools, nuclear physics

Worked examples

Common mistakes (steel-manned)

Active recall

Recall Cover and answer
  • What single quantity distinguishes all EM bands? Frequency (⇔ wavelength).
  • Order from low to high energy? Radio, micro, IR, visible, UV, X-ray, gamma.
  • Why is FM antenna metres long? λ=c/ν≈3\lambda=c/\nu\approx3 m at 100 MHz; antenna ∼λ\sim\lambda.
  • Why do X-rays diffract off crystals? λ∼0.1\lambda\sim0.1 nm ≈\approx atomic spacing.
  • Why does UV sterilise but radio can't? UV photon energy (∼\sim eV) breaks DNA bonds; radio (∼10−6\sim10^{-6} eV) cannot.
  • Speed of all bands in vacuum? c=3×108c=3\times10^8 m/s, identical.
Recall Feynman: explain to a 12-year-old

Imagine a long skipping rope you shake. Shake slowly → big lazy waves (that's radio). Shake super fast → tiny rapid waves (that's gamma rays). It's the same rope — same kind of wave moving at the same super-fast speed. The faster you shake, the more "punch" each wave carries. Slow waves (radio) are gentle and pass through walls; fast ones (X-rays) are punchy and pass through your skin; the fastest (gamma) are so punchy they can kill cells. Your eyes can only "see" a tiny middle range — that's the colours.

Connections

  • Maxwell's Equations — predict EM waves of any frequency at speed cc.
  • Wave speed c = νλ — the locking relation.
  • Photon energy E = hν — Planck–Einstein quantisation.
  • Atomic spectra — why visible/UV come from electron transitions.
  • Refractive index and dispersion — why speed varies in media.
  • Bragg diffraction — why X-rays probe crystals.
  • Blackbody radiation — why hot bodies emit IR/visible/UV.
What single physical quantity distinguishes one EM band from another?
Frequency (equivalently wavelength); all else follows.
State the relation between speed, frequency and wavelength in vacuum.
c=νλc=\nu\lambda with c=3×108c=3\times10^8 m/s.
Derive E=hc/λE=hc/\lambda from E=hνE=h\nu.
Substitute ν=c/λ\nu=c/\lambda into E=hνE=h\nu.
Order the EM bands from lowest to highest photon energy.
Radio, microwave, infrared, visible, UV, X-ray, gamma.
Why are radio antennas often metres long?
Antenna length scales with λ\lambda; at 100 MHz, λ=c/ν=3\lambda=c/\nu=3 m.
Why do X-rays diffract from crystals?
Their λ∼0.1\lambda\sim0.1 nm matches atomic spacing.
Why can UV sterilise but radio cannot?
UV photon energy (∼\simeV) breaks DNA bonds; radio (∼10−6\sim10^{-6} eV) is far too weak.
At what speed do gamma rays vs radio waves travel in vacuum?
Both at exactly c=3×108c=3\times10^8 m/s.
What produces gamma rays vs radio waves?
Gamma: nuclear transitions/decay. Radio: accelerating charges in antennas/LC oscillators.
True or false: longer wavelength means higher photon energy.
False — energy ∝ν∝1/λ\propto\nu\propto1/\lambda, so longer λ\lambda means lower energy.
Photon energy of 550 nm green light in eV?
E=hc/λ≈3.6×10−19E=hc/\lambda\approx3.6\times10^{-19} J ≈2.25\approx2.25 eV.
Why does a microwave oven heat water (mechanism)?
Bulk dielectric relaxation: the oscillating field drags polar water molecules, which lag and dissipate energy as heat over a broad band — not a discrete single-photon resonance.

Concept Map

allow any frequency

chopped by convenience

only difference

c = v lambda

E = h v

inverse

higher energy

ordered by v

low E

mid E

high E

used for

used for

used for

Maxwell equations

EM continuum

Named bands

Frequency v

Wavelength lambda

Photon energy

Radio to Gamma order

Radio and Microwave

IR and Visible

UV X-ray Gamma

Applications

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, sabse bada idea yeh hai: radio wave se lekar gamma ray tak, sab ek hi cheez hai — oscillating electric aur magnetic field jo vacuum mein same speed c=3×108c=3\times10^8 m/s se chalti hai. Inme fark sirf frequency ka hai. Bas yahi ek number badalta hai, baaki sab — kaise banti hai, matter ke saath kaise interact karti hai, kis kaam aati hai — automatically isi se nikalta hai.

Do formula yaad rakho, lekin ratna mat, samajhna: c=νλc=\nu\lambda (ek period mein wave ek wavelength aage jaati hai, isliye), aur E=hν=hc/λE=h\nu=hc/\lambda (Planck). Iska matlab: zyada frequency ⇒ choti wavelength ⇒ zyada energy per photon. Isi chain se sab clear ho jaata hai — radio ki wavelength metres mein hoti hai aur energy bahut kam (isiliye FM antenna metre-lamba hota hai), jabki X-ray ki wavelength 0.1 nm (atom ke size jitni, isliye crystal pe diffract karti hai) aur gamma ki energy itni zyada ki cancer cells maar de.

Order yaad karne ke liye mnemonic: Radio, Microwave, Infrared, Visible, Ultraviolet, X-ray, Gamma — left se right energy badhti, wavelength ghatti. Application bhi mechanism se yaad rakho: microwave oven mein oscillating field paani ke polar molecules ko baar-baar ghumata hai, woh field ke peeche lag karte hain, aur yeh lag (bulk dielectric relaxation) energy ko heat mein badal deta hai — yeh koi single-photon resonance nahi hai. UV DNA bonds tod kar sterilise karta hai, X-ray bone aur tissue ka contrast deta hai.

Sabse common galti: "zyada wavelength matlab zyada energy" — bilkul galat! Energy frequency ke saath jaati hai, aur λ\lambda inversely related hai. Doosri galti: alag-alag band alag speed se chalte hain — nahi, vacuum mein sab cc pe. Speed sirf medium (jaise glass) mein change hoti hai. Yeh do baat exam mein pakki marks dilaayegi.
