Poynting vector — energy flux in EM waves

WHAT is the Poynting vector?

WHY a cross product? Energy flow needs a direction, and it must be perpendicular to both $\vec E$ and $\vec B$ (that's where the wave goes). The cross product is the natural object that is perpendicular to both and vanishes when the fields are parallel (no propagating wave).

HOW to derive it from first principles

We want a bookkeeping equation: rate of change of stored field energy + outflow = work done by fields on charges. Start from Maxwell's equations and the energy density.

Step 2 — Take the time derivative of $u$ : $\frac{\partial u}{\partial t} = \varepsilon_0\,\vec E\cdot\frac{\partial\vec E}{\partial t} + \frac{1}{\mu_0}\vec B\cdot\frac{\partial\vec B}{\partial t}$ Why? We track how the stored energy changes in time so we can find where it went.

Step 3 — Substitute Maxwell's curl equations (free space + currents): $\nabla\times\vec B = \mu_0\vec J + \mu_0\varepsilon_0\frac{\partial\vec E}{\partial t}\;\Rightarrow\;\varepsilon_0\frac{\partial\vec E}{\partial t} = \frac{1}{\mu_0}\nabla\times\vec B - \vec J$ $\nabla\times\vec E = -\frac{\partial\vec B}{\partial t}\;\Rightarrow\;\frac{\partial\vec B}{\partial t} = -\nabla\times\vec E$ Why? Maxwell's equations are the only laws that tell us how the fields evolve — substituting them turns "rate of energy change" into something about currents and field geometry.

Step 4 — Plug in: $\frac{\partial u}{\partial t} = \vec E\cdot\!\left(\frac{1}{\mu_0}\nabla\times\vec B - \vec J\right) - \frac{1}{\mu_0}\vec B\cdot(\nabla\times\vec E)$

Step 5 — Use the vector identity $\nabla\cdot(\vec E\times\vec B) = \vec B\cdot(\nabla\times\vec E) - \vec E\cdot(\nabla\times\vec B)$ : $\frac{1}{\mu_0}\big[\vec E\cdot(\nabla\times\vec B) - \vec B\cdot(\nabla\times\vec E)\big] = -\frac{1}{\mu_0}\nabla\cdot(\vec E\times\vec B) = -\nabla\cdot\vec S$ Why? This identity is exactly what lets us package the two curl terms into the divergence of a single vector — that vector is $\vec S$ .

Specializing to a plane EM wave

Since $\vec E\perp\vec B$ , $|\vec E\times\vec B| = EB$ , so $S = \frac{EB}{\mu_0} = \frac{E(E/c)}{\mu_0} = \frac{E^2}{\mu_0 c} = \varepsilon_0 c\,E^2$ Why $B=E/c$ ? From Maxwell's wave solution the field amplitudes are locked by the wave speed; and $\frac{1}{\mu_0 c} = \varepsilon_0 c$ using $c^2 = 1/(\mu_0\varepsilon_0)$ .

Intensity = time-averaged S. With $E = E_0\cos(kx-\omega t)$ , $\langle\cos^2\rangle = \tfrac12$ :

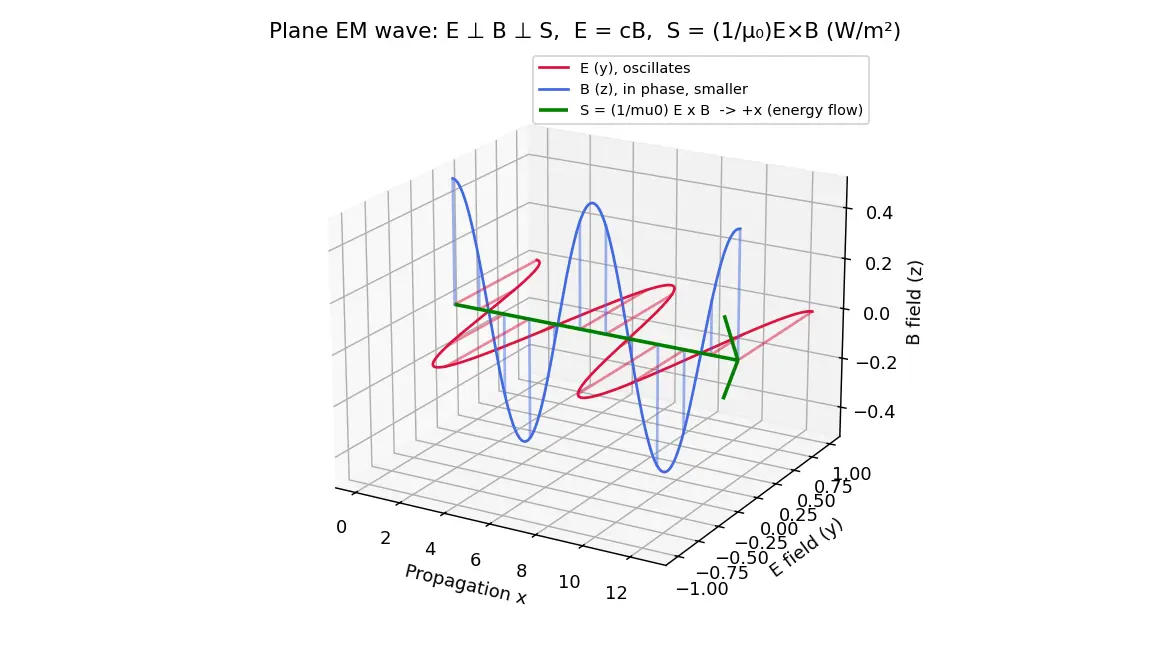

Figure — Poynting vector — energy flux in EM waves

Worked examples

Worked example 1. Sunlight intensity → field amplitude

Sunlight at Earth: $I \approx 1360\,\text{W/m}^2$ . Find $E_0$ . Use $I = \tfrac12\varepsilon_0 c E_0^2 \Rightarrow E_0 = \sqrt{\dfrac{2I}{\varepsilon_0 c}}$ . Why this step? We invert the intensity formula because intensity is what we measure, $E_0$ is what we want. $E_0 = \sqrt{\dfrac{2(1360)}{(8.85\times10^{-12})(3\times10^8)}} \approx 1.0\times10^3\,\text{V/m}$ . Then $B_0 = E_0/c \approx 3.4\times10^{-6}\,\text{T}$ — tiny, which is why magnetic effects of light are usually ignored.

Common mistakes (steel-manned)

Useful relations to keep

Recall Feynman: explain it to a 12-year-old

Imagine a river. The amount of water in each bucket is like the energy stored in the fields ( $u$ ). The river's current — how much water rushes past you per second — is the Poynting vector $\vec S$ . Light is a wave that carries energy, and $\vec S$ is the arrow showing which way the energy is rushing and how fast. Electric and magnetic fields are like two dancers who always face at right angles to each other; the direction they push energy is perpendicular to both, like sticking out your thumb when your fingers curl from $E$ to $B$ .

Flashcards

What is the Poynting vector formula?

\vec S = \frac{1}{\mu_0}\vec E\times\vec B

, units W/m².

What does the direction of

\vec S

represent?

The direction of energy flow (propagation direction for a wave).

State Poynting's theorem.

\frac{\partial u}{\partial t} + \nabla\cdot\vec S = -\vec J\cdot\vec E

(energy conservation for fields + charges).

What is the EM energy density

u

u = \tfrac12\varepsilon_0 E^2 + \frac{1}{2\mu_0}B^2

Why is

\vec S

a cross product, not a dot product?

Energy flow has a direction perpendicular to both

\vec E

and

\vec B

; cross product captures that.

Relation between E and B amplitudes in a vacuum wave?

E = cB

(in phase, but B smaller by factor c).

Time-averaged intensity in terms of

E_0

I = \tfrac12\varepsilon_0 c E_0^2

(the

\tfrac12

from

\langle\cos^2\rangle

Relation between

S

and energy density

u

for a wave?

S = uc

(flux = density × speed).

Radiation pressure for full absorption vs reflection?

I/c

(absorbed),

2I/c

(reflected).

In a resistor, which way does

\vec S

point?

Radially inward through the side surface; integrates to

I^2R

How do you get total power from

\vec S

P = \oint \vec S\cdot d\vec A

Connections

Maxwell's equations — source of the curl substitutions used in the derivation.
EM wave equation — gives $E=cB$ and $c^2=1/\mu_0\varepsilon_0$ .
Energy density of electric and magnetic fields — the $u$ we differentiated.
Radiation pressure — momentum analog of $\vec S$ ( $\vec g = \vec S/c^2$ ).
Vector calculus identities — the $\nabla\cdot(\vec E\times\vec B)$ identity.
Intensity and amplitude of waves — the time-averaging step.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, Poynting vector ka matlab simple hai: EM field me energy stored hoti hai, aur jab wave chalti hai to ye energy flow karti hai. Poynting vector $\vec S = \frac{1}{\mu_0}\vec E\times\vec B$ batata hai ki per unit area, per second kitni energy ja rahi hai aur kis direction me. Units W/m². Cross product isliye hai kyunki energy ko ek direction chahiye jo $\vec E$ aur $\vec B$ dono ke perpendicular ho — yahi wave ki travel direction hai.

Derivation ka core idea ek "energy ka hisaab-kitaab" hai. Hum field energy density $u = \tfrac12\varepsilon_0E^2 + \tfrac{1}{2\mu_0}B^2$ ka time derivative lete hain, usme Maxwell ke curl equations daalte hain, aur ek vector identity use karke sab kuch ek divergence $\nabla\cdot\vec S$ me pack ho jaata hai. Result: $\frac{\partial u}{\partial t} + \nabla\cdot\vec S = -\vec J\cdot\vec E$ . Yaani energy na banti na khatam hoti — bas flow karti hai ya charges pe kaam karti hai. Yahi Poynting's theorem hai.

Wave ke liye special baat: $\vec E\perp\vec B$ , dono in-phase, aur $E = cB$ . Isse $S = \varepsilon_0 c E^2$ . Lekin intensity time-average hoti hai, to $\langle\cos^2\rangle = \tfrac12$ aata hai, aur $I = \tfrac12\varepsilon_0 c E_0^2$ . Ye aadha (half) bhulna sabse common galti hai — yaad rakhna!

Kyun important hai? Sunlight ki strength, laser power, radiation pressure (solar sail), antenna se nikalti energy — sab isi se nikalta hai. Aur ek mast insight: resistor me energy wire ke "andar se" nahi, balki side surface se field ke through aati hai — ye Poynting vector hi prove karta hai.
