Foundations — Magnetic flux Φ = ∫B·dA

Before you can read $\Phi ={\int }_S\mathbf{B}\cdot d\mathbf{A}$ with understanding, every mark in it must mean something to you. This page walks through each symbol and idea in the order it must be built, so nothing is used before it is earned. If the parent note leaned on it, we build it here.

See also the parent: Magnetic flux Φ = ∫B·dA.

1. A surface, and the idea of "through"

The whole topic asks about things passing through a surface. So the very first mental image you need is a hoop held up in space with stuff flowing at it.

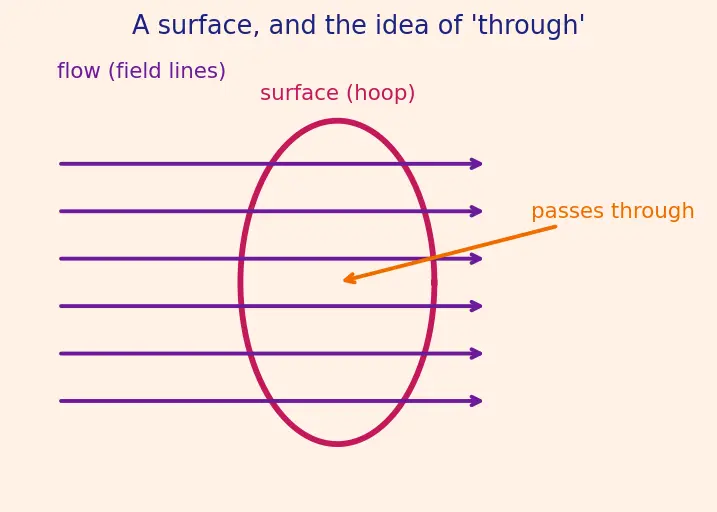

Look at the figure: a flat ring, and arrows (the "flow") heading toward it. Some arrows go through the opening, some would miss or skim past. "Flux" will be the count of arrows that actually pierce through.

• Picture: a paper ring held up in rain.
• Why the topic needs it: flux is defined relative to a surface. No surface → nothing to pierce → no flux to speak of.

2. Area $A$ and the area vector $\mathbf{A}$

That is the familiar meaning. But the topic needs more: it needs to know which way the surface faces. A number alone (like $0.04{\text{m}}^2$) cannot say "facing up" versus "facing sideways." So we attach a direction to the area.

The hat symbol $\hat{}$ always means "this arrow has length exactly $1$ — it only carries a direction, not a size." So $\hat{\mathbf{n}}$ tells us which way the surface faces, and multiplying by $A$ glues the size back on.

• Picture: a flat plate with a single spike poking straight out of its middle.
• Why the topic needs it: tilting the plate rotates that spike. The whole game of flux is comparing the spike's direction to the field's direction. Without a direction attached to area, "tilt" would have no meaning.

3. The magnetic field $\mathbf{B}$

We draw the field as a family of field lines. Where lines are packed tightly, the field is strong; where they spread out, it is weak. So the density of lines is a picture of $B$.

• Picture: iron filings around a magnet forming curved streaks — those streaks are field lines.
• Why the topic needs it: $\mathbf{B}$ is the "flow" that pierces the surface. It is bold because at each point it has both a strength and a direction, exactly like the area vector. For deeper detail see Magnetic Field B.

4. Angle $\theta$ — measured from the normal

Now we have two arrows: the field $\mathbf{B}$ and the normal $\hat{\mathbf{n}}$. The single most important geometric quantity in the whole topic is the angle between them.

The figure shows all three key cases side by side. Trace each with your eye:

• $\theta =0^{\circ }$ (face-on): the spike $\hat{\mathbf{n}}$ points the same way as $\mathbf{B}$. The surface stares straight into the flow — maximum lines pierce it.

• $\theta =90^{\circ }$ (edge-on): the spike is at right angles to $\mathbf{B}$; the field lies in the surface plane and lines skim along it — zero pierce.

• In between: partial.

• Why measure from the normal and not the surface? Because "face-on" (best case) should give the smallest angle, and $\cos 0^{\circ }=1$ delivers the maximum. If we measured from the surface plane instead, face-on would be $90^{\circ }$ and the formula would be upside-down. Measuring from the normal makes the geometry and the arithmetic agree.

5. Cosine — the projection tool

We need $\cos$ specifically because tilting a surface shrinks the effective facing-area exactly by this projection factor. No other function does this: at $\theta =0$ nothing is lost ($\cos 0=1$), at $\theta =90^{\circ }$ everything is lost ($\cos 90^{\circ }=0$), and it varies smoothly in between. That is precisely the behaviour "how much of the surface faces the field" must have.

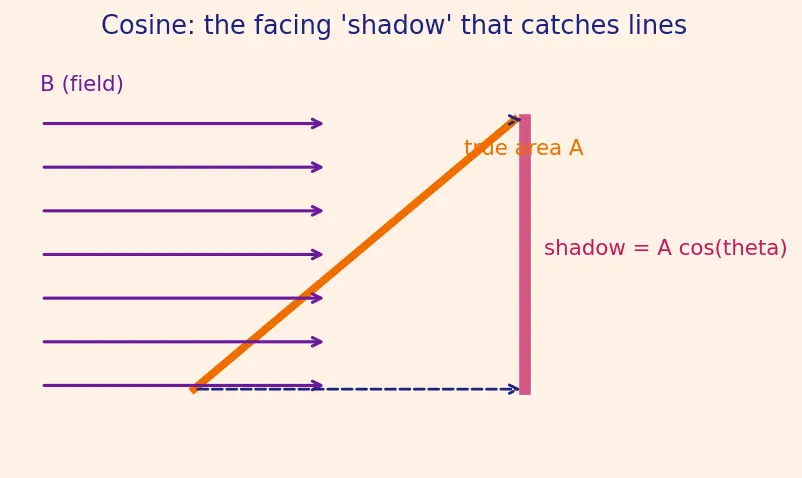

The figure shows a tilted plate: its true area is $A$, but the area the field actually sees head-on is the shadow $A\cos \theta$. That shadow is what catches lines.

• Why not sine? $\sin \theta$ is $0$ at $\theta =0$ and $1$ at $90^{\circ }$ — the exact opposite of what we want. Face-on must give the most flux, so we need the function that is $1$ at $\theta =0$: that is cosine.

6. The dot product $\mathbf{B}\cdot \mathbf{A}$

We now have every piece to read the multiplication in the parent's boxed formula.

• Why the output is a scalar (one number): you cannot "count lines" with an arrow — a count is a plain number. The dot product's job is to collapse two directions into one honest count.
• More practice with these objects: Surface and Line Integrals.

So the boxed result $\Phi =\mathbf{B}\cdot \mathbf{A}=BA\cos \theta$ is now fully readable: strength $B$, area $A$, aligned by $\cos \theta$.

7. The tiny patch $d\mathbf{A}$ and the integral ${\int }_S$

Real fields change from place to place, and real surfaces curve. One angle $\theta$ can't describe a curved sheet in a varying field. So we do the calculus trick.

• Picture: covering a curved sheet with thousands of tiny flat tiles, each with its own little spike; you evaluate flux tile by tile and total it up.
• Why the topic needs it: it is the only honest way to handle a field that varies or a surface that bends. Every simpler case ($\Phi =BA\cos \theta$) is this integral where everything happens to be constant.

8. Putting the whole symbol together

You can now read every mark of $\Phi ={\int }_S\mathbf{B}\cdot d\mathbf{A}$ out loud in plain words:

"$\Phi$ (the flux, one number) equals the sum (${\int }_S$), over every tiny patch of the surface, of the field strength times the facing bit of that patch's area ($\mathbf{B}\cdot d\mathbf{A}$)."

• $\Phi$ (phi) — the answer, a scalar, in webers (Wb).
• Unit reminder: $1\text{Wb}=1\text{T}\cdot {\text{m}}^2$ — literally (field in tesla) $\times$ (area in ${\text{m}}^2$).

These foundations then power the rest of the chapter: Faraday's Law of Induction and Lenz's Law care about how $\Phi$ changes, Inductance relates flux to current, and Electric Flux is the same construction with $\mathbf{E}$ instead of $\mathbf{B}$.

Prerequisite map

Read top to bottom: each idea only uses arrows that already point into it.

Equipment checklist

Cover the answers and test whether you are ready for the parent page.
