First law of thermodynamics — dU = dQ − dW, sign conventions: Worked examples

Before anything, recall the only three quantities and one rule we use everywhere on this page.

Recall The one rule (from the parent)

$Δ U = Q - W$

$Q$ = heat added to the gas ( $+$ in, $-$ out).
$W$ = work done by the gas ( $+$ when it expands, $-$ when compressed).
$Δ U$ = change in internal energy ( $+$ = hotter for an ideal gas). Everything below is just plugging into this, being careful with the two signs.

The scenario matrix

The First Law has exactly two inputs that carry a sign: heat $Q$ and work $W$ . Each can be positive, negative, or zero. That is a $3 \times 3$ grid — the complete universe of cases. Below, each cell names the physical situation and points to the example that nails it.

	$W > 0$ (gas expands)	$W = 0$ (fixed volume)	$W < 0$ (gas compressed)
$Q > 0$ (heat in)	Ex 1 — heat in, work out	Ex 3 — isochoric heating	Ex 2 — heat in and squeezed
$Q = 0$ (adiabatic)	Ex 5 — adiabatic expansion	Ex 6 — degenerate: free expansion	Ex 4 — adiabatic compression
$Q < 0$ (heat out)	Ex 7 — heat out yet expands	Ex 3 (variant)	Ex 8 — both signs negative

Two more cells that don't fit the 3×3 grid but must be shown:

Special-shape work — isobaric ( $W = P Δ V$ directly), isothermal ( $Δ U = 0$ ). → Ex 9
Word problem / exam twist — a cyclic process where $Δ U = 0$ over a full loop. → Ex 10

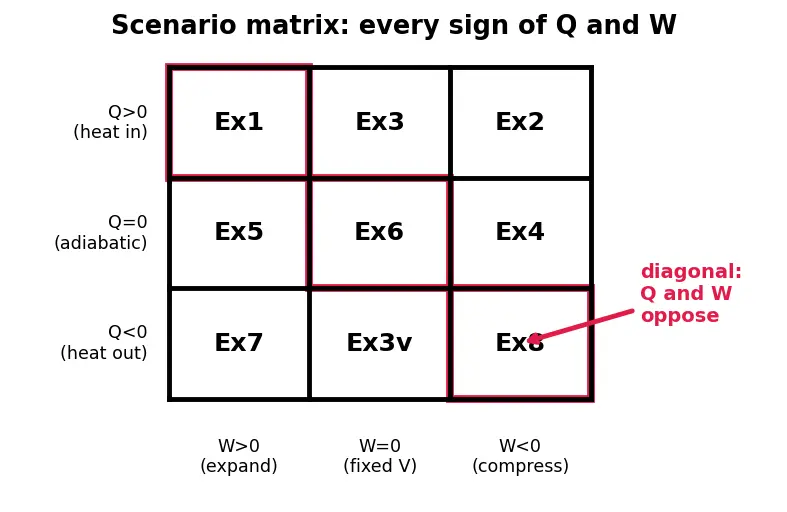

The figure below is the same grid drawn as a picture — memorise the diagonal (top-left to bottom-right) as "the boring cases where $Q$ and $W$ push $Δ U$ opposite ways."

Figure — First law of thermodynamics — dU = dQ − dW, sign conventions

The examples

Cell $(Q > 0, W > 0)$ — heat in, gas pushes out

Cell $(Q > 0, W < 0)$ — heat in AND squeezed

Cell $(Q > 0, W = 0)$ — fixed volume (isochoric)

Worked example Example 3 — Isochoric heating (and its heat-out variant)

A gas in a rigid sealed container absorbs $80$ J of heat. Find $Δ U$ . Then: if instead it loses $80$ J, find $Δ U$ .

Forecast: Rigid means the walls can't move, so the gas can't push anything. With no work, all heat becomes internal energy. Guess $Δ U = \pm 80$ J.

Why is $W = 0$ ? Volume is fixed ⇒ $d V = 0$ ⇒ $W = \int P d V = 0$ . Why this step? Work only happens through volume change; no volume change, no work — see Work done in thermodynamic processes (PV diagrams).
Heat-in case. $Δ U = Q - 0 = + 80$ J.
Heat-out variant. Now $Q = - 80$ : $Δ U = - 80 - 0 = - 80$ J (gas cools).

Verify: With $W = 0$ , $Δ U$ tracks $Q$ exactly, sign and all. $+ 80$ heats, $- 80$ cools. ✓ This is why the heat capacity at constant volume $C_{v}$ is the "cleanest" one — see Heat capacities Cp and Cv.

Cell $(Q = 0, W < 0)$ — adiabatic compression

Cell $(Q = 0, W > 0)$ — adiabatic expansion

Degenerate cell $(Q = 0, W = 0)$ — free expansion into vacuum

Worked example Example 6 — Free expansion (both terms zero)

An ideal gas rushes into an evacuated chamber (vacuum). No heat is exchanged and it pushes on nothing. Find $Δ U$ and $Δ T$ .

Forecast: If nothing pushed back, no work was done — and no heat flowed. Nothing crossed the boundary. So $Δ U$ must be exactly $0$ .

Why $W = 0$ ? The gas expands into vacuum — there is no piston, no surroundings resisting. Force it pushes against $= 0$ , so $W = 0$ even though $d V > 0$ . Why this step? This is the trap: volume does increase, but work needs something to push on. Zero opposing pressure ⇒ zero work.
Why $Q = 0$ ? Insulated / sudden ⇒ no heat crosses.
Plug in. $Δ U = 0 - 0 = 0$ J.
Temperature. For an ideal gas $U = U (T)$ only, so $Δ U = 0 \Rightarrow Δ T = 0$ — see Internal energy and degrees of freedom.

Verify: Both channels shut ⇒ internal energy untouched ⇒ temperature unchanged. This is the classic result: ideal free expansion does not cool the gas. ✓

Cell $(Q < 0, W > 0)$ — the surprising one: heat OUT yet gas EXPANDS

Cell $(Q < 0, W < 0)$ — both negative

Special-shape work — isobaric then isothermal

Worked example Example 9 — Isobaric expansion, then an isothermal check

(a) A gas expands at constant pressure $P = 2 \times 1 0^{5}$ Pa from $V_{1} = 1 \times 1 0^{- 3}$ m³ to $V_{2} = 3 \times 1 0^{- 3}$ m³, absorbing $Q = 700$ J. Find $W$ and $Δ U$ . (b) Separately, an ideal gas expands isothermally absorbing $Q = 400$ J. Find $W$ .

Forecast (a): Constant pressure means work is just $P$ times the volume swept — an easy rectangle on the PV diagram. Expect a few hundred Joules of work.

(a) Work at constant $P$ . $W = P Δ V = P (V_{2} - V_{1}) = 2 \times 1 0^{5} \times (3 - 1) \times 1 0^{- 3}$ . Why this step? When $P$ is constant it comes out of the integral: $W = \int P d V = P Δ V$ . The area under the PV curve is a rectangle.
Compute. $W = 2 \times 1 0^{5} \times 2 \times 1 0^{- 3} = 400$ J.
Internal energy. $Δ U = Q - W = 700 - 400 = + 300$ J.
(b) Isothermal. For an ideal gas $U = U (T)$ ; $T$ constant ⇒ $Δ U = 0$ ⇒ $0 = Q - W \Rightarrow W = Q = 400$ J. Why this step? Isothermal is the special case where the First Law forces all absorbed heat to become work.

Verify (a): $Pa \times m^{3} = \frac{N}{m ^{2}} \cdot m^{3} = N\cdotm = J$ , so $W = 400$ J is dimensionally right; $700 - 400 = 300$ J. ✓ Verify (b): $Δ U = Q - W = 400 - 400 = 0$ , consistent with constant $T$ . ✓

The figure shows the isobaric case as a rectangle whose area is the work.

Word problem / exam twist — a full cycle

Worked example Example 10 — Cyclic process (the exam favourite)

A gas is taken around a closed cycle on a PV diagram: it absorbs $500$ J of heat on the way up, expels $300$ J on the way back, and does a net $200$ J of work over the loop. (a) What is $Δ U$ for the whole cycle? (b) Check consistency with the numbers.

Forecast: A cycle returns to the same state $(P, V, T)$ . Since $U$ is a state function, going in a loop must give $Δ U = 0$ — no matter the path.

Why $Δ U = 0$ ? $U$ depends only on state; start state = end state ⇒ $Δ U_{cycle} = 0$ . Why this step? This is the whole point of "state function" from the parent's lake analogy — return to the same water level.
Net heat. $Q_{net} = + 500 - 300 = + 200$ J.
Apply the law to the cycle. $Δ U = Q_{net} - W_{net} \Rightarrow 0 = 200 - W_{net} \Rightarrow W_{net} = 200$ J.

Verify: The stated net work is $200$ J and our law predicts $200$ J — consistent. Over any cycle, net heat in = net work out ( $Q_{net} = W_{net}$ ), which is exactly the seed of the Second law of thermodynamics (you can't get more work out than heat in). ✓

Recall check

Recall Match the cell to the outcome

Adiabatic expansion — does the gas heat or cool? ::: Cools; $Q = 0$ so $Δ U = - W < 0$ . Free expansion of an ideal gas — what is $Δ T$ ? ::: Zero; $Q = 0$ , $W = 0$ ⇒ $Δ U = 0$ ⇒ $Δ T = 0$ . Isochoric process — which term vanishes? ::: $W = 0$ , so $Δ U = Q$ . Full cycle — what is $Δ U$ ? ::: Zero, because $U$ is a state function. Compression with heat loss (Ex 8) — sign of $Δ U$ ? ::: $+ 90$ J; compression added more than heat removed.
