Level 1 — Recognition

L1·1 — Name the sign

A gas absorbs $250 J$ of heat. State $Q$ with its sign, and say in words which channel this energy entered by.

Recall Solution

WHAT: "Absorbs" = heat flows into the gas, so $Q = + 250 J$ . WHY: In physics convention $Q > 0$ means heat added TO the gas. PICTURE: heat lining up outside and stepping in — the queue in the "QUWe by" mnemonic. $Q = + 250 J$

L1·2 — Which term is zero?

A gas is heated inside a rigid sealed box (its volume cannot change). Which of $Q$ , $W$ , $Δ U$ is forced to be zero, and why?

Recall Solution

WHAT: $W = 0$ . WHY: $W = \int P d V$ . Rigid box $\Rightarrow d V = 0 \Rightarrow W = 0$ . This is an isochoric (constant-volume) process — see Isothermal, adiabatic, isobaric, isochoric processes. PICTURE: the piston is bolted in place; the gas cannot push anything, so it does no work. Then $Δ U = Q$ : all heat becomes internal energy.

Level 2 — Application

L2·1 — Heat in, gas expands

A gas absorbs $600 J$ of heat and expands, doing $220 J$ of work on its piston. Find $Δ U$ .

Recall Solution

Signs: $Q = + 600$ (added), $W = + 220$ (gas expands → work by gas). Apply: $Δ U = Q - W = 600 - 220 = + 380 J$ . PICTURE: of $600 J$ that walked in, $220 J$ walked back out through the piston; $380 J$ stayed → hotter gas.

L2·2 — Compression with heat loss

A gas is compressed; the surroundings do $180 J$ of work on it, and it releases $70 J$ of heat. Find $Δ U$ .

Recall Solution

Signs: work on gas $= 180 J \Rightarrow W_{by} = - 180 J$ . Heat released $\Rightarrow Q = - 70 J$ . Apply: $Δ U = Q - W = (- 70) - (- 180) = + 110 J$ . PICTURE: $180 J$ pumped in by compression, $70 J$ leaked out as heat → net $+ 110 J$ stored, gas warms.

L2·3 — Isobaric work

A gas expands at constant pressure $P = 2.0 \times 1 0^{5} Pa$ from $V_{1} = 1.0 \times 1 0^{- 3} m^{3}$ to $V_{2} = 3.0 \times 1 0^{- 3} m^{3}$ . Find the work $W$ done by the gas.

Recall Solution

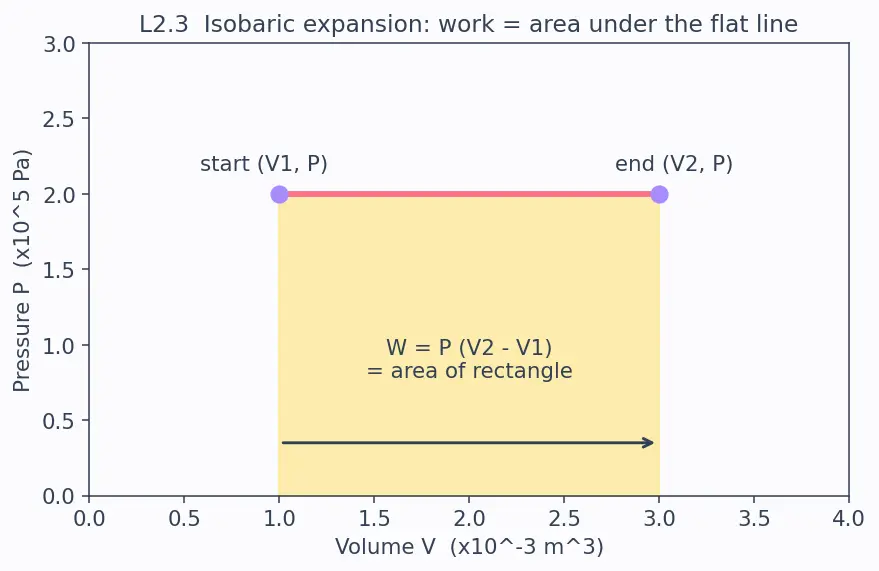

WHY constant $P$ is easy: $W = \int_{V_{1}}^{V_{2}} P d V$ ; with $P$ constant it slides outside the integral, leaving $W = P (V_{2} - V_{1}) = P Δ V$ . Apply: $W = (2.0 \times 1 0^{5}) (3.0 \times 1 0^{- 3} - 1.0 \times 1 0^{- 3}) = (2.0 \times 1 0^{5}) (2.0 \times 1 0^{- 3}) = 400 J$ . PICTURE (below): on a $P$ – $V$ diagram the isobar is a flat horizontal line; work is the rectangle under it.

Figure — First law of thermodynamics — dU = dQ − dW, sign conventions

Level 3 — Analysis

L3·1 — Isothermal expansion, find $Q$

An ideal gas expands isothermally ( $T$ constant) and does $520 J$ of work. Find $Q$ and $Δ U$ .

Recall Solution

Key fact: For an ideal gas $U = U (T)$ only (see Internal energy and degrees of freedom). Constant $T \Rightarrow Δ U = 0$ . Apply: $0 = Q - W \Rightarrow Q = W = 520 J$ . PICTURE: every joule of heat that enters walks straight out as work; the internal "warmth" level never moves.

L3·2 — Adiabatic compression, find the trend

A gas is compressed adiabatically; $310 J$ of work is done on it. Find $Δ U$ and state whether it heats or cools.

Recall Solution

Key facts: Adiabatic $\Rightarrow Q = 0$ . Work on gas $\Rightarrow W_{by} = - 310 J$ . Apply: $Δ U = Q - W = 0 - (- 310) = + 310 J > 0 \Rightarrow$ gas heats up. WHY: With no heat channel, the only place the compression energy can go is internal energy. This is why a bicycle pump gets warm.

L3·3 — Cyclic process, net heat

A gas is taken around a closed cycle and returns to its exact starting state. Over the cycle the total work done by the gas is $+ 150 J$ . Find $Δ U_{cycle}$ and the net heat $Q_{cycle}$ .

Recall Solution

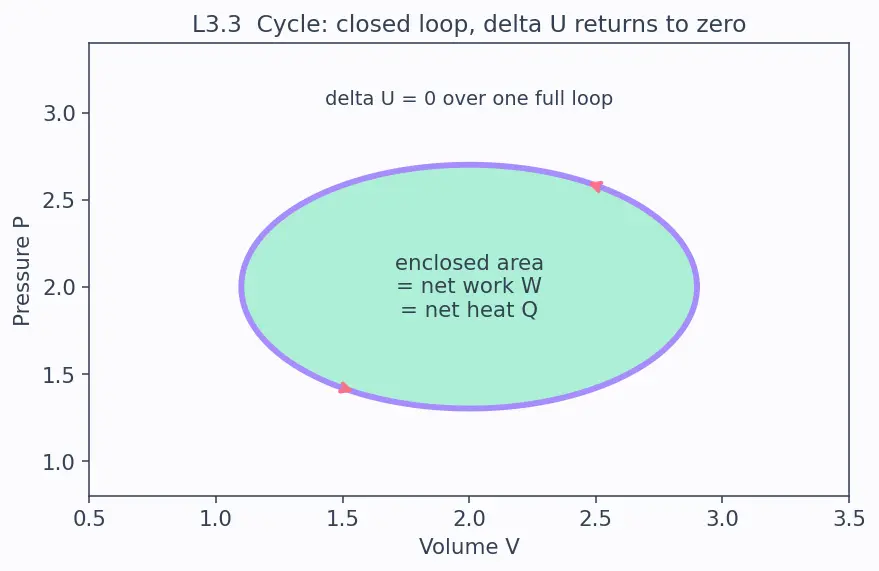

Key fact: $U$ is a state function. Start state = end state $\Rightarrow Δ U_{cycle} = 0$ , no matter the path. Apply: $0 = Q_{cycle} - W_{cycle} \Rightarrow Q_{cycle} = W_{cycle} = + 150 J$ . PICTURE (below): on a $P$ – $V$ diagram a cycle is a closed loop; the enclosed area is the net work, and here that area supplies the net heat absorbed.

Level 4 — Synthesis

L4·1 — Two-step path, same endpoints

A gas goes from state A to state B by Path 1: it absorbs $900 J$ of heat and does $350 J$ of work. By Path 2 (different route, same A→B), the gas does only $120 J$ of work. How much heat $Q_{2}$ does Path 2 involve?

Recall Solution

Step 1 — get $Δ U$ from Path 1. $Δ U = Q_{1} - W_{1} = 900 - 350 = + 550 J$ . Step 2 — reuse it. $Δ U$ depends only on endpoints A and B, so Path 2 has the same $Δ U = + 550 J$ . Step 3 — solve for $Q_{2}$ . $550 = Q_{2} - 120 \Rightarrow Q_{2} = 670 J$ . WHY this works: $U$ is a state function — this is the whole point of the lake analogy. Change the path, and $Q$ and $W$ change together, but their difference is pinned.

L4·2 — Free expansion into vacuum

An ideal gas in a chamber is suddenly connected to an evacuated chamber and rushes in (free expansion). The whole system is insulated. Find $W$ , $Q$ , $Δ U$ , and $Δ T$ .

Recall Solution

$W = 0$ : the gas expands against vacuum — there is nothing pushing back, so $\int P_{ext} d V = 0$ . No piston is moved, no surroundings are lifted. $Q = 0$ : insulated walls, so no heat crosses. $Δ U = Q - W = 0 - 0 = 0$ . $Δ T = 0$ : ideal gas $U = U (T)$ ; $Δ U = 0 \Rightarrow T$ unchanged. WHY it surprises people: the gas expands yet does no work and doesn't cool — because "expanding" only costs energy when you push against something.

Level 5 — Mastery

L5·1 — Cycle leg-by-leg energy audit

An ideal gas runs a 3-step cycle A→B→C→A:

A→B (isochoric heating): absorbs $Q_{A B} = 600 J$ .
B→C (isothermal expansion): absorbs $Q_{B C} = 450 J$ .
C→A (isobaric compression): releases $Q_{C A} = - 720 J$ , and $250 J$ of work is done on the gas.

Find (a) $W$ for each leg, (b) total work by the gas over the cycle, (c) verify $Δ U_{cycle} = 0$ .

Recall Solution

Leg A→B (isochoric): $d V = 0 \Rightarrow W_{A B} = 0$ . Then $Δ U_{A B} = Q_{A B} - W_{A B} = 600 J$ .

Leg B→C (isothermal, ideal gas): $Δ U_{B C} = 0$ (constant $T$ ). So $W_{B C} = Q_{B C} - Δ U_{B C} = 450 - 0 = 450 J$ .

Leg C→A (isobaric compression): work $250 J$ done on gas $\Rightarrow W_{C A} = - 250 J$ . Then $Δ U_{C A} = Q_{C A} - W_{C A} = (- 720) - (- 250) = - 470 J$ .

(b) Net work by gas: $W_{cycle} = W_{A B} + W_{B C} + W_{C A} = 0 + 450 - 250 = + 200 J$ .

(c) Check $Δ U_{cycle}$ : $Δ U_{A B} + Δ U_{B C} + Δ U_{C A} = 600 + 0 - 470 = + 130 J$ .

This is NOT zero — the numbers are inconsistent! A true cycle must have $Δ U_{cycle} = 0$ . Cross-checking with heat: $Q_{cycle} = 600 + 450 - 720 = + 330 J$ , but $W_{cycle} = 200 J$ , and a cycle requires $Q_{cycle} = W_{cycle}$ . The mismatch ( $330 \neq = 200$ ) exposes an over-specified, unphysical data set.

The mastery lesson: the First Law is a consistency check. On a genuine cycle you may specify heats and works freely on individual legs, but they must satisfy $\sum Δ U = 0$ and $Q_{cycle} = W_{cycle}$ . Always audit the loop before trusting the numbers.

L5·2 — Repair the cycle

Keep everything in L5·1 except the heat released on C→A. Find the value of $Q_{C A}$ that makes the cycle physically consistent, then state the cycle's net heat and net work.

Recall Solution

Requirement: $Δ U_{A B} + Δ U_{B C} + Δ U_{C A} = 0$ . We keep $W_{C A} = - 250 J$ , so $Δ U_{C A} = Q_{C A} - (- 250) = Q_{C A} + 250$ . $600 + 0 + (Q_{C A} + 250) = 0 \Rightarrow Q_{C A} = - 850 J .$ Net heat: $Q_{cycle} = 600 + 450 - 850 = + 200 J$ . Net work: unchanged, $W_{cycle} = 0 + 450 - 250 = + 200 J$ . Check: $Q_{cycle} = W_{cycle} = 200 J$ ✓ and $Δ U_{cycle} = 0$ ✓. Now it's a legal engine cycle putting out $200 J$ of work per loop.
