Specific heat capacity — calorimetry: Visual walkthrough

We build up in this order: what "heat" and "temperature" even are as pictures → why heat depends on mass and on temperature change → the single-body law $Q = m c Δ T$ → the sealed-cup bookkeeping → solving for the meeting point → the degenerate cases. Every symbol (including the subscripts $1$ and $2$ that label the two bodies) is defined the moment it first appears — nothing is used early.

Step 1 — Temperature is "how hard the atoms are jiggling"

WHAT. Before any formula, picture a solid as a grid of little balls (atoms) joined by springs. They are never still — they vibrate. Temperature is a measure of how violently, on average, they jiggle. Hotter = bigger jiggles.

WHY start here. Every symbol later — $Q$ , $c$ , $Δ T$ — is secretly about this jiggling. If we don't picture what "warming up" is, the formula is just letters. See the Heat and Internal Energy note for the same idea in words.

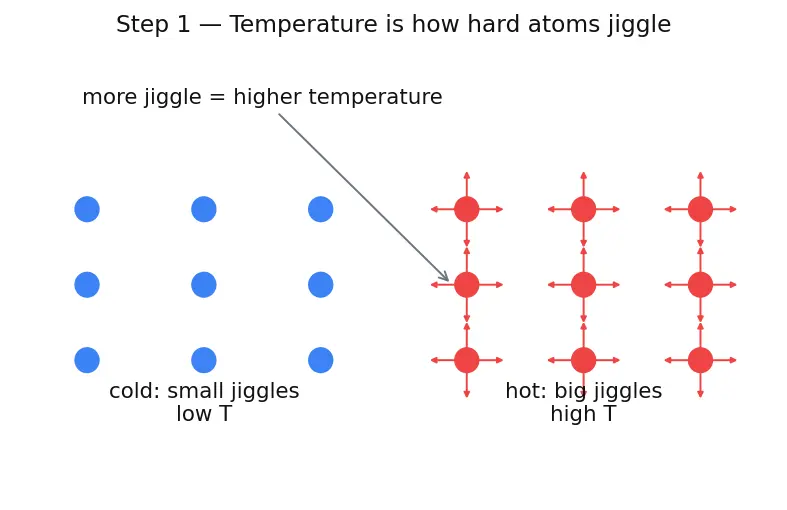

PICTURE. On the left, cold atoms wiggle a little (short arrows). On the right, the same atoms wiggle a lot (long arrows). Nothing changed but the size of the shaking.

Figure — Specific heat capacity — calorimetry

Step 2 — Heat $Q$ is the energy you pour IN to make the jiggling bigger

WHAT. To make the atoms jiggle harder, you must give them energy. That transferred energy is called heat, written $Q$ , measured in joules (J). Pouring heat in raises $T$ ; letting heat out lowers it.

WHY a new symbol. Temperature is a state (how jiggly it is now). Heat is a flow (energy crossing in or out). We need two different symbols because they answer two different questions: "how hot?" versus "how much energy moved?". This distinction is the whole of First Law of Thermodynamics.

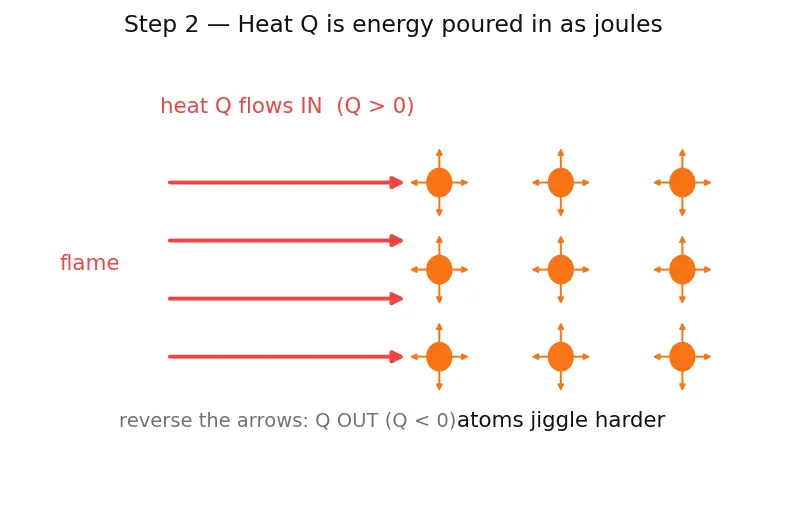

PICTURE. A flame feeds arrows of energy ( $Q$ ) into the ball-and-spring grid; the arrows land as bigger jiggles. The sign convention: arrows pointing in ⇒ $Q > 0$ ; arrows pointing out ⇒ $Q < 0$ .

Step 3 — Why the heat needed is proportional to mass $m$

WHAT. Take a block, then take two identical blocks. To warm both by the same amount, you must jiggle twice as many atoms — so you need twice the heat.

WHY multiply, not add. Each atom needs its own share of energy to jiggle more. Double the atoms (double the mass $m$ ) ⇒ double the total energy. This is a proportionality: $Q \propto m$ . We write " $\propto$ " (read "is proportional to") to say "grows in lockstep with, through some constant".

PICTURE. One block soaks up one bucket of heat to rise by $Δ T$ ; two blocks stacked need two buckets for the same rise.

Step 4 — Why it is also proportional to the temperature rise $Δ T$

WHAT. Now fix the mass and ask for a bigger rise. Warming by 20 K needs twice the heat of warming by 10 K.

WHY. Each extra degree of jiggle costs the same extra dollop of energy. So the bill is proportional to how many degrees you climb: $Q \propto Δ T$ .

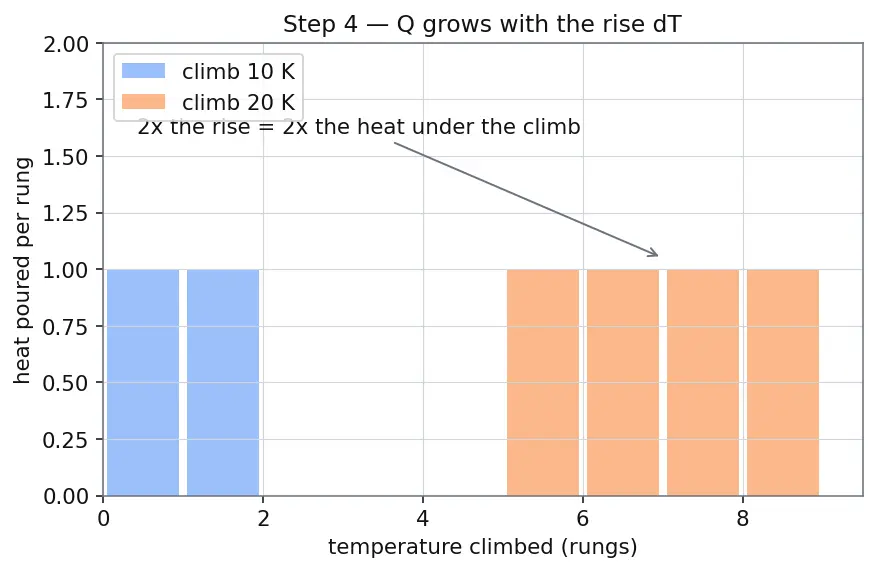

PICTURE. A "temperature ladder": climbing 10 rungs costs some heat; climbing 20 rungs of the same ladder costs twice as much. The heat is the area of energy poured under the climb.

Step 5 — Naming the constant: the specific heat $c$ , and the law $Q = m c Δ T$

WHAT. Turn " $\propto$ " into " $=$ " by inserting a constant. That constant, $c$ , is the specific heat capacity: the joules needed to warm 1 kg by 1 K of this particular material.

WHY $c$ and not a universal number. Water resists warming (big $c$ ); metal warms easily (small $c$ ). The proportionality can't know which material you have — $c$ is the fingerprint that carries that information. Units fall straight out: to make $m Δ T$ (units $kg \cdot K$ ) into joules, $c$ must carry $J kg^{- 1} K^{- 1}$ .

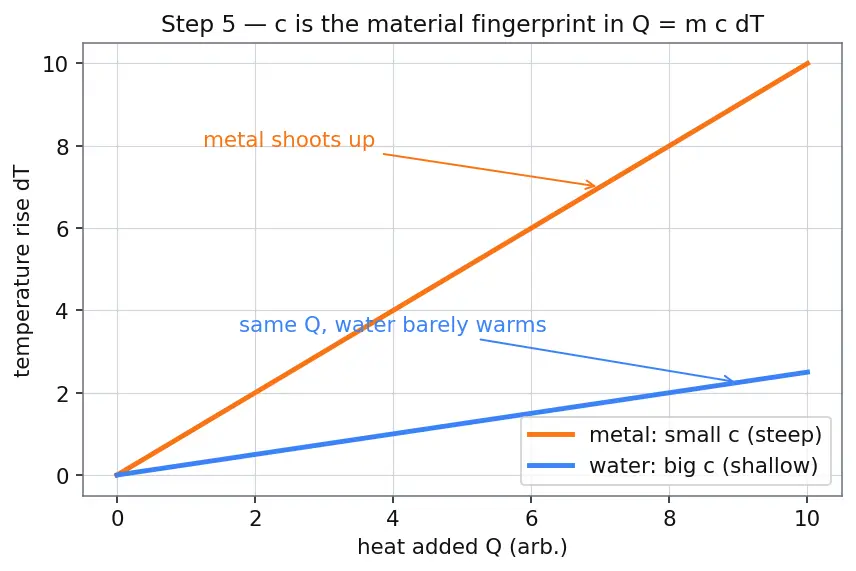

PICTURE. Same heat bucket poured into equal masses of water vs copper: the water thermometer barely moves, the copper's shoots up. The slope of "temperature vs heat added" is steeper for the small- $c$ metal.

Common mistake Hidden assumption: each body has ONE temperature (lumped)

What we quietly assumed: that at every instant a whole block sits at a single temperature $T$ — no hot skin and cold core, no gradient inside it. Only then can one number $T$ (and one $Δ T$ ) describe the whole object in $Q = m c Δ T$ , and later one $T_{1}$ , one $T_{2}$ describe the two bodies in the cup. Why it usually holds: if we stir the mixture and wait, or the pieces are small and well-conducting, heat spreads through each body far faster than it crosses between them, so internal differences even out. This is the "lumped" (well-mixed) picture. When it breaks: for a big, poorly-conducting body warmed briefly, the inside lags the outside — then you need the flow analysis of Conduction Convection Radiation, not a single $T$ . Every step below assumes each body is lumped at one uniform temperature.

Step 6 — The sealed cup: heat lost = heat gained

WHAT. Put two objects together in an insulated cup. To keep them apart in the algebra we label them with subscripts $1$ and $2$ : the hot body has mass $m_{1}$ , specific heat $c_{1}$ , starting temperature $T_{1}$ ; the cold body has $m_{2}, c_{2}, T_{2}$ . (The subscript is just a name tag — " $m_{1}$ " reads "mass of body 1".) Energy that leaves the hot one has nowhere to go except into the cold one. They stop changing when both reach a common final temperature $T_{f}$ (subscript $f$ for "final").

WHY equal, not just "related". The cup is insulated — no energy escapes to the room. By Conservation of Energy, every joule the hot body sheds is a joule the cold body absorbs: $Q_{lost by hot} = Q_{gained by cold} .$

PICTURE. A thermos. Red arrows leave the hot block; the same red arrows enter the cold block. A closed loop — total energy inside is constant.

Step 7 — Solving for the meeting point $T_{f}$

WHAT. We have one equation, one unknown ( $T_{f}$ ). Expand and collect the $T_{f}$ terms on one side.

WHY these algebra moves. We want $T_{f}$ alone. Multiplying out breaks the brackets; gathering $T_{f}$ lets us factor it and divide it free.

Multiply out both brackets:

$m_{1} c_{1} T_{1} - m_{1} c_{1} T_{f} = m_{2} c_{2} T_{f} - m_{2} c_{2} T_{2}$

Move both $T_{f}$ terms to the right, both constants to the left:

$m_{1} c_{1} T_{1} + m_{2} c_{2} T_{2} = m_{2} c_{2} T_{f} + m_{1} c_{1} T_{f}$

Now the key factoring step. On the right, $T_{f}$ appears as a shared factor in both terms — $m_{1} c_{1} T_{f}$ and $m_{2} c_{2} T_{f}$ are each "(some number) $\times T_{f}$ ". The distributive law ( $a T_{f} + b T_{f} = (a + b) T_{f}$ ) lets us pull that common $T_{f}$ outside a single bracket:

$m_{1} c_{1} T_{1} + m_{2} c_{2} T_{2} = (m_{1} c_{1} + m_{2} c_{2}) T_{f}$

Finally divide both sides by the bracket $(m_{1} c_{1} + m_{2} c_{2})$ — allowed because it is a positive number (masses and specific heats are positive) — to isolate $T_{f}$ :

PICTURE. A see-saw: $T_{1}$ and $T_{2}$ sit at the ends, and each object's $m c$ is the weight pushing at that end. $T_{f}$ is the balance point — always between the two, pulled toward the heavier $m c$ .

Step 8 — All the edge cases (so nothing surprises you)

WHAT. Check the corners where the formula might misbehave.

WHY. A result you trust must survive its extremes. Let us push each dial to a limit and read the see-saw.

Equal on both sides ( $m_{1} c_{1} = m_{2} c_{2}$ ): weights equal ⇒ balance point is the plain average, $T_{f} = \frac{T _{1} + T _{2}}{2}$ . (Matches the parent's forecast: 80 °C + 20 °C ⇒ 50 °C.)
One side hugely heavier ( $m_{1} c_{1} ≫ m_{2} c_{2}$ ): see-saw pivots almost at the hot end ⇒ $T_{f} \to T_{1}$ . A tiny cold drop barely cools a giant hot ocean.
Same starting temperature ( $T_{1} = T_{2} = T$ ): nothing to exchange, $T_{f} = T$ . Plug in and the formula returns $T$ exactly.
A body of vanishing heat weight ( $m_{2} c_{2} \to 0$ , e.g. its mass shrinks to nothing): that term vanishes top and bottom ⇒ $T_{f} \to T_{1}$ . An "absent" body can't shift the temperature. Caveat: setting $c_{2} = 0$ exactly is only a mathematical degeneracy — no real material has zero specific heat, so read this case as the physical limit "heat weight negligibly small", not as a genuine substance.
Sanity guard: $T_{f}$ can never land outside $[T_{2}, T_{1}]$ . A weighted average of two positive-weighted numbers always sits between them. If yours doesn't, you swapped a "lost" and a "gained" sign (see the parent's [!mistake] on this).

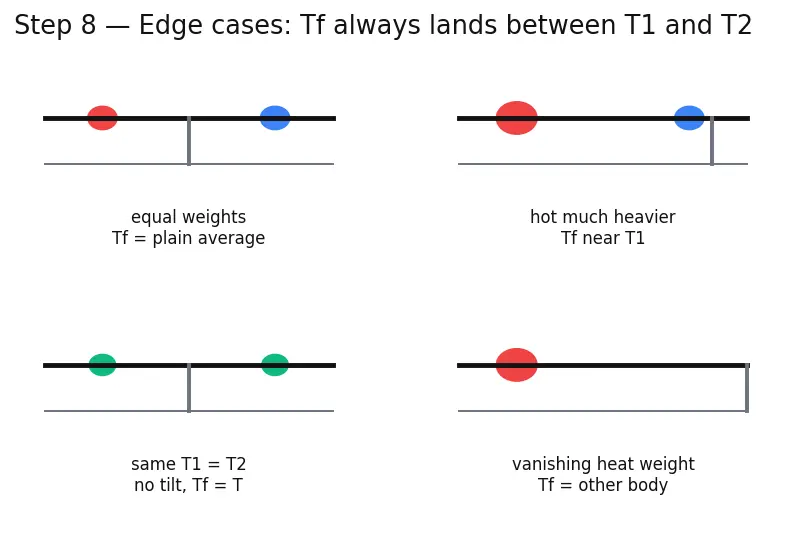

PICTURE. Four mini see-saws showing: equal weights (centred), lopsided (pivot near hot), same temperature (flat, no tilt), and vanishing heat weight (only one weight left).

Recall Check the equal-mass forecast yourself

Equal water masses at 80 °C and 20 °C give $T_{f}$ ? ::: $50$ °C — the plain average, because $m_{1} c_{1} = m_{2} c_{2}$ . Big hot ocean, tiny cold drop — $T_{f}$ near which value? ::: Near $T_{1}$ (the ocean), since its $m c$ dominates.

The one-picture summary

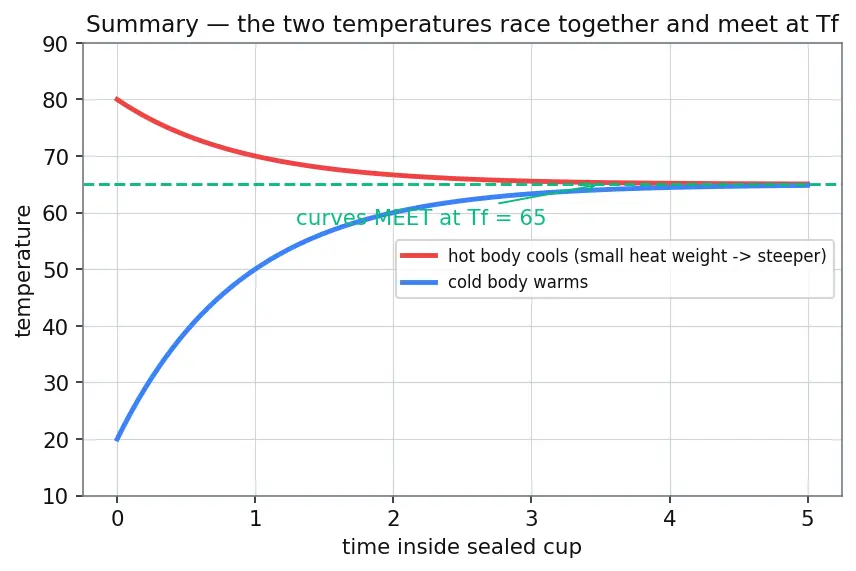

The final figure adds a fresh visual insight the earlier steps never drew: it overlays the actual temperature-vs-time cooling/warming curves of the two bodies inside the cup, showing them racing toward each other and meeting exactly at the see-saw balance point $T_{f}$ . The whole derivation is the story of those two curves colliding: jiggle → heat in ( $Q = m c Δ T$ ) → conserve inside the cup → the curves meet at $T_{f}$ .

Recall Feynman retelling — the whole walkthrough in plain words

Picture atoms as balls on springs, forever jiggling — that jiggle is temperature. To make them jiggle harder you must pour in energy; that energy-in-transit is heat, $Q$ . Twice as many atoms need twice the heat (that's the mass $m$ ); twice the temperature climb needs twice the heat (that's $Δ T$ ); and each material has its own price tag, $c$ (which we treat as steady over the range in question, with each body warm through-and-through at one temperature). Multiply the three and you get $Q = m c Δ T$ . Now seal a hot block and a cold block in a thermos where no energy leaks. The hot one sheds jiggle, the cold one soaks it up, and because nothing escapes, the joules lost equal the joules gained. Set those two $m c Δ T$ expressions equal, solve for the temperature they finally agree on — factoring out the shared $T_{f}$ and dividing — and out drops a see-saw: the final temperature is the average of the two starting temperatures, weighted by each object's "heat weight" $m c$ . Heavier heat-weight wins, and the answer always lands somewhere between the two starting temperatures — never outside. That's calorimetry, start to finish.
