Before you can read or the mixing formula, you need to know what every letter stands for and what picture lives behind it. This page builds each one from nothing, in an order where each idea leans on the previous. If you already met these in Heat and Internal Energy, this is your slow, visual refresher.

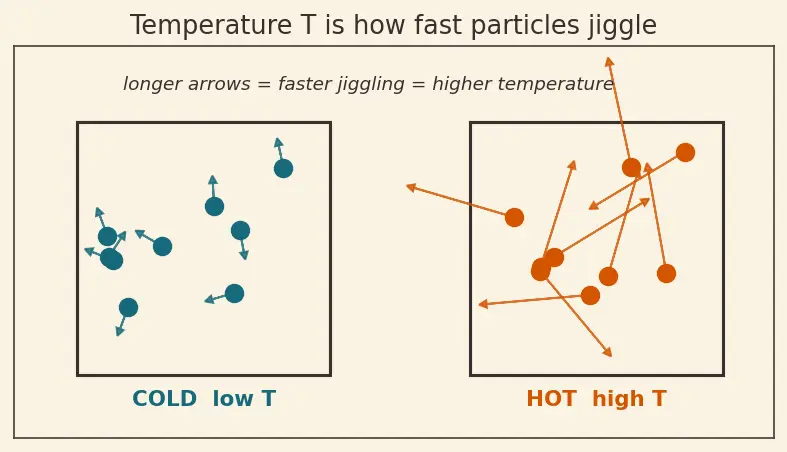

1. Temperature — "how fast the particles jiggle"

Picture a box of tiny balls (atoms). At a low temperature they twitch gently; at a high temperature they zip and bounce hard. Temperature is just a readout of that average liveliness — not how much stuff there is, just how energetic each piece is.

Figure — Specific heat capacity — calorimetry

2. Temperature change — the symbol means "change in"

Look at a thermometer that started at 20 and ended at 75. The reading is a position; the change is how far the red column climbed. That climb is what matters for heat.


3. Mass — "how much stuff"

Two cups of water side by side: one holds 0.5 kg, the other 1 kg. The big one has twice as many water molecules — twice as many little balls to get jiggling.


4. Energy and Heat — "energy on the move because of a temperature gap"

Picture heat as an invisible fluid trickling downhill from hot to cold. It always runs down the temperature slope, never up on its own.

Figure — Specific heat capacity — calorimetry

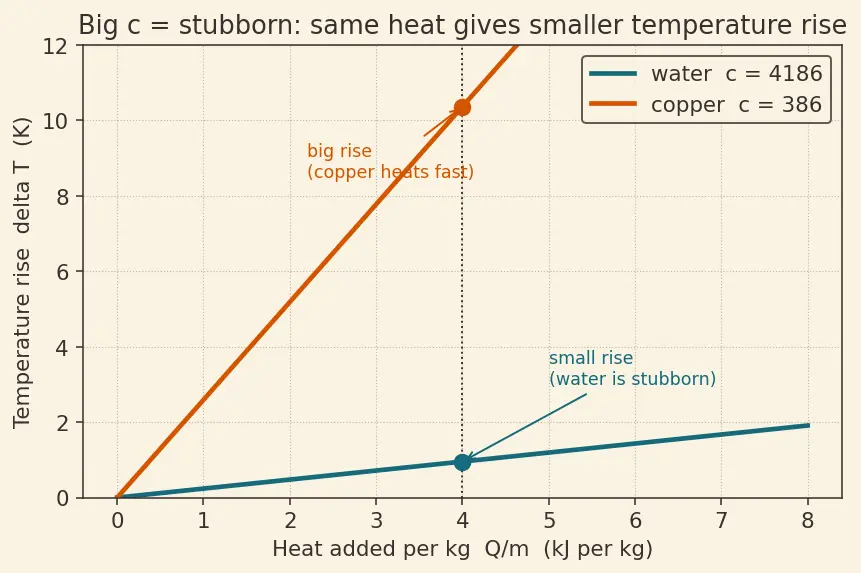

5. Specific heat capacity — the material's "stubbornness fingerprint"

The "per kilogram per kelvin" is the recipe for one standard unit of heating: one kilo, one degree. Water's is huge — it drinks a lot of energy for a small temperature rise. Copper's is small (~386) — it heats up fast.

Figure — Specific heat capacity — calorimetry

6. Heat capacity vs. specific heat — capital vs. small

Small is per kilogram (a property of the material). Capital is for the specific object in front of you. A 3 kg copper block and a 1 kg copper block share the same but have different .

Recall Quick self-check

Which one changes if you cut the block in half? ::: halves (mass halved); stays the same (material unchanged).


7. Water equivalent — "how much water would behave the same"

Trick: instead of tracking a copper cup with its own , replace it in your head with an equivalent little pile of water. Then every heat-absorber in the problem is "water", which makes the sums tidy.


8. The subscripts — reading without panic


9. Energy conservation — the law that makes calorimetry work


Prerequisite map

Temperature T

Change delta T

Mass m

Energy in joules

Heat Q

Specific heat c

Heat capacity C = mc

Water equivalent w

Energy conservation

Q = m c delta T

Heat lost = heat gained


Equipment checklist

Read each and try to answer before revealing. If any one stumps you, reread its section above.

What does the symbol mean?
"Change in" — final minus initial.
What does equal in symbols?
.
Is a gap of 40 °C the same as a gap of 40 K?
Yes — the scales differ only by a constant offset, so differences match.
What does temperature physically represent?
How vigorously the particles jiggle (their average liveliness).
What is the difference between heat and temperature ?
is energy that flowed; is how hot — a pool at 30 °C holds more heat than hotter coffee.
What is the sign of when a body cools down?
Negative — energy flows out.
What are the units of specific heat capacity ?
(joules per kilogram per kelvin).
What is specific heat in words?
Heat to raise 1 kg of a substance by 1 K.
How do and differ?
is for the whole object (J K⁻¹); is per kilogram of material.
What does a subscript like tell you?
Which object the quantity belongs to — a name tag.
What is water equivalent ?
The mass of water that absorbs the same heat for the same : .
Which law lets "heat lost = heat gained"?
Conservation of energy in an insulated system.
