The parent note Superposition principle throws a lot of notation at you in its very first equations: $y$, $x$, $t$, $A$, $k$, $\omega$, $\varphi$, and those curly $\partial$ symbols. This page assumes you have seen none of them. We build each one, in an order where every new symbol only uses symbols already explained.

0 · The stage: a string and a ruler

Before any symbol, picture the physical thing.

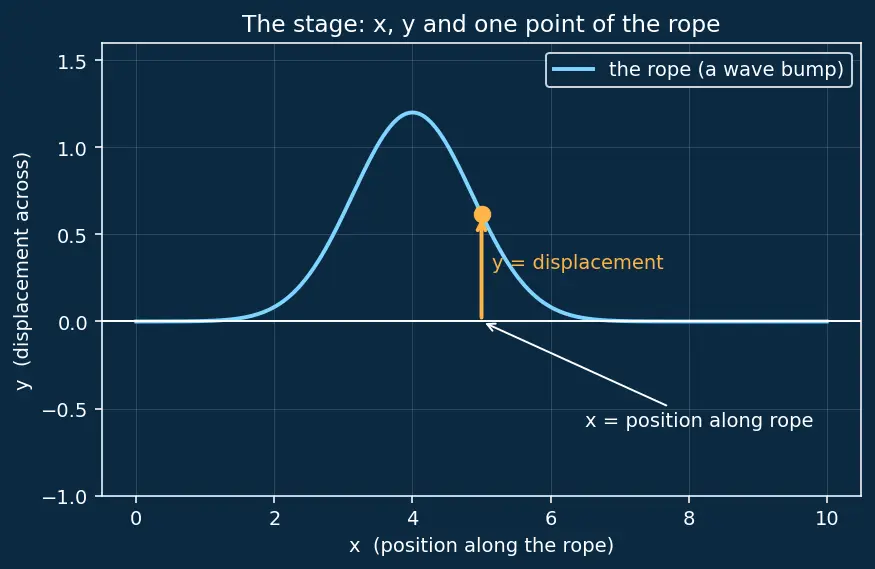

Imagine a long rope lying flat. We pin one axis along the rope (call it the horizontal position) and one axis across it (call it how far up or down the rope has been pushed). A wave is a bump — or a wiggle — that travels along the rope while each little piece of rope only moves up and down.

That single picture is the source of the first three symbols.

1 · $x$ — position along the medium

• Picture: a mark on the horizontal ruler.
• Why the topic needs it: the wave has different heights at different places at once, so we must be able to say which place we mean.

2 · $t$ — time

• Picture: a stopwatch running while you watch the rope.
• Why the topic needs it: superposition is about "at any point and any instant". "Instant" is exactly $t$.

3 · $y$ — displacement, and the function $y(x,t)$

Because the height depends on both where you look and when you look, we write $y(x,t)$, read "y as a function of x and t".

• Picture: the vertical arrow from the ruler up to the rope in the figure.
• Sign cases you must handle: $y>0$ (up), $y<0$ (down), $y=0$ (flat — this is the case that makes destructive interference possible; two waves giving $+3$ and $-3$ add to a flat $0$).

4 · $A$ — amplitude

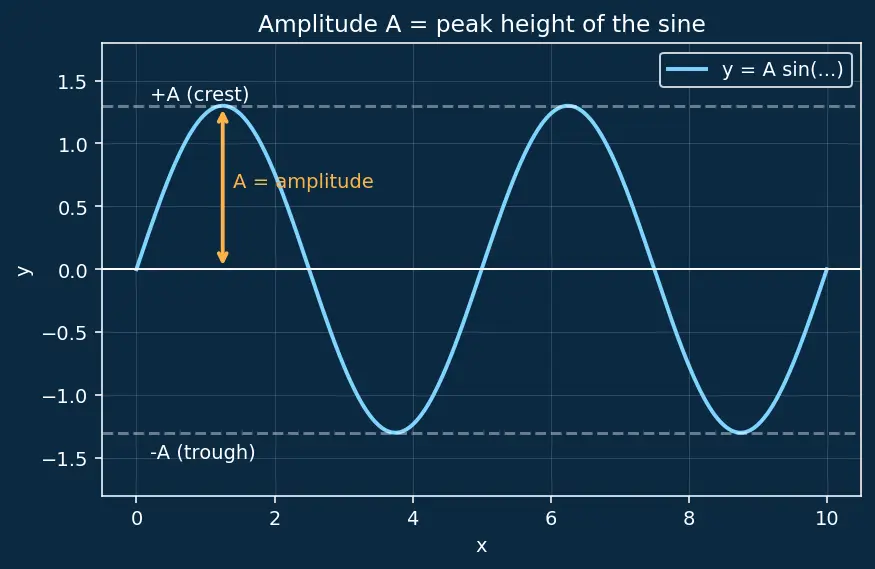

• Picture: the amber bracket in the figure, measured from the flat line up to the crest.
• Why the topic needs it: the whole payoff of superposition is a formula for the resultant amplitude $A_{\text{res}}=2A\cos (\varphi /2)$. You cannot read that until $A$ means "peak height".
• Zero case: $A=0$ means no wave at all — the flat rope.

5 · A repeating wiggle needs $\sin$

The parent writes waves as $A\sin (\dots )$. Why the sine, and not just any bump?

• Picture: the smooth curve in the amplitude figure — that is $\sin$, scaled by $A$.
• What tool, what question: $\sin$ answers "how do I write a shape that repeats forever with a single tidy formula?" Sharp-cornered zig-zags would need messy piecewise rules; sine needs one symbol.

6 · Angles, and why $\pi$ appears

$\sin$ eats an angle. Physicists measure that angle in radians, where a full turn (360°) equals $2\pi$ and a half turn (180°) equals $\pi$.

• Why the topic needs it: the constructive/destructive results are stated as $\varphi =0$ and $\varphi =\pi$. That $\pi$ is just "half a cycle of the sine", i.e. flipped upside-down.

7 · $k$ — how tightly the wave is bunched in space

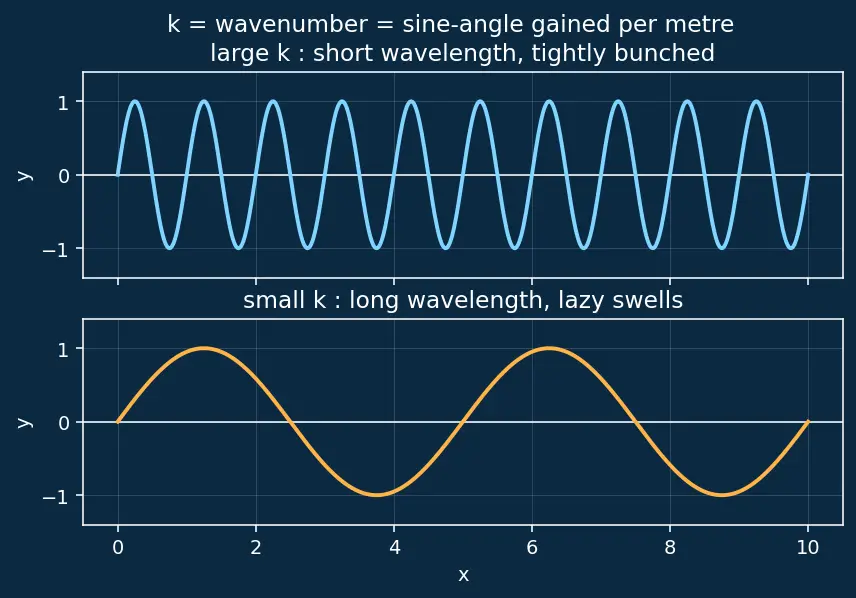

• Picture: short, closely-packed ripples have a large $k$; long lazy swells have a small $k$ (see the two rows in the figure).
• Why the topic needs it: the wave argument is $kx-\omega t$. The $kx$ part converts a distance into a sine-angle so the sine knows how far into its cycle each point $x$ is.

8 · $\omega$ — how fast the wiggle cycles in time

• Picture: watch one fixed point on the rope bob up and down; $\omega$ measures how quickly it completes each bob.
• Why the topic needs it: the $-\omega t$ term makes the whole pattern slide along as time passes — that is what makes it a travelling wave and not a frozen shape. See Wave equation for how $k$ and $\omega$ pin the speed $v=\omega /k$.

9 · $\varphi$ — phase difference

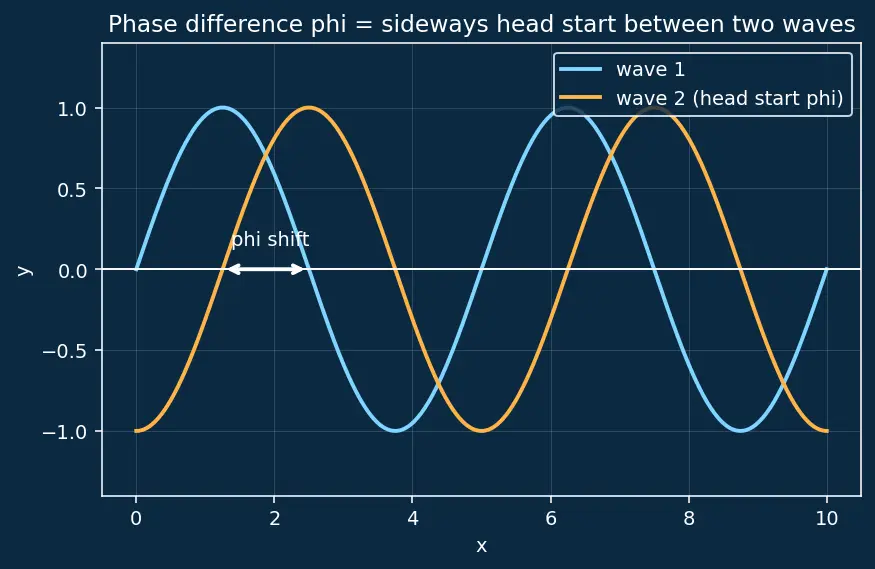

• Picture: two identical sine curves, one nudged sideways from the other by the amber gap.
• All the cases you must know (they are the whole point of superposition):
  • $\varphi =0$ — crests line up, waves reinforce → constructive, $A_{\text{res}}=2A$.
  • $\varphi =\pi$ — crest of one sits on trough of the other → destructive, $A_{\text{res}}=0$.
  • $0<\varphi <\pi$ — partial, in between.
  • $\varphi =2\pi$ — a full lap of head start = no head start at all → back to constructive.
• Why the topic needs it: $\varphi$ is the single dial that controls whether two overlapping waves add up or cancel. See Phasor method for turning $\varphi$ into an angle between arrows, and Interference of waves for where $\varphi$ comes from physically.

10 · $\partial$ — the partial derivative

The parent's derivation uses $\frac{{\partial }^{2}y}{\partial t^2}$. This is the scariest-looking symbol, so we build it slowly.

• What tool, what question: derivatives answer "how does one quantity respond to a small change in another?" We need them because a wave is defined entirely by how bending relates to acceleration.
• Why the topic needs it — the linearity link: the parent proves superposition from the fact that derivatives distribute over addition: $\frac{\partial (y_1+y_2)}{\partial t}=\frac{\partial y_1}{\partial t}+\frac{\partial y_2}{\partial t}$. That one property is the entire reason waves add cleanly.

11 · Phasors — arrows that stand for waves

Examples 2 and 3 in the parent add waves as phasors without defining them.

• Picture: two arrows of length $4$ and $3$ at right angles → their tip-to-tail sum has length $\sqrt{4^2+3^2}=5$ (the parent's Example 2).
• Why the topic needs it: it turns "add two wobbling sines" into "add two static arrows", which is far easier. Full treatment in Phasor method; the underlying single-wave motion is Simple Harmonic Motion.

Prerequisite map

Everything on the left is a symbol this page built; they all flow into the parent topic on the right.

Equipment checklist

Test yourself — cover the right side.

Connections

• Superposition principle — the parent topic every symbol here feeds into.
• Wave equation — where $k$, $\omega$ and the $\partial$-symbols live.
• Phasor method — the arrow tool from §11.
• Simple Harmonic Motion — the up-down motion of one point of the rope.
• Interference of waves — where $\varphi$ physically comes from.
• Beats and Standing waves — later applications of the same symbols.
