Visual walkthrough — Gyroscopic effect — precession of spinning top

---

Step 1 — What an arrow-for-spin even means

WHAT. Before any physics, we need a single arrow that stands for "this thing is spinning this fast about this axis." That arrow is the angular momentum, written $\vec{L}$ (the little arrow on top means "this is a direction-carrying quantity, not just a number").

WHY this tool. A spinning wheel has two facts baked in: how fast it spins, and which way its axle points. One plain number can't hold both. An arrow can — its length is the "how much spin," its direction is the axle. We point it along the axle using the right-hand rule: curl your right fingers along the spin, your thumb points along $\vec{L}$. (Deeper: Cross Product and Right-Hand Rule, Angular Momentum.)

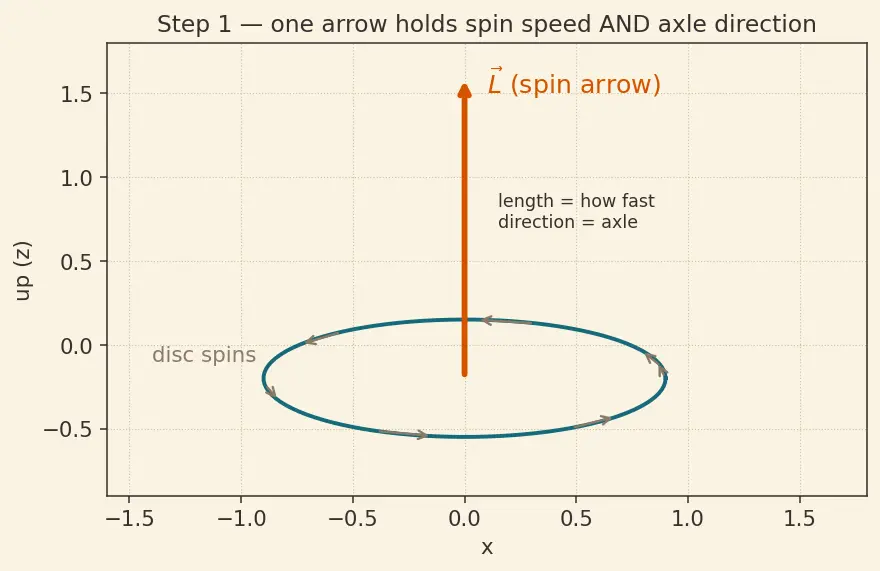

PICTURE. In the figure the disc spins; the burnt-orange arrow $\vec{L}$ shoots straight out along the axle. Curl your right hand along the grey spin arrows — your thumb lands on $\vec{L}$.

---

Step 2 — Standing the top up and finding gravity's twist

WHAT. Plant the top on a pivot. Its axle leans at angle $\theta$ from straight-up. The whole weight $m\vec{g}$ acts as if pulled from the centre of mass, a distance $r$ up the axle from the pivot.

WHY. Gravity doesn't pull on the pivot point — it pulls on the middle of the top. A pull that acts away from the pivot produces a twist about the pivot. That twist is torque, written $\vec{\tau }$ (see Torque). We need it because torque is the only thing that can change $\vec{L}$.

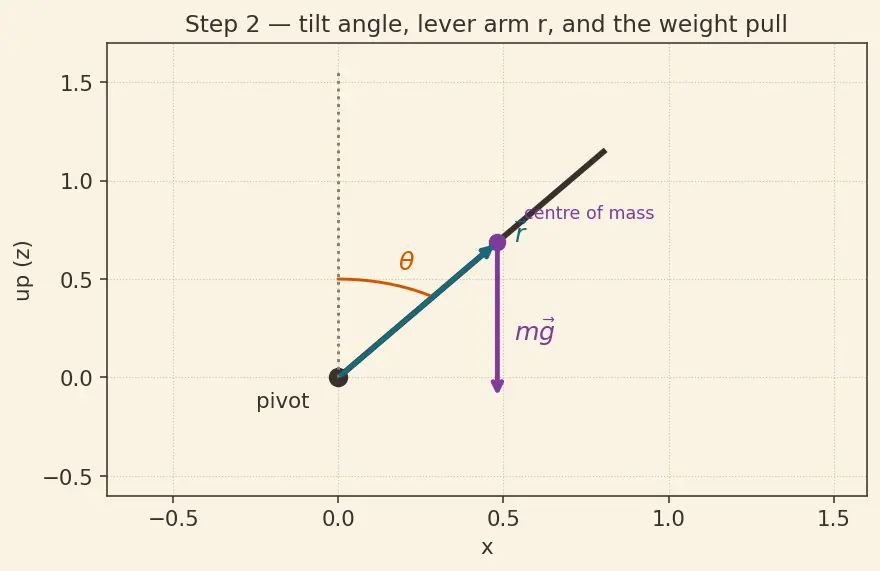

PICTURE. The plum arrow is weight $m\vec{g}$ pointing down from the centre of mass. The teal arrow $\vec{r}$ runs from pivot up to that point. The angle between them (and the vertical) is $\theta$.

---

Step 3 — Which way does the torque point?

WHAT. Torque is itself an arrow: $\vec{\tau }=\vec{r}\times m\vec{g}$. The $\times$ is the cross product — it takes two arrows and produces a third one perpendicular to both, using the right-hand rule.

WHY the cross product. We need one arrow that captures "twist about the pivot." A twist has an axis (the direction you'd screw), and that axis is perpendicular to both the arm $\vec{r}$ and the pull $m\vec{g}$. That is exactly what $\times$ delivers, so it is the right tool and no other will do.

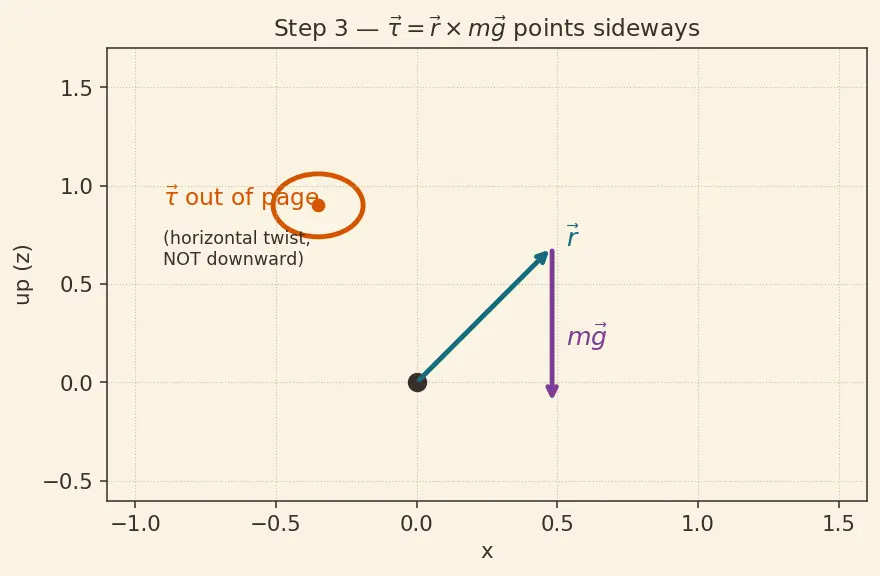

PICTURE. Point right-hand fingers along $\vec{r}$ (teal), curl them toward $m\vec{g}$ (plum). Your thumb — the orange $\vec{\tau }$ — comes straight out of the page, horizontal. Crucially it is not pointing down. Twist, not fall.

---

Step 4 — The master law: torque is the change in $\vec{L}$

WHAT. The one physics law we lean on: $\vec{\tau }=\frac{d\vec{L}}{dt}$

WHY. The symbol $\frac{d\vec{L}}{dt}$ reads "the tiny change in $\vec{L}$, per tiny tick of time $dt$." We use the derivative because we care about how $\vec{L}$ is being nudged moment-to-moment, not its total. This is the rotational twin of $\vec{F}=d\vec{p}/dt$ (the Vector nature of dL/dt is the key idea). Rearranged for one small tick: $d\vec{L}=\vec{\tau }dt$

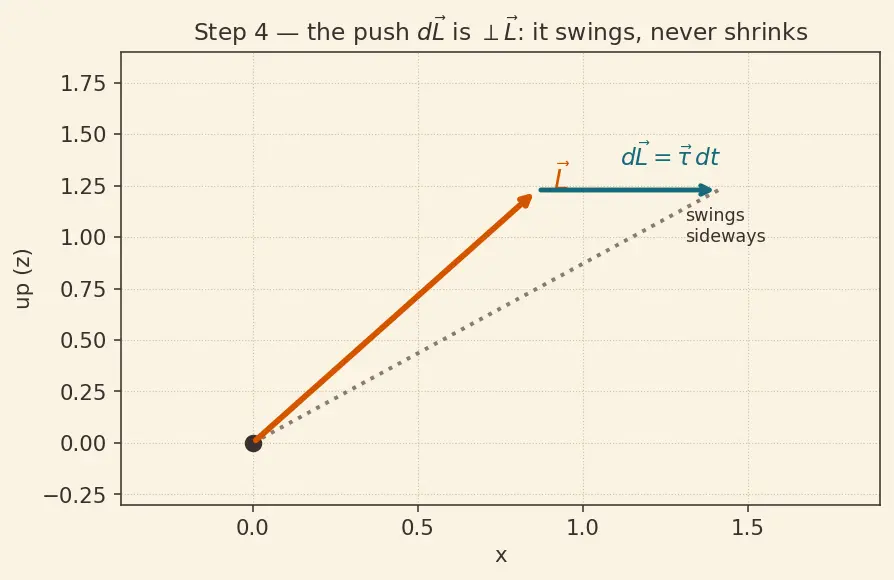

PICTURE. The small orange arrow $d\vec{L}$ points the same way as $\vec{\tau }$ — horizontal, out of the vertical plane. It is glued onto the tip of $\vec{L}$, shoving the tip sideways, never shortening it.

---

Step 5 — Looking straight down: the tip walks a circle

WHAT. Split $\vec{L}$ into an up part and a flat part. Only the horizontal part, of length $L\sin \theta$, can be turned by a horizontal push. Look from directly above and you see just that flat part as a stick of length $L\sin \theta$.

WHY. The vertical part of $\vec{L}$ is parallel to the vertical axis it circles — it doesn't move around. Every sideways nudge acts on the horizontal projection, so we track that. Viewed from above, its tip traces a circle of radius $L\sin \theta$.

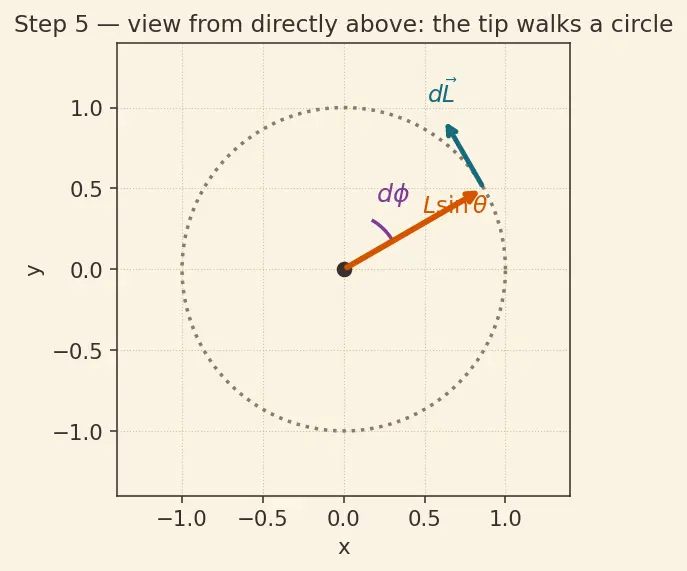

PICTURE. Top-down view: a circle of radius $L\sin \theta$. The stick (horizontal $\vec{L}$) points outward; the orange $d\vec{L}$ is tangent to the circle, always at 90° to the stick, walking it around by a small angle $d\varphi$.

---

Step 6 — Two ways to say the same length ⇒ the answer

WHAT. We now have two expressions for the very same little arrow's length $|d\vec{L}|$: $\underset{\text{from the law}}{\underbrace{\tau dt}}=\underset{\text{from the geometry}}{\underbrace{(L\sin \theta )d\varphi }}$

WHY. They describe one thing — the sideways nudge — so they must be equal. Setting them equal turns "how big is the nudge" into "how fast does the axis sweep." Substitute $\tau =rmg\sin \theta$: $(rmg\sin \theta )dt=(L\sin \theta )d\varphi$

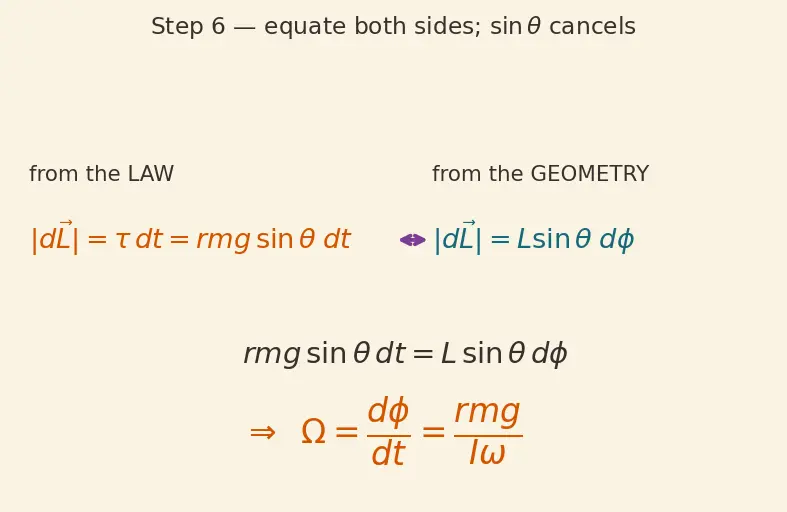

PICTURE. Left cartoon: the vertical plane where $\tau dt$ lives. Right cartoon: the top-down circle where $(L\sin \theta )d\varphi$ lives. A bridge equals-sign joins them, and the $\sin \theta$ on each side is highlighted — about to cancel.

The magical cancellation — $\sin \theta$ sits on both sides: $\Omega \equiv \frac{d\varphi }{dt}=\frac{rmg\cancel{\sin \theta }}{L\cancel{\sin \theta }}=\frac{rmg}{L}=\frac{rmg}{I\omega }$

---

Step 7 — Edge and degenerate cases (the map has no blank spots)

WHAT / WHY / PICTURE — three limits the formula must survive:

• Upright top, $\theta =0$. Then $\tau =rmg\sin 0=0$: no twist at all, the top just spins in place, no precession. Our cancelled formula still reads $rmg/I\omega$, but with zero starting torque there is nothing to precess — physically it sits until a nudge tilts it. The figure shows the arm and weight collinear: no lever, no twist.
• Spin dies, $\omega \to 0$. Then $\Omega =rmg/(I\omega )\to \infty$ — precession "wants" to be infinitely fast, which is nature's way of saying the fast-spin approximation has broken and the top simply topples. Low stubbornness = falls over.
• Reverse the spin. Flip $\vec{\omega }$, and $\vec{L}$ flips, so $d\vec{L}=\vec{\tau }dt$ swings the tip the other way — precession reverses direction. Same rate, opposite sense. Always find the sense by right-handing $\vec{r}\times \vec{g}$; never guess.

---

The one-picture summary

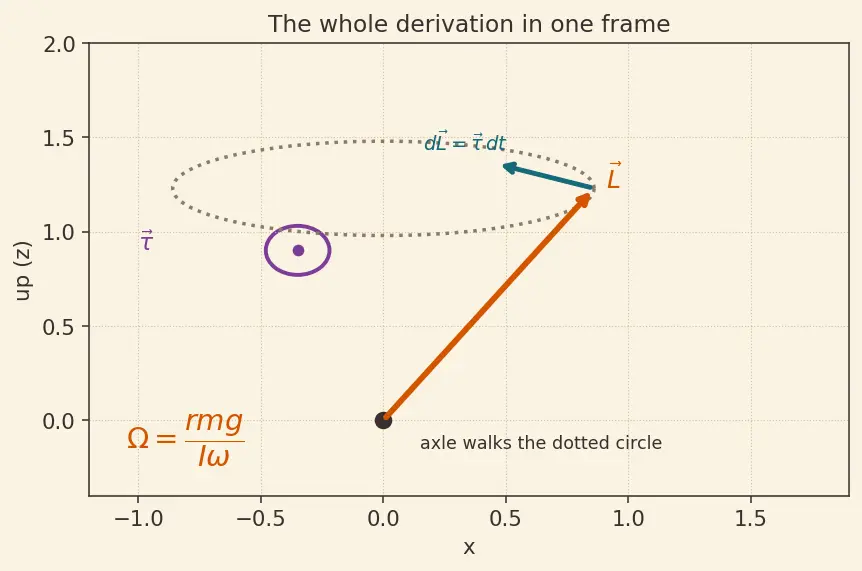

WHAT. One frame folds the whole chain together: the tilted top, the horizontal torque $\vec{\tau }$, the sideways nudge $d\vec{L}$, and the dotted circle the axle walks — with the boxed result printed beside it.

Recall Feynman retelling — the walkthrough in one breath

We drew the spin as one stubborn arrow $\vec{L}$ pointing up the axle (Step 1). Gravity pulls the top's middle down, and a pull away from the pivot is a twist, $\vec{\tau }=\vec{r}\times m\vec{g}$ — and the twist arrow points sideways, not down (Steps 2–3). The one law $\vec{\tau }=d\vec{L}/dt$ says $\vec{L}$ gets nudged in the direction of the twist, so it gets nudged sideways, which can only swing the arrow, never shorten it — so the top can't fall (Step 4). Looking down from above, the horizontal part of $\vec{L}$ (length $L\sin \theta$) walks a circle, and the arc it sweeps is $L\sin \theta d\varphi$ (Step 5). That arc must equal the nudge $\tau dt$; setting them equal, the $\sin \theta$ on both sides cancels and out drops $\Omega =rmg/(I\omega )$ (Step 6). Faster spin → bigger denominator → lazier circle. And when the spin dies, the formula blows up — nature's polite way of saying "now I fall" (Step 7).

Recall Quick self-test

Why is $d\vec{L}$ horizontal? ::: Because $d\vec{L}=\vec{\tau }dt$ and $\vec{\tau }=\vec{r}\times m\vec{g}$ is horizontal. Where does the $\sin \theta$ cancel from? ::: Torque has $rmg\sin \theta$; the horizontal reach of $\vec{L}$ is $L\sin \theta$ — same factor, both sides. What happens to $\Omega$ as $\omega \to 0$? ::: It blows up — the fast-spin approximation fails and the top topples.

---

Parent: 1.5.16 Gyroscopic effect — precession of spinning top (Hinglish) · See also Gyroscope and Navigation, Torque, Angular Momentum, Cross Product and Right-Hand Rule, Moment of Inertia, Vector nature of dL/dt.
