Foundations — Gyroscopic effect — precession of spinning top

This page is the toolbox. Before you can read "$\Omega =rmg/(I\omega )$" you must know what every letter is, what picture it draws, and why the topic needs it. We build them in order, each resting on the one before.

0. What is an arrow-quantity? (vectors, before any letter)

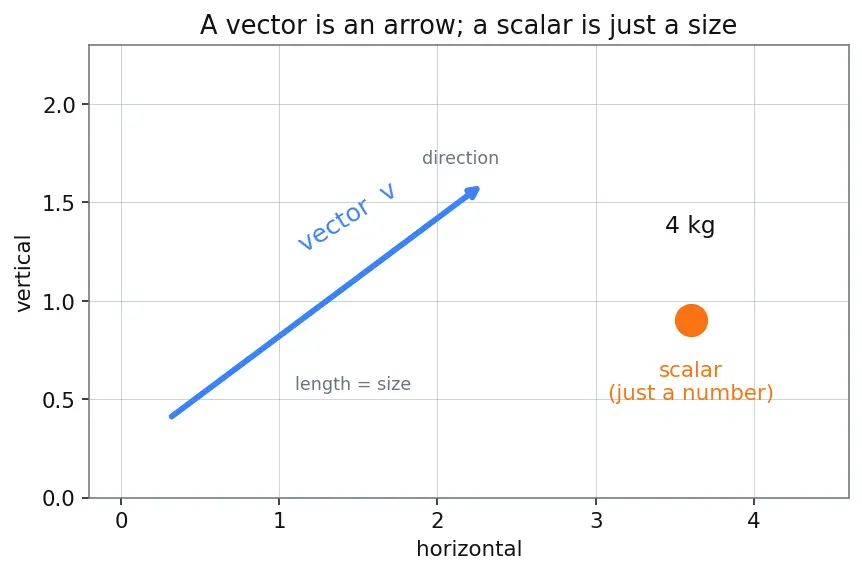

Some quantities need only a size: mass ($4$ kg), a length ($0.3$ m). We call these scalars — one number, done.

Others need a size AND a direction. "The wheel spins" is useless until you say which way the axis points. A quantity with size + direction is a vector, and we draw it as an arrow: length = size, pointing = direction. We put a little hat on the letter, $\vec{v}$, to remind ourselves "this is an arrow, not just a number".

Why the topic needs this. The whole surprise of a top is that gravity pushes it one way but the axis moves a different way. You literally cannot state that puzzle without arrows that point in different directions. See Angular Momentum for the arrow we care about most.

1. Angle $\theta$ — how tilted the top is

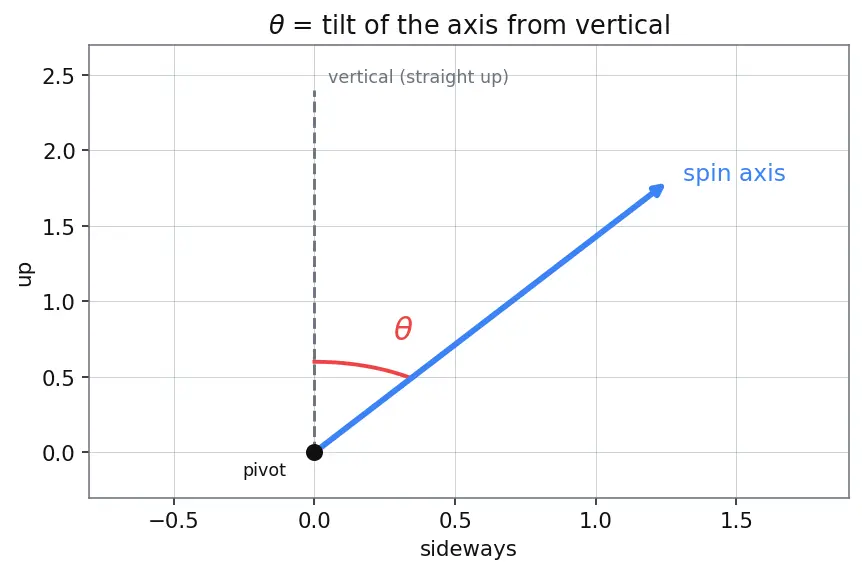

$\theta$ (the Greek letter "theta") is just a number of degrees or radians measuring an angle. Here it is the tilt: the angle between the top's spin axis and the straight-up vertical.

• $\theta =0$: axis perfectly upright.
• $\theta =90^{\circ }$: axis lying flat, horizontal.

Why the topic needs it. Gravity's pull is straight down, but the axis is tilted. The mismatch between "down" and "along the axis" is exactly $\theta$, and it controls how strongly gravity can twist the top.

2. $\sin \theta$ — the "sideways fraction" of a tilt

When something of length $L$ leans at angle $\theta$ from the vertical, its horizontal shadow (how far sideways it reaches) is $L\sin \theta$. That is all $\sin$ means here: it is the machine that turns an angle into the fraction "how much of this points sideways".

• Axis upright ($\theta =0$): no sideways reach, $\sin 0=0$.
• Axis flat ($\theta =90^{\circ }$): fully sideways, $\sin 90^{\circ }=1$.

3. $\vec{\omega }$ and $\omega$ — the spin rate

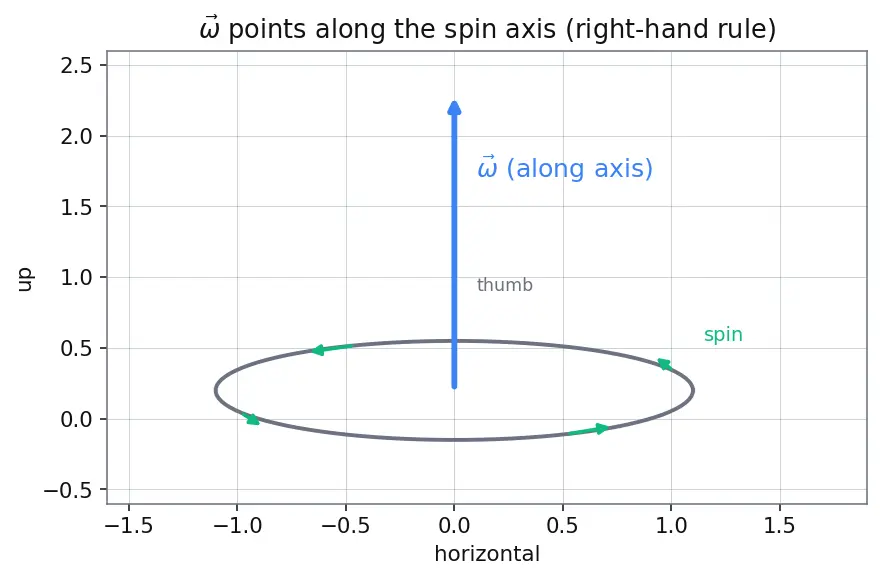

$\omega$ (Greek "omega") is the spin rate: how fast the top turns, measured in radians per second (how many "arrow-lengths of turning" per second). As a vector $\vec{\omega }$ it points along the axis the top spins about, by the right-hand rule (curl your right fingers with the spin, thumb points along $\vec{\omega }$).

Why the topic needs it. Faster spin = harder to tip. $\omega$ lives in the denominator of the precession formula, so it is the single most important number for stability.

4. $I$ — moment of inertia (spin-laziness)

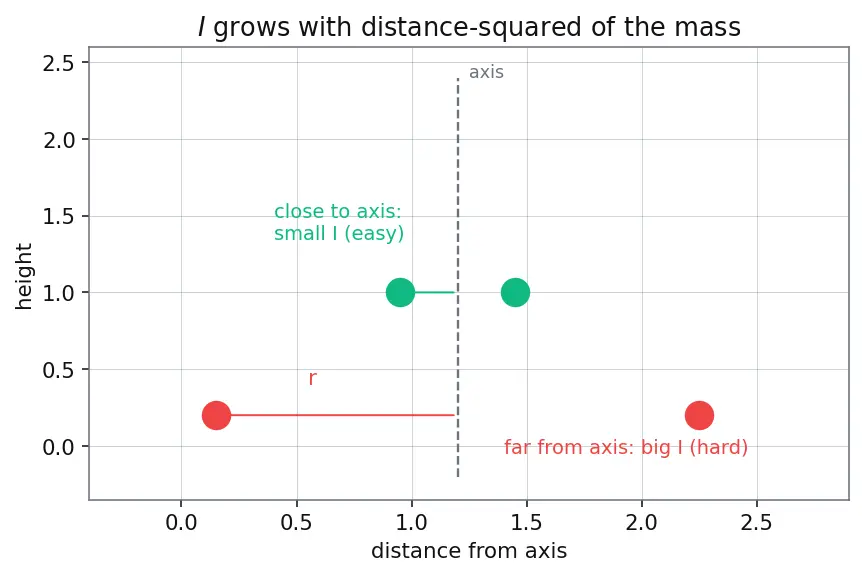

$I$ is the moment of inertia: how hard it is to change a body's spin. It plays the same role for spinning that mass plays for pushing — a big $I$ means "sluggish to speed up or slow down its rotation". It depends on both the mass and how far that mass sits from the axis.

For a ring of mass $m$ and radius $R$ spinning about its centre, $I=m{R}^2$ (all the mass sits at distance $R$). See Moment of Inertia.

Why the topic needs it. We never measure the top's angular momentum directly; we build it from $I$ and $\omega$ in the next step.

5. $\vec{L}=I\vec{\omega }$ — angular momentum, the "spin arrow"

Now combine the two: multiply the sluggishness $I$ by the spin speed $\vec{\omega }$ to get angular momentum $\vec{L}$. It is a single arrow that packages "how much spinning this body has, and which way its axis points".

$\vec{L}=I\vec{\omega },L=I\omega$

Why the topic needs it. The tip of $\vec{L}$ is the thing we watch. Precession is literally the tip of $\vec{L}$ tracing a circle. If you understand $\vec{L}$ as "an arrow glued along the axis", you understand precession as "that arrow being steered".

6. $\vec{F}$ — a force, and $\vec{r}$ — the lever arm

Before we can twist anything we need a force. A force $\vec{F}$ is a push or pull — a vector, because it has both a strength (in newtons, N) and a direction. Its bare letter $F$ means just the strength.

The particular force here is gravity: $\vec{F}=m\vec{g}$. Here $\vec{g}$ is the arrow of gravitational acceleration — it points straight down with magnitude (bare letter) $g\approx 9.8{\text{m/s}}^2$. So $\vec{g}$ is "down, and how strong", while $g$ is just the number $9.8$.

We also need to say where the force acts. The lever arm $\vec{r}$ is the arrow from the pivot to the point where the force is applied — here, from the pivot at the bottom of the top up to its centre of mass. Its bare letter $r$ is that distance.

7. $\vec{\tau }$ — torque, a twisting push

Now combine a force $\vec{F}$ acting at the end of a lever arm $\vec{r}$: the result is a twist, the torque $\vec{\tau }$. Its size is "how much turning effect": bigger force, or a longer arm, gives more twist. See Torque.

$\vec{\tau }=\vec{r}\times \vec{F},\tau =rF\sin \theta$

The first form (with the hats) is the full arrow; the second form uses bare letters — here $r$, $F$ are the lengths of $\vec{r}$ and $\vec{F}$, and $\tau$ is the size of the twist. The angle $\theta$ is the angle between the arm $\vec{r}$ and the force $\vec{F}$.

Why the topic needs it. Torque is what the master equation acts through. Gravity's torque is the villain that "should" topple the top — and the hero that instead makes it precess.

8. The cross product $\vec{r}\times \vec{F}$ — where torque points

The size $rF\sin \theta$ is only half the story; we also need the direction of the twist. That is what the cross product $\vec{\tau }=\vec{r}\times \vec{F}$ gives: an arrow perpendicular to both $\vec{r}$ and $\vec{F}$, found with the right-hand rule (point fingers along $\vec{r}$, curl toward $\vec{F}$, thumb = $\vec{\tau }$).

Why the topic needs it — this is the crux. Because $\vec{\tau }$ is perpendicular to $\vec{r}$ (and to gravity's vertical), the twist points horizontally, at $90^{\circ }$ to the "falling" direction. That $90^{\circ }$ is the gyroscopic surprise. Master this arrow and the whole topic clicks.

9. $d\vec{L}/dt$ and $\Omega$ — the change, and the circling rate

$d\vec{L}/dt$ reads "the rate at which the arrow $\vec{L}$ changes, per second". The $d$ means "a tiny bit of"; $d\vec{L}$ is the tiny arrow you add to $\vec{L}$ in a tiny time $dt$. See Vector nature of dL/dt.

The master equation says that tiny added arrow points the same way as the torque: $\vec{\tau }=\frac{d\vec{L}}{dt}⟹d\vec{L}=\vec{\tau }dt$

Since $\vec{\tau }$ is horizontal, each little $d\vec{L}$ nudges the tip of $\vec{L}$ sideways — it walks in a circle around the vertical. To measure "how far around" the axis has swung we need one more symbol: the ==azimuthal angle $\varphi$== (Greek "phi"). Imagine looking straight down on the top from above; the axis's shadow points in some compass direction, and $\varphi$ is that compass bearing. As the axis circles, $\varphi$ grows from $0^{\circ }$ all the way to $360^{\circ }$ and repeats.

How fast $\varphi$ grows is the precession rate ==$\Omega$== (capital omega): $\Omega \equiv \frac{d\varphi }{dt}$ i.e. how many radians of that circle the axis sweeps per second. Do not confuse it with the spin $\omega$: the top spins fast ($\omega$) while its axis circles slowly ($\Omega$).

Prerequisite map

Equipment checklist

Cover the right side and test yourself — you are ready for the parent page only when all pass.
