1.5.16Rotational Mechanics

Gyroscopic effect — precession of spinning top

2,023 words9 min readdifficulty · medium
🇮🇳 Yeh note Hinglish mein padho →

WHAT is happening (the phenomena)

WHY does the top NOT just fall?

  • Gravity provides a torque τ⃗=r⃗×mg⃗\vec{\tau} = \vec{r}\times m\vec{g} about the pivot.
  • This torque is horizontal, perpendicular to the (nearly vertical) spin angular momentum L⃗\vec{L}.
  • A torque perpendicular to L⃗\vec L cannot change ∣L⃗∣|\vec L| — only its direction. So instead of falling, the tip of L⃗\vec L traces a horizontal circle.

HOW: derive precession from first principles

Set up the geometry. A top spins with spin angular momentum L⃗\vec L along its axis, tilted at angle θ\theta from vertical. The pivot is at the bottom; the centre of mass is a distance rr up the axis.

Step 1 — the gravity torque. τ=r mgsin⁡θ\tau = r\,m g \sin\theta Why? Torque magnitude is ∣r⃗×mg⃗∣=r mgsin⁡θ|\vec r\times m\vec g| = r\,mg\sin\theta, where θ\theta is the angle between the axis r⃗\vec r and vertical g⃗\vec g. It points horizontally, perpendicular to the vertical plane containing the axis.

Step 2 — what the torque does to L⃗\vec L. Since τ⃗⊥L⃗\vec\tau \perp \vec L, in time dtdt the angular momentum changes by dL⃗=τ⃗ dtd\vec L = \vec\tau\,dt This dL⃗d\vec L is horizontal, so it nudges the tip of L⃗\vec L sideways — the axis swings around the vertical.

Step 3 — geometry of the swing. The horizontal component of L⃗\vec L has magnitude Lsin⁡θL\sin\theta. As the axis sweeps through a small azimuthal angle dϕd\phi, the tip of L⃗\vec L moves a horizontal arc ∣dL⃗∣=(Lsin⁡θ) dϕ|d\vec L| = (L\sin\theta)\,d\phi Why this step? Only the horizontal projection of L⃗\vec L rotates; its radius is Lsin⁡θL\sin\theta. The arc length of that rotation is radius × angle.

Step 4 — equate the two expressions for ∣dL⃗∣|d\vec L|. τ dt=(Lsin⁡θ) dϕ\tau\,dt = (L\sin\theta)\,d\phi (rmgsin⁡θ) dt=(Lsin⁡θ) dϕ (r m g \sin\theta)\,dt = (L\sin\theta)\,d\phi

Step 5 — the sin⁡θ\sin\theta cancels (!) and we read off the precession rate.   Ω≡dϕdt=rmgL=rmgIω  \boxed{\;\Omega \equiv \frac{d\phi}{dt} = \frac{rmg}{L} = \frac{rmg}{I\omega}\;}

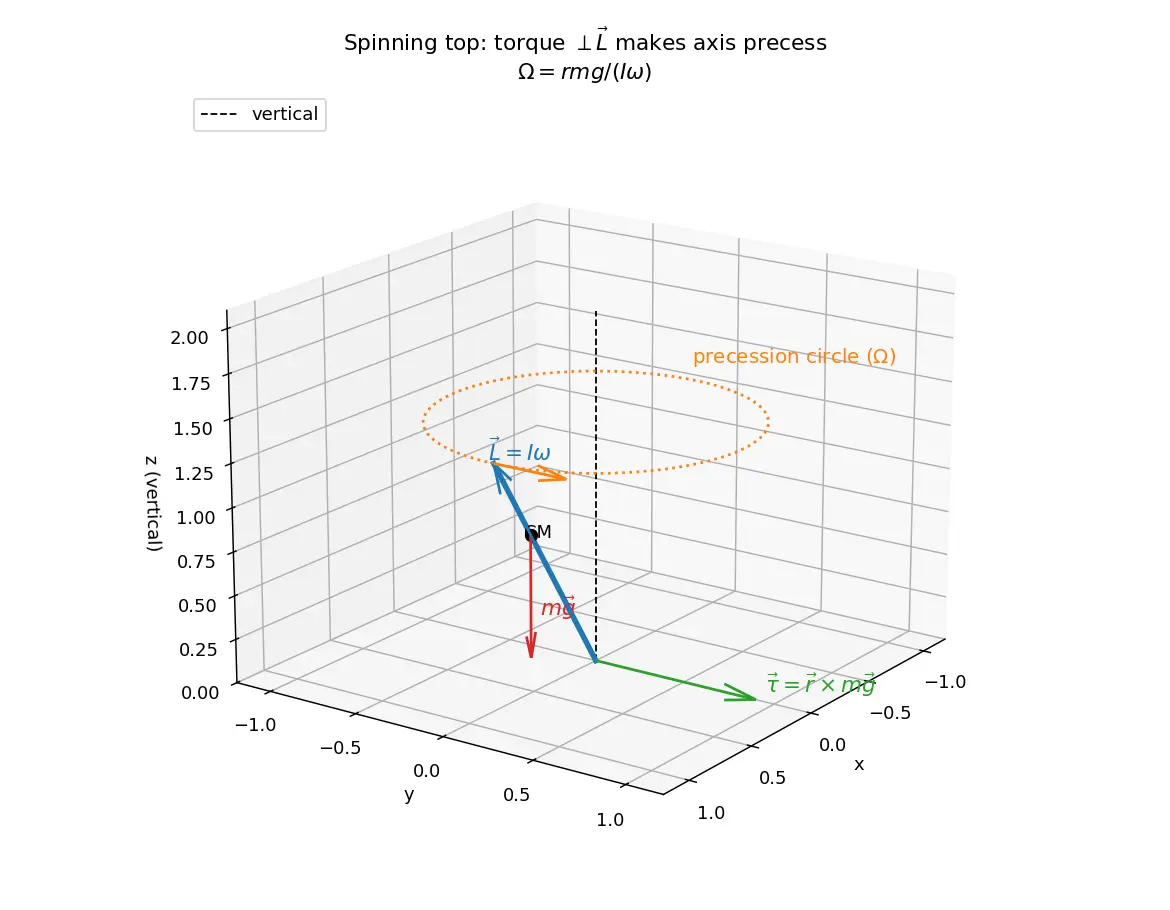

Figure — Gyroscopic effect — precession of spinning top

Worked examples

Common mistakes (Steel-manned)

Active recall

Recall Cover and answer
  • WHY doesn't a fast top fall? → Gravity torque is ⟂ to L⃗\vec L; it only rotates L⃗\vec L's direction (precession), can't reduce ∣L⃗∣|\vec L|.
  • WHAT is Ω\Omega in symbols? → Ω=τ/(Lsin⁡θ)=rmg/(Iω)\Omega = \tau/(L\sin\theta) = rmg/(I\omega).
  • HOW does sin⁡θ\sin\theta disappear? → It appears in both τ\tau and the horizontal LL projection and cancels.
  • If ω\omega triples, Ω\Omega does what? → Becomes one-third.
Recall Feynman: explain to a 12-year-old

Imagine a spinning top is super stubborn about which way it points — like a fast bike wheel that's hard to twist. When gravity tries to push it over, the top is so stubborn that instead of falling, it cheekily turns sideways and walks in a slow circle. The faster it spins, the more stubborn it is, so it circles even more lazily. When it finally slows down and loses its stubbornness, then it wobbles and falls.

Flashcards

What is precession?
The slow circular rotation of a spinning body's axis around a fixed direction, caused by a torque perpendicular to its spin angular momentum.
Master equation behind gyroscopic effect?
τ⃗=dL⃗/dt\vec{\tau}=d\vec L/dt.
Why doesn't a spinning top fall under gravity?
Gravity's torque is perpendicular to L⃗\vec L, so it changes L⃗\vec L's direction (precession) but not its magnitude.
Precession rate formula?
Ω=rmg/(Iω)=τ/(Lsin⁡θ)\Omega = rmg/(I\omega) = \tau/(L\sin\theta).
How does precession rate depend on spin rate?
Inversely — faster spin gives slower precession (Ω∝1/ω\Omega \propto 1/\omega).
Does precession rate depend on the tilt angle (fast-spin limit)?
No — the sin⁡θ\sin\theta in torque and in the horizontal LL-component cancel.
What direction does the axis swing?
In the direction of τ⃗=r⃗×mg⃗\vec\tau = \vec r \times m\vec g (right-hand rule), 90° from the "falling" direction.
What is nutation?
The small bobbing/wobble of the axis superimposed on steady precession, seen when a top starts precessing.
Why are bullets and frisbees spun?
High spin → large LL → strong gyroscopic stability, resisting tumbling.

Connections

  • Angular Momentum — the master quantity L⃗=Iω⃗\vec L = I\vec\omega that precession rotates.
  • Torque — τ⃗=r⃗×F⃗\vec\tau=\vec r\times\vec F drives the whole effect.
  • Cross Product and Right-Hand Rule — gives the direction of precession.
  • Moment of Inertia — sets L=IωL=I\omega and hence Ω\Omega.
  • Vector nature of dL/dt — the deep reason direction-change ≠ speed-change.
  • Gyroscope and Navigation — practical use: gyrocompass, IMUs, bicycle stability.

Concept Map

acts about pivot

governs

perpendicular to L

magnitude r m g sin theta

cannot change magnitude

nudges axis sideways

horizontal component L sin theta

equate expressions

sin theta cancels

defines

axis resists falling

axis turns 90 degrees

Gravity torque tau

Pivot point

Master equation tau equals dL/dt

Spin angular momentum L

Change dL horizontal

Precession

Arc L sin theta d phi

Precession rate Omega equals r m g over I omega

Gyroscopic effect

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Socho ek tezi se ghoomta hua lattu (top). Common sense kehta hai ki gravity isko niche gira degi. Lekin hota ulta hai — uska axis dheere-dheere vertical ke around ghoomne lagta hai, isko hum precession kehte hain. Reason simple hai: gravity ka torque spin angular momentum L⃗\vec L ke perpendicular hota hai. Jab torque L⃗\vec L ke perpendicular ho, to wo L⃗\vec L ki magnitude nahi badal sakta, sirf uski direction ghuma sakta hai. Isliye lattu girta nahi, balki uska axis side me ghoomta hai.

Master equation bas ek hai: τ⃗=dL⃗/dt\vec\tau = d\vec L/dt. Yahin se sab nikalta hai. Time dtdt me L⃗\vec L ka tip ek chhoti horizontal arc move karta hai. Torque =rmgsin⁡θ= rmg\sin\theta aur horizontal LL ka component =Lsin⁡θ= L\sin\theta — dono me sin⁡θ\sin\theta cancel ho jaata hai, aur final result milta hai: Ω=rmg/(Iω)\Omega = rmg/(I\omega).

Iska sabse mast baat: jitna tez spin, utni dheemi precession (kyunki ω\omega denominator me hai). Isiliye bullet, frisbee, aur gyroscope ko fast spin diya jaata hai — high L⃗\vec L se wo apni direction stable rakhte hain, tilt nahi hote. Aur tilt angle θ\theta ka precession rate pe koi effect nahi padta (fast-spin approximation me).

Exam tip: direction nikalne ke liye hamesha right-hand rule se r⃗×mg⃗\vec r\times m\vec g compute karo, guess mat karo. Aur yaad rakho — "push DOWN, it turns AROUND". Jab spin slow ho jaata hai, tabhi lattu wobble (nutation) karke girta hai.
