1.5.17Rotational Mechanics

Gyroscope in spacecraft attitude control — preview

1,992 words9 min readdifficulty · medium3 backlinks
🇮🇳 Yeh note Hinglish mein padho →

WHY does a spacecraft even need this?

A spacecraft floats in vacuum. There is no ground to push against, no air to grip. So it cannot "steer" like a car. To rotate (change its attitude = orientation), it must obey conservation of angular momentum: it can only spin one part to make the rest spin the other way, or use stored spin.

Two jobs, two uses of the gyroscope:

  1. Sensing — a fast-spinning gyro keeps its axis fixed in space (rigidity), so the craft measures its own rotation against this stable reference.
  2. Actuating — spinning reaction wheels / control moment gyros (CMGs) trade angular momentum with the spacecraft body to point it.

WHAT is the core physics?

HOW do we derive precession from scratch?

Start from the rotational Newton's second law (this is the only assumption): τ⃗=dL⃗dt\vec{\tau}=\frac{d\vec{L}}{dt}

Why this is the starting point: torque is the rotational analogue of force; just as F⃗=dp⃗/dt\vec F = d\vec p/dt, torque is the time-rate of change of angular momentum. Everything follows.

Now the key insight. Suppose the rotor spins so fast that its spin angular momentum L=IωL=I\omega dwarfs everything else. Apply a steady external torque τ⃗\vec\tau that is perpendicular to L⃗\vec L (e.g. gravity trying to tip the axis).

Why "perpendicular" matters: a torque parallel to L⃗\vec L would change its length (speed it up/slow it down). A torque perpendicular to L⃗\vec L cannot change its length — only its direction. So the tip of L⃗\vec L moves sideways.

In a small time dtdt: dL⃗=τ⃗ dt⇒∣dL⃗∣=τ dtd\vec L = \vec\tau\, dt \quad\Rightarrow\quad |d\vec L|=\tau\,dt

This dL⃗d\vec L is perpendicular to L⃗\vec L, so the vector L⃗\vec L rotates through a small angle dϕ=∣dL⃗∣L=τ dtIωd\phi=\frac{|d\vec L|}{L}=\frac{\tau\,dt}{I\omega}

Why divide by LL? For a vector turning by a small angle, arc-length = (radius)×\times(angle); here the "radius" of the swing is the length LL itself. So angle = sideways displacement / length.

The rate at which the axis sweeps around is the precession angular velocity:

HOW a reaction wheel actually points a spacecraft

Let IbI_b = body moment of inertia, IwI_w = wheel moment of inertia. Starting from rest, total L=0L=0 always: Ib ωb+Iw ωw=0⇒ωb=−IwIb ωwI_b\,\omega_b + I_w\,\omega_w = 0 \quad\Rightarrow\quad \omega_b=-\frac{I_w}{I_b}\,\omega_w

Why the minus sign? Because the two must cancel to keep the total at zero. To rotate the body clockwise, spin the wheel counter-clockwise.

The motor torque on the wheel and the reaction torque on the body are equal and opposite: τbody=−τwheel=−Iwdωwdt\tau_{\text{body}}=-\tau_{\text{wheel}}=-I_w\frac{d\omega_w}{dt}

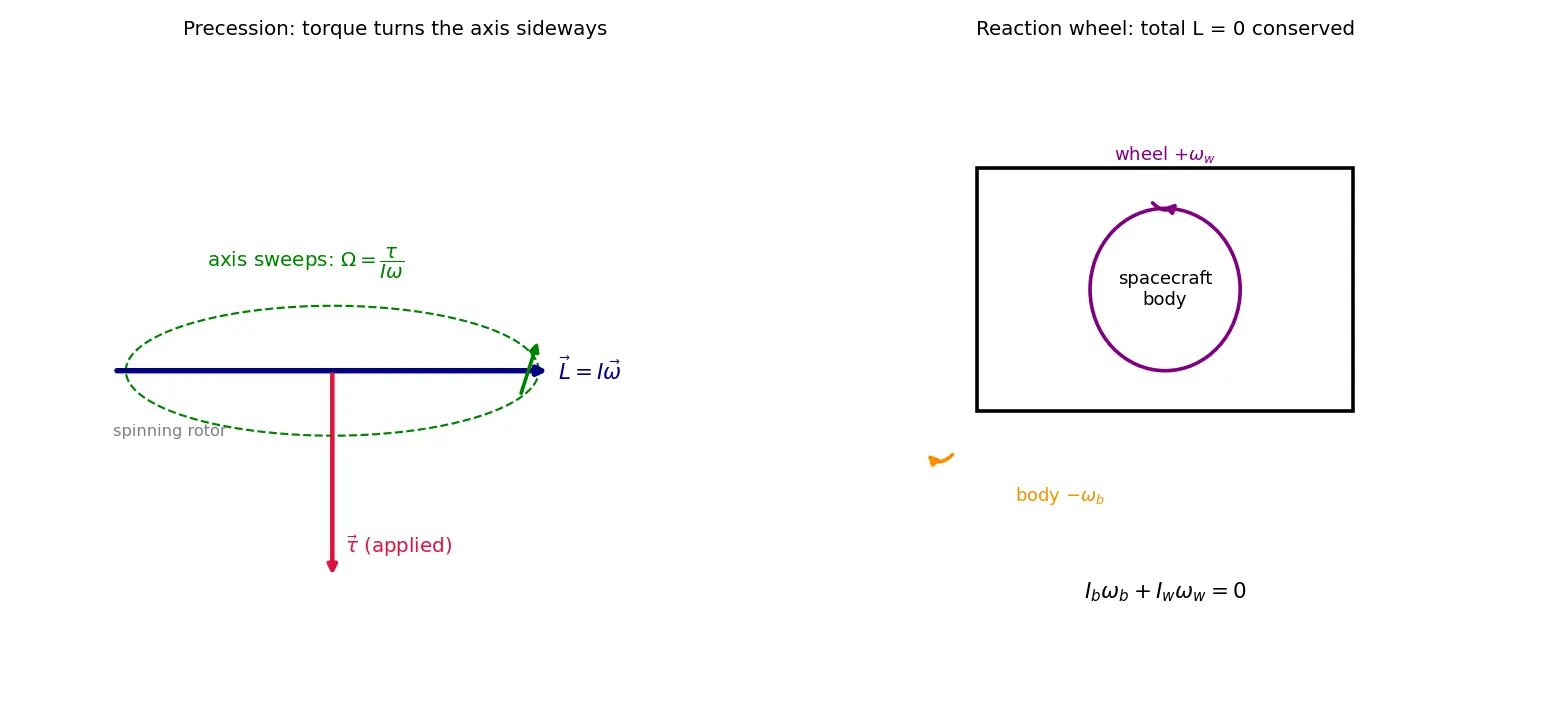

Figure — Gyroscope in spacecraft attitude control — preview

Worked Examples

Common Mistakes

Active Recall

Recall Quick self-test (hide answers, predict first!)
  • Which way does the axis move when you push it? → 90° sideways (precession).
  • What stays constant for a torque-free gyro? → L⃗\vec L (direction + magnitude).
  • To rotate the body left, which way spin the wheel? → Right (opposite).
  • Why does a faster gyro precess slower? → Larger L=IωL=I\omega in the denominator.
Recall Feynman: explain to a 12-year-old

Imagine a spinning top. When it slows it wobbles and falls, but while it spins fast it refuses to fall — instead it slowly walks in a circle. That refusal is the spacecraft's "compass," because the spinning wheel always remembers which way it was first pointing. And here's the trick to turning a spaceship: there's nothing to push on out in space, so it carries a heavy wheel inside. Spin that wheel one way, and the whole ship slowly turns the other way — like a cat twisting in mid-air. Spin the wheel back, the ship stops turning. That's how a telescope in space points at a distant star without any rockets!

Flashcards

What is the spin angular momentum of a rotor?
L⃗=Iω⃗\vec L = I\vec\omega, pointing along the spin axis (right-hand rule).
State the precession rate formula and derive its origin.
Ω=τ/(Iω)\Omega=\tau/(I\omega), from dϕ=∣dL⃗∣/L=τ dt/(Iω)d\phi=|d\vec L|/L=\tau\,dt/(I\omega).
Why does an applied torque make a gyro precess rather than fall?
dL⃗=τ⃗ dtd\vec L=\vec\tau\,dt is perpendicular to L⃗\vec L, so it only rotates L⃗\vec L's direction.
What is gyroscopic rigidity?
A spinning rotor with no external torque keeps L⃗\vec L fixed in magnitude and direction — a stable reference.
How does a reaction wheel rotate a spacecraft?
By conservation of angular momentum: Ibωb=−IwωwI_b\omega_b=-I_w\omega_w; spin wheel one way, body turns the other.
Why must reaction wheels be "desaturated"?
They have a max speed; external torques keep loading them, so thrusters/magnetorquers must dump the stored momentum.
Vector form of the precession relation?
τ⃗=Ω⃗×L⃗\vec\tau=\vec\Omega\times\vec L.
For sensing, do you want fast or slow spin, and why?
Fast, to make IωI\omega large so Ω=τ/(Iω)\Omega=\tau/(I\omega) is small — a steadier reference.

Connections

Concept Map

no ground or air

must obey

needs

job 1 sensing

job 2 actuating

due to

measures rotation vs

trade momentum to

spin momentum

torque perpendicular to L

derived from

gives rate

Spacecraft in vacuum

Cannot steer like car

Conservation of angular momentum

Gyroscope

Spinning gyro axis fixed

Reaction wheels and CMGs

Gyroscopic rigidity

Stable reference

Point spacecraft

L equals I omega

Precession

tau equals dL by dt

Omega equals tau over I omega

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Socho ek tezi se ghoomta hua wheel (gyroscope). Jab tak woh fast ghoom raha hai, uska axis apni direction ko zid se pakde rakhta hai — isko hum gyroscopic rigidity kehte hain. Iska angular momentum L⃗=Iω\vec L = I\omega hota hai jo spin axis ke along point karta hai. Spacecraft ko vacuum mein koi zameen ya hawa nahi milti push karne ke liye, isliye yeh stubborn spinning wheel ek "compass" ki tarah kaam karta hai — usse craft pata lagata hai ki woh kis taraf ghoom gaya.

Ab agar aap is spinning axis pe torque (τ⃗\vec\tau) lagao, toh axis seedha gir nahi jaata — woh 90 degree side mein ghoomne lagta hai. Isi ko precession kehte hain, aur uska rate hota hai Ω=τ/(Iω)\Omega = \tau/(I\omega). Yaad rakho: jitna fast spin (bada IωI\omega), utni dheemi precession — yani gyro aur zyada zid karta hai. Yeh derivation simple hai: dL⃗=τ⃗ dtd\vec L = \vec\tau\, dt hamesha L⃗\vec L ke perpendicular hota hai (kyunki torque perpendicular hai), isliye sirf direction badalti hai, length nahi.

Pointing ke liye spacecraft reaction wheel use karta hai. Yahan magic nahi, sirf conservation of angular momentum hai: total LL zero rehta hai, toh Ibωb=−IwωwI_b\omega_b = -I_w\omega_w. Wheel ko ek taraf ghumao, body doosri taraf ghoom jaati hai — bilkul jaise billi hawa mein twist karke seedha land karti hai. Chhota wheel ko fast ghoomna padta hai kyunki body bahut bhaari hoti hai.

Ek important real-life baat: reaction wheels saturate ho jaate hain — max speed pe pahunch jaate hain. Sunlight aur gravity-gradient jaise external torques unhe slowly load karte rehte hain, isliye thrusters ya magnetorquers se unhe "desaturate" karna padta hai. Ye topic isliye important hai kyunki har satellite, telescope (jaise Hubble), aur space station isi physics se apni direction control karte hain — bina ek bhi drop fuel kharch kiye!
