Non-conservative forces — friction, air drag: Visual walkthrough

Step 1 — What "work" even is (the dot of two arrows)

WHAT each symbol does, right where it sits:

$∣ F ∣$ — the length of the force arrow (in newtons).
$∣ d r ∣$ — the length of the step (in metres).
$ϕ$ — the angle between the two arrows. This is the whole story.
$cos ϕ$ — asks "how much of the force points along the motion?"

WHY the dot product and not plain multiplication? Because only the part of the force along the step transfers energy. A force sideways to your motion (like a string swinging a ball) does zero work — and $cos 9 0^{\circ} = 0$ delivers exactly that. We need a tool that automatically keeps the aligned part and throws away the sideways part; the dot product is that tool.

PICTURE:

Figure — Non-conservative forces — friction, air drag

Look at the three cases. When $ϕ = 0^{\circ}$ (force with the step) $cos ϕ = + 1$ : full positive work. When $ϕ = 9 0^{\circ}$ : zero. When $ϕ = 18 0^{\circ}$ (force against the step) $cos ϕ = - 1$ : full negative work — energy removed. Hold on to that last one; friction lives there permanently.

Step 2 — Why friction always sits at $ϕ = 18 0^{\circ}$

WHAT each symbol does:

$μ_{k}$ — the coefficient of kinetic friction, a pure number (no units) saying how "grippy" the surfaces are.
$N$ — the normal force, how hard the surface presses back (in newtons); it sets the size of friction.
$\overset{v}{^}$ — the unit velocity vector: an arrow of length $1$ pointing exactly where the object moves.
The minus sign — friction points opposite to $\overset{v}{^}$ . Always. That is the entire personality of friction.

WHY this matters for work: the tiny step $d r$ points along the motion, i.e. along $\overset{v}{^}$ . Friction points along $- \overset{v}{^}$ . So the angle $ϕ$ between friction and every step is always $18 0^{\circ}$ — no matter which way you go, no matter how the path curves.

PICTURE:

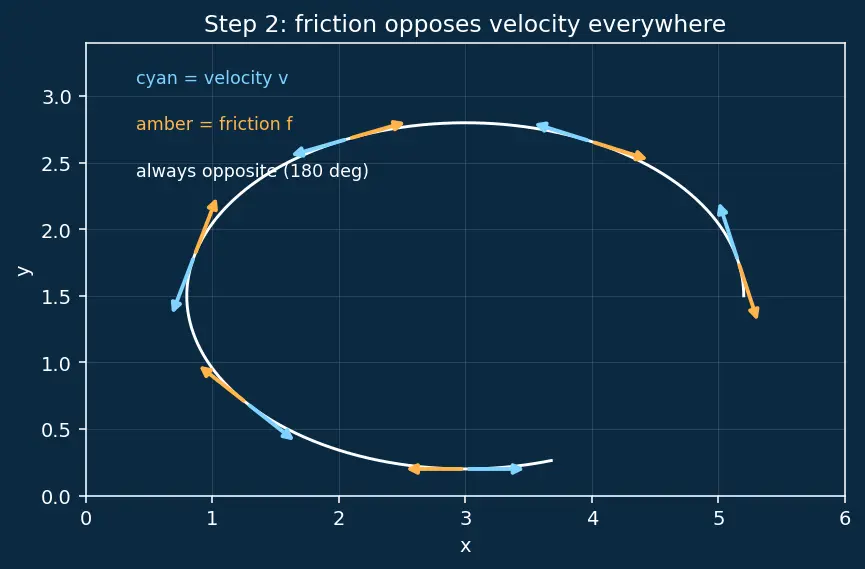

Follow the curved path. At every point the cyan velocity arrow and the amber friction arrow point exactly opposite. Turn the path around, and friction flips too to stay opposite. It can never help you.

Step 3 — Adding up all the tiny steps (the integral)

WHAT each new piece does:

$\int$ — "add up all the tiny steps"; it is just a very long sum.
$∣ d r ∣$ — the length of one tiny step (a positive number always).
$L = \int ∣ d r ∣$ — the total path length, the odometer reading, the sum of all step-lengths.

WHY $L$ and not displacement? Because we summed $∣ d r ∣$ — the length of each step — never allowing cancellation. A step east and a later step west both add positive length. This is exactly why friction is path-dependent: a longer, windier route piles up more $L$ , hence more energy stolen.

PICTURE:

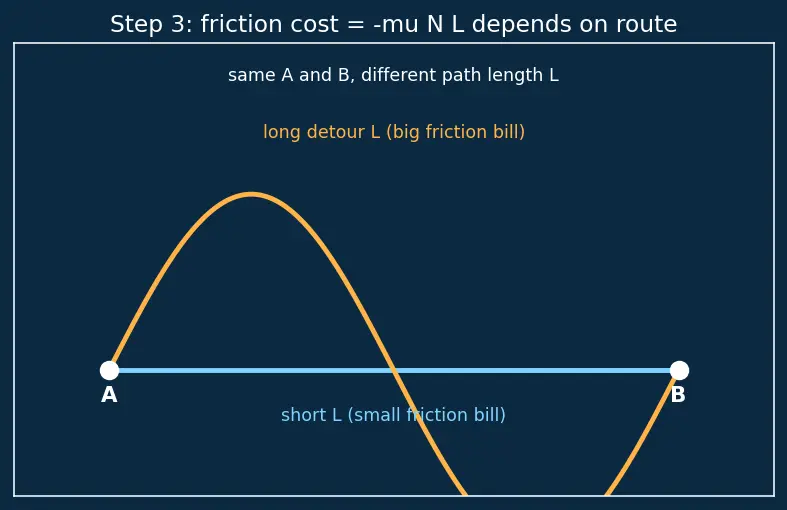

Two routes from A to B: a short straight line and a long detour. Same endpoints, but the detour's odometer $L$ is bigger — so its friction bill $- μ_{k} N L$ is bigger. Endpoints don't decide the cost; the path does.

Step 4 — The closed-loop test (the definition, made visible)

WHAT is happening: on the way back, the velocity reverses, so friction reverses too — it still opposes motion, so it still subtracts. Two negatives, not a cancelling pair.

WHY this is the definition of non-conservative: a force is conservative only if $\oint F \cdot d r = 0$ (zero net work around any closed loop). Friction gives a strictly negative loop, so it is non-conservative and ==no potential energy $U$ can be assigned to it==.

PICTURE:

Compare gravity (top): out costs $- m g h$ , back returns $+ m g h$ , the loop sums to zero — an honest banker. Friction (bottom): out $- μ_{k} m g d$ , back $- μ_{k} m g d$ , loop sums to $- 2 μ_{k} m g d$ — a one-way thief.

Step 5 — Turning work into an energy statement

WHAT each symbol does:

$K E$ — kinetic energy, the energy of motion, $\frac{1}{2} m v^{2}$ .
$Δ K E = K E_{f ina l} - K E_{ini t ia l}$ — how much the motion-energy changed.
$W_{t o t a l}$ — the work done by every force added together.

WHY start here: this theorem is a re-labelling of Newton's second law; it holds for any force, honest or thief. It is the bedrock we stand on. From it we will squeeze out the friction result cleanly.

PICTURE:

The bar chart: total work in $\to$ kinetic energy goes up by the same amount. Nothing lost yet — we've only stated the accountant's first rule.

See Work–Energy theorem for the fuller treatment of this bedrock.

Step 6 — Splitting the forces into honest and thief

WHAT is $U$ ? Potential energy — stored energy that a conservative force (like gravity) hands back fully. For gravity $U = m g h$ . See Conservative forces & potential energy.

WHY the minus sign in $W_{co n s} = - Δ U$ ? When gravity does positive work (object falls), stored height-energy drops — so $Δ U$ is negative. Positive work ↔ falling $U$ : the signs must be opposite. That is precisely what defines $U$ .

PICTURE:

Total work splits into two buckets: the conservative bucket (relabelled $- Δ U$ , reversible) and the non-conservative bucket $W_{n c}$ (the leak).

Step 7 — The master equation appears

WHAT each term does:

$Δ K E + Δ U = Δ E_{m ec h}$ — the change in total mechanical energy (motion + stored).
$W_{n c}$ — what the thieves did; for friction this is $- μ_{k} N L$ , always negative.

WHY this is the whole point: since $W_{n c} < 0$ , mechanical energy $E_{m ec h}$ must decrease. It didn't vanish — it became heat (see Heat & first law of thermodynamics): $Q = - W_{n c} = μ_{k} N L$

PICTURE:

The Sankey-style flow: energy enters, a slice $μ_{k} N L$ peels off as heat/sound, and only the remainder stays as usable mechanical energy. This is Mechanical energy conservation with its honest leak drawn in.

Step 8 — The edge cases (never let the reader hit an unshown scenario)

The three cases hiding in that bracket $(sin θ - μ_{k} cos θ)$ :

Case A — $tan θ > μ_{k}$ : bracket positive → real speed, block accelerates. (Steep or slippery.)
Case B — $tan θ = μ_{k}$ : bracket zero → $v = 0$ throughout; gravity's pull exactly equals friction's steal, block slides at constant speed if nudged.
Case C — $tan θ < μ_{k}$ : bracket negative → square root of a negative → no motion. The block never starts (consistent with Friction — static & kinetic).

Degenerate limits to close every door:

$θ = 0$ (flat floor): $sin θ = 0$ , bracket $= - μ_{k} < 0$ → no self-starting motion. Correct.
$θ = 9 0^{\circ}$ (vertical): $cos θ = 0$ , friction term vanishes, $v = 2 g L$ — pure free-fall. Correct.
$μ_{k} = 0$ (frictionless): $v = 2 g L sin θ$ — the honest-banker answer, all PE → KE.

PICTURE:

The three incline diagrams side by side. Watch the bracket's sign flip as $θ$ passes the critical angle where $tan θ = μ_{k}$ — the amber friction arrow overtakes the cyan gravity-along-slope arrow.

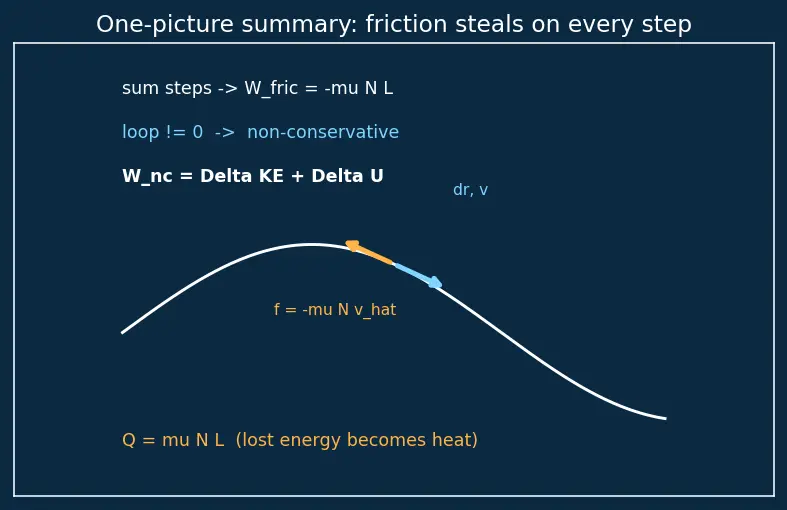

The one-picture summary

Everything on one blueprint: a step $d r$ , friction opposing it at $18 0^{\circ}$ , the odometer $L$ piling up, the closed loop that refuses to zero out, and the energy ledger draining into heat $Q = μ_{k} N L$ .

Recall Feynman: the whole walkthrough in plain words

Work is just "how much a push helps the motion" — full credit when push and motion agree, full debit when they fight. Friction is the world's most stubborn contrarian: it always points backwards against wherever you're going. So every tiny step you take, it charges you. Add up all those little charges over your whole trip and the bill is the odometer reading times the grip: $μ_{k} N L$ . Because it charges on every step — even the return trip — a round trip that ends where it started still leaves you poorer; that's the closed-loop test, and it's why friction can never store energy to give back. Meanwhile the physics accountant's oldest rule says total work equals change in motion-energy. We just split "total work" into the honest part (which we rename minus-change-in-stored-energy) and the thief part. Shuffle the terms and out pops the headline: the thief's work equals the change in your total mechanical energy — and since the thief only ever takes, that total can only fall. The missing joules aren't gone; rub your hands together and feel where they went: heat.
