Conservative forces — path-independent work, potential energy defined: Visual walkthrough

Step 1 — What "work" even is: a force nudging along a step

WHAT. We move a particle a tiny distance and ask: how much did the force help or fight the motion? That number is called work. For a small straight step $d r$ (a tiny arrow pointing where the particle moved) under a force $F$ (another arrow), the work is

$d W = F \cdot d r = ∣ F ∣ ∣ d r ∣ cos θ$

Read it term by term:

$F$ — the force arrow (how hard, which way).
$d r$ — the tiny step arrow (how far, which way the particle actually went).
$θ$ — the angle between those two arrows.
$cos θ$ — the "alignment dial": $1$ when force and motion point the same way, $0$ when they are perpendicular, $- 1$ when opposite.
$d W$ — the tiny bit of work paid out on this one step.

WHY the dot product and not just $∣ F ∣ ∣ d r ∣$ ? Because only the part of the force along the motion transfers energy. A force pushing sideways to your step does nothing to speed you up. The dot product is precisely the tool that keeps the along-part and throws away the sideways-part — that is the question it answers. (See Work done by a variable force.)

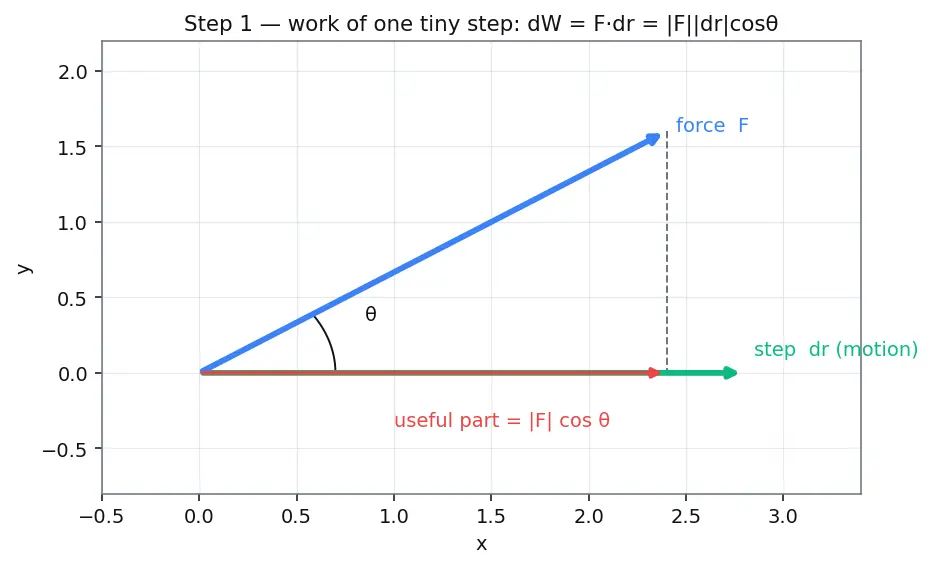

PICTURE. The green step arrow, the blue force arrow, and the angle $θ$ between them; the shaded projection shows the "useful" part of the force.

Figure — Conservative forces — path-independent work, potential energy defined

Step 2 — Adding up the steps along a whole path

WHAT. A real journey from point $A$ to point $B$ is not one step — it's thousands of tiny steps chained together. We add up the work on every step. Adding infinitely many infinitely small pieces is exactly what the integral sign $\int$ means:

$W_{A \to B} = \int_{A}^{B} F \cdot d r$

$\int_{A}^{B}$ — "sweep along the path from $A$ to $B$ , summing."
$F \cdot d r$ — the tiny work from Step 1, evaluated at each point of the path.
$W_{A \to B}$ — the grand total of all those nudges.

WHY an integral? The force can change as you move (stronger here, tilted there). We cannot use one multiplication for the whole trip. The integral is the tool for "quantity that varies continuously, summed over a path."

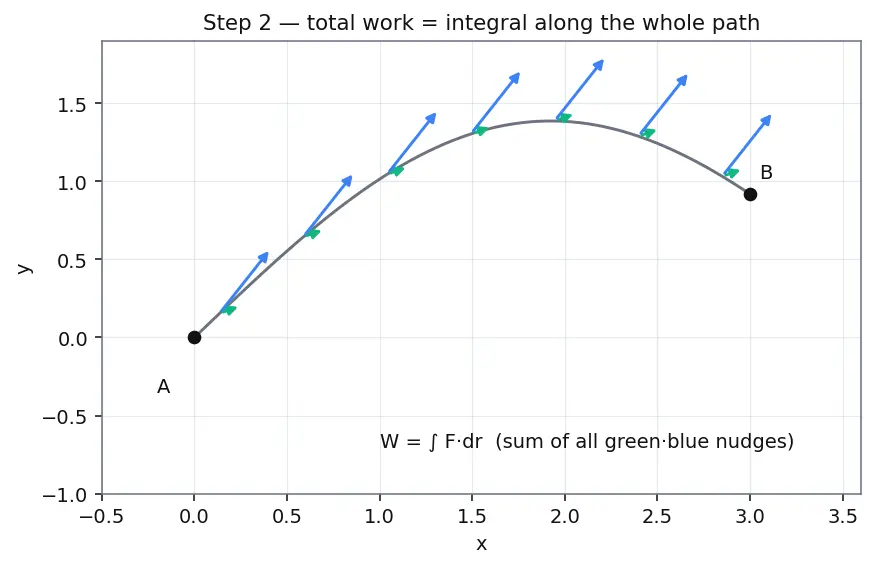

PICTURE. One curved path from $A$ to $B$ chopped into little green segments, each with its own force arrow; the integral is the sum of all their dot products.

Step 3 — The magic property: two paths, same answer

WHAT. Draw two different paths from $A$ to $B$ — a straight one and a loopy one. For a conservative force, both give the same total work:

$\int_{path 1} F \cdot d r = \int_{path 2} F \cdot d r$

WHY this is special. For most forces this is false — friction charges you more on the longer road. When it is true, the answer no longer depends on the road, only on where you started ( $A$ ) and stopped ( $B$ ). That is the seed of everything: if the answer depends only on two points, we can bottle it into a number attached to each point.

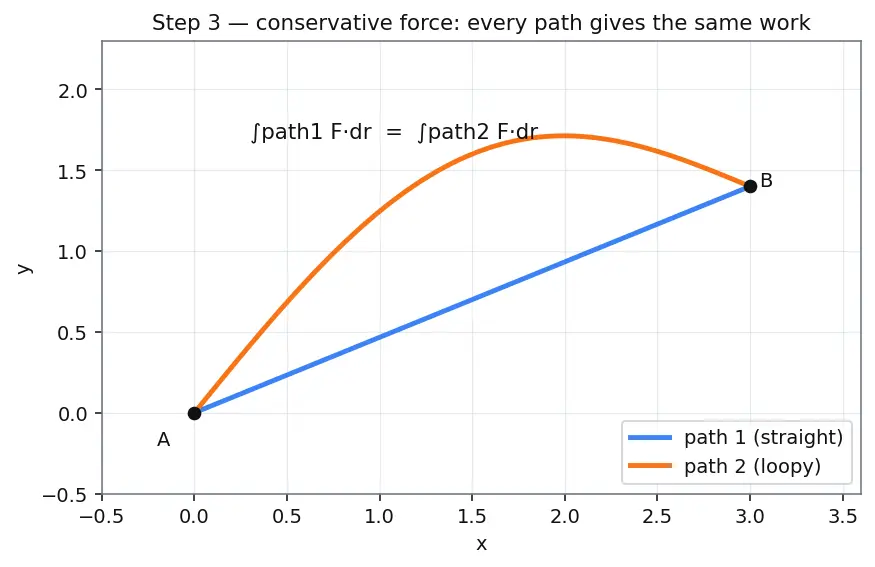

PICTURE. Two coloured paths (blue straight, orange loopy) between the same $A$ and $B$ ; a label announcing both integrals are equal.

Step 4 — Same property, restated as a loop of zero work

WHAT. Take path 1 from $A$ to $B$ , then come back along path 2 from $B$ to $A$ . You've walked a closed loop. Walking a path backward flips every step arrow $d r \to - d r$ , so it flips the sign of that piece of work. Therefore:

$\oint F \cdot d r = W_{1} \int_{1, A \to B} F \cdot d r - W_{2} \int_{2, A \to B} F \cdot d r = W_{1} - W_{2}$

$\oint$ — the integral sign with a circle: "sum all the way around a closed loop."
$W_{1}, W_{2}$ — the two path-works from Step 3.

If $W_{1} = W_{2}$ (Step 3), then $\oint F \cdot d r = 0$ .

WHY bother with the loop form? It is a single, checkable test: walk any closed loop; if the net work is zero, the force is conservative. No need to compare pairs of paths.

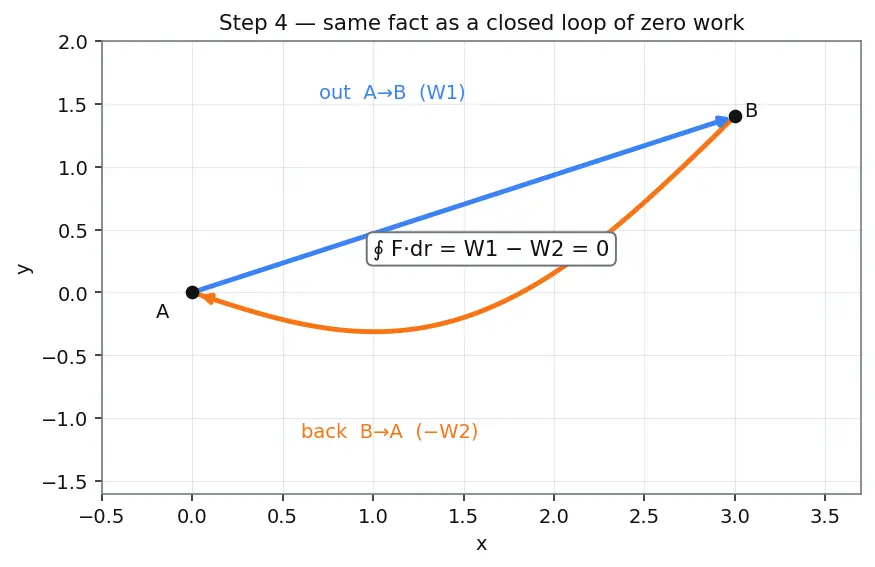

PICTURE. The out-and-back loop: blue out-arrow $A \to B$ , orange return-arrow $B \to A$ , with a "net $= 0$ " stamp in the middle.

Step 5 — Bottling the work into a number at each point: define $U$

WHAT. Because $W_{A \to B}$ depends only on $A$ and $B$ , it can be written as one function's value at $A$ minus its value at $B$ . We give that function a name, potential energy $U$ , and glue in a minus sign by convention:

$W_{A \to B}^{cons} = - Δ U = - (U_{B} - U_{A}) = U_{A} - U_{B}$

$U_{A}$ — the number the function assigns to the start point.
$U_{B}$ — the number it assigns to the end point.
$Δ U = U_{B} - U_{A}$ — the change in potential energy over the trip.
The leading minus — chosen so that work done by the force equals the drop in $U$ .

WHY is this always possible? Only because of Step 3. If work depended on the path, no single number per point could reproduce it — you'd need a different value for each road. Path-independence is exactly the licence to define $U$ .

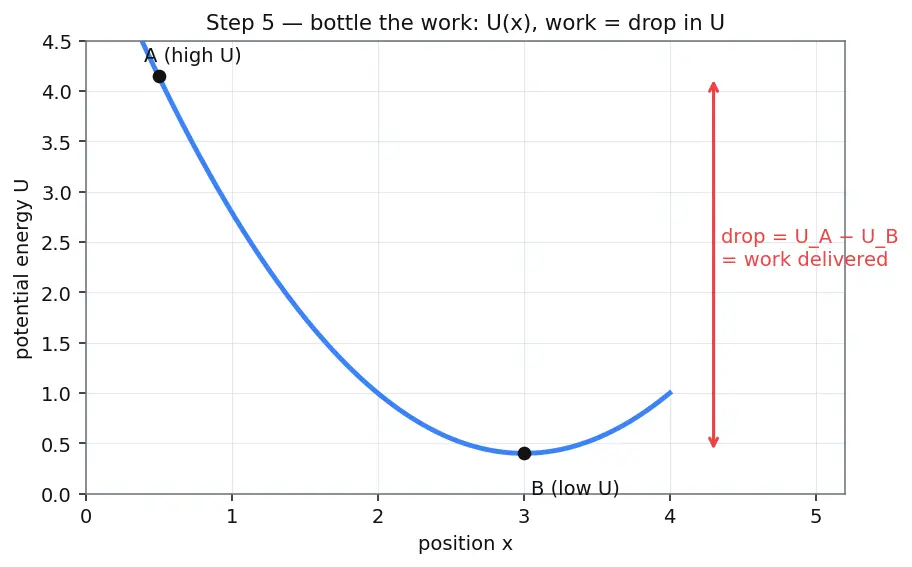

PICTURE. A landscape of "height" $U$ over positions; two points $A$ (high) and $B$ (low), with the drop $U_{A} - U_{B}$ marked as the work delivered.

Step 6 — Shrink the trip: force is the slope of $U$

WHAT. Make $B$ just a hair to the right of $A$ , separated by a tiny $d x$ . In 1D, Step 5 becomes

$d W = F d x = - d U ⟹ F = - \frac{d U}{d x}$

$F d x$ — tiny work over the tiny step (Step 1, in 1D).
$- d U$ — the tiny drop in potential energy.
$\frac{d U}{d x}$ — the slope of the $U$ -versus- $x$ curve: how fast $U$ rises as you move right.
The minus — force points downhill on that curve.

WHY the derivative here? We want the force at a single point, not over a stretch. The derivative $\frac{d U}{d x}$ is the exact tool for "rate of change at one instant/point" — the local steepness of the potential hill. This is the gradient idea in one dimension; in 3D it reads $F = - \nabla U$ .

WHY the minus (checked on the picture). Where $U$ slopes up to the right, $\frac{d U}{d x} > 0$ , so $F < 0$ points left — back down toward smaller $U$ . A ball always rolls toward the valley. If we'd used a plus sign, balls would climb out of valleys by themselves — nonsense.

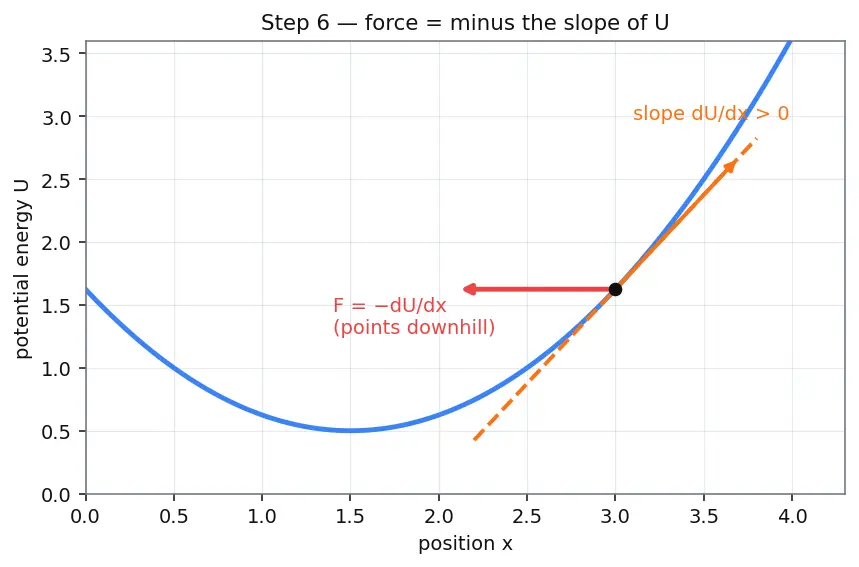

PICTURE. The $U (x)$ curve with a tangent line at one point; the slope arrow up-right, the force arrow down-left, showing $F$ is minus the slope.

Step 7 — Run it forward: recover the two textbook potentials

WHAT. Step 6 also runs backward: given a force, integrate to find $U$ .

Gravity. Near the ground $F_{y} = - m g$ (constant, downward). Then $- m g = - \frac{d U}{d y} \Rightarrow d U = m g d y \Rightarrow U_{grav} = m g y + C .$ Choose $U = 0$ at $y = 0$ so $C = 0$ : $U_{grav} = m g y$ . This is a straight-line hill — constant slope, constant force. (More at Gravitational potential energy.)

Spring. Hooke's law $F = - k x$ (pulls back toward $x = 0$ ). Then $- k x = - \frac{d U}{d x} \Rightarrow d U = k x d x \Rightarrow U_{spring} = \frac{1}{2} k x^{2} + C .$ Choose $U = 0$ at the natural length $x = 0$ : $U_{spring} = \frac{1}{2} k x^{2}$ . This is a parabola — a bowl whose slope grows with $x$ , so the restoring force grows too. (More at Spring / elastic potential energy.)

WHY these shapes matter. The steeper the $U$ -curve, the stronger the force (Step 6). Gravity's straight ramp gives a constant pull; the spring's bowl gives a pull that stiffens as you stretch — you see the physics in the curve's shape.

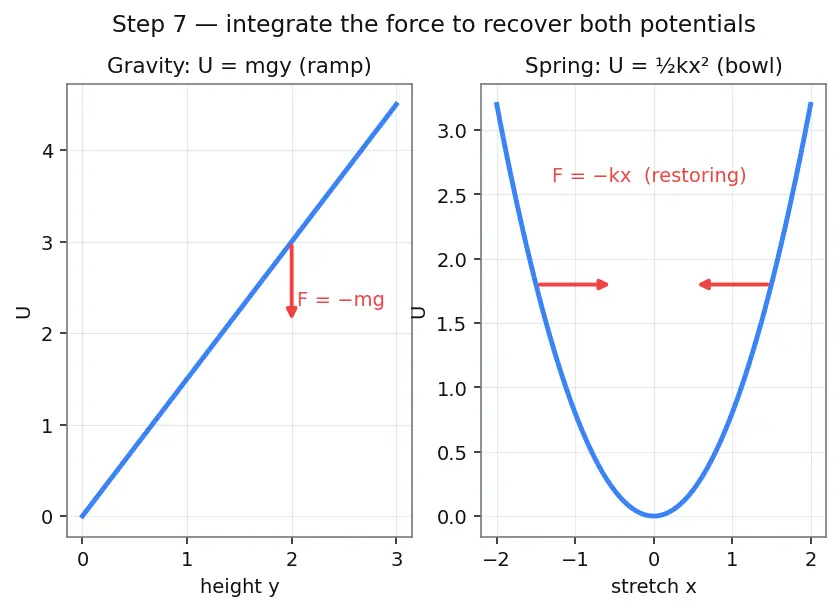

PICTURE. Two panels: left, the straight line $U = m g y$ (constant-slope ramp); right, the parabola $U = \frac{1}{2} k x^{2}$ (bowl), with the restoring-force arrows pointing back to the bottom.

Step 8 — The degenerate case: friction breaks the whole chain

WHAT. Slide a block out a distance $d$ and back on a rough table. Friction $f$ always opposes motion, so its arrow flips to stay against you on both legs. The dot products are negative both ways:

$W_{friction} = outbound (- f d) + return (- f d) = - 2 f d \neq = 0.$

WHY this kills $U$ . The loop work is not zero (Step 4 fails). If Step 4 fails, so does path-independence (Step 3), so the "one number per point" of Step 5 is impossible. No potential energy exists for friction. The longer the road, the more it steals — a path-dependent thief, not an honest bookkeeper. (See Friction and dissipation.)

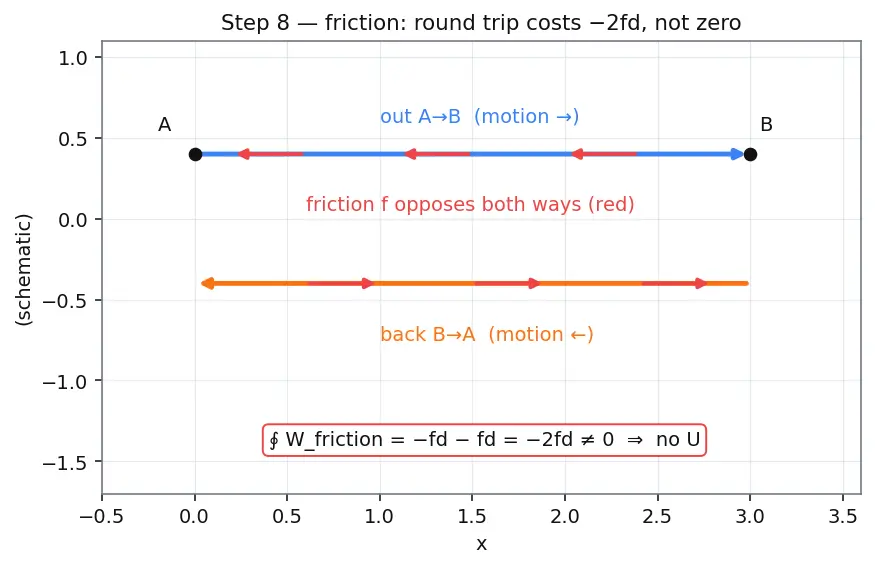

PICTURE. The out-and-back loop with friction arrows pointing against the motion on both legs, and a "loop work $= - 2 f d \neq = 0$ " stamp — the exact contrast to Step 4.

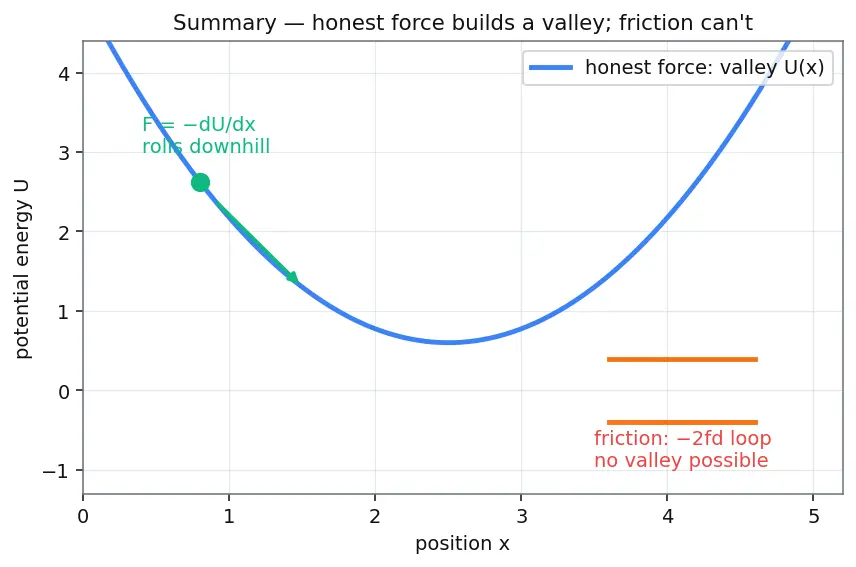

The one-picture summary

Everything on one canvas: the honest force (Steps 1–7) builds a valley $U (x)$ whose slope is the force; the thief (Step 8) drills a hole that can never be a valley.

Recall Feynman retelling of the whole walkthrough

Start with the tiniest question: when I nudge something, how much did the force help? Only the part of the push that lines up with the motion counts — that's the dot product (Step 1). Add up all the tiny nudges along a road and you get the total work (Step 2). Now the miracle: for an "honest" force, every road from A to B costs the same (Step 3), which is the same as saying any round trip costs nothing (Step 4). Because the cost depends only on where you start and stop, you can paint a single "height" number on every point of space — call it potential energy $U$ — and the work is just how far downhill you dropped (Step 5). Zoom into a single step and the force turns out to be minus the steepness of that height-landscape: $F = - d U / d x$ — things roll downhill (Step 6). Turn the crank the other way and out fall the two famous formulas: gravity's straight ramp $m g y$ and the spring's bowl $\frac{1}{2} k x^{2}$ (Step 7). Finally, friction wrecks the whole story: it fights you both ways, a round trip costs $- 2 f d$ instead of zero, so no height-map can exist — friction has no piggy bank (Step 8).

Active recall

Why does work use the dot product

F \cdot d r

and not just

∣ F ∣∣ d r ∣

Only the component of force along the motion transfers energy; the dot product keeps that and discards the perpendicular part.

What licenses us to define potential energy

U

Path-independence (Step 3): if work depends only on endpoints, one number per point can reproduce it.

Rewrite path-independence as a single loop test.

\oint F \cdot d r = 0

over any closed loop, because the return trip flips

d r

and subtracts

W_{2}

from

W_{1}

Why is

F = - d U / d x

(with the minus)?

Force points down the potential hill; where

U

slopes up,

F

points the other way toward lower

U

, so things roll downhill.

Why does friction have no

U

It opposes motion on every leg, so a round trip gives

- 2 f d \neq = 0

; nonzero loop work means path-dependence, so no

U

can exist.
