Foundations — Conservative forces — path-independent work, potential energy defined

Before you can trust the parent note on conservative forces, every squiggle it uses must mean something concrete to you. This page builds each symbol from nothing — plain words, then a picture, then why the topic needs it. Read top to bottom; nothing is used before it is born.

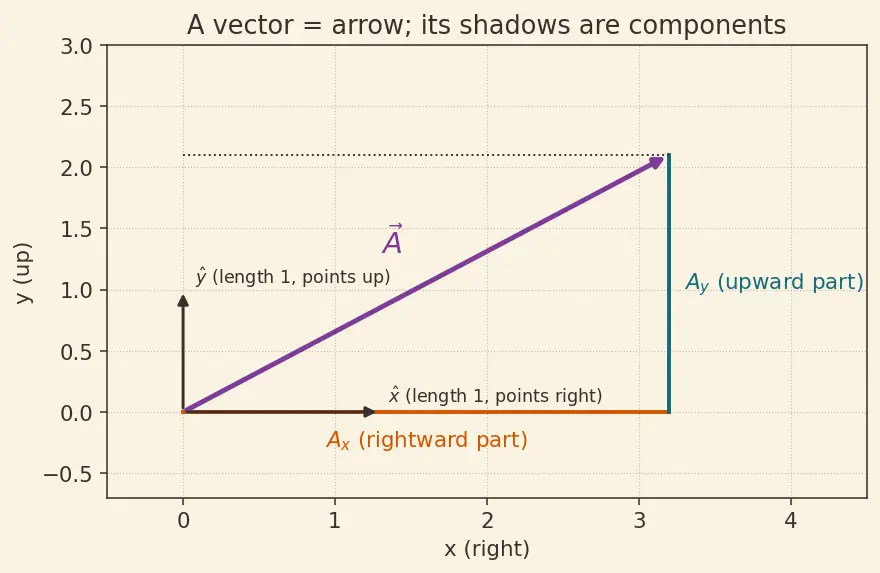

0. The arrow that means "amount and direction" — a vector

Why the topic needs it: forces push in a direction, and things move in a direction. A plain number like "5" can't say "5 newtons to the right." The arrow can.

So $\vec{A}=A_x\hat{x}+A_y\hat{y}$ just means "go $A_x$ right, then $A_y$ up."

1. Force — the push, as an arrow

Here $m$ is mass (how much stuff, in kilograms) and $g\approx 9.8$ (how hard gravity pulls each kilogram). The product $mg$ is the weight — the size of the gravity arrow.

Why the topic needs it: the whole chapter asks "what does a force do to a moving object's energy?" No force, no story.

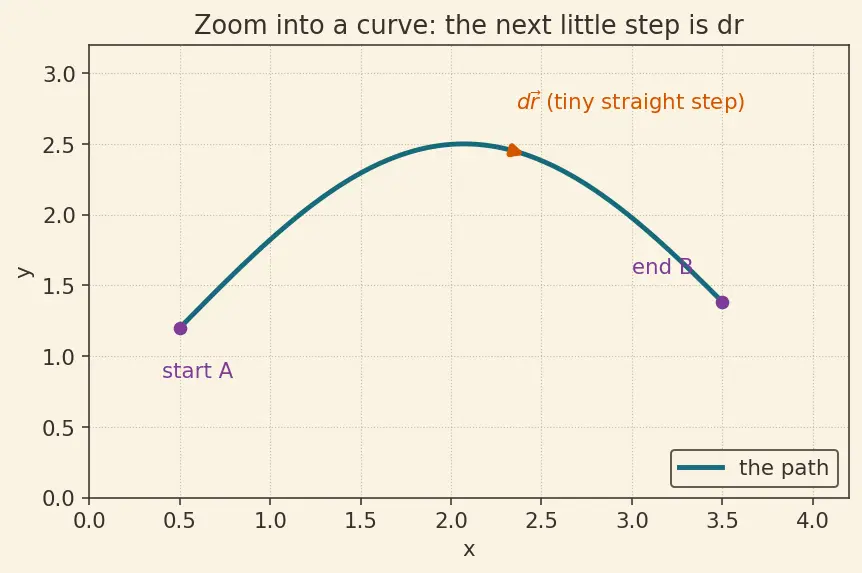

2. Displacement $d\vec{r}$ — a tiny step along the path

Why the topic needs it: work is done bit by bit as the object moves. To add up the effect of a force along a whole winding path, we must first look at one tiny step, then sum all the steps.

3. The dot product $\vec{F}\cdot d\vec{r}$ — "how much of the force helps the motion"

Here is the first real tool. Why a dot product and not ordinary multiplication? Because only the part of the force that lies along the direction you actually move does any work. A force pushing sideways to your motion does nothing to speed you up. We need a machine that keeps the "along" part and throws away the "across" part. That machine is the dot product.

This is exactly why, in the parent note, lifting a mass while it also drifts sideways loses nothing to the sideways drift: gravity is vertical, the sideways step is horizontal, $\theta =90°$, $\cos 90°=0$. The horizontal wiggling cannot matter.

4. The integral $\int$ — "add up all the tiny steps"

Why the topic needs it: total work is the grand total of all the little works. The integral is "grand total of tiny things."

The loop version, $\oint$, is the same idea but the little circle on the sign means the path comes back to its start — a closed loop. So $\oint \vec{F}\cdot d\vec{r}$ = total work going all the way around and back home.

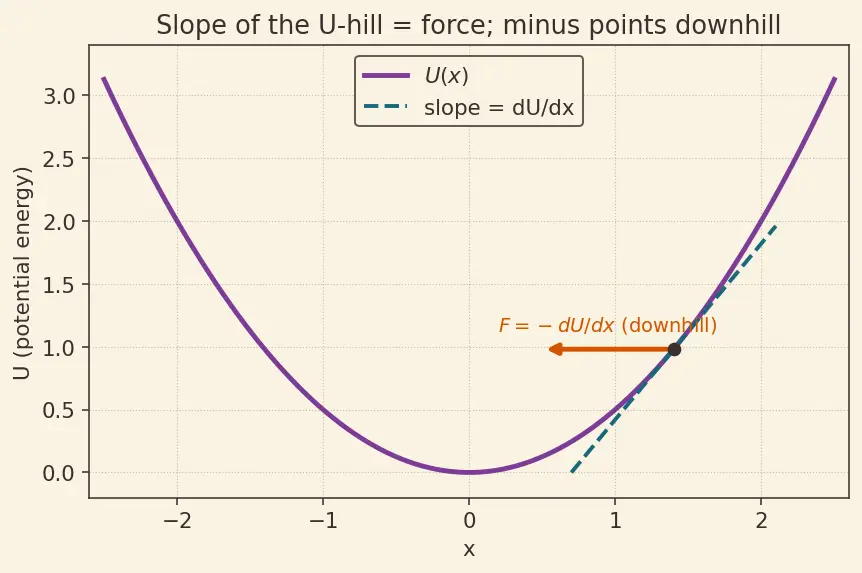

5. The derivative $\frac{dU}{dx}$ — "steepness of a hill"

Once potential energy $U$ exists, the parent note writes $F=-\frac{dU}{dx}$. To read that you need the derivative.

Why this tool and not another? The integral $\int$ builds up a total from pieces; the derivative $\frac{dU}{dx}$ does the exact opposite — it takes apart a total to find its rate of change at one spot. They are inverses. The parent uses the integral to get $U$ from $F$, and the derivative to get $F$ back from $U$.

6. The gradient $\nabla U$ — the 3D version of "steepest slope"

So $\vec{F}=-\nabla U$ is just the 3D twin of $F=-dU/dx$: force points opposite to steepest climb, i.e. straight downhill. Deep dive lives in Gradient and vector fields.

7. Change $\Delta U$ — "final minus initial"

Why the topic needs it: the central formula $W_{\text{cons}}=-\Delta U$ says the work a conservative force does equals the drop in potential energy. The minus turns "rise in $U$" into "energy spent," and "fall in $U$" into "energy released."

Prerequisite map

Worked warm-up (uses only symbols above)

Equipment checklist

Test yourself — you are ready when each reveal feels obvious.
