Higher-order derivatives — notation, physical meaning: Worked examples

This page is the exhaustive drill room for higher-order derivatives. Before touching any example, we lay out a scenario matrix: a checklist of every kind of situation that higher-order derivatives can throw at you. Then every example below is stamped with the cell it fills, so by the end you have seen them all.

The scenario matrix

Cell	Case class	What makes it different	Filled by
A	Polynomial — all orders until it dies	Each derivative lowers degree; eventually $0$	Ex 1
B	Product / more complex algebra	Power rule alone isn't enough; degree still finite	Ex 2
C	Trig — never dies, cycles	Derivatives repeat with period 4	Ex 3
D	Kinematics word problem (units!)	position → velocity → acceleration with metres/seconds	Ex 4
E	Sign of $f^{''}$ across all regions (concave up / down / zero)	Every sign case + genuine inflection	Ex 5
E′	False candidate: $f^{''} = 0$ at a point with no sign change	Zero of $f^{''}$ that is not an inflection point	Ex 6
F	Degenerate input: linear & constant functions	$f^{''} = 0$ everywhere — no curvature	Ex 7
G	Limiting / asymptotic behaviour of high orders	What happens as $n \to \infty$ (exponential vs. polynomial)	Ex 8
H	Exam twist: notation trap $\frac{d ^{2} y}{d x ^{2}}$ vs $(\frac{d y}{d x})^{2}$	Reading the symbol correctly	Ex 9

Every cell A–H (plus E′) is covered below. Signs are handled in all directions (positive, negative, zero), including the crucial trap where $f^{''} = 0$ but the concavity does not flip; degenerate and limiting inputs also get their own examples so you never meet an unshown scenario.

Cell A — Polynomial, all orders

Worked example Example 1 — differentiate

$x^{5}$ until nothing is left Find $f^{'} (x)$ through $f^{(6)} (x)$ for $f (x) = x^{5}$ .

Forecast: guess — after how many derivatives does $x^{5}$ become the number $0$ ? Write your guess before reading on.

$f^{'} (x) = 5 x^{4}$ . Why this step? Power rule: bring the exponent $5$ down as a multiplier, drop the exponent by one.
$f^{''} (x) = 20 x^{3}$ . Why? Differentiate $5 x^{4}$ : $5 \cdot 4 = 20$ , exponent $4 \to 3$ .
$f^{'''} (x) = 60 x^{2}$ . Why? $20 \cdot 3 = 60$ , exponent $3 \to 2$ .
$f^{(4)} (x) = 120 x$ . Why? $60 \cdot 2 = 120$ , exponent $2 \to 1$ .
$f^{(5)} (x) = 120$ . Why? $120 \cdot 1 = 120$ , and $x^{1} \to x^{0} = 1$ , leaving the pure number $120$ .
$f^{(6)} (x) = 0$ . Why? The derivative of any constant is $0$ — the slope of a flat line.

Verify: $f^{(5)} (x) = 120 = 5!$ (five factorial $= 5 \cdot 4 \cdot 3 \cdot 2 \cdot 1$ ). A degree- $n$ polynomial has $f^{(n)} = n!$ and $f^{(n + 1)} = 0$ — here $n = 5$ , so it dies at the 6th derivative. ✓

Cell B — More complex algebra, still finite

Worked example Example 2 — a product expanded first

Let $g (x) = x^{2} (x - 3) = x^{3} - 3 x^{2}$ . Find $g^{''} (x)$ and $g^{'''} (x)$ , and check whether $x = 1$ is a genuine inflection point.

Forecast: it's degree 3 — how many derivatives until it dies?

Expand: $g (x) = x^{3} - 3 x^{2}$ . Why this step? Expanding turns a product into a sum, so we can use the power rule term-by-term instead of the product rule — simpler and less error-prone here.
$g^{'} (x) = 3 x^{2} - 6 x$ . Why? Power rule on each term: $x^{3} \to 3 x^{2}$ , $- 3 x^{2} \to - 6 x$ .
$g^{''} (x) = 6 x - 6$ . Why? Differentiate again: $3 x^{2} \to 6 x$ , $- 6 x \to - 6$ .
$g^{'''} (x) = 6$ . Why? $6 x \to 6$ , and $- 6$ (a constant) $\to 0$ .
Solve $g^{''} (x) = 6 x - 6 = 0 \Rightarrow x = 1$ , then test the sign of $g^{''}$ on each side. Why? A zero of $g^{''}$ is only a candidate — it is a genuine inflection point only if $g^{''}$ actually changes sign there.
- $g^{''} (0) = 6 (0) - 6 = - 6 < 0$ → concave down to the left of $1$ .
- $g^{''} (2) = 6 (2) - 6 = + 6 > 0$ → concave up to the right of $1$ . Sign flips $- \to +$ , so $x = 1$ is a real inflection point.

Verify: $g^{''} (0) = - 6 < 0$ and $g^{''} (2) = + 6 > 0$ confirm the sign change at $x = 1$ ✓, so the inflection is genuine (not a false candidate). And $g^{(4)} = 0$ , confirming a degree-3 polynomial dies after 4 derivatives. ✓

Cell C — Trig, cycles forever

Worked example Example 3 —

$cos x$ and the period-4 cycle Let $h (x) = cos x$ . Find $h^{(1)}$ through $h^{(4)}$ and a formula for $h^{(n)}$ .

Forecast: unlike $x^{5}$ , this one never becomes $0$ . Guess what $h^{(4)}$ equals compared to $h$ .

$h^{'} (x) = - sin x$ . Why this step? The derivative of $\cos$ is $- sin$ (as the cosine wave falls, its slope is negative sine).
$h^{''} (x) = - cos x$ . Why? Differentiate $- sin x$ : derivative of $sin$ is $cos$ , keep the minus.
$h^{'''} (x) = sin x$ . Why? Differentiate $- cos x$ : $- (- sin x) = sin x$ .
$h^{(4)} (x) = cos x = h (x)$ . Why? Differentiate $sin x \to cos x$ . We are back to the start after 4 steps.
General formula: $h^{(n)} (x) = cos (x + \frac{nπ}{2})$ . Why? Each derivative shifts a cosine left by a quarter-turn $\frac{π}{2}$ ; doing it $n$ times shifts by $\frac{nπ}{2}$ .

Verify: put $n = 2$ : $cos (x + π) = - cos x$ ✓ (matches step 2). Put $n = 4$ : $cos (x + 2 π) = cos x$ ✓. The cycle has period 4.

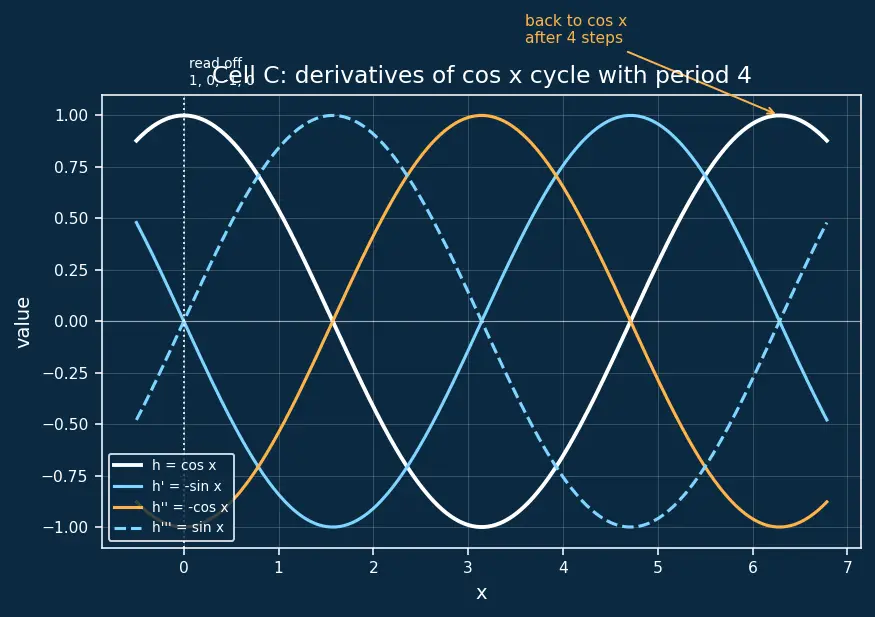

The figure below plots $h = cos x$ (white) together with its first three derivatives $h^{'} = - sin x$ (cyan), $h^{''} = - cos x$ (amber), and $h^{'''} = sin x$ (dashed cyan). The vertical dotted white line at $x = 0$ marks off the derivative values $1, 0, - 1, 0$ used above; each curve is the previous one shifted left by a quarter-turn, and the amber arrow shows that the 4th derivative lands back on the white $cos x$ curve — the period-4 cycle made visible.

Figure — Higher-order derivatives — notation, physical meaning

Figure 1 — Cell C: cos x (white solid) and its derivatives −sin x (cyan solid), −cos x (amber solid), sin x (cyan dashed) plotted over one full turn from 0 to 2π on a blueprint grid; a dotted vertical line at x=0 reads off the repeating derivative values 1, 0, −1, 0, and an amber arrow points from the far-right of the amber curve back up to the white cos-x curve to show that a fourth differentiation returns to the start — the period-4 cycle that powers the cosine Taylor series.

Cell D — Kinematics word problem (units matter)

Worked example Example 4 — position → velocity → acceleration

A drone rises with height $s (t) = t^{3} - 9 t^{2} + 15 t$ (metres, $t$ in seconds). Find velocity $v (t)$ , acceleration $a (t)$ , and the instant the acceleration is zero.

Forecast: acceleration is the second derivative. Guess whether it's zero at a whole-number time.

$v (t) = s^{'} (t) = 3 t^{2} - 18 t + 15$ (m/s). Why this step? Velocity is the first time-derivative of position — how fast height changes. Units: metres per second.
$a (t) = v^{'} (t) = 6 t - 18$ (m/s²). Why? Acceleration is the derivative of velocity = the second derivative of $s$ , written $\overset{s}{¨}$ . Units: (m/s) per second $=$ m/s².
Set $a (t) = 0$ : $6 t - 18 = 0 \Rightarrow t = \frac{18}{6} = 3$ s. Why? Zero acceleration is where velocity momentarily stops changing (a velocity extremum).

Verify: at $t = 3$ : $a = 6 (3) - 18 = 18 - 18 = 0$ ✓. Check units flow: metres → m/s (÷ time) → m/s² (÷ time again). Each derivative divides by one more second. ✓

Cell E — Sign of $f^{''}$ in every region (genuine inflection)

Worked example Example 5 — concavity across all signs

For $f (x) = x^{3} - 3 x$ , describe the concavity for $x < 0$ , $x = 0$ , and $x > 0$ , and find the inflection point.

Forecast: where does the curve switch from "frowning" $⌢$ to "smiling" $⌣$ ?

$f^{'} (x) = 3 x^{2} - 3$ . Why this step? Power rule term-by-term; we need $f^{'}$ before $f^{''}$ .
$f^{''} (x) = 6 x$ . Why? Differentiate $3 x^{2} - 3$ : the constant $- 3$ vanishes.
Case $x < 0$ : $f^{''} = 6 x < 0$ → concave down $⌢$ . Why? Negative second derivative means the slope is decreasing — the curve bends downward.
Case $x > 0$ : $f^{''} = 6 x > 0$ → concave up $⌣$ . Why? Positive second derivative means slope is increasing.
Case $x = 0$ : $f^{''} = 0$ and it switches sign around it → inflection point at $(0, 0)$ . Why? An inflection point is exactly where the bend flips.

Verify: test points: $f^{''} (- 1) = - 6 < 0$ ✓ (down), $f^{''} (1) = 6 > 0$ ✓ (up). Sign genuinely changes at $0$ , so $(0, 0)$ is a real inflection point. ✓

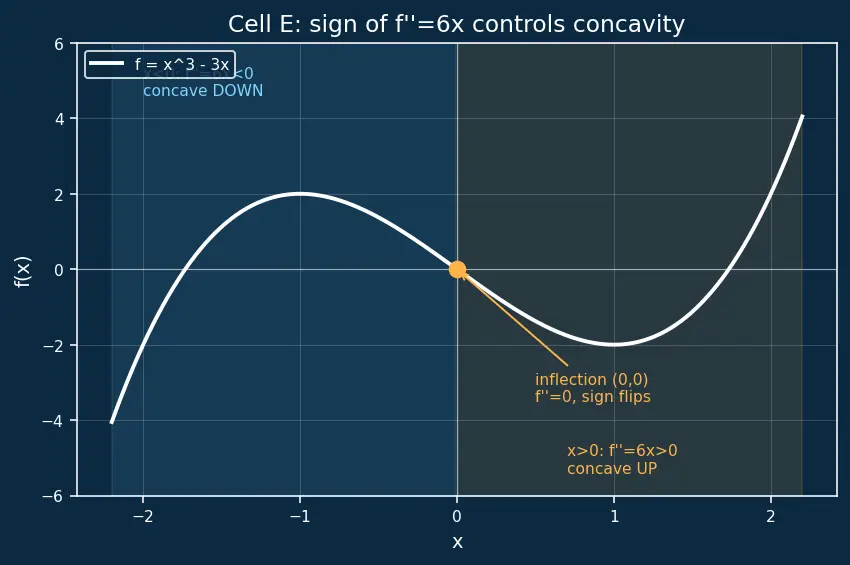

The figure below draws $f = x^{3} - 3 x$ in white. The region $x < 0$ is shaded cyan (there $f^{''} = 6 x < 0$ , so the curve is concave down, $⌢$ ) and the region $x > 0$ is shaded amber (there $f^{''} = 6 x > 0$ , concave up, $⌣$ ). The amber dot at the origin marks the inflection point where the shading — and the bend — switches.

Figure 2 — Cell E: the cubic f = x³ − 3x drawn in white on a blueprint grid; the left half-plane (x<0) is shaded cyan and labelled concave-DOWN because f''=6x is negative there, the right half-plane (x>0) is shaded amber and labelled concave-UP because f'' is positive there, and an amber dot with an arrow marks the genuine inflection point at the origin (0,0) where f''=0 and the concavity flips.

Cell E′ — False candidate: $f^{''} = 0$ but no sign change

Worked example Example 6 — the inflection point that isn't

For $f (x) = x^{4}$ , we find $f^{''} (0) = 0$ . Is $x = 0$ an inflection point?

Forecast: a common exam trap — students see $f^{''} = 0$ and declare an inflection. Guess whether $x^{4}$ really changes its concavity at the origin.

$f^{'} (x) = 4 x^{3}$ . Why this step? Power rule; we need one derivative before the second.
$f^{''} (x) = 12 x^{2}$ . Why? Differentiate $4 x^{3}$ : $4 \cdot 3 = 12$ , exponent $3 \to 2$ .
Solve $f^{''} (x) = 12 x^{2} = 0 \Rightarrow x = 0$ . Why? This is only a candidate — a zero of $f^{''}$ . We must test the sign on each side before claiming anything.
- $f^{''} (- 1) = 12 (- 1)^{2} = + 12 > 0$ → concave up to the left.
- $f^{''} (1) = 12 (1)^{2} = + 12 > 0$ → concave up to the right.
The sign is positive on both sides — it touches $0$ at the origin but does not flip. Why does this matter? An inflection point requires the concavity to actually change. Here $x^{4}$ is concave up on both sides (a wide flat-bottomed bowl), so $x = 0$ is a false candidate, not an inflection point.

Verify: $f^{''} (- 1) = 12$ and $f^{''} (1) = 12$ — same sign, no flip. ✓ Contrast with Example 5 where $f^{''} = 6 x$ genuinely changed sign. The rule: $f^{''} = 0$ is necessary but not sufficient for an inflection point; you must always confirm a sign change.

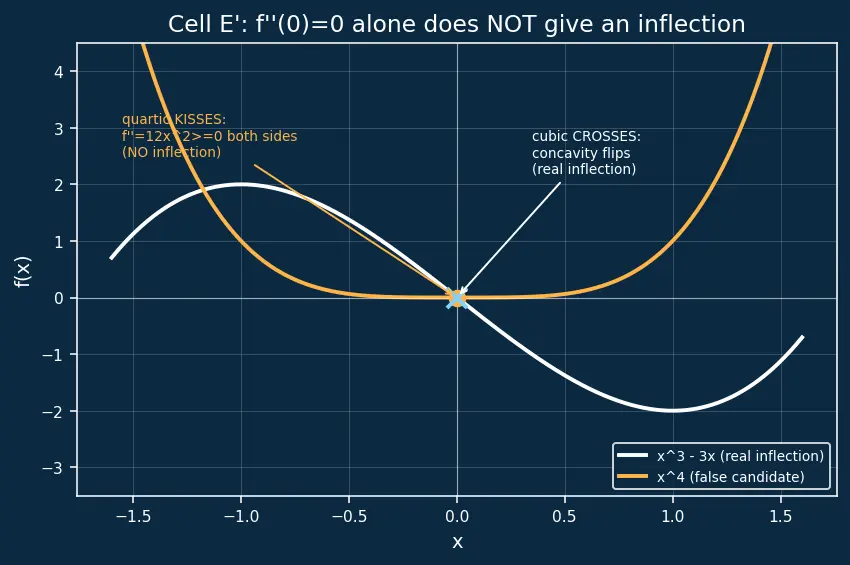

The figure below overlays the genuine case $f = x^{3} - 3 x$ (from Example 5, white) with the false case $f = x^{4}$ (amber). At the origin the white cubic crosses from concave-down to concave-up (real inflection), while the amber quartic just kisses the axis from a concave-up bowl on both sides (no inflection).

Figure 3 — Cell E′: two curves near the origin on a blueprint grid — the white cubic x³−3x, which genuinely changes concavity from down to up at x=0 (a real inflection, marked with an amber dot), and the amber quartic x⁴, whose f''=12x² is positive on both sides so it stays a concave-up bowl and only touches its minimum at x=0 (cyan cross), illustrating that f''(0)=0 alone does NOT guarantee an inflection point.

Cell F — Degenerate inputs (no curvature at all)

Cell G — Limiting behaviour of high orders

Worked example Example 8 — exponential vs polynomial as

$n \to \infty$ Compare the $n$ -th derivatives of $p (x) = x^{3}$ and $E (x) = e^{x}$ as $n$ grows large.

Forecast: which one "survives" being differentiated infinitely many times?

Polynomial $p (x) = x^{3}$ : $p^{'''} (x) = 6$ , and $p^{(4)} (x) = 0$ , so $p^{(n)} (x) = 0$ for all $n \geq 4$ . Why this step? Each derivative lowers the degree; a degree-3 polynomial hits $0$ after 4 derivatives and stays there.
Exponential $E (x) = e^{x}$ : $E^{'} (x) = e^{x}$ , so $E^{(n)} (x) = e^{x}$ for every $n$ . Why? The defining property of $e^{x}$ is that it is its own derivative — differentiating never changes it.
Limit view: as $n \to \infty$ , $p^{(n)} \to 0$ but $E^{(n)} = e^{x}$ stays fixed. Why this matters? In a Taylor series, every term needs the value $f^{(n)} (0)$ ; polynomials contribute finitely many, but $e^{x}$ contributes forever — which is why $e^{x} = \sum \frac{x ^{n}}{n !}$ is an infinite sum.

Verify: $p^{(4)} (x) = 0$ ✓ (constant $6$ differentiates to $0$ ). $E^{(n)} (0) = e^{0} = 1$ for every $n$ , so its Taylor coefficients are all $\frac{1}{n !}$ — an infinite, never-dying tail. ✓

Cell H — Exam-style notation trap

Active Recall

After how many derivatives does

x^{5}

become

0

The 6th derivative;

f^{(5)} = 120 = 5!

, then

f^{(6)} = 0

The 4th derivative of

cos x

equals

cos x

— trig derivatives cycle with period 4.

Units of acceleration (2nd derivative of position) are

metres per second squared, m/s².

For any line

f (x) = m x + c

, the second derivative is

0

everywhere (constant slope → zero curvature).

f^{''} (x_{0}) = 0

, is

x_{0}

an inflection point?

Not necessarily — you must check that

f^{''}

changes sign; e.g.

x^{4}

has

f^{''} (0) = 0

but no sign change, so no inflection.

Under infinite differentiation,

e^{x}

stays

e^{x}

forever, while any polynomial eventually becomes

0
