Higher-order derivatives — notation, physical meaning: Question bank

This bank targets the notation, the physical ladder (position → velocity → acceleration → jerk), concavity, and the sign-and-zero edge cases. No heavy computation lives here — that is the job of the drill pages. First, three quick pictures to ground the traps.

The three pictures behind every trap

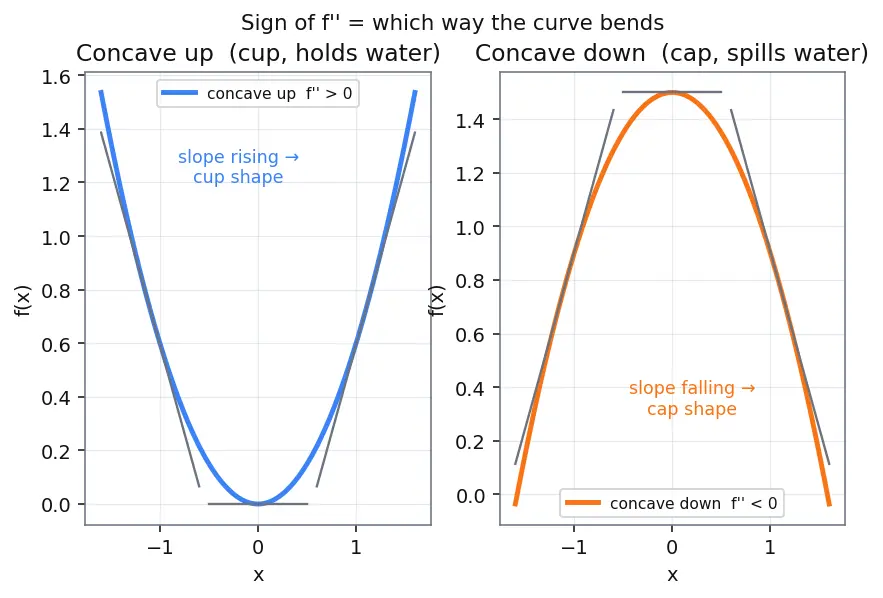

Picture 1 — concave up vs concave down. Look at the two arcs. The blue cup bends upward ( $f^{''} > 0$ ); the orange cap bends downward ( $f^{''} < 0$ ). Notice the tangent lines (gray): under a cup, each successive tangent tilts more upward (slope rising); under a cap, each tilts more downward (slope falling).

Figure — Higher-order derivatives — notation, physical meaning

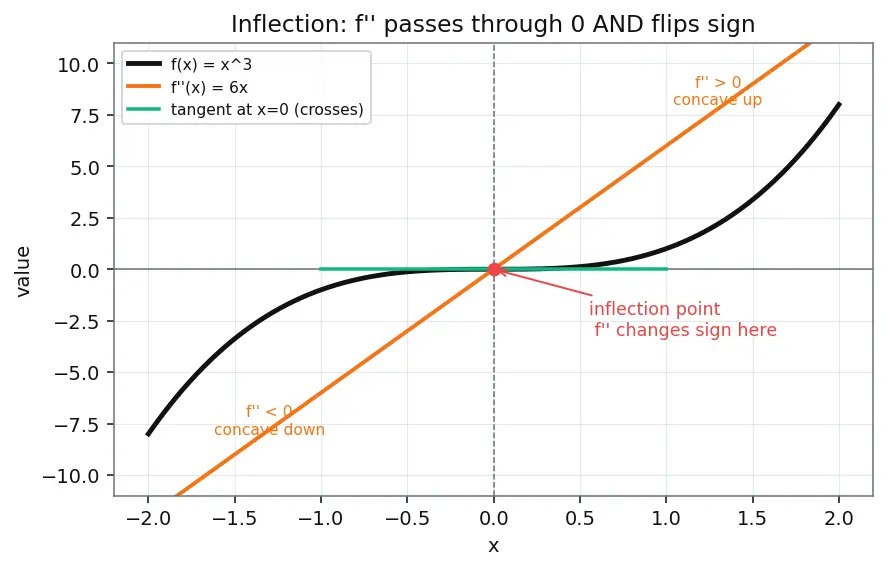

Picture 2 — an inflection point is where the bend flips. Watch $f^{''}$ (the orange curve) cross from negative to positive: exactly there, the black curve switches from cap $⌢$ to cup $⌣$ , and the green tangent line crosses through the curve. That crossing is the whole meaning of an inflection point — and it needs a genuine sign change, not just $f^{''}$ touching zero.

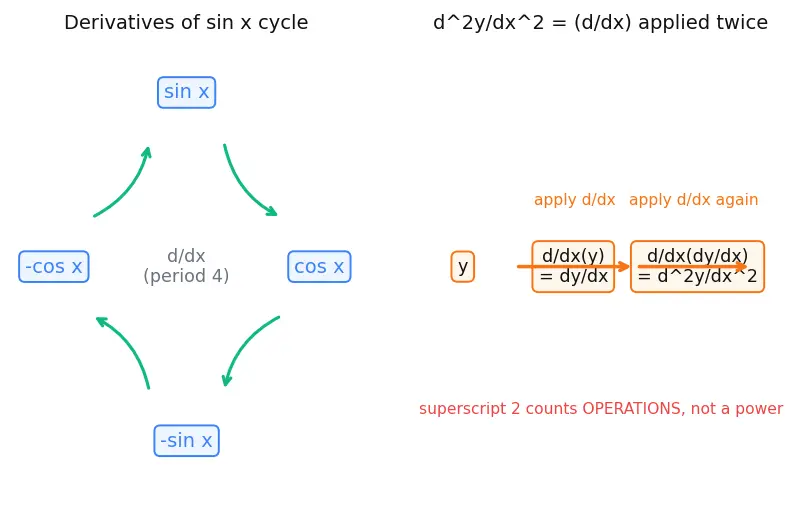

Picture 3 — the $sin x$ derivative cycle and the Leibniz operator flow. Differentiating $sin$ walks around a 4-stage loop back to itself; and the little operator diagram shows why $\frac{d ^{2} y}{d x ^{2}}$ is $\frac{d}{d x}$ applied to $y$ twice, not $y$ squared.

True or false — justify

The claim "

\frac{d ^{2} y}{d x ^{2}}

is the same as

(\frac{d y}{d x})^{2}

" is TRUE

False. The superscripts count how many times the operator

\frac{d}{d x}

is applied, not a power; for

y = x^{3}

they give

6 x

versus

9 x^{4}

— totally different objects (see Picture 3).

f^{'} (x_{0}) = 0

then

f^{''} (x_{0}) = 0

too

False. A zero slope says nothing about how the slope is changing; at a minimum of

x^{2}

f^{'} (0) = 0

but

f^{''} (0) = 2 \neq = 0

f^{''} (x_{0}) = 0

then

x_{0}

must be an inflection point

False. You also need

f^{''}

to change sign there; for

f (x) = x^{4}

f^{''} (0) = 0

but

f^{''} = 12 x^{2} \geq 0

always, so the curve stays concave up — no inflection.

Acceleration being zero means the object is at rest

False. Zero acceleration means velocity is not changing — the object can be cruising at constant nonzero speed. Rest is

v = 0

, a different condition.

If velocity is positive, acceleration must be positive

False. Velocity and acceleration are independent; a car moving forward (

v > 0

) while braking has

a < 0

. Sign of the function tells you nothing about the sign of its derivative.

A degree-

5

polynomial has infinitely many nonzero higher derivatives

False. Each derivative drops the degree by one, so

f^{(6)} \equiv 0

; every derivative from the

6

-th onward is zero.

f^{''} > 0

on an interval guarantees

f

is increasing there

False.

f^{''} > 0

means the slope is increasing (concave up), which is about

f^{'}

, not

f

. A concave-up curve like

x^{2}

x < 0

is actually decreasing.

If the graph of

f

looks like a straight line, all higher derivatives past the first are zero

True. A line is

f (x) = m x + b

, so

f^{'} = m

(constant) and

f^{''} = f^{'''} = \dots = 0

; constant slope means zero curvature at every order.

The

50

-th derivative of

sin x

equals

sin x

False. The cycle has period

4

, and

50 = 4 \cdot 12 + 2

, so

f^{(50)} = f^{(2)} = - sin x

. Only multiples of

4

return to

sin x

(see Picture 3).

Newton's

\overset{y}{¨}

and Leibniz's

\frac{d ^{2} y}{d x ^{2}}

can mean different things

False (in context). They are the same second derivative; Newton's dot notation just assumes the variable is time, so

\overset{y}{¨}

\frac{d ^{2} y}{d t ^{2}}

specifically.

Spot the error

"For

y = x^{3}

\frac{d ^{2} y}{d x ^{2}} = (\frac{d y}{d x})^{2} = (3 x^{2})^{2} = 9 x^{4}

Wrong:

\frac{d ^{2} y}{d x ^{2}}

is the derivative of the derivative,

\frac{d}{d x} (3 x^{2}) = 6 x

, not the square. Squaring the first derivative is a made-up operation.

"Acceleration is the slope of the position graph."

Wrong: the slope of the position graph is velocity. Acceleration is the slope of the velocity graph, i.e. the second derivative of position.

f^{''} (x) = 0

everywhere on an interval, so

f

is constant there."

Wrong:

f^{''} = 0

makes the slope constant, so

f

is a straight line (possibly tilted), not necessarily constant. Constant

f

needs

f^{'} = 0

"The particle turns around exactly when acceleration is zero."

Wrong: turning around happens where velocity changes sign (

v = 0

), not where acceleration is zero. Acceleration zero is where velocity has an extremum.

\frac{d ^{3} y}{d x ^{3}}

is read 'the derivative cubed', so I compute

(f^{'})^{3}

Wrong: it is

\frac{d}{d x}

applied three times — the third derivative

f^{'''}

. The exponent is operator-counting bookkeeping, never a cube of the function.

"A curve is concave up wherever it is above the

x

-axis."

Wrong: concavity is about the bend (sign of

f^{''}

), not position relative to the axis.

- x^{2}

sits above the axis near

0

yet is concave down (Picture 1).

"Since jerk is the third derivative, a smooth constant-acceleration ride has huge jerk."

Wrong: jerk is

s ... = a^{'}

, the change in acceleration; constant acceleration means

a^{'} = 0

, so jerk is exactly zero.

Why questions

Why does Leibniz put the "

2

" upstairs on

d

but attach it to

x

downstairs?

The top "

2

" counts the two

d

-operations (

d d

); the bottom "

2

" counts the two

d x

's you divided by. Read it as

(\frac{d}{d x})^{2} y

— pure operator bookkeeping (Picture 3).

Why does the second derivative, not the first, tell you about concavity?

Concavity asks "is the slope increasing or decreasing?", and "how the slope changes" is precisely the derivative of the slope, i.e.

f^{''}

Why do the derivatives of

sin x

repeat every four steps?

Each differentiation rotates

sin \to cos \to - sin \to - cos \to sin

, a four-stage loop; equivalently it adds

\frac{π}{2}

to the phase, and four quarter-turns is a full circle back to start.

Why must a degree-

n

polynomial "die" after

n + 1

derivatives?

Each derivative lowers the top exponent by one, so after

n

steps you reach a constant, and one more derivative of a constant is

0

— everything after stays

0

Why is "the second derivative squared" a meaningless slogan for concavity?

Concavity depends on the sign of

f^{''}

; squaring destroys the sign (always

\geq 0

), so it could never tell concave-up from concave-down.

Why do physicists prefer Newton's dots for motion but calculus books prefer Leibniz?

Dots are compact when the variable is always time (

\overset{s}{˙}, \overset{s}{¨}

); Leibniz's

\frac{d ^{2} s}{d t ^{2}}

names the variable explicitly, which matters when you differentiate with respect to something other than time.

Edge cases

At an inflection point, what happens to the tangent line relative to the curve?

It crosses from one side to the other, because the bend flips from concave-up to concave-down (or vice versa) exactly where

f^{''}

changes sign (Picture 2).

f^{''}

touches zero but does not change sign (e.g.

x^{4}

0

), is there an inflection?

No. Sign change is required; a mere touch leaves the concavity the same on both sides, so the curve keeps bending the same way.

What is

f^{(0)} (x)

, and why bother defining it?

It is

f

itself — differentiating zero times. Defining it makes the recursion

f^{(n)} = \frac{d}{d x} f^{(n - 1)}

start cleanly at

n = 1

without a special case.

Can a function be differentiable once but not twice?

Yes.

f (x) = x ∣ x ∣

has a continuous first derivative

2 ∣ x ∣

, but that has a corner at

0

, so

f^{''} (0)

does not exist.

For constant velocity motion, what do the second and all higher derivatives equal?

All zero. Constant velocity means

a = v^{'} = 0

, and every derivative of

0

0

, so jerk, snap, and beyond all vanish.

If position is a straight-line-in-time graph, what is the acceleration everywhere?

Zero. A linear

s (t)

has constant slope (constant velocity), so its second derivative is

0

at every instant.

Recall One-line summary of the traps

Most errors come from three confusions: reading operator-exponents as powers, mixing up a function's sign with its derivative's sign, and forgetting that $f^{''} = 0$ needs a sign change to mean anything.
