Higher-order derivatives — notation, physical meaning: Visual walkthrough

We only assume one thing: you know what a derivative is — the slope of the curve at a point, the steepness of the little arrow that just kisses the curve there. Everything else we grow from that seed.

Step 1 — Remember what the first derivative is: a steepness meter

WHAT. Take any curve $y = f (x)$ . At each point there is a straight line that just touches the curve — the tangent line. Its steepness (how tilted it is) is the number we call $f^{'} (x)$ .

WHY start here. We cannot talk about the change of the slope until we can see the slope itself. So first we make the slope visible as a little tilted arrow riding along the curve.

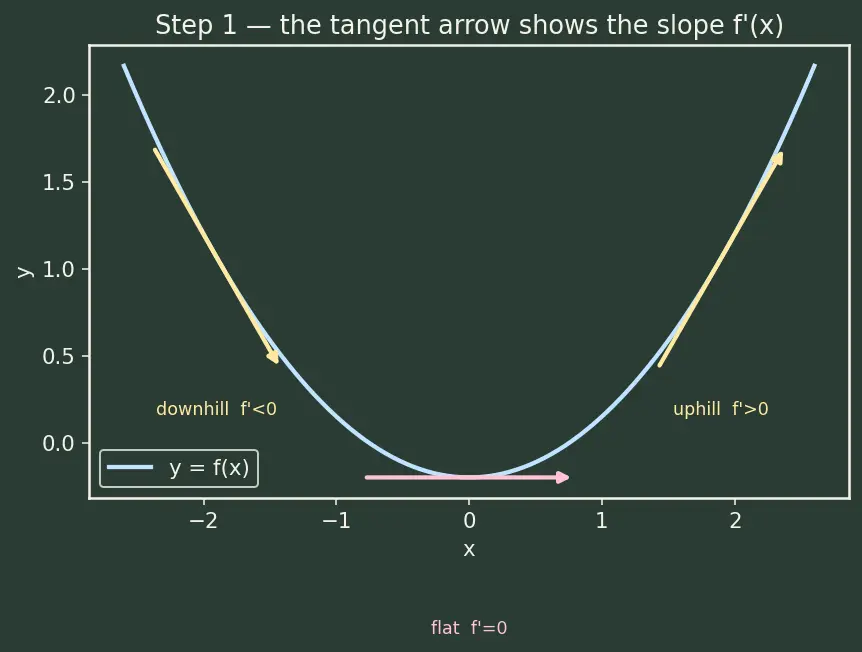

PICTURE. The blue curve below has three tangent arrows glued to it. Read only their tilt:

Figure — Higher-order derivatives — notation, physical meaning

Notice already: on the left the arrow tilts down, in the middle it is flat, on the right it tilts up. The tilt is itself changing as we walk rightward. That changing-of-the-tilt is the whole story of this page.

Step 2 — Watch the slope change, and name that change

WHAT. Walk along the curve from left to right and write down the slope $f^{'}$ at each stop. You get a list of slopes. That list is itself a function of $x$ — call it $f^{'} (x)$ .

WHY. A single slope is one number. But the parent note's big idea is that the slope speeds up or slows down. To capture "how the slope changes," we must treat $f^{'} (x)$ as a new curve in its own right — then ask for its slope.

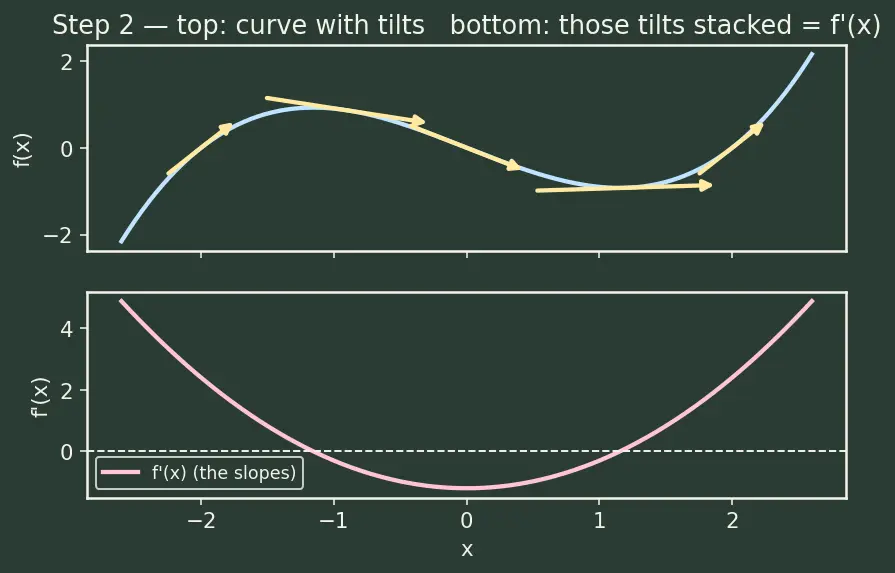

PICTURE. Top panel: the original curve with its tangent tilts. Bottom panel: those tilt-values plotted as their own curve, the slope curve $f^{'} (x)$ .

Step 3 — Take the slope of the slope: this is $f^{''}$

WHAT. The slope curve $f^{'} (x)$ has its own tangent arrows, its own steepness. That steepness is a third thing: the derivative of $f^{'}$ . We write it $f^{''} (x)$ .

WHY. This is exactly the definition from the parent note, now seen: apply the "slope meter" a second time — first to $f$ , then to the result.

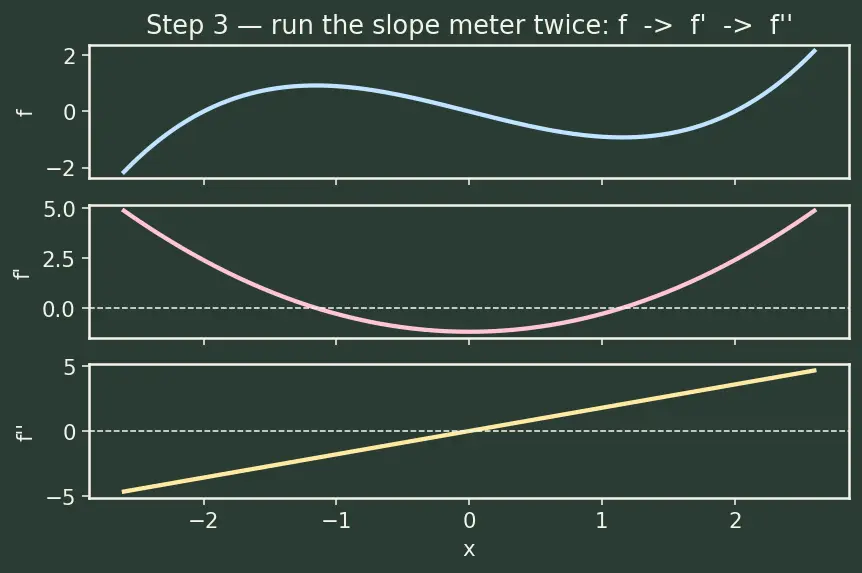

PICTURE. We now put three floors on top of each other: $f$ , then its slope curve $f^{'}$ , then the slope-of-the-slope $f^{''}$ .

Step 4 — Why the SIGN of $f^{''}$ means "bends upward"

WHAT. We now prove the parent note's headline claim: $f^{''} > 0 \Rightarrow$ curve is concave up ( $⌣$ ). We do it by reading the arrows, no algebra.

WHY this tool. We use the sign (just $+$ or $-$ ) because the magnitude of $f^{''}$ is not what the bending direction needs — only whether the slope is rising or falling as we move right. Sign is exactly that yes/no.

Orientation convention (so "rotate" is unambiguous). We use the standard axes: $x$ increases rightward, $y$ increases upward, and we read the picture face-on from the front. With that convention, "arrows rotate anticlockwise" means their pointing end swings from down-and-right, up toward horizontal, then up-and-right — the tilt-angle measured from the positive $x$ -axis is increasing.

The logic in one breath: $f^{''} > 0 ⟺ slope curve rises f^{'} is increasing ⟺ arrows rotate anticlockwise tilt goes down \to flat \to up ⟺ cup ⌣$

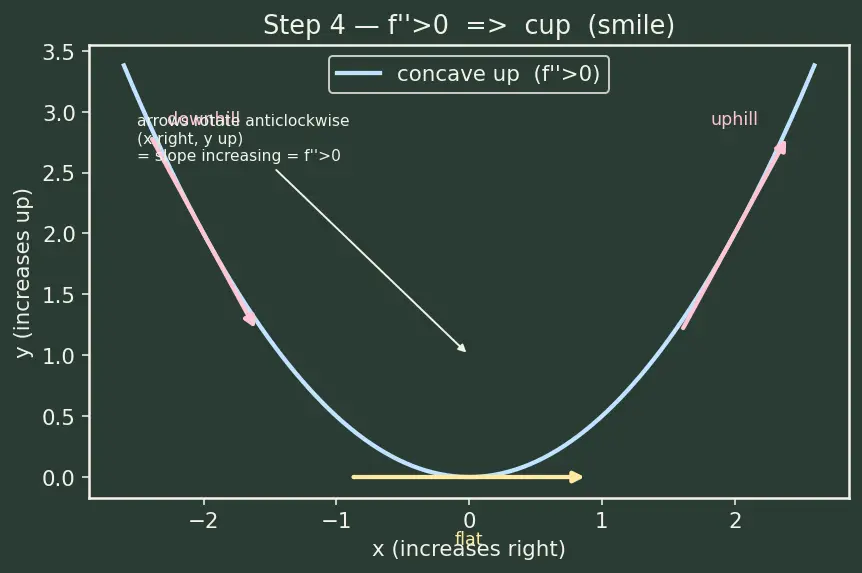

PICTURE. A concave-up cup with three tangent arrows. Watch the arrows swing from downhill → flat → uphill as we scan left to right (standard axes: $x$ right, $y$ up) — that rotation is $f^{'}$ increasing, i.e. $f^{''} > 0$ .

Step 5 — The mirror case: $f^{''} < 0$ means "bends downward"

WHAT. Exactly the opposite. If the slope decreases as we move right, the arrows swing uphill → flat → downhill, and the curve arches over like a frown.

WHY cover it separately. The contract: every sign gets its own picture. A reader who only saw the cup would guess at the cap. We show it, so nothing is left to imagine.

$f^{''} < 0 ⟺ slope curve falls f^{'} is decreasing ⟺ arrows rotate clockwise tilt goes up \to flat \to down ⟺ cap ⌢$

Here (same standard axes: $x$ right, $y$ up) "rotate clockwise" means the tilt-angle measured from the positive $x$ -axis is decreasing as we scan rightward.

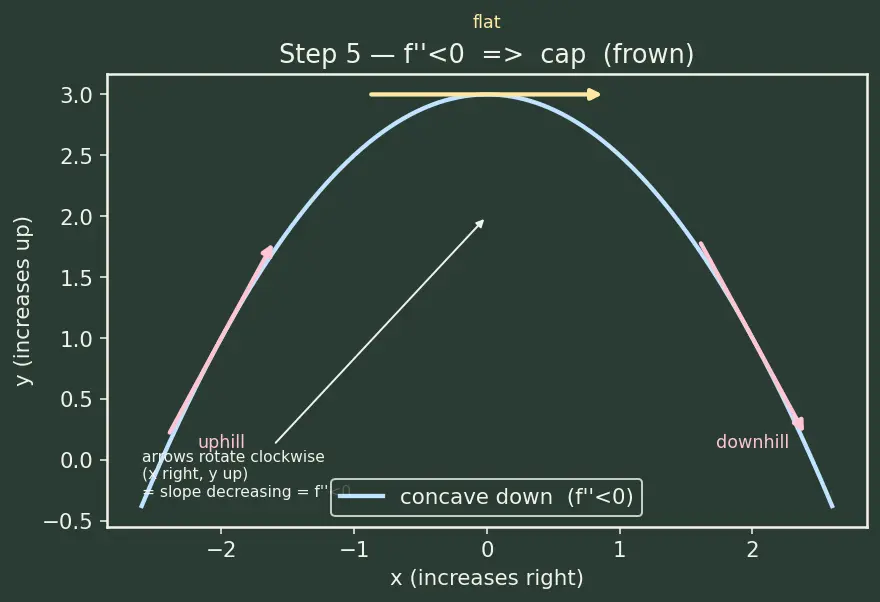

PICTURE. A concave-down cap. The arrows rotate the other way compared to Step 4.

Step 6 — The degenerate cases: $f^{''} = 0$ , and when $f^{''}$ doesn't even exist

WHAT. What happens right at the moment the bending flips from cup to cap? There the slope is momentarily neither rising nor falling — so $f^{''} = 0$ . If the sign genuinely changes through that point, it is an inflection point.

WHY this deserves care. $f^{''} = 0$ is a degenerate input: it does not automatically mean an inflection. The sign must actually switch across it. Two traps live here:

Real inflection: $f^{''}$ goes $-, 0, +$ (or $+, 0, -$ ) — bend flips. Example $f (x) = x^{3}$ at $x = 0$ .
False alarm: $f^{''} = 0$ but the sign does not flip. Example $f (x) = x^{4}$ at $x = 0$ : $f^{''} = 12 x^{2} \geq 0$ on both sides — still a cup, no flip, not an inflection.

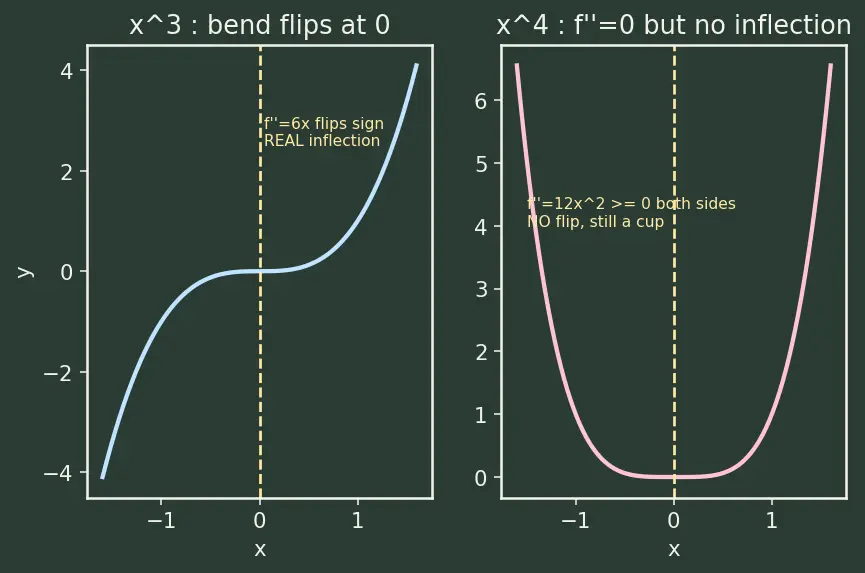

PICTURE. Left: $x^{3}$ , the bend truly flips at the origin (concave down → concave up). Right: $x^{4}$ , touches $f^{''} = 0$ at the origin but stays a cup — a warning.

Step 7 — Same machine, the physical reading: position → velocity → acceleration

WHAT. Everything above is geometry. Now feed time in as the input. Let $s (t)$ be position. The first slope-meter gives velocity $v = \overset{s}{˙}$ ; running it again gives acceleration $a = \overset{s}{¨} = \frac{d ^{2} s}{d t ^{2}}$ . Acceleration is just " $f^{''}$ wearing a physics costume."

WHY. The parent's kinematic ladder is not a second idea — it is Steps 1–3 with $x \to t$ and $y \to s$ . Seeing that unifies the whole chapter. (We again assume $s (t)$ is twice differentiable in time, so $v$ and $a$ are well-defined everywhere.)

$where s (t) \frac{d}{d t} how fast v (t) \frac{d}{d t} how fast the speed changes a (t)$

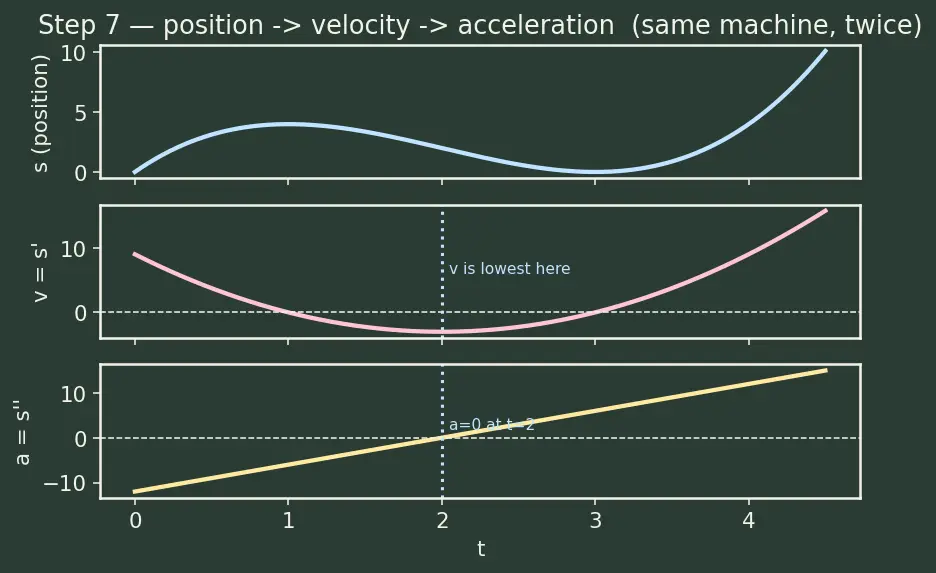

PICTURE. Three stacked time-graphs for $s (t) = t^{3} - 6 t^{2} + 9 t$ (the parent's Example 2). Read down the column at any time $t$ : position, then its slope (velocity), then velocity's slope (acceleration). Acceleration crosses zero at $t = 2$ — exactly where velocity bottoms out.

The one-picture summary

WHAT. One board that compresses the whole walkthrough: a single curve on top, its slope curve in the middle, its second derivative $f^{''}$ on the bottom — with the sign of $f^{''}$ colour-coded to the bending of the top curve, the flat crossing marking the inflection.

Read it top-to-bottom, left-to-right: where the bottom curve ( $f^{''}$ ) sits below zero (pink), the top curve is a cap $⌢$ ; where it sits above zero (blue), the top is a cup $⌣$ ; the vertical dashed line is the inflection, where the bottom curve crosses zero and changes sign.

Recall Feynman retelling — the whole page in plain words

Picture a little arrow sliding along a curvy road, always pointing the way the road tilts. Step 1–2: that tilt is the first derivative — collect all the tilts and you get a second, "tilt" curve. Step 3: now measure the tilt of that curve — the slope of the slope — and that's the second derivative, $f^{''}$ . It's just running the same "how-steep" machine twice, never a squaring. Steps 4–5: if the road's tilt keeps increasing as you walk right (standard view, $x$ rightward), your arrow slowly swings upward and the road cups up like a bowl ( $f^{''} > 0$ ); if the tilt keeps decreasing, the road arches over like a hill ( $f^{''} < 0$ ). Step 6: right where a bowl turns into a hill, the tilt is momentarily steady, so $f^{''} = 0$ — but be careful, it only counts as a real "flip point" (inflection) if the bending actually switches sides; $x^{4}$ touches zero and stays a bowl, fooling you, and $∣ x ∣^{3}$ flips yet has no $f^{''}$ at all. Step 7: swap "distance along the road" for "time," and the same two machines spit out velocity and then acceleration — the push you feel in a car is literally $f^{''}$ of your position. One machine, run twice, seen everywhere.
