Visual walkthrough — Radian measure — definition, conversion formula degrees ↔ radians

---

Step 1 — What is an angle, really?

WHAT. Draw a circle. Pick the centre, call it $O$. Draw two straight sticks from $O$ out to the edge. The opening between those two sticks is the angle. Nothing else on the page matters yet.

WHY. Before we can measure an angle we need to agree on what the thing being measured even is. An angle is not a number yet — it is just an "amount of opening" at a corner. Our whole job is to attach a number to that opening in an honest way.

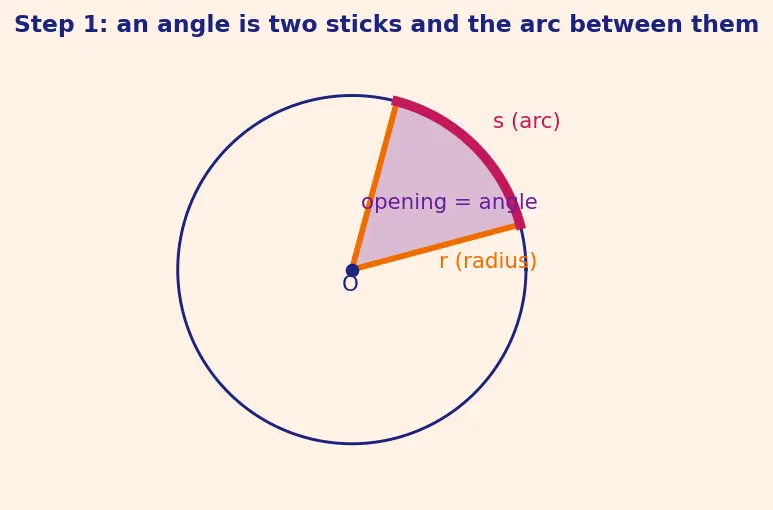

PICTURE. Look at the two orange sticks below. The shaded wedge is the opening. The curved edge caught between the two sticks — highlighted in magenta — is the piece we are about to measure with.

---

Step 2 — Measure the opening by the arc it cuts

WHAT. Instead of inventing units, we let the circle measure itself. We ask: how long is the curved edge $s$ that this opening cuts off?

WHY. A wider opening cuts off a longer curved edge; a narrower opening cuts off a shorter one. So the arc length $s$ already tracks the angle — bigger angle, bigger $s$. That makes $s$ a natural stand-in for "how much opening".

But there is a trap, and the next step fixes it.

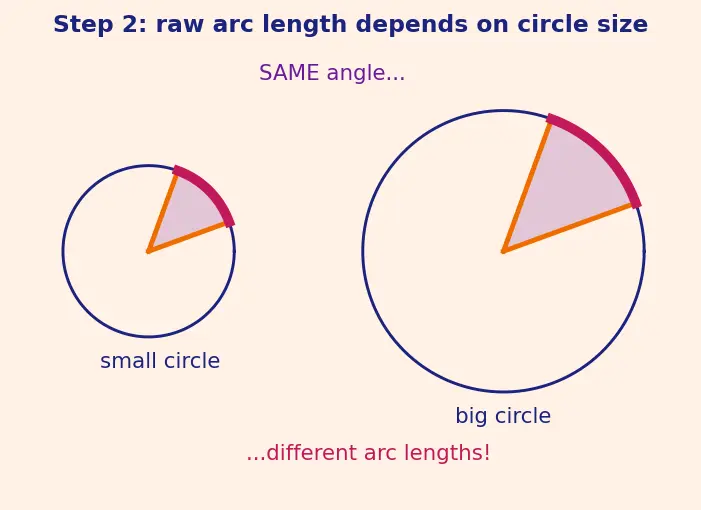

PICTURE. Two circles, same opening angle, but the right one is bigger. Notice the magenta arcs are different lengths even though the angle is identical.

---

Step 3 — Divide by the radius to kill the size

WHAT. We fix Step 2's trap by dividing the arc length by the radius: $\frac{s}{r}$. This ratio is the radian measure of the angle.

WHY. When the circle grows, both $s$ and $r$ grow by the same factor. Dividing one by the other cancels that factor — the size vanishes and only the pure opening survives. This is the exact same move you'd use to compare "how steep" two ramps are: rise over run, not rise alone.

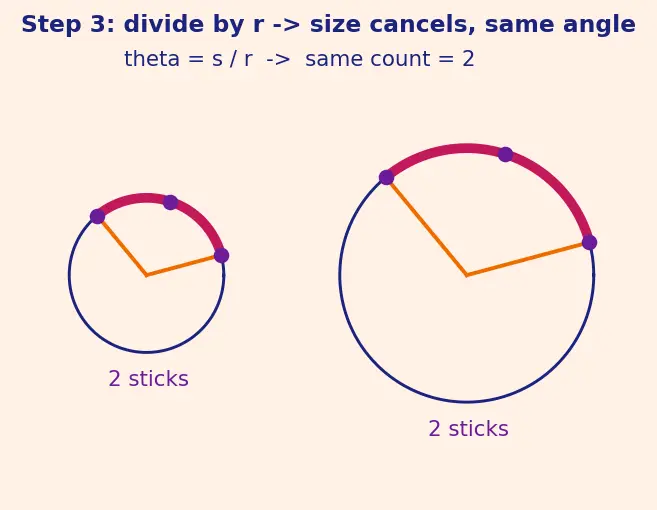

PICTURE. The same two circles from Step 2. On each, we count "how many radius-sticks fit along the arc." Both give the same count — that count is the angle.

---

Step 4 — Which way did you sweep? Signed angles

WHAT. So far every arc grew in one direction. But you can open the angle two ways: swing the moving stick anticlockwise (the mathematician's "positive" direction) or clockwise (the "negative" direction). We record the direction with a sign in front of $\theta$.

WHY. A bare length $s$ can only ever be positive, so $\theta =s/r$ as written can't tell left from right. To handle real problems — a wheel spinning backwards, an angle measured below the starting line — we let $s$ carry a sign: positive if you swept anticlockwise, negative if you swept clockwise. Then $\theta =s/r$ inherits that sign directly. This is exactly what Trigonometric Functions of Any Angle and Circular Motion (spin one way or the other) rely on.

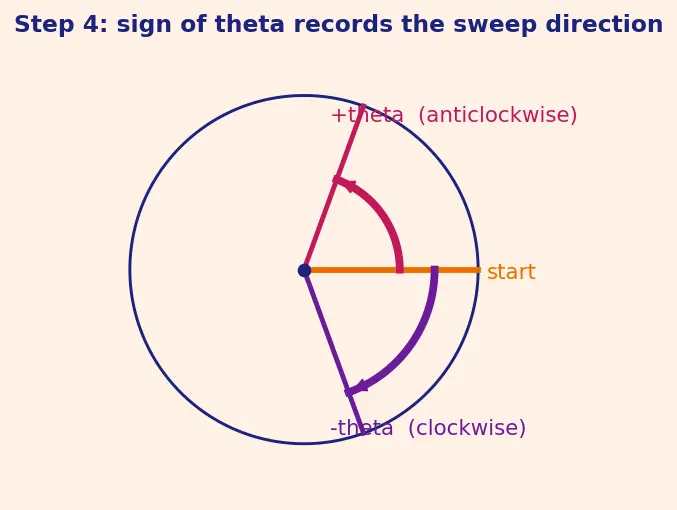

PICTURE. Same starting stick, two sweeps: the magenta arc curls up-and-left ($+\theta$) while the violet arc curls down-and-right ($-\theta$). Same amount of opening, opposite sign.

---

Step 5 — Sweep the whole way round

WHAT. Now open the angle all the way (anticlockwise) until the two sticks come back together — a full turn. The arc is now the entire rim of the circle, the circumference $C$.

WHY. To convert between two systems of measuring angles, we need one angle we can name in both systems. The full turn is perfect: everyone already agrees a full turn is $360^{\circ }$, and we can compute its radian value from the definition.

PICTURE. The arc (magenta) has grown to wrap the whole circle. We mark off radius-sticks around the rim — they fit a little more than six times.

---

Step 6 — Full turn, measured in radians

WHAT. Feed the full-turn arc $s=C=2\pi r$ into our definition $\theta =s/r$.

WHY. This turns "the whole way round" into an actual radian number, using nothing but Step 3 and Step 5.

${\theta }_{\text{full}}=\frac{s}{r}=\frac{\stackrel{\text{whole rim}}{\overbrace{2\pi r}}}{\underset{\text{one stick}}{\underbrace{r}}}=2\pi \text{ rad}$

• The two $r$'s cancel — the size disappears exactly as promised in Step 3.
• What's left, $2\pi$, is the pure count of radius-sticks around the rim.
• A full turn the other way (clockwise) is $-2\pi \text{ rad}$ — same magnitude, opposite sign, by Step 4.

PICTURE. The full circle labelled with both names of the same sweep: $360^{\circ }$ on the outside, $2\pi \text{ rad}$ on the inside.

---

Step 7 — Equate the two labels and read off the key

WHAT. The full turn is one physical thing wearing two name-tags. Set them equal, then halve.

WHY. Equating gives the bridge between the systems; halving gives the cleaner form everyone quotes.

$\underset{\text{degree name}}{\underbrace{360^{\circ }}}=\underset{\text{radian name}}{\underbrace{2\pi \text{ rad}}}\stackrel{÷2}{\to }\boxed{180^{\circ }=\pi \text{ rad}}$

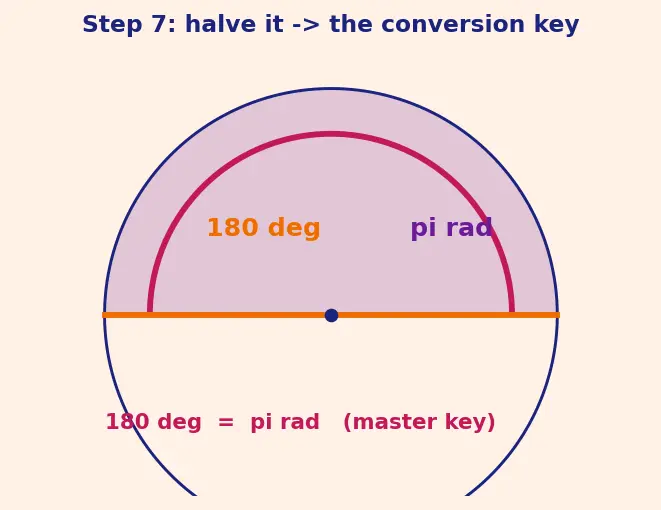

PICTURE. A half-turn (a straight line through the centre): $180^{\circ }$ on one side, $\pi \text{ rad}$ on the other. This single equation is the master key.

---

Step 8 — The degenerate and edge cases

WHAT. Check the extremes so nothing surprises you later.

WHY. A rule you trust must survive its boundary cases: the zero angle, the tiny angle, the negative sweep, and the beyond-full angle.

• Zero opening ($s=0$): $\theta =0/r=0$. Zero in both systems — the two sticks lie on top of each other. Sign of $0$ is neither positive nor negative; no conflict.
• Tiny opening: when $\theta$ is very small, the curved arc is nearly straight, so $s\approx$ the straight chord. This is the seed of the Small Angle Approximation — and it only works because $\theta =s/r$ is a length ratio.
• Negative sweep ($\theta <0$): a clockwise turn, e.g. $-\frac{\pi }{2}\text{ rad}=-90^{\circ }$. Same size as a quarter-turn, opposite direction — exactly Step 4.
• More than a full turn ($|\theta |>2\pi$): the arc wraps past the start and keeps going. $\theta =s/r$ still gives an honest number; e.g. one-and-a-half turns anticlockwise is $3\pi \text{ rad}=540^{\circ }$, and the same clockwise is $-3\pi \text{ rad}=-540^{\circ }$. Angles simply keep counting — see Trigonometric Functions of Any Angle.

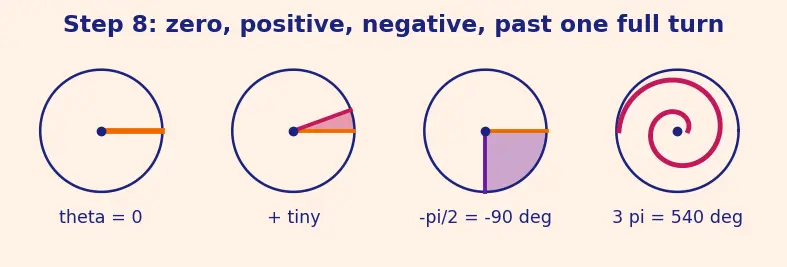

PICTURE. Four little dials: $\theta =0$, a positive sliver, a negative (clockwise) sweep, and a past-full spiral, each with its radian value.

---

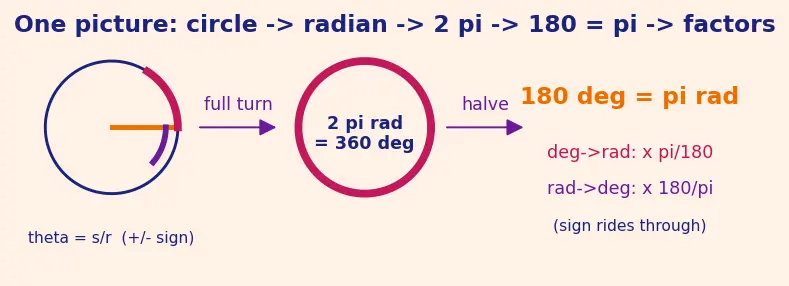

The one-picture summary

Everything above, compressed into a single chain: circle → divide by radius → sign says direction → full turn is $2\pi$ → half turn is $\pi =180^{\circ }$ → conversion factors (which carry the sign).

Recall Feynman retelling — the whole walk in plain words

Draw a round pond. An angle is just how wide you spread two sticks from the middle. To measure the spread fairly, don't measure the curved edge directly — a bigger pond would fake a bigger angle. Instead ask: "how many pond-radius lengths of edge did I sweep?" Dividing the edge-length by the radius throws away the pond's size and leaves the pure angle — that's a radian. If you sweep anticlockwise you call it positive; clockwise, negative — the sign is just "which way." Walk all the way around and you've laid down $2\pi$ (about $6.28$) radius-lengths, so a full turn is $2\pi$ radians — and everyone already calls that $360^{\circ }$. Halve it: $180^{\circ }=\pi$. That one fact is the whole conversion. Want radians? Multiply by $\pi /180$. Want degrees? Multiply by $180/\pi$. Because multiplying is just scaling, any minus sign rides straight through — a clockwise turn stays clockwise in both systems. And it never runs out — keep sweeping past one lap and the count just keeps climbing (or dropping, if you're going backwards).

Recall

The definition of one radian in terms of arc and radius ::: $\theta =s/r$; one radian is when the arc equals the radius. Why dividing $s$ by $r$ removes the circle's size ::: both $s$ and $r$ scale by the same factor, so the ratio cancels it. What the sign of $\theta$ records ::: the direction of the sweep — positive anticlockwise, negative clockwise. Where $2\pi$ in a full turn comes from ::: the circumference $C=2\pi r$, so ${\theta }_{\text{full}}=2\pi r/r=2\pi$. The master conversion identity ::: $180^{\circ }=\pi$ rad. Do the conversion factors work for negative angles? ::: Yes — multiplying is scaling, which keeps the sign, so $-45^{\circ }=-\pi /4$ rad.

---
