Foundations — Radian measure — definition, conversion formula degrees ↔ radians

This page assumes nothing. Before you touch conversion formulas or arc-length formulas, you must be fluent in every letter, symbol and picture the parent note quietly leans on. We build them in order — each one uses only what came before it.

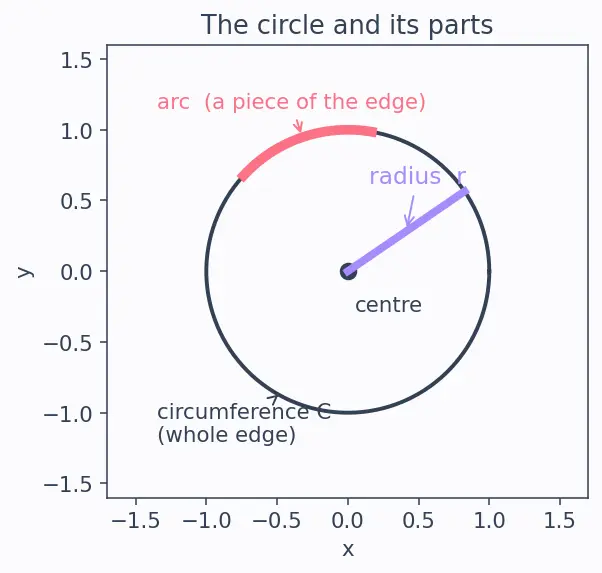

0. The circle and its parts

Everything starts with one round shape. Let's name its pieces before we do anything clever.

Why the topic needs these: a radian is defined by comparing an arc (a curve) to a radius (a straight stick). If those two words are fuzzy, the definition is fuzzy. Hold both pictures in your head: one straight lavender stick, one coral curved sliver.

1. The symbol $r$ — radius as a number

$r$ is a letter standing in for a length. If the circle is drawn on paper with a 5 cm radius, then $r=5\text{cm}$. We use a letter instead of a fixed number so every formula works for any size of circle at once.

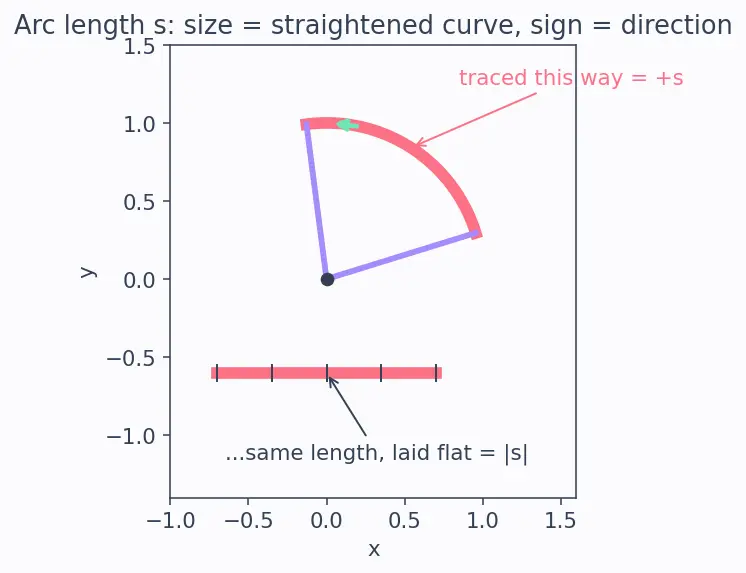

2. The symbol $s$ — arc length, and its direction

$s$ is the length of an arc, measured along the curve as if you unbent it into a straight ruler.

Look at the figure: the coral arc, if you could peel it off and lay it flat, has some length. That flat length is measured in the same units as $r$ (cm, metres, whatever).

A subtlety we'll need soon. A raw length is never negative — a piece of string can't be $-3$ cm long. But in a moment we're going to let angles be negative to record which way we turned. To keep the single formula $\theta =s/r$ honest, we give $s$ a direction too: we treat $s$ as a signed (oriented) arc length. Traced anticlockwise it counts positive; traced clockwise it counts negative. Its size $|s|$ is the ordinary string-length; its sign just remembers the direction of travel.

3. The angle $\theta$ — the thing we're actually measuring

$\theta$ (Greek letter "theta") is the name we give to an angle: the amount of opening between two straight lines meeting at a point.

Why a Greek letter? Pure convention — mathematicians reserve $\theta$, $\alpha$, $\beta$ for angles so you can tell at a glance "this symbol is an angle." Nothing deeper.

4. Which way did we turn? — signed angles

Two radii spread apart tell you how wide the opening is, but not which way you swept to open it. Maths fixes a convention so a number can carry direction too.

Why the topic needs this: exactly the same $s=r\theta$ ratio works, but the sign of $\theta$ (fed in by the sign of $s$) records orientation. A full anticlockwise turn is $+2\pi$; the same turn clockwise is $-2\pi$; standing still is $s=0$, giving $\theta =0$ radians (the degenerate, zero-arc case). Keep the sign glued to the direction and you never lose track of where you're pointing.

5. The ratio $s/r$ — the radian itself

Now we can read the parent's central formula. The slash means divide (and this is exactly why we demanded $r>0$ in §1 — dividing by zero is forbidden):

$\theta =\frac{s}{r}$

$s/r$ asks: "how many copies of the straight stick $r$ do I need to cover the curved arc $s$?" — and if $s$ was traced backwards, the answer comes out negative.

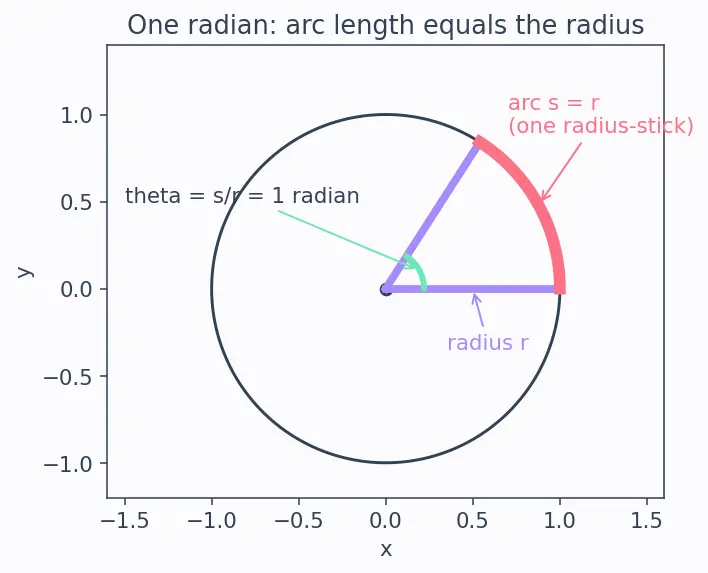

In the figure, the arc is exactly one radius long, so $s/r=1$, so $\theta =1$ radian. If the arc were two radius-sticks long, $\theta =2$ radians; traced the other way, $\theta =-2$ radians. That's all a radian is: a signed count of radius-sticks laid along the curve.

6. Why radians are a pure number (dimensionless)

$s$ is a length (say, centimetres). $r$ is a length (centimetres). Divide:

$\theta =\frac{s}{r}=\frac{\text{cm}}{\text{cm}}=\text{just a number}$

The units cancel like matching factors in a fraction. So "$\theta =2$" is complete — no unit needed. We sometimes write "rad" as a reminder of which ruler we used, but it carries no dimension.

7. The symbol $\pi$ — the circle's built-in constant

First, one more length. The diameter is the straight distance all the way across a circle through the centre — so it is exactly two radii end to end. We write it $d=2r$.

Recall from §0 that we write the whole curved edge, the circumference, as $C$. Now $\pi$ (Greek "pi") is a fixed number, about $3.14159$. It is defined by a fact about every circle:

$\pi =\frac{\text{circumference}}{\text{diameter}}=\frac{C}{d}=\frac{C}{2r}$

Rearranged, the whole edge has length:

$C=2\pi r$

Why the topic needs $\pi$: to find how many radians are in a full turn, you feed the whole circumference ($s=2\pi r$) into $\theta =s/r$ and get $2\pi r/r=2\pi$ (again legal because $r>0$). Every "$\pi$" you'll see in $180^{\circ }=\pi$ or $\frac{\pi }{180}$ traces back to this one $C=2\pi r$.

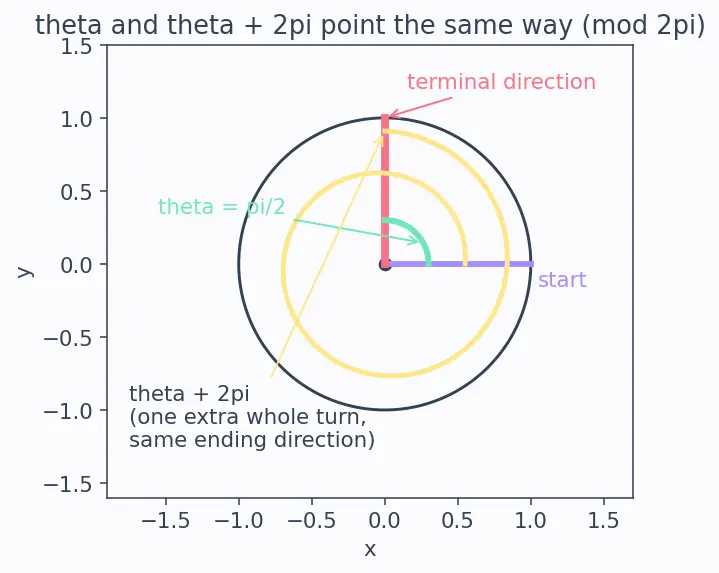

8. Going round more than once — periodicity (mod $2\pi$)

Here is an edge case the definition forces on us. A full turn is $2\pi$ radians and lands you back where you started. So if you keep going, you sweep more arc but end up pointing the same way.

Why the topic needs this: the arc $s$ knows the difference — spiral round twice and $s$ is genuinely longer, so $\theta =s/r$ is genuinely bigger. But the direction you end up facing does not. For example $\frac{\pi }{2}$ (a quarter turn) and $\frac{\pi }{2}+2\pi =\frac{5\pi }{2}$ point the same way. When later work only cares where you end up (like the Unit Circle or Trigonometric Functions of Any Angle), you may add or subtract $2\pi$ freely to land in a convenient range such as $0\le \theta <2\pi$.

9. The degree symbol ${}^{\circ }$ and the number 360

The little circle ${}^{\circ }$ means "measured in degrees," Ruler A. The number 360 was chosen by ancient astronomers (it has many divisors and is close to the days in a year). It is not a fact about circles — it's a fact about human history.

Why keep it around? Everyday life, navigation, and protractors all speak degrees. So we must be able to translate between the two rulers — that translation is the whole "conversion formula" the parent page derives.

Reading the formulas back (sanity pass)

Now every symbol in the parent page should read like plain English:
