Range — definition and calculation

Overview

The range is the simplest measure of dispersion or spread in a dataset. It tells us how stretched out our data is from the smallest to the largest value.

---

[!intuition] Why Range Matters

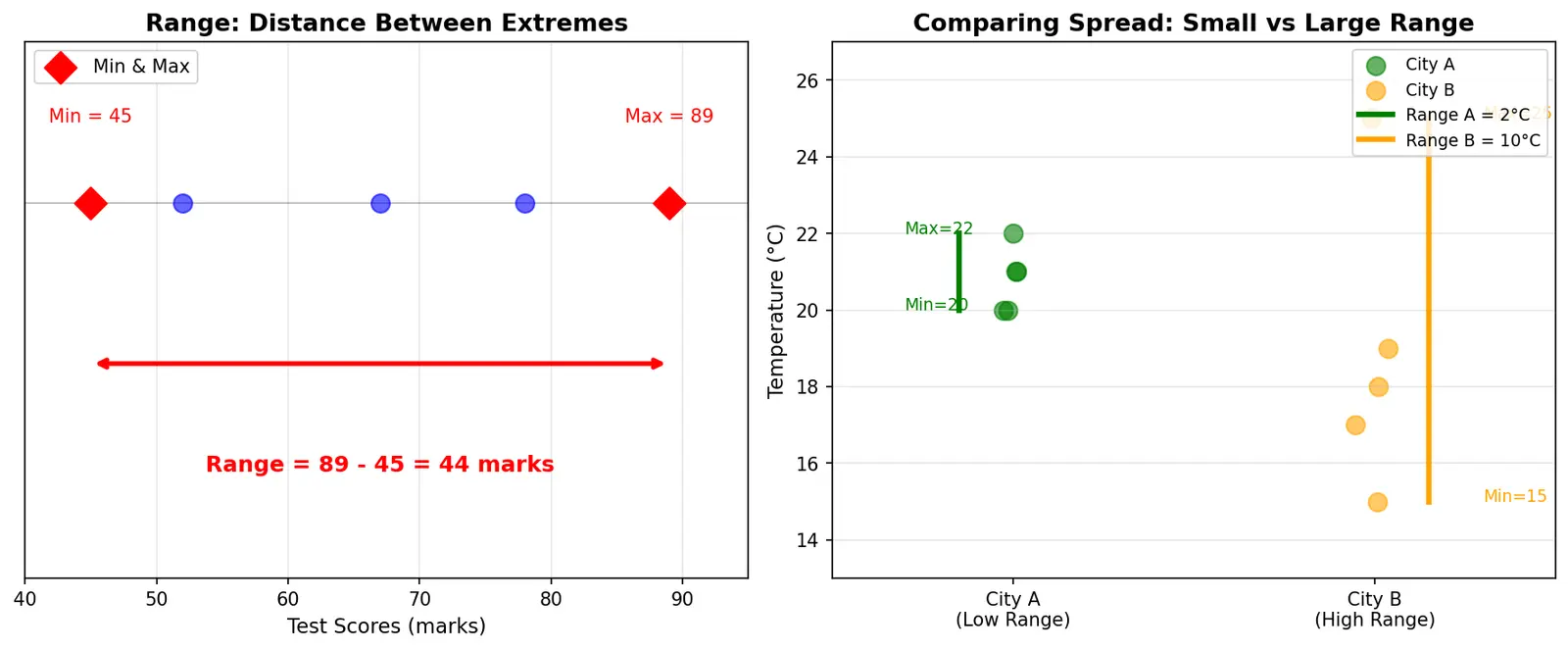

Imagine you're comparing daily temperatures in two cities:

• City A: 20°C, 21°C, 22°C, 21°C, 20°C (Range = 2°C)
• City B: 15°C, 18°C, 25°C, 19°C, 17°C (Range = 10°C)

City B's weather is more unpredictable even though both might have similar averages. Range captures this variability with a single number.

Key insight: Range answers the question: "What's the maximum possible difference I could see in this data?"

---

[!definition] Formal Definition

The range of a dataset is:

$\text{Range} = \text{Maximum value} - \text{Minimum value}$

Or symbolically, if our dataset is $\{x_1, x_2, \ldots, x_n\}$:

$\text{Range} = \max(x_i) - \min(x_i)$

Units: The range has the same units as the original data (cm, kg, marks, etc.).

---

[!formula] Derivation from First Principles

Let's build the concept step by step:

Step 1: What is "spread"?

Why? We want to quantify how "far apart" data points are.

The most extreme spread is between the furthest apart points. In a sorted dataset $x_1 \leq x_2 \leq \cdots \leq x_n$, these are $x_1$ (minimum) and $x_n$ (maximum).

Step 2: Measuring distance

Why? Distance between two points on a number line is their absolute difference.

The distance from minimum to maximum is: $d = x_n - x_1$

Since $x_n \geq x_1$ (by definition of max/min), this is always non-negative.

Step 3: Why subtract (not add)?

Why? Adding gives total magnitude; subtracting gives the gap.

If $x_{\min} = 10$ and $x_{\max} = 50$:

• Adding: $10 + 50 = 60$ (meaningless)
• Subtracting: $50 - 10 = 40$ (the span of values)

Therefore: $\boxed{\text{Range} = x_{\max} - x_{\min}}$

---

[!example] Example 1: Test Scores

Dataset: Marks of 5 students: $\{45, 67, 89, 52, 78\}$

Step-by-step calculation:

Step 1: Identify maximum $x_{\max} = 89 \text{ marks}$ Why this step? We need the highest value to find the upper bound of spread.

Step 2: Identify minimum $x_{\min} = 45 \text{ marks}$ Why this step? We need the lowest value to find the lower bound of spread.

Step 3: Calculate range $\text{Range} = 89 - 45 = 44 \text{ marks}$ Why this step? The difference gives us the total spread of performance.

Interpretation: The scores are spread across 44 marks, showing significant variation in student performance.

---

[!example] Example 2: Hourly Wages

Dataset: Wages (₹/hour): $\{150, 150, 175, 200, 150 225\}$

Step 1: Find extremes

• Maximum: ₹225
• Minimum: ₹150

Why? Even if a value repeats (150 appears 3 times), we only care about the extreme values.

Step 2: Compute range $\text{Range} = 225 - 150 = ₹75 \text{ per hour}$

Interpretation: There's a ₹75 gap between the lowest and highest paid workers.

---

[!example] Example 3: Negative Numbers

Dataset: Winter temperatures (°C): $\{-5, -2, 0, 3, 7\}$

Step 1: Identify extremes

• Maximum: $7°C$
• Minimum: $-5°C$

Why this matters? Negative numbers follow the same rule—always subtract minimum from maximum, not the other way.

Step 2: Calculate $\text{Range} = 7 - (-5) = + 5 = 12°C$

Why add? Subtracting a negative is equivalent to adding: $a - (-b) = a + b$

Interpretation: Temperature varied by 12 degrees over the period.

---

[!mistake] Common Mistakes

Mistake 1: Subtracting in Wrong Order

Wrong approach: $\text{Range} = \min - \max =45 - 89 = -44$

Why it feels right: "Maybe range is just the difference, order doesn't matter?"

Why it's wrong: Range is a measure of magnitude of spread, which must be positive (or zero). A negative range is meaningless.

Steel-man the mistake: The confusion arises because in general math, $|a - b| = |b - a|$. But here, we specifically define range as max minus min to ensure a positive result.

The fix: Always use $\text{Range} = \max - \min$, never the reverse.

---

Mistake 2: Forgetting Units

Wrong: "The range is 44" (for the test scores example)

Why it feels right: We're so focused on the number, we forget what it represents.

Why it's wrong: Range is a measurement, and measurements need units. Without "marks," someone might think it's 44 students or 44 points.

Steel-man: In pure mathematics, we sometimes work with dimensionless numbers. But in statistics applied to real data, units provide context.

The fix: Always state the units: "Range =44 marks"

---

Mistake 3: Including Outliers Uncritically

Wrong: For dataset $\{20, 22, 21, 23, 22, 200\}$, reporting Range = 180without comment.

Why it feels right: We calculated it correctly using the formula.

Why it's misleading: The value 200 is likely a recording error or an outlier. The range becomes dominated by one extreme value and doesn't represent typical spread.

Steel-man: The formula is correct, but statistics isn't just computation—it's interpretation. A formula can be "right" but still give a misleading picture.

The fix: When you notice extreme outliers, report the range but also note: "Range is 180, but this is heavily influenced by one outlier (200). Without it, range would be 3."

---

[!recall]- Explain Like I'm 12

Imagine you have a bunch of friends, and you measure how tall everyone is.

• Your shortest friend is 140 cm
• Your tallest friend is 165 cm

The range is like asking: "If these two friends stood next to each other, how much taller is the tall one?"

Answer: $165 - 140 = 25$ cm.

That's it! Range is the gap between the shortest and tallest (or smallest and biggest, or coldest and hottest—whatever you're measuring). It's the simplest way to say "how spread out are my numbers?"

Pro tip: If all your friends are exactly the same height (say, all 150 cm), then the range is $150 - 150 = 0$. That means no spread at all—everyone's the same!

---

[!mnemonic] Memory Aid

R.A.M. for Range:

• Remove the minimum from maximum
• Always positive (or zero)
• Must include units

Or think: "Max MINUS Min = Range" (the three M's)

---

Properties of Range

1. Non-negative: Range ≥ 0 always

   • Why? $x_{\max} \geq x_{\min}$ by definition

2. Zero for constant data: If all values are equal, Range = 0

   • Example: $\{5, 5, 5\} \rightarrow \text{Range} = 5 - 5 = 0$

3. Sensitive to outliers: A single extreme value dramatically changes the range

   • Why this matters: Range doesn't tell you about the "typical" spread, only the extremes

4. Ignores intermediate values: Range doesn't care about the middle90% of your data

   • Example: $\{1, 2, 3, 4, 100\}$ and $\{1, 50, 100\}$ have the same range (99) but very different distributions

---

When to Use Range

###✅ Good for:

• Quick, rough sense of spread
• Small datasets where outliers are meaningful
• Quality control (e.g., "all parts must be within 5mm range")
• When you specifically care about extreme cases

Not ideal for:

• Large datasets with outliers
• When you need a "typical" measure of spread (use interquartile range or standard deviation instead)
• Comparing datasets of very different sizes

---

Connections Measures of Central Tendency — Range complements mean/median by describing spread

• Interquartile Range — More robust alternative that ignores extreme values
• Standard Deviation — More sophisticated measure that uses all data points
• Outliers — Range is heavily affected by outliers
• Data Visualization — Range appears in box plots as the whisker span
• Variance — Another measure of spread, but squared units

---

#flashcards/maths

What is the formula for range? :: Range = Maximum value − Minimum value

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Range sabse basic aur simple measure hai data ke spread ko samajhne ke liye. Imagine karo ek class mein sabhi students ka height measure kiya - sabse chhota 140 cm hai aur sabse lamba 175 cm hai. To range bas yeh bata hai ki inn dono extreme values ke bech kitna gap hai: 175 - 45 = 35 cm. Matlab maximum se minimum ko subtract karo, bas!

Yeh concept bahut useful hai quick comparison ke liye. Agar do cities ke temperature compare karna ho -ek ka range 3°C hai (stable weather) aur dosre ka 15°C (unpredictable weather) - to turant samajh aa jata hai kaun sa city zyada consistent hai. Lekin ek problem bhi hai: agar dataset mein ek bhi outlier (bahut extreme value) ho to range completely mislead kar sakta hai. Isliye range sirf first quick look ke liye acha hai, detailed analysis ke liye standard deviation ya IQR better options hain. Units yad rakhna zaroori hai - 50 marks ka range aur 50 kg ka range bilkul alag chezein hain!
