Foundations — Range — definition and calculation

This is the "build the toolkit" page for Range. The parent note freely used words like dataset, minimum, number line, and symbols like $x_i$, $\max$, $\min$, and $\{\dots \}$. Here we earn every one of them from absolute zero, in the order they must be learned, before you ever compute a range.

1. A number, and the number line

Before "spread" means anything, we need a place to put numbers so that "far apart" becomes a real distance you can see.

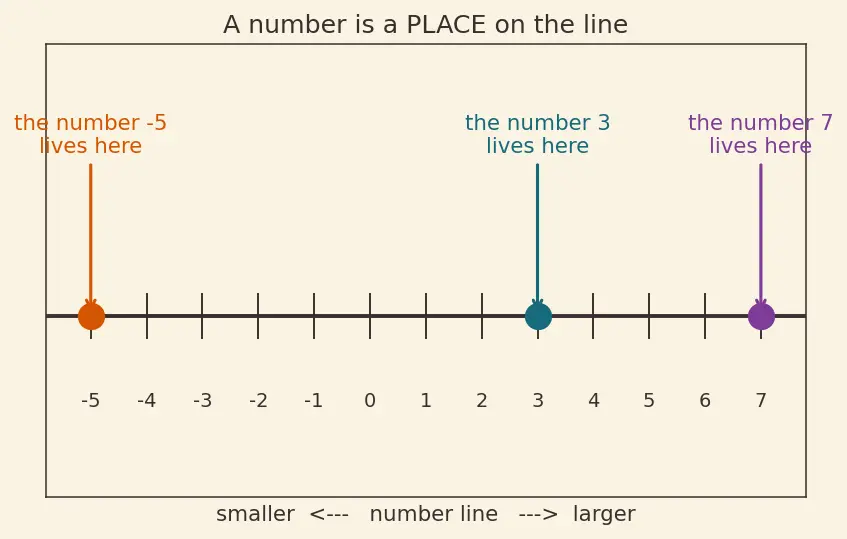

Look at the figure: the number $3$ is not "just a symbol" — it is a location. This is the whole reason range works. Once numbers are places, the phrase "how spread out" turns into a physical gap you can measure with your finger.

Why the topic needs this: Range is a distance on this line. No number line → no notion of distance → no range.

2. A data value and the letter $x$

We do not want to keep writing "one measurement." Mathematicians shorten it to a single letter, almost always $x$.

Why the topic needs this: the range formula must work for whatever numbers you have. A letter is how we say "any number, you fill it in."

3. Many values: the subscript $x_i$

One measurement is $x$. But data comes in bunches. We need to tell them apart without inventing a new alphabet.

The general one is $x_i$, read "x-eye", where $i$ is a stand-in for any position number: $i$ could be $1$, or $2$, or $7$.

Why the topic needs this: the parent writes $x_1\le x_2\le \cdots \le x_n$. Without subscripts we could not point at "the first" versus "the last" value.

4. The dataset and curly braces $\{\}$

$\{45,67,89,52,78\}$

The braces are the "bag" holding all five marks. The commas keep the values from running into each other.

So the fully general dataset the parent wrote, $\{x_1,x_2,\dots ,x_n\},$ reads in plain words: "a bag of values, the first one, the second one, all the way up to the $n$-th (last) one." The $\dots$ ("and so on") just saves us from writing every single slot.

5. Ordering: the symbol $\le$

To find "smallest" and "biggest", we must be able to say one number is not larger than another.

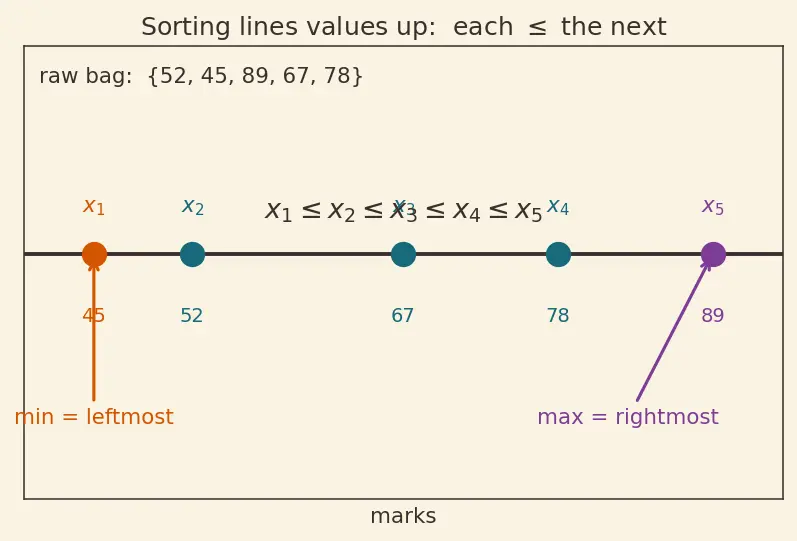

When we sort a dataset we line the values up so each is $\le$ the next: $x_1\le x_2\le \cdots \le x_n.$ Now $x_1$ is guaranteed the leftmost (smallest) and $x_n$ the rightmost (largest) — the picture makes it plain that after sorting, the two ends are exactly the extremes we care about.

Why the topic needs this: finding max and min is finding the two ends of a sorted line.

6. $\min$ and $\max$

For $\{45,67,89,52,78\}$: $\min =45$, $\max =89$.

Why the topic needs this: these are the only two numbers range ever looks at.

7. Subtraction as distance: the minus sign $-$

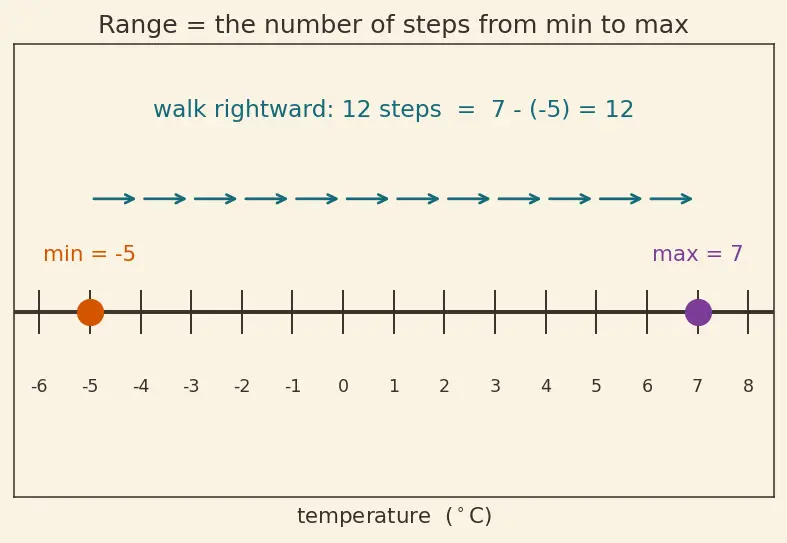

Here is the heart of it. Range is $\max -\min$. But why does subtraction measure a gap?

Because we always do $\max -\min$ (big minus small), we always walk rightward, so the step count is never negative. That is why range is always $\ge 0$.

Why the topic needs this: range is this subtraction. If you don't feel subtraction as "steps between two points", the formula is just symbols.

8. Spread / dispersion — the idea range measures

Range is the crudest spread measure: it only checks the two outermost points and ignores everything in between. That simplicity is its strength (easy) and its weakness (blind to the middle) — a theme the parent explores and that Interquartile Range, Variance, and Standard Deviation later fix.

Prerequisite map

Read it top-down: the number line feeds everything; naming values ($x_i$) lets us build a dataset; ordering plus counting lets us find $\min$ and $\max$; subtraction-as-distance turns those two ends into a single length — the range — which is our first measure of spread.

Equipment checklist

Test yourself — say the answer before revealing.

Connections

• Range — definition and calculation — the topic these foundations build toward
• Measures of Central Tendency — the "centre" counterpart to this "spread" idea
• Interquartile Range, Variance, Standard Deviation — smarter spread measures built on the same number-line picture
• Outliers — why range's blindness to the middle can mislead
• Data Visualization — the number line grows into box plots
