Intuition Why3D Shapes MatterIn 2D we have area (flat space). In 3D we add depth — now we can hold water, stack boxes, build buildings. Every 3D shape has two key measurements: surface area (how much paint to cover it) and volume (how much stuff fits inside). These aren't random formulas — they come from slicing, stacking, or rotating 2D shapes.
WHY do we care about 3D shapes? Because the real world is 3D. A piece of paper is 2D (negligible thickness), but a box, a ball, a can — all 3D.
WHAT defines a 3D shape?
Faces : flat or curved surfacesEdges : where two faces meetVertices : where edges meet (corners)Volume (V V V Surface Area (S A SA S A
HOW do we build these formulas? We derive from first principles: stacking, rotating, or scaling 2D shapes.

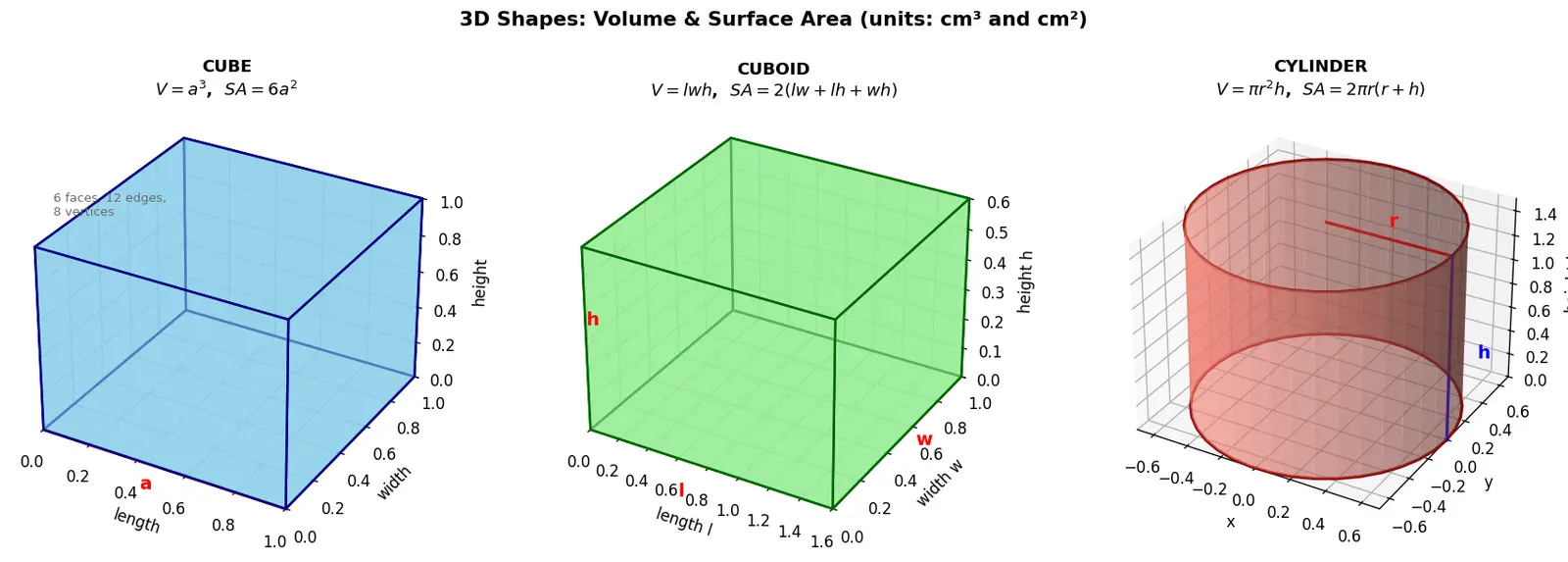

A cube is a 3D shape with 6 identical square faces , 12 equal edges , and 8 vertices . All edges have length a a a
WHY? Volume = base area × height. For a cube, the base is a square a × a a \times a a × a a a a
Derivation:
V cube = ( base area ) × ( height ) = a 2 × a = a 3 V_{\text{cube}} = (\text{base area}) \times (\text{height}) = a^2 \times a = a^3 V cube = ( base area ) × ( height ) = a 2 × a = a 3
WHY? A cube has 6 faces, each a square of area a 2 a^2 a 2
Derivation:
S A cube = 6 × ( area of one face ) = 6 a 2 SA_{\text{cube}} = 6 \times (\text{area of one face}) = 6a^2 S A cube = 6 × ( area of one face ) = 6 a 2
Solution:
Volume: V = a 3 = 5 3 = 125 V = a^3 = 5^3 = 125 V = a 3 = 5 3 = 125
Why this step? We cube the edge length because volume is3D (length × width × height, all equal).
Surface Area: S A = 6 a 2 = 6 ( 5 2 ) = 6 ( 25 ) = 150 SA = 6a^2 = 6(5^2) = 6(25) = 150 S A = 6 a 2 = 6 ( 5 2 ) = 6 ( 25 ) = 150
Why this step? Each of6 faces is a 5 × 5 = 25 5 \times 5 = 25 5 × 5 = 25
A cuboid has 6 rectangular faces , with length l l l w w w h h h
WHY? Stack rectangular slices. Each slice has area l × w l \times w l × w h h h
Derivation:
V cuboid = l × w × h V_{\text{cuboid}} = l \times w \times h V cuboid = l × w × h
WHY? A cuboid has 3 pairs of opposite faces:
Top & bottom: each l × w l \times w l × w
Front & back: each l × h l \times h l × h
Left & right: each w × h w \times h w × h
Derivation:
S A = 2 ( l w ) + 2 ( l h ) + 2 ( w h ) = 2 ( l w + l h + w h ) SA = 2(lw) + 2(lh) + 2(wh) = 2(lw + lh + wh) S A = 2 ( l w ) + 2 ( l h ) + 2 ( w h ) = 2 ( l w + l h + w h )
Worked example Example 2: CuboidA box has l = 8 l = 8 l = 8 w = 5 w = 5 w = 5 h = 3 h = 3 h = 3
Solution:
Volume: V = 8 × 5 × 3 = 120 V = 8 \times 5 \times 3 = 120 V = 8 × 5 × 3 = 120
Why? Multiply all three dimensions to get 3D space.
Surface Area: S A = 2 ( 8 ⋅ 5 + 8 ⋅ 3 + 5 ⋅ 3 ) = 2 ( 40 + 24 + 15 ) = 2 ( 79 ) = 158 SA = 2(8 \cdot 5 + 8 \cdot 3 + 5 \cdot 3) = 2(40 + 24 + 15) = 2(79) = 158 S A = 2 ( 8 ⋅ 5 + 8 ⋅ 3 + 5 ⋅ 3 ) = 2 ( 40 + 24 + 15 ) = 2 ( 79 ) = 158
Why? Add areas of all 6 faces (in 3 pairs).
A cylinder has two parallel circular bases (radius r r r h h h
WHY? Stack circular slices. Each slice has area π r 2 \pi r^2 π r 2 h h h
Derivation:
V cylinder = ( base area ) × h = π r 2 × h V_{\text{cylinder}} = (\text{base area}) \times h = \pi r^2 \times h V cylinder = ( base area ) × h = π r 2 × h
WHY? Surface area = two circular bases + curved surface. If we "unroll" the curved surface, it becomes a rectangle with width = circumference of base = 2 π r 2\pi r 2 π r h h h
Derivation:
Area of two bases: 2 × π r 2 = 2 π r 2 2 \times \pi r^2 = 2\pi r^2 2 × π r 2 = 2 π r 2
Curved surface area: 2 π r × h 2\pi r \times h 2 π r × h
Total: S A = 2 π r 2 + 2 π r h = 2 π r ( r + h ) SA = 2\pi r^2 + 2\pi rh = 2\pi r(r + h) S A = 2 π r 2 + 2 π r h = 2 π r ( r + h )
Solution:
Volume: V = π r 2 h = π ( 4 2 ) ( 10 ) = 160 π ≈ 502.65 V = \pi r^2 h = \pi (4^2)(10) = 160\pi \approx 502.65 V = π r 2 h = π ( 4 2 ) ( 10 ) = 160 π ≈ 502.65
Why? Base area π r 2 \pi r^2 π r 2
Surface Area: S A = 2 π r ( r + h ) = 2 π ( 4 ) ( 4 + 10 ) = 2 π ( 4 ) ( 14 ) = 112 π ≈ 351.86 SA = 2\pi r(r + h) = 2\pi (4)(4 + 10) = 2\pi(4)(14) = 112\pi \approx 351.86 S A = 2 π r ( r + h ) = 2 π ( 4 ) ( 4 + 10 ) = 2 π ( 4 ) ( 14 ) = 112 π ≈ 351.86
Why? Two circles plus the unrolled curved surface.
A cone has a circular base (radius r r r h h h l = r 2 + h 2 l = \sqrt{r^2 + h^2} l = r 2 + h 2
WHY? A cone is like a pyramid with a circular base. As we go up, circular slices shrink to zero. Using calculus (or Cavalieri's principle), volume of a cone = 1 3 \frac{1}{3} 3 1
Derivation (Intuitive):
Imagine filling a cylinder with water using3 identical cones — they exactly fill it. So:
V cone = 1 3 V cylinder = 1 3 π r 2 h V_{\text{cone}} = \frac{1}{3} V_{\text{cylinder}} = \frac{1}{3} \pi r^2 h V cone = 3 1 V cylinder = 3 1 π r 2 h
WHY? Surface = base + curved surface. The curved surface, when unrolled, forms a sector of a circle with radius l l l 2 π r 2\pi r 2 π r
Derivation:
Base area: π r 2 \pi r^2 π r 2
Curved surface area: π r l \pi r l π r l 1 2 × arc length × radius = 1 2 ( 2 π r ) ( l ) = π r l \frac{1}{2} \times \text{arc length} \times \text{radius} = \frac{1}{2}(2\pi r)(l) = \pi rl 2 1 × arc length × radius = 2 1 ( 2 π r ) ( l ) = π r l
Total: S A = π r 2 + π r l = π r ( r + l ) SA = \pi r^2 + \pi rl = \pi r(r + l) S A = π r 2 + π r l = π r ( r + l )
Solution:
Slant height: l = 3 2 + 4 2 = 9 + 16 = 25 = 5 l = \sqrt{3^2 + 4^2} = \sqrt{9 + 16} = \sqrt{25} = 5 l = 3 2 + 4 2 = 9 + 16 = 25 = 5
Why? Pythagorean theorem: l 2 = r 2 + h 2 l^2 = r^2 + h^2 l 2 = r 2 + h 2
Volume: V = 1 3 π r 2 h = 1 3 π ( 3 2 ) ( 4 ) = 1 3 π ( 9 ) ( 4 ) = 12 π ≈ 37.7 V = \frac{1}{3} \pi r^2 h = \frac{1}{3} \pi (3^2)(4) = \frac{1}{3} \pi (9)(4) = 12\pi \approx 37.7 V = 3 1 π r 2 h = 3 1 π ( 3 2 ) ( 4 ) = 3 1 π ( 9 ) ( 4 ) = 12 π ≈ 37.7
Why? Cone is 1 3 \frac{1}{3} 3 1
Surface Area: S A = π r ( r + l ) = π ( 3 ) ( 3 + 5 ) = 3 π ( 8 ) = 24 π ≈ 75.4 SA = \pi r(r + l) = \pi (3)(3 + 5) = 3\pi(8) = 24\pi \approx 75.4 S A = π r ( r + l ) = π ( 3 ) ( 3 + 5 ) = 3 π ( 8 ) = 24 π ≈ 75.4
Why? Base circle plus curved surface.
A sphere is a perfectly round 3D shape where every point on the surface is equidistant from the center, with radius r r r
WHY? Using calculus, we integrate circular cross-sections. Intuitively, a sphere is built by rotating a semicircle around its diameter.
Derivation (via integration, simplified):
At height y y y x = r 2 − y 2 x = \sqrt{r^2 - y^2} x = r 2 − y 2 A ( y ) = π x 2 = π ( r 2 − y 2 ) A(y) = \pi x^2 = \pi(r^2 - y^2) A ( y ) = π x 2 = π ( r 2 − y 2 ) y = − r y = -r y = − r y = r y = r y = r V = ∫ − r r π ( r 2 − y 2 ) d y = π [ r 2 y − y 3 3 ] − r r = π ( 2 r 3 − 2 r 3 3 ) = π ⋅ 4 r 3 3 = 4 3 π r 3 V = \int_{-r}^{r} \pi(r^2 - y^2) \, dy = \pi \left[ r^2 y - \frac{y^3}{3} \right]_{-r}^{r} = \pi \left( 2r^3 - \frac{2r^3}{3} \right) = \pi \cdot \frac{4r^3}{3} = \frac{4}{3}\pi r^3 V = ∫ − r r π ( r 2 − y 2 ) d y = π [ r 2 y − 3 y 3 ] − r r = π ( 2 r 3 − 3 2 r 3 ) = π ⋅ 3 4 r 3 = 3 4 π r 3
WHY? Using calculus (or Archimedes' method with cylinders), the surface area is exactly4 times the area of a great circle π r 2 \pi r^2 π r 2
Derivation (intuitive):
Peel the sphere into tiny patches and flatten — the total area is 4 π r 2 4\pi r^2 4 π r 2
Solution:
Volume: V = 4 3 π r 3 = 4 3 π ( 6 3 ) = 4 3 π ( 216 ) = 288 π ≈ 904.78 V = \frac{4}{3} \pi r^3 = \frac{4}{3} \pi (6^3) = \frac{4}{3} \pi (216) = 288\pi \approx 904.78 V = 3 4 π r 3 = 3 4 π ( 6 3 ) = 3 4 π ( 216 ) = 288 π ≈ 904.78
Why? Use the volume formula directly.
Surface Area: S A = 4 π r 2 = 4 π ( 6 2 ) = 4 π ( 36 ) = 144 π ≈ 452.39 SA = 4\pi r^2 = 4\pi (6^2) = 4\pi(36) = 144\pi \approx 452.39 S A = 4 π r 2 = 4 π ( 6 2 ) = 4 π ( 36 ) = 144 π ≈ 452.39
Why? Four times the area of a great circle.
A prism is a 3D shape with two parallel, identical polygonal bases and rectangular lateral faces connecting them. Height h h h
WHY? Stack identical cross-sections (the base shape) to height h h h
Derivation:
V prism = ( base area ) × h = A base × h V_{\text{prism}} = (\text{base area}) \times h = A_{\text{base}} \times h V prism = ( base area ) × h = A base × h
WHY? Surface = two bases + lateral faces.
Derivation:
Area of two bases: 2 A base 2 A_{\text{base}} 2 A base
Lateral area: (perimeter of base) × h = P base × h \times h = P_{\text{base}} \times h × h = P base × h
Total: S A = 2 A base + P base ⋅ h SA = 2A_{\text{base}} + P_{\text{base}} \cdot h S A = 2 A base + P base ⋅ h
Worked example Example 6: Triangular PrismA prism has a triangular base with base b = 6 b = 6 b = 6 h t = 4 h_t = 4 h t = 4 h = 10 h = 10 h = 10 6 , 5 6, 5 6 , 5
Solution:
Base area: A = 1 2 b h t = 1 2 ( 6 ) ( 4 ) = 12 A = \frac{1}{2} b h_t = \frac{1}{2}(6)(4) = 12 A = 2 1 b h t = 2 1 ( 6 ) ( 4 ) = 12
Base perimeter: P = 6 + 5 + 5 = 16 P = 6 + 5 + 5 = 16 P = 6 + 5 + 5 = 16
Volume: V = A × h = 12 × 10 = 120 V = A \times h = 12 \times 10 = 120 V = A × h = 12 × 10 = 120
Why? Stack the triangular slices.
Surface Area: S A = 2 ( 12 ) + 16 ( 10 ) = 24 + 160 = 184 SA = 2(12) + 16(10) = 24 + 160 = 184 S A = 2 ( 12 ) + 16 ( 10 ) = 24 + 160 = 184
Why? Two triangular bases plus three rectangular sides.
A pyramid has a polygonal base and triangular faces meeting at a single apex, with height h h h
WHY? Similar to the cone, a pyramid is 1 3 \frac{1}{3} 3 1
Derivation:
V pyramid = 1 3 ( base area ) × h = 1 3 A base × h V_{\text{pyramid}} = \frac{1}{3} (\text{base area}) \times h = \frac{1}{3} A_{\text{base}} \times h V pyramid = 3 1 ( base area ) × h = 3 1 A base × h
WHY? Surface = base + lateral triangular faces.
Derivation:
S A = A base + ∑ ( areas of triangular faces ) SA = A_{\text{base}} + \sum (\text{areas of triangular faces}) S A = A base + ∑ ( areas of triangular faces ) l l l S A = A base + 1 2 P base ⋅ l SA = A_{\text{base}} + \frac{1}{2} P_{\text{base}} \cdot l S A = A base + 2 1 P base ⋅ l
Solution:
Base area: A = a 2 = 6 2 = 36 A = a^2 = 6^2 = 36 A = a 2 = 6 2 = 36
Volume: V = 1 3 A h = 1 3 ( 36 ) ( 8 ) = 288 3 = 96 V = \frac{1}{3} A h = \frac{1}{3}(36)(8) = \frac{288}{3} = 96 V = 3 1 A h = 3 1 ( 36 ) ( 8 ) = 3 288 = 96
Why? Pyramid is 1 3 \frac{1}{3} 3 1
Common mistake Mistake 1: Confusing Surface Area and VolumeWrong: "Surface area is measured in cm³."
Why it feels right: Both involve the shape's size.
Steel-man: Surface area and volume both describe the shape, so it's easy to mix up their units.
The Fix: Surface area is 2D (covers the outside, units: cm²). Volume is 3D (fills the inside, units: cm³). Surface area = paint; volume = water.
Common mistake Mistake 2: Forgetting the1 3 \frac{1}{3} 3 1 Wrong: V cone = π r 2 h V_{\text{cone}} = \pi r^2 h V cone = π r 2 h 1 3 \frac{1}{3} 3 1 Why it feels right: We see π r 2 h \pi r^2 h π r 2 h Steel-man: The base and height are the same, so the formula should be similar.
The Fix: Cones and pyramids taper — they're 1 3 \frac{1}{3} 3 1 1 3 \frac{1}{3} 3 1
Common mistake Mistake 3: Using Diameter Instead of RadiusWrong: V = π d 2 h V = \pi d^2 h V = π d 2 h d d d Why it feels right: We're given the diameter, so we use it directly.
Steel-man: Diameter is easier to measure (width across), so it seems natural.
The Fix: Formulas use radius r = d 2 r = \frac{d}{2} r = 2 d
Common mistake Mistake 4: Confusing Slant Height and Height in ConesWrong: V = 1 3 π r 2 l V = \frac{1}{3} \pi r^2 l V = 3 1 π r 2 l l l l h h h Why it feels right: Slant height is more visible on the cone's surface.
Steel-man: The slant height is what you measure along the side, so it seems like "the height."
The Fix: Volume uses perpendicular height h h h Surface area uses slant height l l l
Shape
Volume
Surface Area
Key Feature
Cube
a 3 a^3 a 3 6 a 2 6a^2 6 a 2 All edges equal
Cuboid
l w h lwh l w h 2 ( l w + l h + w h ) 2(lw + lh + wh) 2 ( l w + l h + w h ) 6 rectangular faces
Cylinder
π r 2 h \pi r^2 h π r 2 h 2 π r ( r + h ) 2\pi r(r+h) 2 π r ( r + h ) Circular bases
Cone
1 3 π r 2 h \frac{1}{3}\pi r^2 h 3 1 π r 2 h π r ( r + l ) \pi r(r+l) π r ( r + l ) Tapers to apex, l = r 2 + h 2 l = \sqrt{r^2+h^2} l = r 2 + h 2
Sphere
4 3 π r 3 \frac{4}{3}\pi r^3 3 4 π r 3 4 π r 2 4\pi r^2 4 π r 2 All points equidistant from center
Prism
A base ⋅ h A_{\text{base}} \cdot h A base ⋅ h 2 A base + P base ⋅ h 2A_{\text{base}} + P_{\text{base}} \cdot h 2 A base + P base ⋅ h Parallel polygonal bases
Pyramid
1 3 A base ⋅ h \frac{1}{3}A_{\text{base}} \cdot h 3 1 A base ⋅ h A base + 1 2 P base ⋅ l A_{\text{base}} + \frac{1}{2}P_{\text{base}} \cdot l A base + 2 1 P base ⋅ l Tapers to apex
1 3 \frac{1}{3} 3 1 "Pointy shapes are one-third" — cones and pyramids taper to a point, so they're 1 3 \frac{1}{3} 3 1
Recall Feynman Technique: Explain to a 12-Year-OldImagine you have building blocks. A cube is a dice — all sides are square and equal. A cuboid is a brick — longer one way. A cylinder is a can — circles on top and bottom with tube connecting them. A cone is an ice cream cone — starts wide, ends pointy. A sphere is a ball — perfectly round everywhere. A prism is like a candy bar with the same shape all the way through. A pyramid is like the Egyptian pyramids — flat bottom, comes to a point at the top.
Volume = how much space inside (how much water fits). Surface area = how much wrapping paper to cover it. For cubes and boxes, we multiply length × width × height to get volume. For cones and pyramids, we take 1/3 of that because they're pointy and don't take up as much space. For spheres, there's a special formula with 4 3 \frac{4}{3} 3 4 flat sides = multiply dimensions; round shapes = use π; pointy tops = divide by 3.
Pythagorean Theorem — used to find slant height in cones and pyramidsArea of2D Shapes — bases of3D shapes (squares, circles, triangles)Circle Geometry — understanding π r 2 \pi r^2 π r 2 Units and Measurement — volume in cm³, surface area in cm²Integration — advanced derivation of sphere and cone volumesReal-World Applications — packaging, architecture, engineering
#flashcards/maths
What is the volume formula for a cube with edge length a a a V = a 3 V = a^3 V = a 3
What is the surface area formula for a cube with edge length a a a What is the volume formula for a cuboid with dimensions l l l w w w h h h V = l × w × h V = l \times w \times h V = l × w × h What is the surface area formula for a cuboid? S A = 2 ( l w + l h + w h ) SA = 2(lw + lh + wh) S A = 2 ( l w + l h + w h ) What is the volume formula for a cylinder with radius r r r h h h V = π r 2 h V = \pi r^2 h V = π r 2 h What is the surface area formula for a cylinder? S A = 2 π r ( r + h ) SA = 2\pi r(r + h) S A = 2 π r ( r + h ) or
2 π r 2 + 2 π r h 2\pi r^2 + 2\pi rh 2 π r 2 + 2 π r h What is the volume formula for a cone with radius r r r h h h V = 1 3 π r 2 h V = \frac{1}{3}\pi r^2 h V = 3 1 π r 2 h What is the slant height l l l r r r h h h l = r 2 + h 2 l = \sqrt{r^2 + h^2} l = r 2 + h 2
What is the surface area formula for a cone? S A = π r ( r + l ) SA = \pi r(r + l) S A = π r ( r + l ) where
l l l is slant height
What is the volume formula for a sphere with radius r r r V = 4 3 π r 3 V = \frac{4}{3}\pi r^3 V = 3 4 π r 3 What is the surface area formula for a sphere? S A = 4 π r 2 SA = 4\pi r^2 S A = 4 π r 2 What is the volume formula for a prism? V = A base × h V = A_{\text{base}} \times h V = A base × h (base area × height)
What is the surface area formula for a prism? S A = 2 A base + P base ⋅ h SA = 2A_{\text{base}} + P_{\text{base}} \cdot h S A = 2 A base + P base ⋅ h What is the volume formula for a pyramid? V = 1 3 A base × h V = \frac{1}{3}A_{\text{base}} \times h V = 3 1 A base × h Why do cones and pyramids have a 1 3 \frac{1}{3} 3 1 They taper to a point, so they hold
1 3 \frac{1}{3} 3 1 of a prism/cylinder with the same base and height
What is the difference between height and slant height in a cone? Height
h h h is perpendicular from base to apex (used in volume); slant height
l l l is along the surface (used in surface area)
A cube has edge 4 cm. What is its volume? V = 4 3 = 64 V = 4^3 = 64 V = 4 3 = 64 cm³
A cylinder has radius 3 cm and height 7 cm. What is its volume (in terms of π)? V = π ( 3 2 ) ( 7 ) = 63 π V = \pi(3^2)(7) = 63\pi V = π ( 3 2 ) ( 7 ) = 63 π cm³
A sphere has radius 5 cm. What is its surface area (in terms of π)? S A = 4 π ( 5 2 ) = 100 π SA = 4\pi(5^2) = 100\pi S A = 4 π ( 5 2 ) = 100 π cm²
What are the units for volume? Cubic units (cm³, m³, etc.)
What are the units for surface area? Square units (cm², m², etc.)
Surface Area: cover all faces
Intuition Hinglish mein samjho
Intuition Hinglish mein samjhoDekho yaar, 3D shapes ka basic funda ye hai ki jab hum 2D flat shapes (jaise square ya circle) mein depth add karte hain, tab wo 3D ban jaati hai — matlab ab wo shape space ghersakti hai, paani hold kar sakti hai, cheezein andar rakh sakti hai. Har 3D shape ke do main measurements hote hain: surface area (jaise pura shape paint karne ke liye kitna paint chahiye) aur volume (andar kitna maal fit hoga). Ye formulas rattofication ke liye nahi hain — ye simple ideas se aate hain jaise 2D slices ko stack karna, ya shape ko rotate karna. Jaise cube ka volume a 3 a^3 a 3 a × a a \times a a × a a a a 6 a 2 6a^2 6 a 2
Ab intuition ye samajh lo — cuboid mein bhi wahi logic hai, bas ab length, width, height alag-alag hote hain, isliye V = l × w × h V = l \times w \times h V = l × w × h π r 2 \pi r^2 π r 2 h h h π r 2 h \pi r^2 h π r 2 h 2 π r 2\pi r 2 π r h h h 2 π r h 2\pi rh 2 π r h
Ye cheez matter kyun karti hai? Kyunki real world poora 3D hai — box, ball, can, building sab kuch. Agar tumhe pata ho ki formulas kaise derive hote hain, to exam mein bhi bhoolne ka darr nahi rahega aur real-life problems (jaise tank ki capacity, ya wall painting cost) easily solve kar paoge. Isliye rattne se accha, ye "stacking aur unrolling" wali picture apne dimaag mein bitha lo — phir har 3D shape ka formula khud-ba-khud samajh aa jaayega.
