Intuition The Unfolding MapImagine you have a cardboard box. If you carefully cut along certain edges and unfold it completely flat on the floor, you get a net – a 2D pattern that can be folded back up to form the3D shape. Every 3D shape has a "flat blueprint" that shows all its faces connected in a specific way.
Why nets matter : They connect2D geometry (areas, shapes of faces) with 3D geometry (volume, spatial reasoning). They're used in packaging design, architecture, and understanding surface area.
Definition Net of a 3D ShapeA net is a two-dimensional pattern that can be folded along edges to form a three-dimensional shape. It shows all the faces of the 3D shape laid out flat, connected at edges that will be joined when folded.
Key properties :
Contains ALL faces of the 3D shape
Faces are connected along edges that become the folding edges
When folded, edges meet perfectly (no gaps or overlaps)
Multiple different nets can exist for the same 3D shape
WHY different nets exist : Think of a cube. You can unfold it in many ways – like peling an orange differently each time. As long as all6 faces are connected properly, you can fold it back into a cube. There are actually 11 distinct nets for a cube!
What it is : 6 square faces, all edges equal length
Deriving the net from first principles :
A cube has 6 faces (top, bottom, 4 sides)
Each face is a square with side length s s s
When we "unfold" the cube, we must connect these6 squares along edges
The connection must allow folding back: opposite faces shouldn't be directly connected in most nets

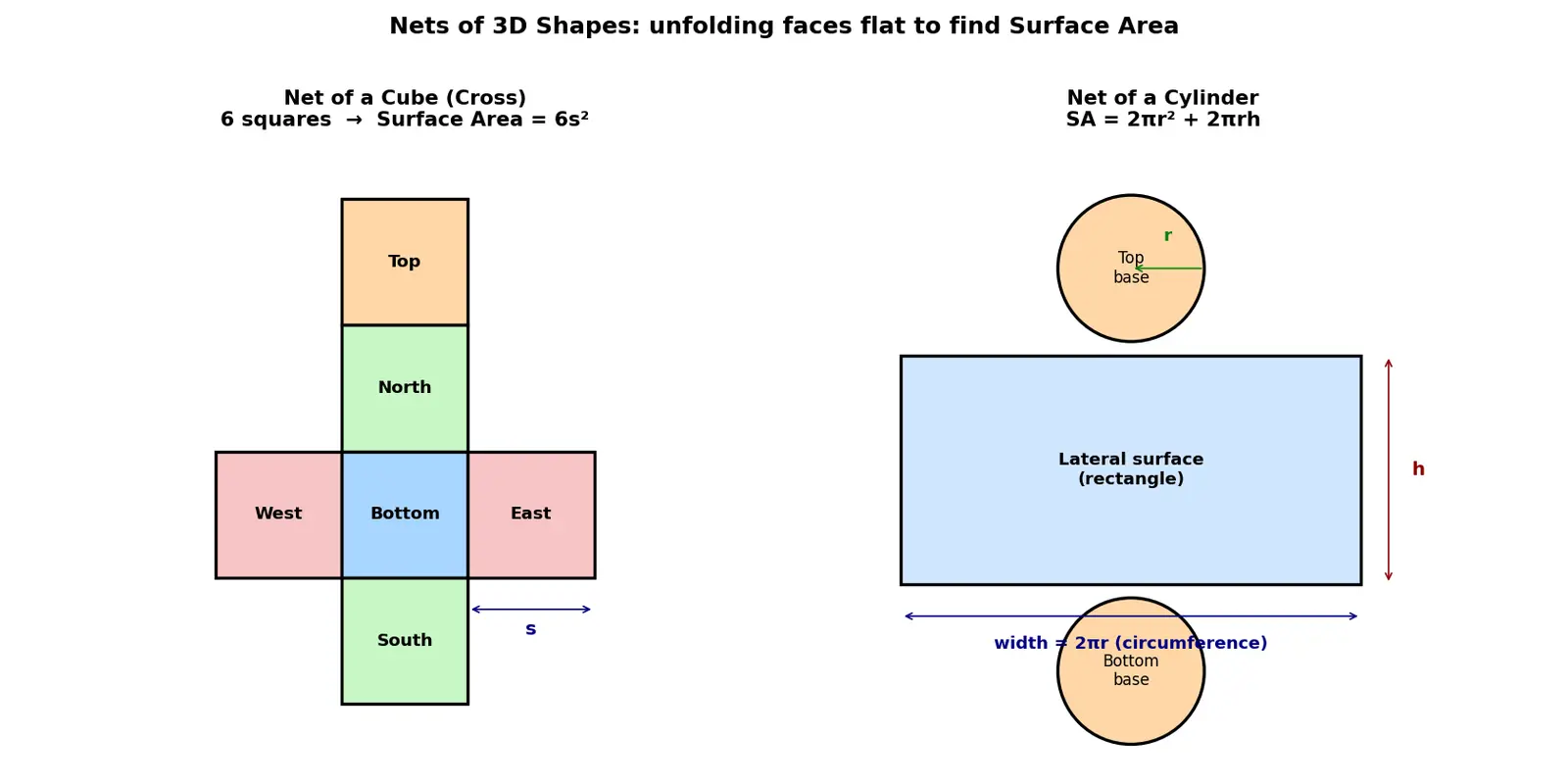

Worked example Standard Cross Net for a CubeStarting point : Place the bottom square flat.
Step 1 : Attach all 4 side faces around it (north, south, east, west)
WHY? The bottom face connects to all 4 sides in a real cube
This creates a "plus sign" or cross shape
Step 2 : Attach the top face to any one side face
WHY? The top connects to all sides, but we only need ONE connection in the net (the others will connect when we fold)
Result : A cross-shaped net with 6 squares
Verification : When we fold:
The 4 sides fold up around the bottom
The top folds over to close the cube
All edges align perfectly ✓
Total surface area from net : 6 s 2 6s^2 6 s 2 s 2 s^2 s 2
What it is : 6 rectangular faces, opposite faces are identical
Deriving the net :
Dimensions: length l l l w w w h h h
Faces: 2 faces of l × w l \times w l × w l × h l \times h l × h w × h w \times h w × h
What it is : 2 circular faces (bases) + 1 curved rectangular face (lateral surface)
Deriving the net from scratch :
Step 1 : The two circular bases
Radius r r r π r 2 \pi r^2 π r 2
WHY circles? Because the bases of a cylinder are circles
Step 2 : The curved surface
When we "unroll" the curved side, it becomes a rectangle
Height of rectangle = height of cylinder = h h h Width of rectangle = circumference of the circular baseWHY? Because the rectangle must wrap perfectly around the circle
Step 3 : Finding the width
Circumference of circle = 2 π r 2\pi r 2 π r
Therefore, rectangle dimensions: 2 π r × h 2\pi r \times h 2 π r × h
Worked example Worked Example: Soup Can NetA cylindrical soup can has radius 3 cm and height 10 cm. Find the area of material needed (the net's area).
Given : r = 3 r = 3 r = 3 h = 10 h = 10 h = 10 Step 1 : Area of two circular bases
2 π r 2 = 2 π ( 3 ) 2 = 18 π cm 2 2\pi r^2 = 2\pi(3)^2 = 18\pi \text{ cm}^2 2 π r 2 = 2 π ( 3 ) 2 = 18 π cm 2
Step 2 : Area of rectangular curved surface2 π r h = 2 π ( 3 ) ( 10 ) = 60 π cm 2 2\pi rh = 2\pi(3)(10) = 60\pi \text{ cm}^2 2 π r h = 2 π ( 3 ) ( 10 ) = 60 π cm 2
Step 3 : Total surface area
18 π + 60 π = 78 π ≈ 245.04 cm 2 18\pi + 60\pi = 78\pi \approx 245.04 \text{ cm}^2 18 π + 60 π = 78 π ≈ 245.04 cm 2
What it is : 1 circular base + 1 curved sector (lateral surface)
Deriving the net :
Step 1 : The circular base
Radius r r r π r 2 \pi r^2 π r 2
Step 2 : The curved surface becomes a sector of a larger circle
The slant height l l l
WHY? When you "unroll" the cone's surface, you get a pie-slice shape
The arc length of the sector = circumference of the base = 2 π r 2\pi r 2 π r
Step 3 : Finding the sector angle
Arc length formula: s = r s e c t o r θ s = r_{sector} \theta s = r sec t or θ θ \theta θ r s e c t o r r_{sector} r sec t or
Here: 2 π r = l θ 2\pi r = l \theta 2 π r = l θ
Therefore: θ = 2 π r l \theta = \frac{2\pi r}{l} θ = l 2 π r
What it is : 1 square base + 4 triangular faces
Deriving the net :
Base: square with side a a a a 2 a^2 a 2
Each triangular face: base a a a slant height s s s
WHY slant height? The height of the triangle in the net is NOT the pyramid's vertical height; it's the distance from base to apex along the slanted face
Worked example Worked Example: Pyramid NetA square pyramid has base side 6 cm and slant height 5 cm. Find the net's total area.
Given : a = 6 a = 6 a = 6 s = 5 s = 5 s = 5
Step 1 : Base area
a 2 = 6 2 = 36 cm 2 a^2 = 6^2 = 36 \text{ cm}^2 a 2 = 6 2 = 36 cm 2
Step 2 : One triangular face area
1 2 a s = 1 2 ( 6 ) ( 5 ) = 15 cm 2 \frac{1}{2}as = \frac{1}{2}(6)(5) = 15 \text{ cm}^2 2 1 a s = 2 1 ( 6 ) ( 5 ) = 15 cm 2 a a a s s s
Step 3 : All four triangular faces
4 × 15 = 60 cm 2 4 \times 15 = 60 \text{ cm}^2 4 × 15 = 60 cm 2
Step 4 : Total surface area
36 + 60 = 96 cm 2 36 + 60 = 96 \text{ cm}^2 36 + 60 = 96 cm 2
The folding test : To verify if a 2D pattern is a valid net:
Count faces : Does the net have the correct number of faces?
Cube needs 6 squares
Cylinder needs 2 circles + 1 rectangle
Check connectivity : Are faces connected along edges that will meet when folded?
No face should be isolated
Connections should allow physical folding
Edge matching : When folded, do edge lengths match?
A cube net: all edges touching must be equal length
A cylinder net: rectangle width = circle circumference
Mental folding : Visualize the folding process
Can you fold it without tearing or overlapping?
Worked example Non-Valid Net ExampleConsider 6 squares arranged in a straight line:⬜⬜⬜
Question : Is this a valid cube net?
Analysis :
✓ Has 6 squares (correct number)
✓ All connected
✗ FAILS the folding test
WHY it fails : When you start folding, the outer squares would need to wrap around, but they're too far apart. The second square from the left and second from the right would need to meet, but there's no way to fold them together without tearing.
The fix : Rearrange into a cross or T-shape where opposite faces can meet.
Intuition Why Nets Make Surface Area ObviousThe net shows the 3D shape "peled open" into flat pieces. Surface area = the total area of paper needed to make the net . Instead of trying to visualize all faces of a 3D shape, just lay them flat and add up the 2D areas – much easier!
General principle :
Surface Area of 3D shape = ∑ Areas of all faces in the net \text{Surface Area of 3D shape} = \sum \text{Areas of all faces in the net} Surface Area of 3D shape = ∑ Areas of all faces in the net
This is WHY deriving surface area formulas from nets is powerful – you convert a 3D problem into a 2D problem.
Common mistake Common Error: Confusing Slant Height with Vertical HeightThe mistake : For pyramids and cones, using the vertical height h h h l l l
Why it feels right : In2D triangles, we always use perpendicular height. It's tempting to do the same here.
The STEEL-MAN : This confusion is understandable because:
In basic triangle area, we do use perpendicular height
The vertical height is often what's given in the problem
The distinction between "height of the solid" vs "height of the face" is subtle
The fix :
The net shows the FACE laid flat
On a triangular face of a pyramid, the height of that triangle is the slant height (the distance from base edge to apex along the slanted surface)
Remember: net shows surface distances, not internal distances
Visual check : Draw the net. The triangle's height in the net IS the slant height.
If you only have vertical height h h h : Use Pythagoras to find slant height:
For pyramid: l = h 2 + ( a 2 ) 2 l = \sqrt{h^2 + \left(\frac{a}{2}\right)^2} l = h 2 + ( 2 a ) 2 a a a
For cone: l = h 2 + r 2 l = \sqrt{h^2 + r^2} l = h 2 + r 2
Common mistake Common Error: Forgetting Faces in the NetThe mistake : Drawing a cylinder net with only the curved surface, forgetting the two circular ends.
Why it feels right : The curved surface is the most visually prominent part, and it "seems" like the whole cylinder.
The STEEL-MAN :
When you look at a can, you mostly see the curved label, not the top/bottom
In daily life, we focus on what's visible
The circles might seem "separate" from the main shape
The fix :
Systematically count all faces BEFORE drawing
Ask: "What closes this shape?" (usually caps, bases, or ends)
For any prism/cylinder: 2 bases + lateral surface(s)
For pyramids/cones: 1 base + triangular/sector surface
Recall Explain to a 12-Year-OldImagine you have a birthday present wrapped in paper. The net is like if you carefully unwrapped the paper and laid it completely flat on the table withoutearing it. You'd see the paper is actually made of flat shapes – rectangles, maybe squares – all connected together.
Now, if you wanted to wrap another present the exact same way, you could trace around this flat paper pattern, cut it out, and fold it back up. That flat pattern is the net!
Different shapes have different nets:
A box (cube) can be unfolded into six squares connected like a cross
A party hat (cone) unfolds into a circle (the base) and a pizza-slice shape (the pointy part)
A soup can (cylinder) unfolds into two circles (top and bottom) and a rectangle (the label wrapper)
The cool part? If you add up the area of all the flat pieces in the net, you get the total surface area – how much wrapping paper you need!
Mnemonic The "WRAP" Method for NetsW hat shape am I starting with? (Identify the 3D shape)
R ecognize all faces (Count: how many faces does it have?)
A range them connected (Draw faces connected along edges that will fold together)
P ossible to fold? (Check: can this fold back into the original shape?)
For surface area from nets : "Add Every Flat Face" (AEFF)
Worked example Problem 1: Cube Net Surface AreaA cube has edge length 4 cm. One of its nets is drawn on paper. What is the total area of paper used?
Solution :
A cube has 6 square faces
Each square has side 4 cm, so area = 4 2 = 16 4^2 = 16 4 2 = 16
Total area = 6 × 16 = 96 6 \times 16 = 96 6 × 16 = 96 WHY this works : The net shows all 6 faces laid flat, so we sum all their areas.
Worked example Problem 2: Cylinder Net DesignYou need to make a cylindrical pencil holder with radius 3 cm and height 12 cm from cardboard. What rectangle dimensions do you need for the curved surface?
Solution :
Step 1 : The rectangle wraps around the circular base
Width = circumference of circle = 2 π r = 2 π ( 3 ) = 6 π 2\pi r = 2\pi(3) = 6\pi 2 π r = 2 π ( 3 ) = 6 π
Step 2 : The rectangle's height = cylinder's height
Height = 12 cm
WHY? The rectangle spans the full height of the cylinder.
Answer : Rectangle dimensions are 6 π 6\pi 6 π
Step 3 (bonus): Total material needed
Two circles: 2 π ( 3 ) 2 = 18 π 2\pi(3)^2 = 18\pi 2 π ( 3 ) 2 = 18 π
Rectangle: 6 π × 12 = 72 π 6\pi \times 12 = 72\pi 6 π × 12 = 72 π
Total: 90 π ≈ 282.74 90\pi \approx 282.74 90 π ≈ 282.74
Worked example Problem 3: Identifying Valid NetsWhich of these is a valid net for a cube?
A) Six squares in a straight line
B) A plus/cross shape with 6 squares
C) Five squares arranged in a T-shape with one square floating separately
Solution :
A) Invalid – cannot fold into a cube (outer squares too far apart to meet)B) Valid – classic cross net, folds perfectly into a cubeC) Invalid – the floating square isn't connected, can't fold it in
WHY B works : The cross allows the4 sides to fold up around the center (bottom), and the top folds over to close the cube.
Surface Area of3D Shapes – nets provide a visual, foolproof method to calculate surface areaVolume of 3D Shapes – nets show surface only; volume requires the third dimension (height/depth)Platonic Solids – the 5 regular polyhedra each have distinct net patternsUnfolding and Folding Problems – advanced: which nets can fold into which shapes?Tessellations – some nets can tile the plane; others cannotPythagoras Theorem – used to find slant heights from vertical heights in pyramids/conesCircles and Circumference – essential for cylinder and cone netsTriangles and Area – triangular faces in pyramid and prism nets
#flashcards/maths
What is a net of a 3D shape? :: A 2D pattern that can be folded along edges to form the3D shape, showing all faces laid out flat and connected.
How many distinct nets does a cube have? 11 distinct nets.
For a cylinder net, what shape is the curved surface when unrolled? A rectangle.
What are the dimensions of the rectangle in a cylinder net with radius and height h? Width = 2πr (circumference), Height = h.
Surface area formula for a cube with side length s :: 6 s 2 6s^2 6 s 2
Surface area formula for a cylinder with radius r and height h 2 π r 2 + 2 π r h 2\pi r^2 + 2\pi rh 2 π r 2 + 2 π r h (two circular bases plus curved surface).
Surface area formula for a cone with base radius r and slant height l π r 2 + π r l \pi r^2 + \pi rl π r 2 + π r l (circular base plus sector).
Surface area formula for a square pyramid with base side a and slant height s a 2 + 2 a s a^2 + 2as a 2 + 2 a s (square base plus four triangles).
In pyramid and cone surface area, do we use vertical height or slant height? Slant height (the distance along the slanted face).
What is the slant height of a cone in terms of vertical height h and radius r? l = h 2 + r 2 l = \sqrt{h^2 + r^2} l = h 2 + r 2 (using Pythagoras).
What is the "WRAP" method for working with nets? What shape? Recognize all faces. Arrange them connected. Possible to fold?
How do you verify if a 2D pattern is a valid net? Count faces (correct number?), check connectivity (edges connect properly?), edge matching (lengths match when folded?), mental folding (can it fold without tearing/overlapping?).
Why is a straight line of 6 squares NOT a valid cube net? When folding, outer squares are too far apart to meet; opposite faces cannot connect.
For a cuboid with dimensions l, w, h, what is the surface area? 2 l w + 2 l h + 2 w h 2lw + 2lh + 2wh 2 l w + 2 l h + 2 w h (three pairs of rectangular faces).
What is the angle (in radians) of the sector in a cone net with base radius r and slant height l? θ = 2 π r l \theta = \frac{2\pi r}{l} θ = l 2 π r radians.
Intuition Hinglish mein samjho
Intuition Hinglish mein samjhoDekho, net ka concept bahut simple aur maze ka hai. Socho tumhare paas ek cardboard ka box hai. Agar tum us box ko carefully edges ke along cut karke poori tarah flat kar do floor pe, toh jo 2D pattern banta hai use hum net kehte hain. Matlab har 3D shape ka ek "flat blueprint" hota hai jo uske saare faces ko connected form mein dikhata hai, aur us pattern ko wapas fold karke tum original 3D shape bana sakte ho. Ek interesting baat — same shape ke multiple nets ho sakte hain, jaise ek cube ke actually 11 different nets hote hain, kyunki tum use alag-alag tarike se unfold kar sakte ho, jaise orange ko alag-alag peel karna.
Ab ye matter kyun karta hai? Kyunki net 2D geometry (jaise faces ka area) ko 3D geometry (jaise volume aur spatial reasoning) se connect karta hai. Jab tum ek shape ka net banate ho, toh tumhe uske saare faces flat mein dikh jaate hain, aur phir surface area nikalna ekdum aasaan ho jaata hai — bas har face ka area add kar do. Jaise cube ka surface area 6 s 2 6s^2 6 s 2 2 l w + 2 l h + 2 w h 2lw + 2lh + 2wh 2 l w + 2 l h + 2 w h 2 π r 2 + 2 π r h 2\pi r^2 + 2\pi rh 2 π r 2 + 2 π r h 2 π r 2\pi r 2 π r
Toh main takeaway ye hai ki net soch ko visualize karne ka ek powerful tool hai — tumhe pata chal jaata hai ki koi 3D object andar se kaise bana hai aur uska total surface kitna hai. Yeh sirf exam ke liye nahi, real life mein bhi kaam aata hai — packaging design, box banana, architecture, sab jagah. Jab bhi confusion ho ki surface area kaise nikalein, bas shape ko mentally flat unfold kar lo aur faces count kar lo!
