Visual walkthrough — Angle measurement — protractor use, angle relationships (complementary, supplementary)

This page rebuilds the two most-used facts in angle relationships from nothing. We will not assume you know what "add to 90°" even means. We will draw every idea before we name it. By the end you will see why the numbers 90 and 180 show up, and never again confuse the two.

---

Step 1 — What a single angle actually is

WHAT. We start with the rawest possible object: two rays (straight arms that begin at a point and shoot off forever) that share one endpoint. That shared endpoint is the vertex. The angle is the amount of turn from one arm to the other.

WHY. Everything else — adding angles, 90°, 180° — is built on "turn amount". If we don't pin down what one turn is, we can't add two of them. So we anchor it first.

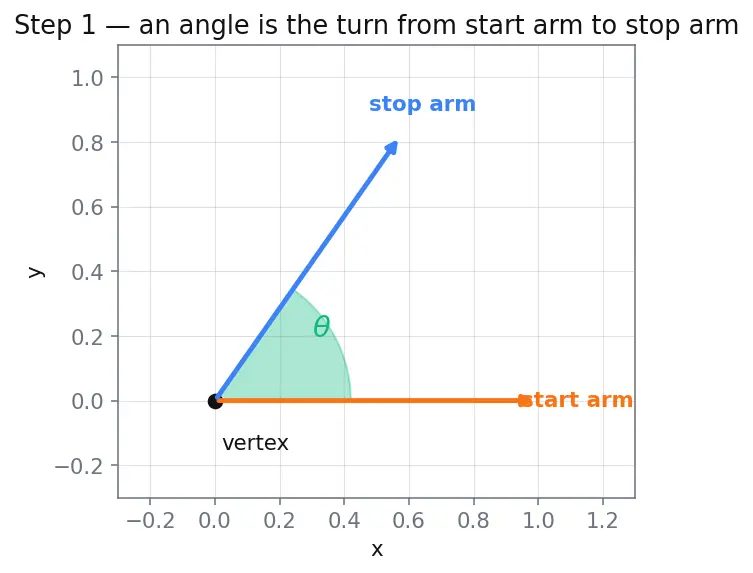

PICTURE. In the figure, the vertex is the dot. The orange arm is where we start. The blue arm is where we stop. The green wedge between them is the angle: literally the swept region as the orange arm rotates to the blue arm.

---

Step 2 — Why a right angle is 90° and a straight line is 180°

WHAT. Cut a full spin ($360^{\circ }$) into pieces. Half a spin flips your arm to point the exact opposite way — a straight line. Half of that is a square corner — a right angle.

WHY. The numbers 90 and 180 are not magic; they are just fractions of the full spin. Complementary and supplementary are defined against these two landmarks, so we must see where 90 and 180 physically live before using them.

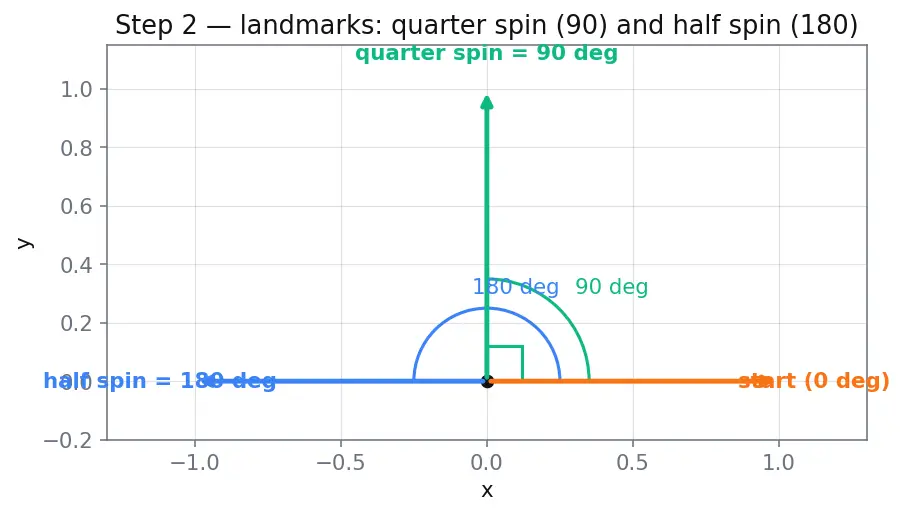

PICTURE. Watch the orange arm start pointing right. A half-turn ($\frac{1}{2}$ of $360^{\circ }=180^{\circ }$) lays it flat pointing left — a straight line through the vertex. A quarter-turn ($\frac{1}{4}$ of $360^{\circ }=90^{\circ }$) stands it straight up — the little square marks the right angle.

See Types of Angles for the full family (acute, obtuse, reflex) that lives between these landmarks.

---

Step 3 — Adding two angles: the key move

WHAT. Place a third arm between the start and stop arms. Now we have two smaller angles sitting side by side, sharing that middle arm. The claim: the big angle equals the two small angles added.

WHY. Complementary and supplementary are both statements about a sum. So the engine underneath both of them is: "adjacent turns add." This is the Angle Addition Postulate — and we should see it, not just quote it.

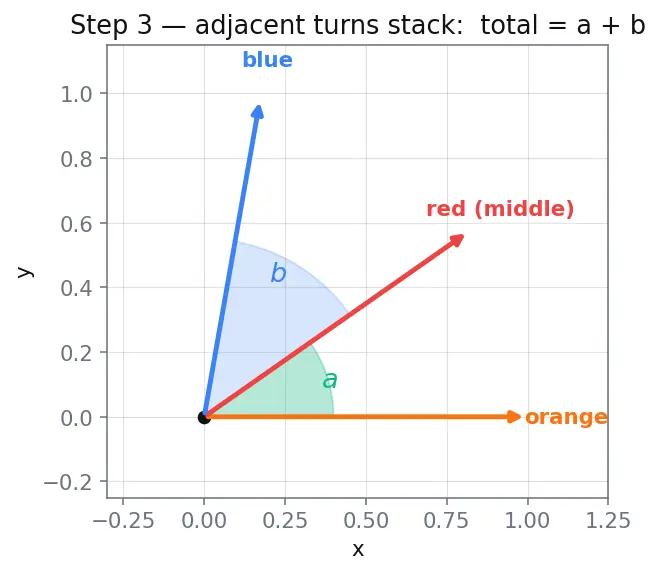

PICTURE. The orange arm to the middle (red) arm is angle $a$. The red arm to the blue arm is angle $b$. Sweeping orange all the way to blue is one turn of size $a$ then another of size $b$ — the sweeps stack.

---

Step 4 — Complementary: the total lands on a right angle

WHAT. Now make the total turn land exactly on the right angle ($90^{\circ }$). Then the two pieces $a$ and $b$ must fill up a square corner between them.

WHY. This is the definition of complementary — but now it isn't a rule to memorise, it's a picture: two turns whose combined sweep is precisely one quarter-spin.

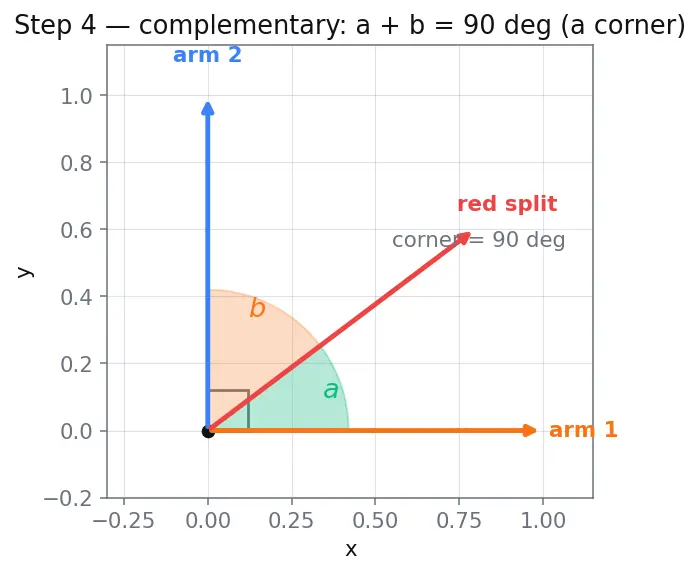

PICTURE. The outer boundary is the square corner (the little box confirms $90^{\circ }$). The red arm splits that corner into piece $a$ and piece $b$. Slide the red arm and watch $a$ grow while $b$ shrinks — but the corner stays $90^{\circ }$, so they always trade off.

---

Step 5 — Supplementary: the total lands on a straight line

WHAT. Same move, but now make the total turn land on the straight line ($180^{\circ }$). The two pieces $c$ and $d$ fill up a half-spin along a flat line.

WHY. This is supplementary. Notice it is the exact same idea as Step 4, only the landmark changed from the corner (90°) to the flat line (180°). Seeing them side by side is how you stop mixing them up.

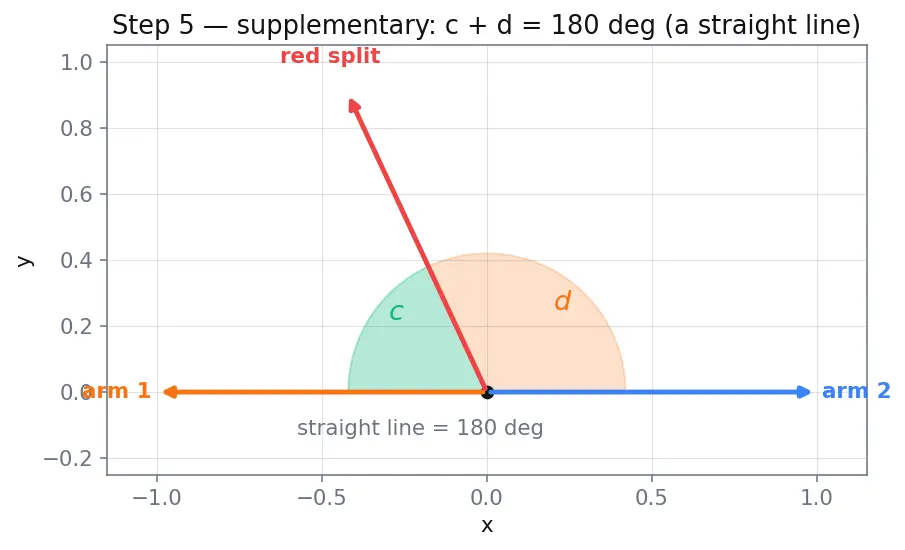

PICTURE. The base is now a straight line through the vertex (orange arm left, blue arm right, flat). The red arm rises from the vertex and splits the flat $180^{\circ }$ into $c$ (left piece) and $d$ (right piece). This is a linear pair.

---

Step 6 — The edge cases (every scenario, no gaps)

WHAT. We check the degenerate splits — what happens when the red arm slides all the way to an extreme — so no situation ever surprises you.

WHY. The Contract: cover every case. A rule you only tested in the "nice middle" is a rule you don't yet trust at the boundaries.

PICTURE. Four snapshots. For complementary: red arm flat on the base ⇒ $a=0^{\circ },b=90^{\circ }$; red arm straight up ⇒ $a=90^{\circ },b=0^{\circ }$. For supplementary: red arm along one ray ⇒ $c=0^{\circ },d=180^{\circ }$; red arm straight up ⇒ $c=90^{\circ },d=90^{\circ }$ (two right angles).

---

Step 7 — A worked chain, watched in one picture

WHAT. "An angle is $30^{\circ }$ more than its complement. Find it." We solve it visually: the corner ($90^{\circ }$) is split into the angle $x$ and its complement $90^{\circ }-x$, and $x$ is bigger than that complement by $30^{\circ }$.

WHY. To show the algebra is just bookkeeping for the picture — every symbol points at a piece of Step 4's corner.

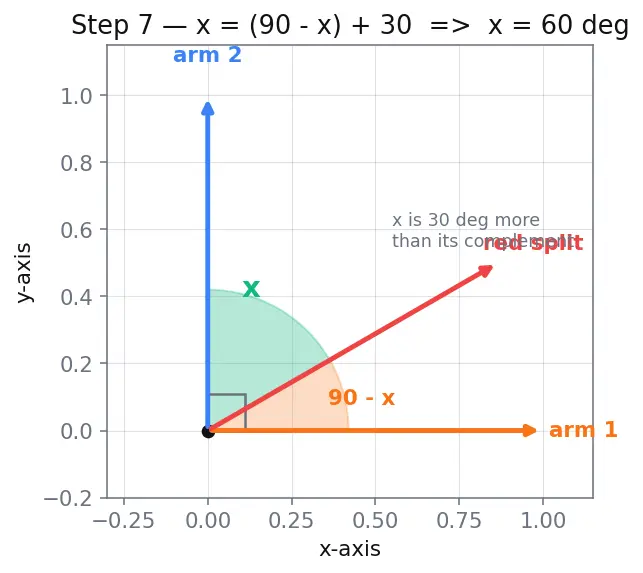

PICTURE. The corner holds two slices. The larger slice is $x$; the smaller is $90^{\circ }-x$. Their difference (the extra bit the big slice has) is marked $30^{\circ }$.

---

The one-picture summary

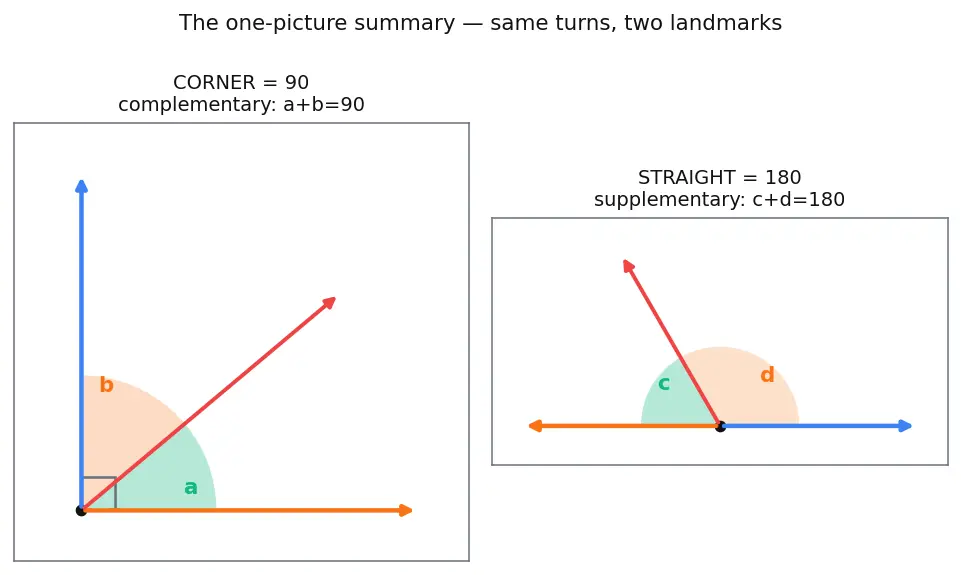

Everything above collapses into a single diagram: the same two turns adding, judged against two landmarks. Left half = corner = complementary = $90^{\circ }$. Right half = flat line = supplementary = $180^{\circ }$.

Recall Feynman retelling — say it in plain words

An angle is just how much you turned. If I do one turn and then keep turning, the total is the two turns added together — that's the only real idea on this page. Now I pick a finish line for the total. If my finish line is a square corner, I've drawn a quarter of a full spin, which we call $90^{\circ }$, and the two turns that filled it are complementary — each is $90^{\circ }$ minus the other. If instead my finish line is a flat straight line, I've drawn half a full spin, $180^{\circ }$, and the two turns are supplementary — each is $180^{\circ }$ minus the other. Complement = Corner, Supplement = Straight. Obtuse angles are too big to fit inside a corner, so they only get supplements, never complements. And if I split the flat line exactly in the middle I get two square corners, $90^{\circ }$ each — the neat place where both ideas meet.

Recall Self-check

Complementary angles add to what? ::: $90^{\circ }$ (a right-angle corner) Supplementary angles add to what? ::: $180^{\circ }$ (a straight line) Why does an obtuse angle have no complement? ::: It is bigger than $90^{\circ }$, so it cannot fit inside a $90^{\circ }$ corner alongside a positive second angle. What is the complement of $37^{\circ }$? ::: $90^{\circ }-37^{\circ }=53^{\circ }$ What is the supplement of $110^{\circ }$? ::: $180^{\circ }-110^{\circ }=70^{\circ }$ The angle that is $30^{\circ }$ more than its complement is? ::: $60^{\circ }$

Related paths: the "turns add" engine is the Angle Addition Postulate; a straight-line split is a linear pair; equal-facing angles are Vertical Angles; these sums power Triangle Angle Sum, Parallel Lines and Transversals, and later Trigonometry Basics and Coordinate Geometry.
