Types of angles — acute, right, obtuse, straight, reflex, complete

Overview

Angles are classified by their measure in degrees. Understanding these categories helps us describe geometric shapes, solve problems, and communicate precisely about rotations and turns.

---

[!intuition] Why classify angles?

Think about opening a door. A barely-open door makes a small angle (acute). Open it halfway and you get a right angle (90°). Keep opening and the angle gets obtuse, then becomes a straight line (180°) when fully open. Go past that and you're measuring the reflex angle — the "long way around." These names let us describe any rotation or corner precisely.

---

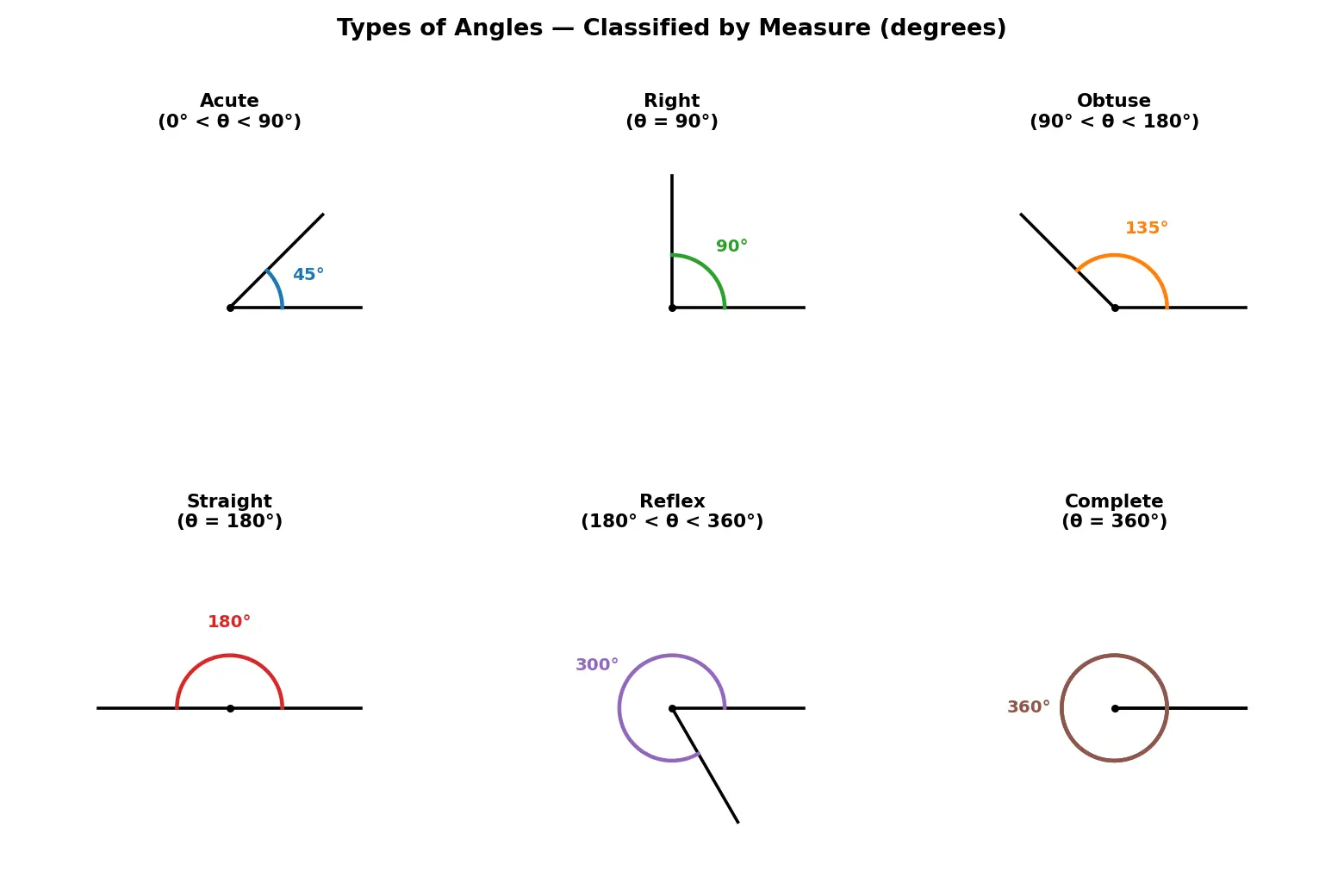

[!definition] The Six Types

An angle is formed by two rays sharing a common endpoint (the vertex). We classify angles by measuring the amount of rotation from one ray to the other.

1. Acute Angle

Measure: $0° < \theta < 90°$

An acute angle is smaller than a right angle. It's "sharp" — think of the peak of a mountain, the hands of a clock at 1:00, or a freshly sharpened pencil tip.

WHY "acute"? From Latin acutus = sharp. The angle looks pointed.

2. Right Angle

Measure: $\theta = 90°$

A right angle is exactly one-quarter of a full rotation. Two perpendicular lines form right angles. The corner of a square, the edge of a book, or the meeting of a wall and floor.

WHY 90°? Historical: Babylonians divided circles into 360 parts (related to year length). A quarter-turn is $\frac{360°}{4} = 90°$.

3. Obtuse Angle

Measure: $90° < \theta < 180°$

An obtuse angle is larger than a right angle but less than a straight line. It looks "blunt" or "wide." A reclining chair back, the hands at 10:00, or an open laptop screen.

WHY "obtuse"? From Latin obtusus = blunt, dull (opposite of sharp).

4. Straight Angle

Measure: $\theta = 180°$

A straight angle forms a straight line. The two rays point in exactly opposite directions. It's half a full rotation.

DERIVATION: If a full rotation is $360°$, then opposite directions are separated by: $\theta = \frac{360°}{2} = 180°$

5. Reflex Angle

Measure: $180° < \theta < 360°$

A reflex angle is the "long way around" — larger than a straight angle. When two rays form angle, there are always two angles between them: one going the "short way" and one going the "long way." The reflex is the larger one.

EXAMPLE: If the short angle is $60°$, the reflex angle is: $360° - 60° = 300°$

6. Complete Angle

Measure: $\theta = 360°$

A complete angle is a full rotation — you end up facing the same direction you started. One complete turn, a full circle.

WHY 360°? Babylonian sexagesimal (base-60) system. $360 = 6 \times 60$ and has many divisors, making it convenient for subdivisions.

---

[!formula] Key Relationships

Complementary and Supplementary

While not "types," these relationships use our angle types:

• Complementary angles: Two angles that sum to $90°$ (a right angle) $\alpha + \beta = 90°$

• Supplementary angles: Two angles that sum to $180°$ (a straight angle) $\alpha + \beta = 180°$

Reflex ↔ Non-reflex Conversion

Any angle $\theta$ and its reflex $\theta_r$ sum to a complete angle: $\theta + \theta_r = 360°$

Derivation: Going the "short way" plus the "long way" around a point equals one full rotation.

Therefore: $\theta_r = 360° - \theta$

---

[!example] Worked Examples

Example 1: Classify $47°$

Given: $\theta = 47°$

Question: What type of angle is this?

Solution:

• Check Is $0° < 47° < 90°$? Yes.
• Answer: Acute angle.

Why this step? We compare the measure to the boundary values. Since $47° < 90°$, it's smaller than a right angle, making it acute.

---

Example 2: Classify $135°$

Given: $\theta = 135°$

Solution:

• Check: Is $90° < 135° < 180°$? Yes.
• Answer: Obtuse angle.

Why this step? $135°$ is larger than $90°$ (right) but smaller than $180°$ (straight), so it must be obtuse.

---

Example 3: Find the reflex angle for $75°$

Given: $\theta = 75°$ (acute)

Find: The corresponding reflex angle $\theta_r$

Solution: $\theta_r = 360° - \theta = 360° - 75° = 285°$

Check: Is $180° < 285° < 360°$? Yes. This confirms it's reflex.

Why this formula? The two angles together make a complete rotation. If one angle is $75°$, the "long way around" must be the remainder to reach $360°$.

---

Example 4: Classify multiple angles

Given: $12°$, $90°$, $178°$, $200$360°$

Solution:

Angle	Range Check	Type
$12°$	$0° < 12° < 90°$	Acute
$90°$	Exactly $90°$	Right
$178°$	$90° < 178° < 180°$	Obtuse
$200°$	$180° < 200° < 360°$	Reflex
$360°$	Exactly $360°$	Complete

Why compare to boundaries? The type depends entirely on where the measure falls in the progression: acute → right → obtuse → straight → reflex → complete.

---

[!mistake] Common Errors

Mistake 1: "110° is acute because it looks small on paper"

Why it feels right: A poorly drawn diagram might make $110°$ look sharp.

The fix: Always check the number, not just the appearance. $110° > 90°$, so it's obtuse. Diagrams can be misleading due to scale or perspective.

Steel-man: Visual intuition is important, but measurement is definitive. Train yourself to estimate: $90°$ is a square corner, $45°$ is half of that, $180°$ is a straight line.

---

Mistake 2: "There's no such thing as reflex angles; just use the smaller one"

Why it feels right: In many basic problems, we only care about the acute or obtuse angle between two lines.

The fix: Reflex angles are real and important. In navigation (compass bearings), rotations (mechanical parts), and geometry (interior vs. exterior angles of polygons), we must distinguish between angle and its reflex.

Example: A clock at 2:00 shows hands at $60°$ apart (acute). But if you rotate the hour hand backward from12 to 2, you traverse $300°$ (reflex).

---

Mistake 3: Confusing $180°$ and $360°$

Why it feels right: Both seem like "complete" states.

The fix:

• $180°$ = half a rotation = straight line = opposite direction
• $360°$ = full rotation = complete circle = back to start

Mnemonic: "Straight" has8 letters, half of which is 4 — like $180°$ is half of $360°$. (Okay, silly but it works!)

---

Mistake 4: "Complementary angles are $180°$, supplementary are $90°$"

Why it feels right: The words sound similar, easy to swap.

The fix:

• Complementary → $90°$ (think "Corner" = right angle)
• Supplementary → $180°$ (think "Straight" line)

---

[!mnemonic] Memory Aids

"All Right Obtuse Students Read Comics"

• Acute: $0°$–$90°$
• Right: $90°$
• Obtuse: $90°$–$180°$
• Straight: $180°$
• Reflex: $180°$–$360°$
• Complete: $360°$

Complementary vs. Supplementary:

• Complementary = Corner (90°)
• Suplementary = Straight (180°)

---

[!recall]- Explain to a 12-year-old

Imagine you're opening a book. When it's closed, there's no angle (0°). Open it just a tiny bit — that's an acute angle, like barely cracking a door. Open it to make a perfect "L" shape, like the corner of your desk — that's a right angle (90°).

Keep opening: now the book is more open than an "L" but not flat yet — that's obtuse. Open it completely flat so both covers are in straight line — straight angle (180°).

Now here's the cool part: keep "opening" past flat (imagine the book is magic and keeps going) — now you're measuring the reflex angle, which is the big, long way around. Finally, if you keep going until you've made a full circle and you're back where you started, that's a complete angle (360°), like spinning around once.

Why does this matter? Every corner, every turn, every rotation in the world fits into one of these categories. From clock hands to door hinges to turning a steering wheel — angles are everywhere!

---

Active Recall Practice

#flashcards/maths

What is an acute angle? :: An angle greater than 0° and less than 90°.

---

Connections

• Measuring angles with a protractor
• Angle bisectors
• Complementary and supplementary angles
• Adjacent angles and linear pairs
• Vertically opposite angles
• Angles in polygons
• Interior and exterior angles
• Angles in parallel lines
• Radian measure
• Unit circle and trigonometry

---

Summary

We classify angles by their degree measure into six types: acute ($0°$–$90°$), right ($90°$), obtuse ($90°$–$180°$), straight ($180°$), reflex ($180°$–$360°$), and complete ($360°$). Each type describes a specific range of rotation and has practical applications in geometry, navigation, and real-world measurements. The reflex angle is the "long way around," calculated as $360° - \theta$. These classifications form the foundation for understanding angle relationships and geometric properties.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Angles ko unke measure ke basis par classify karte hain. Socho ek darwaza khol rahe ho — thoda sa kholo toh acute angle banta hai (90° se chhota). Bilkul "L" shape mein kholo toh right angle (exactly 90°). Aur zyada kholo toh obtuse angle (90° se zyada, lekin 180° se kam). Pora flat kar do toh straight angle (180°) ban jata hai —ek seedhi line.

Ab interesting part: agar tum angle ko "long way around" se measure karo (180° se zyada), woh reflex angle kehlata hai. Aur agar ek pora circle complete karo (360°), woh complete angle hai — bilkul starting point pe wapas aa gaye.

Ye classification isliye important hai kyunki har geometry problem, har rotation, har corner — sab kuch in categories mein fit hota hai. Clock ki suiyan dekho, steering wheel ghumao, ya building kaona dekho — sab jagah angles milenge. Aur agar tum types pehchanna seekh gaye, toh geometry ke saare advanced topics asaan ho jayenge. Protractor se measure karo, type identify karo, aur formulas apply karo — bas!
