Visual walkthrough — Types of angles — acute, right, obtuse, straight, reflex, complete

The parent note Types of angles — acute, right, obtuse, straight, reflex, complete gave you six names and their number ranges. This page does something different: it builds all six from a single idea — one full turn — using nothing but pictures. By the end you will see why the boundaries are $90°$, $180°$, $360°$ and not random.

We start from absolute zero. No formula is used before it is drawn.

---

Step 1 — What "an angle" even is: two rays and a vertex

WHAT. Two arrows glued at their tails. WHY. Before we can measure "how much" we must be clear on what is turning and around what point. Everything below is one arrow being held still while the other swings. PICTURE. In the figure, the cyan arrow is fixed pointing right (this is our "start line"). The amber arrow is the one that swings. The dot where they meet is the vertex. The little curved arrow shows the direction of turning we always use: anticlockwise (the same way a clock runs backwards).

Notice: nothing has a number yet. We have only decided which way we count and what pivots. That choice never changes for the rest of the page.

---

Step 2 — Where the numbers come from: slicing one full turn into 360

WHAT. We lay a ruler around the turn instead of along a line. WHY. "Bigger" and "smaller" angles are meaningless until we agree on a scale. A degree is that scale: it answers "what fraction of a whole spin have I done?" PICTURE. The dashed white circle is one complete spin. It is marked at the four quarter-points. Read them like a clock face that counts anticlockwise: start $0°$ on the right, quarter turn up is $90°$, half turn (pointing left) is $180°$, three-quarters (pointing down) is $270°$, and all the way back to the start is $360°$.

$\underset{\text{one full turn}}{\underbrace{360°}}=\underset{\text{quarters}}{\underbrace{4}}\times \underset{\text{one quarter}}{\underbrace{90°}}$

• $360°$ — the whole spin, our reference amount.
• $4$ — because a circle splits naturally into four equal quarters.
• $90°$ — what one quarter must be, since $360÷4=90$.

This single equation is the seed of every boundary you are about to meet.

---

Step 3 — The first landmark: the quarter turn is a right angle ($90°$)

WHAT. Swing the amber arrow exactly one quarter of the way — straight up. WHY. The quarter turn is special: the two rays now make a perfect square corner, the most recognisable angle in the world (the corner of this screen). We name it the right angle. PICTURE. The amber arrow points straight up. The small square symbol ▯ drawn in the corner is the universal mark for "this is exactly $90°$." Anything less open than this square (arrow between right and up) is acute; anything more open is obtuse.

${\theta }_{\text{right}}=\frac{360°}{4}=90°$

• $\theta$ (Greek "theta") — just a name for "the size of our angle."
• $\frac{360°}{4}$ — one quarter of a full turn, straight from Step 2.
• $90°$ — the landmark. Everything acute lives below it; everything obtuse lives above it.

---

Step 4 — Keep swinging: obtuse, then the half turn ($180°$)

WHAT. Push the amber arrow past straight-up, on toward pointing straight-left. WHY. Between the square corner ($90°$) and the flat line ($180°$) the angle is wide but not yet flat — this whole band is obtuse. The moment the arrow points exactly opposite the start line, the two rays form one straight line: the straight angle. PICTURE. Three snapshots on one figure: a $90°$ square corner (cyan), an obtuse $135°$ arrow (amber, clearly wider than the square), and the flat $180°$ arrow lying dead opposite the start. The dashed grey line shows the two rays becoming a single straight line at $180°$.

${\theta }_{\text{straight}}=\frac{360°}{2}=180°$

• $\frac{360°}{2}$ — half of one full turn.
• $180°$ — the arrow points backward, exactly reversing the start direction.

---

Step 5 — Past flat: the reflex region ($180°$ to $360°$)

WHAT. Do not stop at flat — keep swinging the amber arrow down and around, back toward the start. WHY. Once you go beyond $180°$ you are travelling the long way round. Any turn strictly between the flat line and a full spin is called a reflex angle. This is the part beginners forget exists. PICTURE. The amber arrow now points down-and-around; the shaded amber wedge sweeps the big way (through the bottom), clearly more than half the circle. The thin cyan wedge shows the small way back to the start — the "other" angle between the same two rays.

---

Step 6 — The pairing rule: short way + long way = one full turn

WHAT. Look at the same two rays and add the small angle to the big angle. WHY. Between any two rays there are always two angles that share the vertex: the short way and the long way. Together they must sweep the entire circle exactly once — nothing missing, nothing double-counted. So they must add to one full turn. PICTURE. The cyan wedge (short, $75°$) and the amber wedge (long, the reflex) fill the whole disc with no gap and no overlap. Their two labels sum to $360°$.

$\theta +{\theta }_r=360°⟹{\theta }_r=360°-\theta$

• $\theta$ — the short-way (non-reflex) angle.
• ${\theta }_r$ — its reflex partner, the long way round.
• $360°$ — the whole disc they jointly cover.

---

Step 7 — The two exact landmarks: zero turn and the complete turn ($360°$)

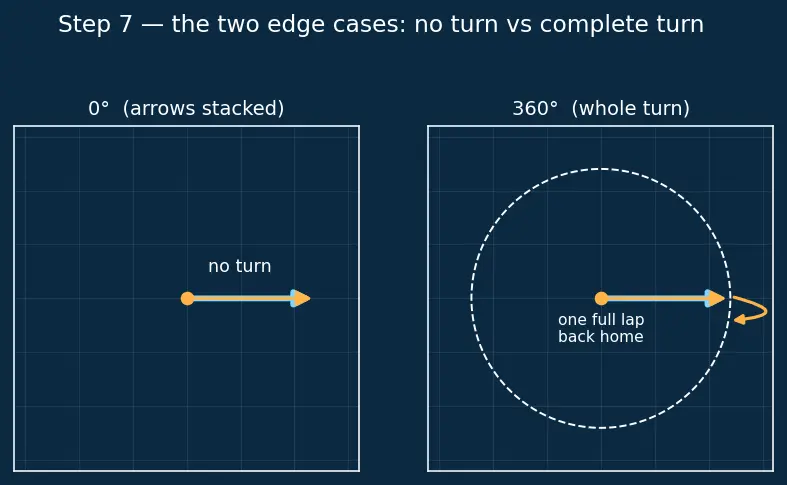

WHAT. The degenerate ends of the journey — where the arrow hasn't moved, and where it has come all the way home. WHY. A good classification must handle the edges, not just the middle. At the very start the amber arrow sits on top of the cyan one: no turning at all, $0°$. After a whole lap it lands back on top again — a complete angle, $360°$. These look identical as a picture, yet they mean "no turn" and "one whole turn": the difference is the journey, not the final pose. PICTURE. Left: both arrows stacked, $0°$, a faint "no motion" mark. Right: the amber arrow has traced the full dashed loop (shown by the sweep arrow) and returned — $360°$.

---

The one-picture summary

Everything above is one arrow swinging anticlockwise through a single full turn. The figure below is the entire derivation compressed: start at $0°$, cross the square corner at $90°$, the flat line at $180°$, sweep the reflex region, and close the loop at $360°$. Each coloured arc is one named type; each tick is a landmark where a boundary lives.

$$\underset{\text{start}}{\underbrace{0}}<\underset{<90°}{\underbrace{\text{acute}}}<\underset{\text{right}}{\underbrace{90°}}<\underset{<180°}{\underbrace{\text{obtuse}}}<\underset{\text{straight}}{\underbrace{180°}}<\underset{<360°}{\underbrace{\text{reflex}}}<\underset{\text{complete}}{\underbrace{360°}}$$

Recall Feynman retelling — say it in plain words

Pin two arrows at a dot. Keep one still, pointing right — that's your starting line. Now slowly swing the other one anticlockwise and just narrate what you see.

Right away it makes a sharp little wedge — acute. Swing to a perfect square corner — right angle, $90°$, exactly a quarter of a full spin. Push past the corner and it goes wide but not flat — obtuse. Keep going until it points dead backward, making one straight line — straight, $180°$, half a spin. Don't stop! Carry on the long way round the bottom — that big leftover sweep is the reflex angle. Add the short wedge and the long sweep and they fill the whole disc, so they must total $360°$; that's why the reflex of anything is just $360°$ minus it. Finally let the arrow finish the whole lap and land back on the start — a complete turn, $360°$. And if it never moves at all, that's the $0°$ edge case. Six names, one spin — the whole chapter is one arrow going round once.

Recall Quick self-checks

Reflex of $75°$? ::: $360°-75°=285°$ What type is $270°$? ::: Reflex (since $180°<270°<360°$) Why is a right angle $90°$? ::: It is one quarter of a full turn, $360°÷4$ A straight angle and a complete angle both "end" a motion — how do they differ? ::: Straight ($180°$) points you the opposite way; complete ($360°$) returns you to the start direction

---

Next steps in the vault: measure these yourself with a protractor, split one in half with Angle bisectors, or see the same "full turn" idea in Radian measure and the unit circle.
