Parallel and perpendicular lines — properties, transversal, alternate - co-interior angles

Core Definitions

Mathematical condition: Lines $l_1$ and $l_2$ are parallel if they have the same slope (in coordinate geometry) OR if a transversal creates equal corresponding angles.

Mathematical condition: Lines are perpendicular if the product of their slopes equals $-1$ (or one is vertical, one horizontal). The angle between them is exactly $90°$.

Angle Relationships with Transversals

Why These Angles Are Special

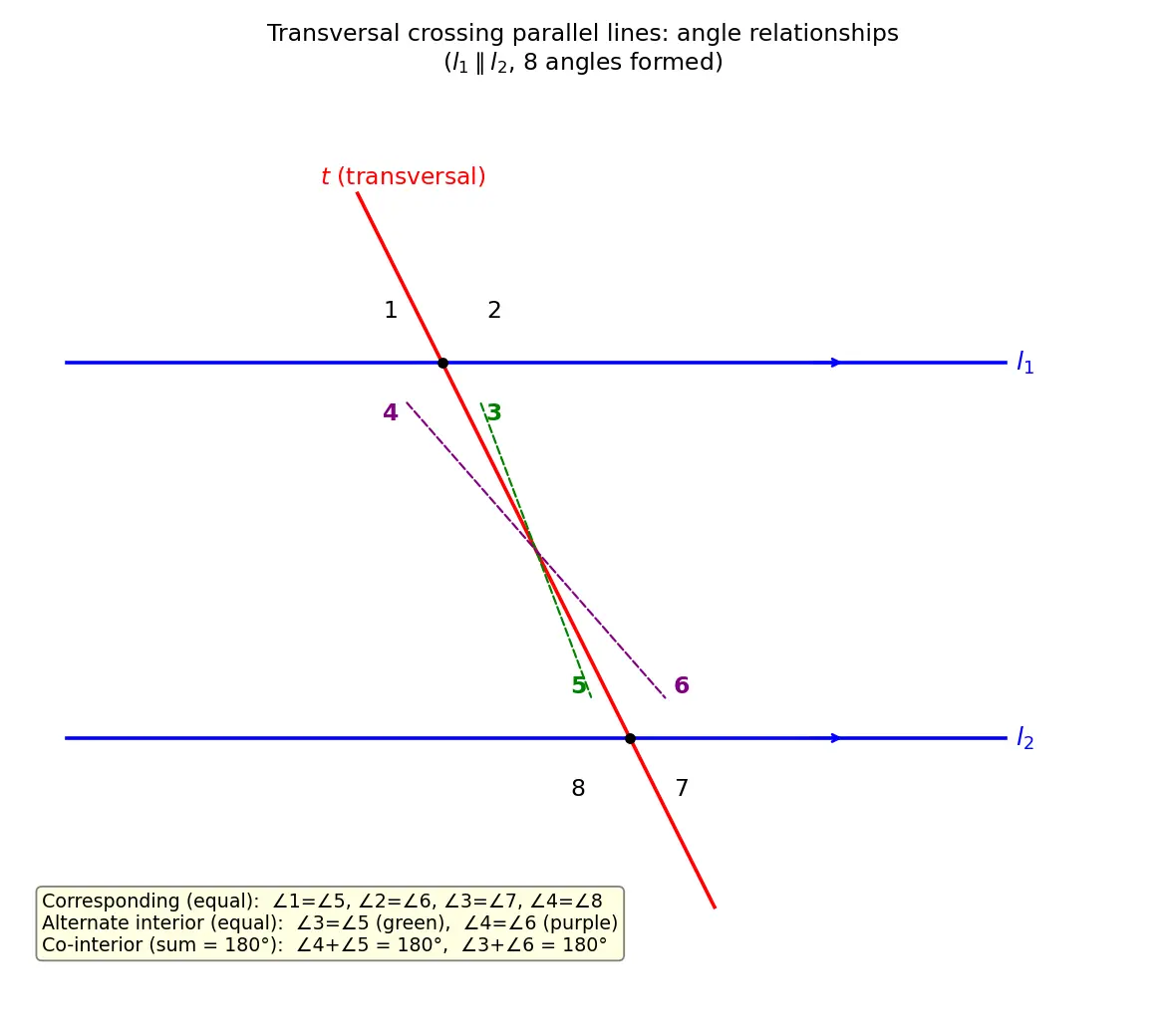

When transversal $t$ cuts parallel lines $l_1 \parallel l_2$, it creates 8 angles (4 at each intersection). These angles have predictable relationships because:

1. At each intersection, vertically opposite angles are equal (proven earlier)
2. Between intersections, the parallel property preserves angle measures

Angle labelling convention (used throughout): At the top intersection, going clockwise from top-left: $\angle 1$ (top-left), $\angle 2$ (top-right), $\angle 3$ (bottom-right), $\angle 4$ (bottom-left). At the bottom intersection, same scheme: $\angle 5$ (top-left), $\angle 6$ (top-right), $\angle 7$ (bottom-right), $\angle 8$ (bottom-left). So the interior angles are $\angle 3, \angle 4$ (top) and $\angle 5, \angle 6$ (bottom).

$\angle 1 = \angle 5, \quad \angle 2 = \angle 6, \quad \angle 3 = \angle 7, \quad \angle 4 = \angle 8$

Why "corresponding"? They occupy the same relative position at each intersection — both top-left, both bottom-right, etc.

Derivation from first principles:

• Parallel lines have the same "direction" (same slope)
• The transversal cuts both at the same angle relative to their direction
• Therefore, the angles formed in matching positions must be identical
• This is the Corresponding Angles Axiom (often taken as a postulate)

$\angle 3 = \angle 5, \quad \angle 4 = \angle 6$

Why "alternate interior"? They're on opposite (alternate) sides of the transversal, between (interior to) the parallel lines.

Clean derivation (single valid chain):

1. $\angle 1 = \angle 5$ (corresponding angles, $l_1 \parallel l_2$)
2. $\angle 1 = \angle 3$ (vertically opposite angles at the top intersection)
3. From steps 1 and 2: $\angle 3 = \angle 5$ ✓

Similarly for the other pair:

1. $\angle 2 = \angle 6$ (corresponding angles, $l_1 \parallel l_2$)
2. $\angle 2 = \angle 4$ (vertically opposite angles at the top intersection)
3. From steps 1 and 2: $\angle 4 = \angle 6$ ✓

Why this chain is valid: Each step uses exactly one proven fact — the corresponding-angles axiom or the vertically-opposite-angles theorem. No unproven "vertically opposite" claim is smuggled in.

$\angle 4 + \angle 5 = 180°, \quad \angle 3 + \angle 6 = 180°$

Why supplementary? They're on the same (co-) side of the transversal, interior to the parallels, and they "complete" a straight line's worth of rotation.

Derivation:

1. $\angle 4 = \angle 6$ (alternate interior angles, just proven)
2. $\angle 5 + \angle 6 = 180°$ (linear pair on line $l_2$ at the bottom intersection)
3. Substitute $\angle 6 = \angle 4$: $\angle 5 + \angle 4 = 180°$ ✓

Similarly $\angle 3 + \angle 6 = 180°$.

Summary Table

Perpendicular Line Properties

$\angle = 90°$

Key properties:

1. All four angles at the intersection are $90°$
2. If two lines are both perpendicular to a third line, they are parallel to each other
3. The shortest distance from a point to a line is along the perpendicular

Derivation of property 2:

• Let lines $a$ and $b$ both be perpendicular to line $c$
• At intersection of $a$ and $c$: angle = $90°$
• At intersection of $b$ and $c$: angle = $90°$
• These are corresponding angles (same relative position)
• Since corresponding angles are equal, $a \parallel b$ ✓

Worked Examples

Find: $\angle CFE$ (alternate interior angle) and $\angle DFE$ (co-interior angle).

Solution:

Step 1: Identify the angle positions

• $\angle AEF = 65°$ is at the top intersection, on the left of the transversal
• We want $\angle CFE$ at the bottom intersection, on the right of the transversal (alternate interior)

Why this step? We need to visualize which angles we're working with to apply the right theorem.

Step 2: Apply alternate interior angles theorem

• $\angle AEF$ and $\angle CFE$ are alternate interior angles
• Since $AB \parallel CD$: $\angle CFE = \angle AEF = 65°$

Why this works? Alternate interior angles are equal for parallel lines — that's our proven theorem.

Step 3: Find co-interior angle $\angle DFE$

• $\angle AEF$ and $\angle DFE$ are co-interior angles (same side of transversal, between the parallels) — NOT a linear pair
• Co-interior angles are supplementary: $\angle AEF + \angle DFE = 180°$
• $65° + \angle DFE = 180°$
• $\angle DFE = 115°$

Why supplementary and not a linear pair? $\angle AEF$ sits at $E$ and $\angle DFE$ sits at $F$ — they do not share a common vertex or side, so they cannot form a linear pair. Their relationship comes purely from the parallel-line co-interior theorem.

Answer: $\angle CFE = 65°$, $\angle DFE = 115°$ ✓

Prove: The lines are parallel.

Solution:

Step 1: State what we know

• Alternate interior angles are equal ($73° = 73°$)

Why start here? We're using the converse of the alternate interior angles theorem.

Step 2: Apply the correct theorem and its converse (labels straight!)

• Direct (original) theorem: If lines are parallel, then alternate interior angles are equal.
• Converse: If alternate interior angles are equal, then the lines are parallel.
• We are GIVEN equal alternate interior angles, so we use the converse → the lines must be parallel.

Why does the converse work? Only parallel lines create equal alternate interior angles. If the lines weren't parallel, they'd eventually meet, distorting the angles.

Formal proof (by contradiction):

1. Assume lines are NOT parallel
2. Then they must intersect at some point $P$
3. This forms a triangle with the transversal
4. In a triangle, an exterior angle equals the sum of the two remote interior angles (and is strictly greater than either)
5. But our two alternate interior angles are equal, not related by this strict inequality
6. Contradiction! Our assumption was wrong
7. Therefore, the lines MUST be parallel ✓

Solution:

Step 1: Visualize the setup

• Both $p$ and $r$ make $90°$ angles with $q$
• $q$ acts like a transversal cutting $p$ and $r$

Why visualize? Perpendicular relationships create specific angle values we can use.

Step 2: Apply corresponding angles test

• At $p \cap q$: angle = $90°$
• At $r \cap q$: angle = $90°$
• These are corresponding angles (same relative position, with $q$ as transversal)
• $90° = 90°$ → corresponding angles equal

Why this proves it? Equal corresponding angles → lines are parallel (converse of the corresponding angles theorem).

Step 3: Conclusion

• Yes, $p \parallel r$ ✓

Real-world intuition: Think of fence posts perpendicular to the ground — they're all parallel to each other!

Common Mistakes

Why it feels right: Diagrams can be misleading if not drawn accurately. Angles that appear equal might not be.

Steel-man: It's natural to rely on visual intuition — that's how we first learn geometry. The diagram is our guide.

The fix:

1. Don't trust the diagram for measurements — only for topology (what connects to what)
2. Label every angle systematically (∠1, ∠2, ...)
3. Identify the pattern: F for corresponding, Z for alternate interior, C for co-interior
4. Only THEN apply the theorem

Memory aid: "F, Z, C decide for me" — match the pattern, then use the rule.

Why it feels right: In textbook diagrams, parallel lines are drawn parallel. We assume what we see.

Steel-man: Visual parsing is efficient. Our brain automatically assumes regularity and symmetry to process shapes quickly.

The fix:

1. Read the problem carefully — are the lines stated to be parallel, or do you need to prove it?
2. Mark parallel lines explicitly with arrows (>> symbols) when given
3. If NOT marked, you must PROVE they're parallel using angle equalities
4. Converse theorems are your tool: equal angles → parallel lines

Why it feels right: Adjacent angles on a straight line DO sum to 180° (linear pair). We overgeneralize this to any two supplementary-looking angles.

Steel-man: The linear pair rule is powerful and frequently used. It's reasonable to try extending it.

The fix:

• Linear pair: Two angles that share a common vertex AND a common side, together forming a straight line → sum to 180°.
• Co-interior angles: Between parallels, same side of transversal, but at different vertices → also sum to 180°, but for a different reason (the parallel-line theorem, not a straight line).
• Check: Do the two angles share a vertex and form a straight line? If yes → linear pair. If they're at different intersection points → it's a co-interior (parallel-line) relationship.

Active Recall Practice

When the stick crosses the first track, it makes angles. When it crosses the second track, it makes more angles. Here's the cool part: because the tracks are perfectly parallel (same distance apart everywhere), the angles at the first crossing match the angles at the second crossing in predictable ways!

There are three main patterns:

1. F-pattern (corresponding): If you slide along the stick from one track to the other, angles in the same position are equal. Like the top-left angle at both crossings.
2. Z-pattern (alternate): Angles on opposite sides of the stick, between the tracks, are equal. Draw a Z through them!
3. C-pattern (co-interior): Angles on the same side of the stick, between the tracks, add up to 180° (a straight line). Draw a C through them!

Perpendicular just means "perfectly upright" — a 90° angle, like the corner of a book. If two lines are both perpendicular to the same third line, they must be parallel to each other (like two flagpoles both pointing straight up from the ground).

Visual: Trace the letter shape through the angles:

• Draw F through corresponding angles
• Draw Z through alternate interior angles
• Draw C (or U) through co-interior angles

Perpendicular: "Perfectly Pointing Perpendicular = 90°" (three P's)

Connections

• 1.2.01-Points-lines-and-angles-—-definitions-and-basic-properties — foundation of what angles and lines are
• 1.2.02-Types-of-angles — understanding acute, obtuse, right angles used here
• 1.2.05-Triangles-—-types-and-basic-properties — parallel lines appear in triangle angle sum proof
• 1.3.01-Congruence-of-triangles — uses corresponding angles to establish congruent parts
• 2.1.03-Linear-equations-in-two-variables — slope concept relates to parallel/perpendicular
• Advanced-Euclidean-geometry — these axioms underpin all geometric proofs
