Angle measurement — protractor use, angle relationships (complementary, supplementary)

Overview

Angle measurement is the foundation of understanding rotations, turns, and the space between two rays. We measure angles in degrees (°) using a protractor, and certain angle pairs have special relationships that appear everywhere in geometry.

Core Concepts

[!intuition] What is an Angle?

An angle measures how much you need to rotate one ray to align with another. Think of it as a "turn amount":

• Opening a door creates an angle between the door and the wall
• The hands of a clock form changing angles
• A complete rotation is 360°, so 1° = 1/360 of a full turn

Why degrees? Ancient Babylonians used base-60 math. They noticed360 is divisible by many numbers (2,3,4,5,6,8,9,10,12..), making it practical for dividing circles.

[!definition] Angle Measurement

An angle is formed by two rays sharing a common endpoint called the vertex.

Measurement unit: Degrees (°)

• 1 full rotation = 360°
• 1 straight line = 180°
• 1 right angle = 90°

Why 360? Derivation from circle properties:

1. A circle is a complete rotation
2. Historical convention: divide by 360 (highly composite number)
3. Smaller unit: 1° = 60minutes ('), 1' = 60 seconds ('')

[!formula] Using a Protractor

A protractor is a semicircular tool marked from 0° to 180° (sometimes full circle,0° to 360°).

Step-by-step measurement process:

1. Align the baseline: Place the protractor's baseline along one ray of the angle

   • Why? This makes that ray your0° reference point

2. Center the vertex: Position the protractor's center mark (small hole/notch) exactly on the vertex

   • Why? Angles are measured from the vertex; misalignment gives wrong readings

3. Read the scale: Find where the second ray crosses the protractor's curved edge

   • Why two scales? Inner and outer scales for measuring from either direction
   • Which scale? Use the scale starting at 0° where your first ray aligns

4. Record the measurement: Note the degree value, including the ° symbol

   • Why verify? Check that acute angles < 90°, obtuse > 90°

Common protractor mistake: Reading the wrong scale (getting 180° - actual angle).

[!formula] Complementary Angles

Definition: Two angles are complementary if their measures add to 90°.

Derivation from right angle:

• A right angle measures exactly 90°
• If we split a right angle into two parts: angle A + angle B = 90°
• Therefore: If ∠A + ∠B = 90°, they are complementary

$\text{If } \angle A + \angle B = 90°, \text{ then } \angle A \text{ and } \angle B \text{ are complementary}$

Key insight:

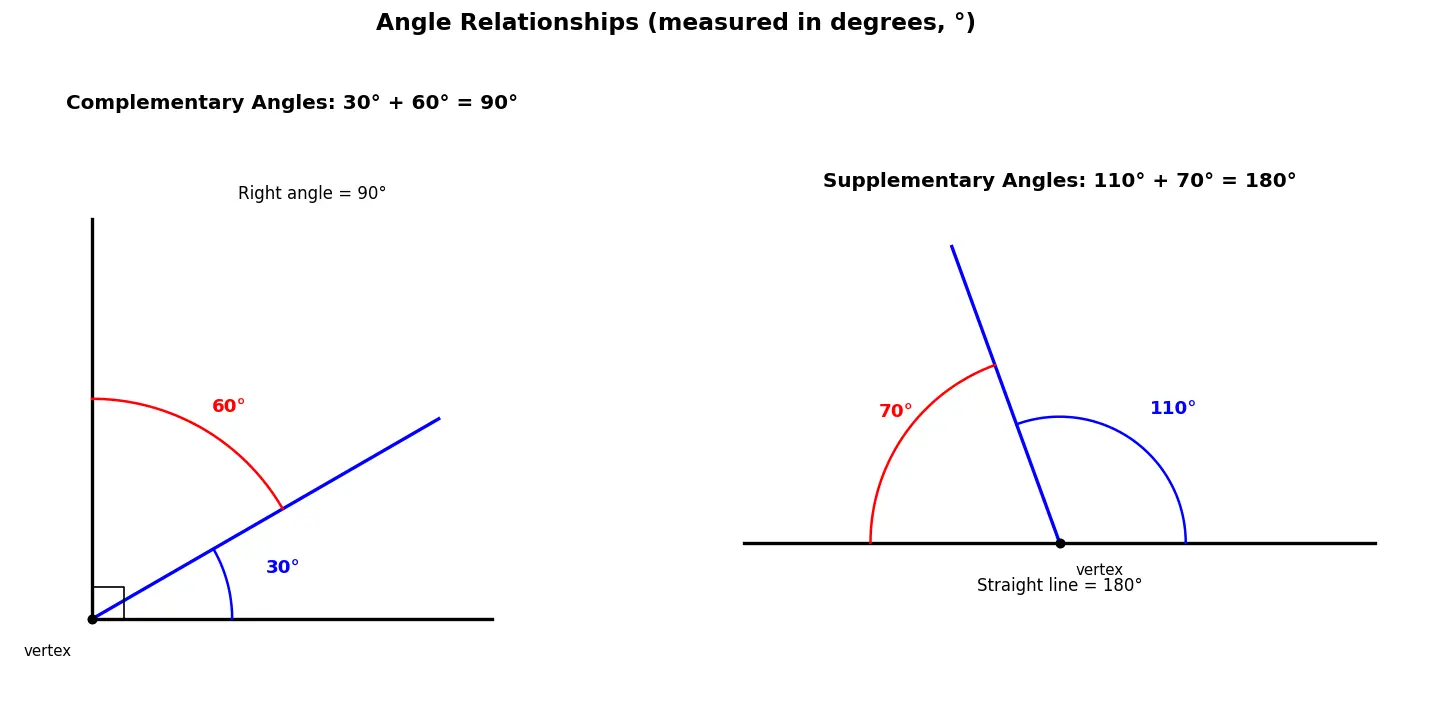

• One angle = 30° → its complement = 90° - 30° = 60°
• General formula: ==Complement of angle x = (90 - x)°==

Why "complementary"? From Latin complementum = "that which completes" — together they complete a right angle.

[!formula] Supplementary Angles

Definition: Two angles are supplementary if their measures add to 180°.

Derivation from straight angle:

• A straight line forms a 180° angle
• If we place a ray from vertex to divide the straight angle: angle C + angle D = 180°
• Therefore: If ∠C + ∠D = 180°, they are supplementary

$\text{If } \angle C + \angle D = 180°, \text{ then } \angle C \text{ and } \angle D \text{ are supplementary}$

Key insight:

• One angle = 110° → its supplement = 180° - 110° = 70°
• General formula: ==Supplement of angle x = (180 - x)°==

Why "supplementary"? From Latin supplementum = "something added to complete" — together they complete a straight angle.

[!example] Example 1: Measuring with a Protractor

Problem: Measure the angle formed by two rays.

Solution:

1. Place protractor baseline along the first ray (bottom ray)

   • Why this step? Establishes 0° reference

2. Align center mark with vertex

   • Why this step? Ensures measurement from the correct point

3. Second ray crosses at65° on the inner scale

   • Why this step? We started at 0° on inner scale, so read inner

4. Answer: The angle measures 65°

Verification:65° < 90°, so it's acute — matches visual inspection ✓

[!example] Example 2: Finding Complementary Angles

Problem: Angle A measures 37°. Find its complement.

Solution: Given: ∠A = 37°

Complementary angles sum to 90°: $\angle A + \angle B = 90°$

Substitute known value: $37° + \angle B = 90°$

Why this step? We're solving for the unknown angle using the definition.

Subtract 37° from both sides: $\angle B = 90° - 37° = 53°$

Why this step? Isolating the variable gives us the complement.

Answer: The complement of37° is 53°

Check: 37° + 53° = 90° ✓

[!example] Example 3: Finding Supplementary Angles

Problem: Two supplementary angles are in the ratio 2:3. Find both angles.

Solution: Let the angles be 2x and 3x (using ratio parts)

Why this step? The ratio 2:3 means one angle is 2 parts and the other is 3 parts of some unknown unit x.

Supplementary angles sum to 180°: $2x + 3x = 180°$

Why this step? We're applying the definition of supplementary angles.

Combine like terms: $5x = 180°$

Why this step? Simplifying prepares us to solve for x.

Divide both sides by 5: $x = \frac{180°}{5} = 36°$

Why this step? Finding the value of one unit (x) lets us find both angles.

Therefore:

• First angle = 2x = 2(36°) = 72°
• Second angle = 3x = 3(36°) = 108°

Answer: The angles are 72° and 108°

Check:

• Ratio: 72:108 = 2:3 ✓
• Sum: 72° + 108° = 180° ✓

[!example] Example 4: Combined Relationships

Problem: An angle is 30° more than its complement. Find the angle.

Solution: Let the angle be x

Why this variable? We're looking for the unknown angle measure.

Its complement is (90 - x)

Why this expression? By definition, complement = 90° - angle.

Given condition: "angle is 30° more than complement" $x = (90 - x) + 30$

Why this equation? Translating "30° more than" into mathematical language.

Simplify right side: $x = 120 - x$

Why this step? Combining constants (90 + 30 = 120).

Add x to both sides: $x + x = 120$ $2x = 120$

Why this step? Collecting all x terms on one side.

Divide by 2: $x = 60°$

Why this step? Solving for the single variable.

Answer: The angle is 60°

Check:

• Complement = 90° - 60° = 30°
• Is 60° equal to 30° + 30°? Yes ✓

[!mistake] Common Mistakes & How to Fix Them

Mistake 1: Reading the wrong protractor scale

❌ Wrong thinking: "The ray crosses at 120°" (reading outer scale when should read inner)

Why this feels right: Protractors have two scales and it's easy to focus on whichever number is closest to the ray.

Steel-man: You correctly identified where the ray crosses, just picked the wrong number set.

✓ The fix: Always start from the 0° mark of your baseline ray and count up. If your baseline is on the right, use the scale that starts at 0° on the right.

Memory trick: "Find your zero, follow its flow"

Mistake 2: Confusing complementary and supplementary

❌ Wrong thinking: "Complementary angles add to 180°"

Why this feels right: "Supplement" and "complement" sound similar, both start with "compl-", and both involve addition.

Steel-man: You remembered there's a special relationship involving addition, just mixed up the target sum.

✓ The fix:

• Complement → 90° (smaller number, shorter word)
• Supplement → 180° (larger number, longer word)

Mistake 3: Subtracting from the wrong total

❌ Wrong thinking: "If angle is 40°, its supplement is 90° - 40° = 50°"

Why this feels right: 90° is the most familiar "special" angle sum we learn first (right angle).

Steel-man: You correctly remembered to subtract from a special sum, just grabbed the wrong one.

✓ The fix:

• Right angle (90°) → complement
• Straight angle (180°) → supplement
• Visualize: straight line = supplementary

Mistake 4: Misaligning the protractor center

❌ Wrong action: Placing the protractor's center mark slightly off the vertex

Why this feels right: Close enough might seem acceptable, especially with small angles.

Steel-man: You understood to center it, but achieving perfect alignment is genuinely difficult.

✓ The fix: Take an extra 2 seconds to precisely align. Look for the small hole or crosshair mark. Even1mm off can cause 5-10° error.

[!mnemonic] Memory Aids

For Complementary vs Supplementary:

• Complementary → Corner (right angle,90°)
• Supplementary → Straight line (180°)

Alternative:

• "C comes before S in alphabet"
• "90 comes before 180 in numbers"
• Complementary = smaller number (90)

For protractor use: "**Baseline, Center, Read, Check"

• Baseline aligned
• Center on vertex
• Read correct scale
• Check if reasonable (acute < 90° < obtuse)

[!recall]- Explain to a 12-year-old

Imagine you're opening a door. When the door is closed, it makes0° with the wall. When you open it just a tiny bit, maybe 30°. Open it to where your arm is straight out? That's 90° — we call it a right angle, like the corner of a square.

A protractor is like a ruler for measuring these "door openings" or angles. You put the flat edge along one side, the center dot on the corner, and read where the other side points to. Easy!

Now here's something cool: some angles are buddies. Complementary angles are best friends that always add up to 90° together. If one is 30°, its buddy MUST be 60° because 30 + 60 = 90. They "complete" a right angle corner.

Supplementary angles are roomates that share a straight line — they add up to 180°. If one takes up 110°, the other gets only 70° because 110 + 70 = 180. Together they make a straight line.

Think of it like sharing a pizza: complementary angles share a quarter-pizza (90°), supplementary angles share a half-pizza (180°). Whatever slice one takes, the other gets the rest!

Connections

• Types of Angles — acute, right, obtuse, straight angles
• Angle Addition Postulate — breaking angles into parts
• Vertical Angles — pairs formed by intersecting lines
• Linear Pairs — adjacent supplementary angles
• Parallel Lines and Transversals — angle relationships with parallel lines
• Triangle Angle Sum — interior angles sum to 180°
• Trigonometry Basics — angles in right triangles
• Coordinate Geometry — angles in the coordinate plane
• Circle Theorems — inscribed and central angles

Flashcards

What is an angle? :: An angle is formed by two rays sharing a common endpoint (vertex), measuring the amount of rotation between them.

If an angle measures 125°, what is its supplement? :: 180° - 125° = 55°
