Foundations — Angle measurement — protractor use, angle relationships (complementary, supplementary)

Before you can measure anything, you need to know exactly what each mark, word, and symbol on the page means. Below is every ingredient the parent note Angle Measurement leans on, built up one at a time. Nothing is used before it is drawn.

1. A point — the smallest idea

The picture: imagine the sharpest pencil tip touching the paper once. That mark is a point.

Why the topic needs it: every angle has a place where it "lives" — that place is a point. Without points we cannot say where two lines meet.

2. A ray — a line with a start but no end

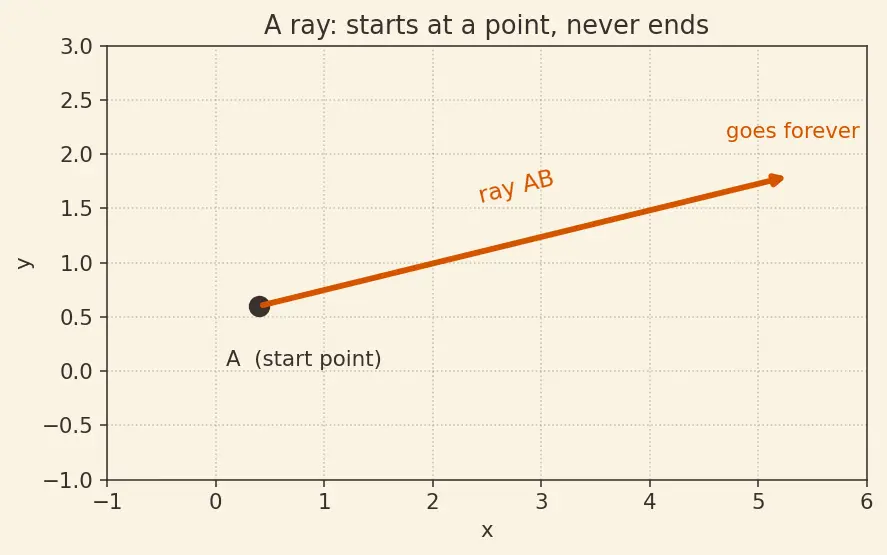

The picture: look at the burnt-orange arrow above. The solid dot on the left is where it begins; the arrowhead means it never stops.

Why the topic needs it: an angle is made of two rays. The parent note says "two rays sharing a common endpoint" — you cannot understand that sentence until you know what a ray is.

3. The vertex — where two rays hold hands

The picture: two rays leaving the same dot. That shared dot is the vertex.

Why the topic needs it: when you use a protractor, the parent note tells you to put the centre hole "exactly on the vertex." If you don't know which point is the vertex, you can't line up the tool.

4. The angle — the turn between the two rays

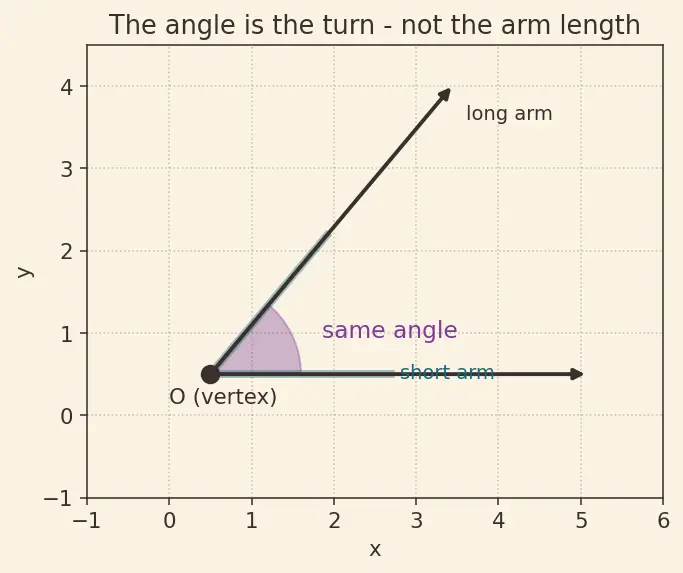

The picture: the two rays above start at vertex $O$. The plum wedge between them is the angle. Notice the shorter ray and the longer ray make the same wedge — length does not change the turn.

Why the topic needs it: this is the star of the whole chapter. Everything else measures or compares this turn.

5. The angle symbol $\angle$ and naming

Why the topic needs it: the parent note writes things like $\angle A+\angle B=90°$. Those symbols are just shorthand for "the number of degrees in the turn at $A$."

6. The degree symbol $°$ — the unit of turn

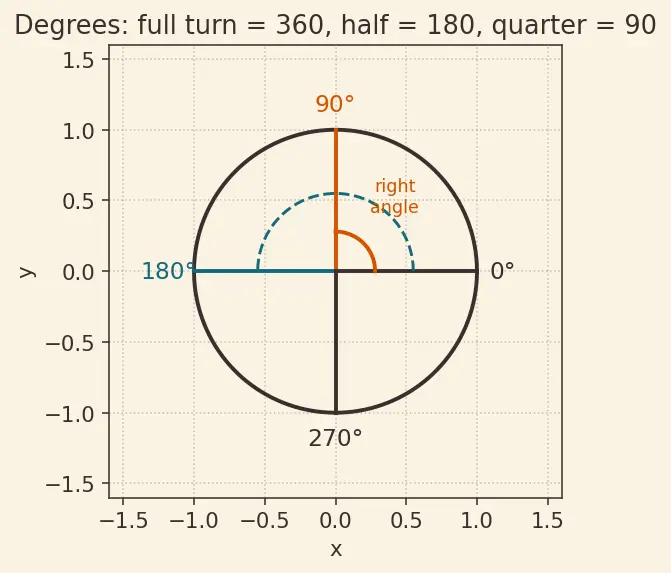

The picture: the circle above is chopped into slices. One full trip round the middle is $360°$; half-way round (a straight line) is $180°$; a quarter turn (a square corner) is $90°$.

Why 360 and not 100? The parent note explains it: $360$ can be split evenly by $2,3,4,5,6,8,9,10,12$ and more — very handy for dividing a circle without leftovers. That is a choice of convenience, not a law of nature.

Why the topic needs it: every measurement in the chapter ends in a number of degrees. The $°$ symbol is the "unit" that tells you the number means turn, just like "cm" tells you a number means length.

7. Special turn amounts you must recognise on sight

The picture: the corner of this page or a book is a $90°$ right angle. A flat ruler edge is a $180°$ straight angle.

Why the topic needs it: complementary angles are built on $90°$; supplementary angles are built on $180°$. If you can picture these two landmarks, the definitions later feel obvious instead of memorised. (More kinds live in Types of Angles.)

8. The plus sign $+$ used on angles

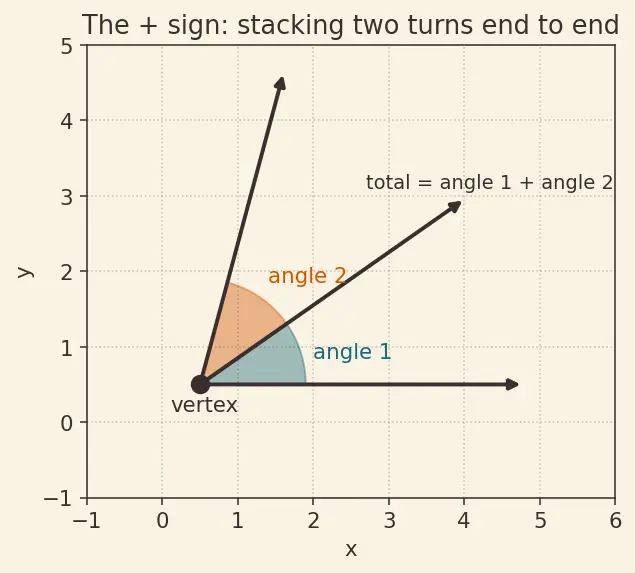

The picture: above, a teal wedge and an orange wedge share the middle ray. Stacked together they sweep from the bottom ray all the way to the top ray — their degrees simply add. This idea has its own note: Angle Addition Postulate.

Why the topic needs it: the whole statement "$\angle A+\angle B=90°$" only makes sense once you know that $+$ here means stacking turns, and that the answer is a bigger turn.

9. Building complementary & supplementary from the parts above

Now every symbol is defined, so the two big relationships are just short sentences:

These relationships reappear constantly later — in Vertical Angles, Linear Pairs, and Parallel Lines and Transversals. This D1 page is the ground they all stand on.

How it all fits together

Equipment checklist

Cover the right side and see if you can answer each before revealing.
