6.5.13Advanced & Emerging Architectures

Quantum computing hardware basics

2,080 words9 min readdifficulty · medium

WHAT is a qubit?

WHY complex numbers? Because interference (the source of quantum speedup) needs phase. Two paths with amplitudes +12+\tfrac{1}{\sqrt2} and 12-\tfrac{1}{\sqrt2} cancel; only complex/signed amplitudes let this happen. Probabilities alone (always positive) cannot cancel.

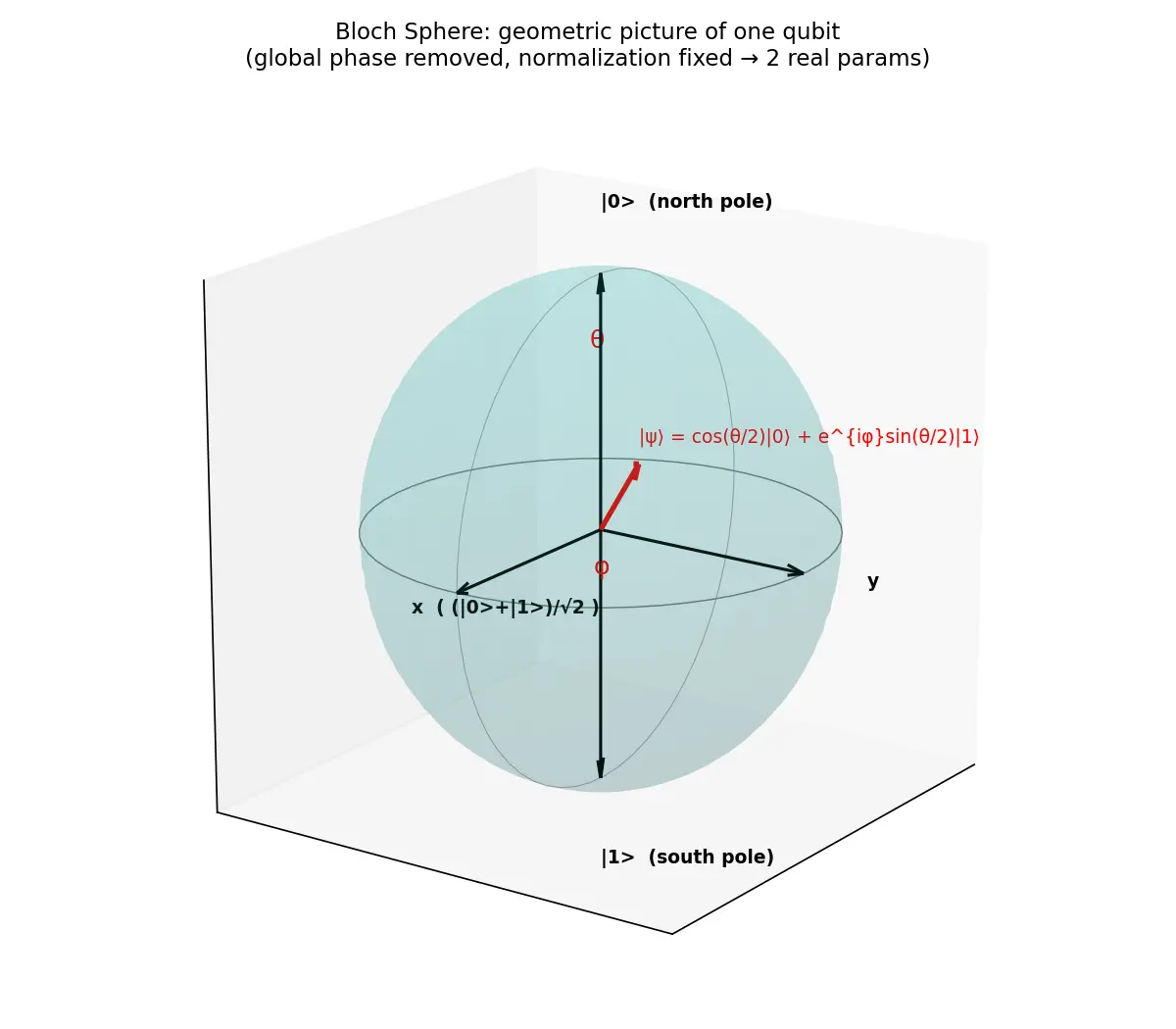

Deriving the Bloch sphere

WHY: α,β\alpha,\beta are 2 complex numbers = 4 real numbers. Two constraints kill two:

  1. Normalization α2+β2=1|\alpha|^2+|\beta|^2=1 removes one real parameter.
  2. Global phase is unobservable (measurement depends only on α2,β2|\alpha|^2,|\beta|^2, and physical predictions are invariant under ψeiγψ|\psi\rangle \to e^{i\gamma}|\psi\rangle) removes another.

So 42=24-2 = 2 real parameters remain → a point on a sphere. Write: ψ=cosθ20+eiϕsinθ21|\psi\rangle = \cos\tfrac{\theta}{2}\,|0\rangle + e^{i\phi}\sin\tfrac{\theta}{2}\,|1\rangle

Why θ/2\theta/2 and not θ\theta? So that θ\theta ranges over [0,π][0,\pi] maps the full sphere: θ=00\theta=0\to|0\rangle (north pole), θ=π1\theta=\pi\to|1\rangle (south pole). Orthogonal states sit at opposite poles, 180°180° apart physically though orthogonal in Hilbert space.

Figure — Quantum computing hardware basics

HOW do we physically build one? (The main platforms)

WHY so cold / so isolated? The two levels differ by energy ΔE\Delta E. Thermal noise excites transitions when kBTΔEk_B T \gtrsim \Delta E. For superconducting qubits ΔE/h5 GHz\Delta E/h \sim 5\text{ GHz}, so we need TT with kBTh(5 GHz)k_B T \ll h(5\text{ GHz}), i.e. tens of mK.


The DiVincenzo criteria (WHAT hardware must deliver)

Everything hardware engineers fight over reduces to trading these against each other.


Coherence: WHY qubits die


Gates and readout

WHY unitary? Because quantum evolution must preserve total probability (α2+β2=1|\alpha|^2+|\beta|^2=1). Only norm-preserving (unitary) maps do this. Non-unitary = measurement/loss = decoherence.

Single-qubit example — the Hadamard: H=12(1111),H0=0+12H = \tfrac{1}{\sqrt2}\begin{pmatrix}1&1\\1&-1\end{pmatrix},\quad H|0\rangle = \tfrac{|0\rangle+|1\rangle}{\sqrt2} This creates superposition — the "start the coin spinning" operation. Two-qubit entangling gates (CNOT, CZ, Mølmer–Sørensen) are needed for universality.

Readout HOW: superconducting qubits use a coupled resonator whose frequency shifts depending on the qubit state (dispersive readout); measuring the microwave transmission reveals 0|0\rangle vs 1|1\rangle.



Recall Feynman: explain to a 12-year-old

Imagine a magic spinning coin. While it spins, it's both heads and tails, and you can gently tilt HOW it spins. If you have many such coins that can feel each other (entanglement), you can set up a clever spin so that all the wrong answers cancel out like waves, and only the right answer stays loud when the coins finally fall. The hard part is: air, heat, and touching all knock the coins flat. So we build them in a super-cold, super-quiet freezer and only touch them with perfectly-timed puffs (microwaves or lasers). We must finish the trick before the coins fall flat — that "falling flat" time is called coherence.


Connections


Flashcards

What is a qubit?
A two-level quantum system in superposition α0+β1\alpha|0\rangle+\beta|1\rangle with α2+β2=1|\alpha|^2+|\beta|^2=1.
Why complex amplitudes instead of probabilities?
Phase allows destructive interference (wrong answers cancel); positive probabilities cannot cancel.
Probability of measuring 0|0\rangle?
α2|\alpha|^2.
Why θ/2\theta/2 in the Bloch parametrization?
So θ[0,π]\theta\in[0,\pi] covers the whole sphere and orthogonal states 0,1|0\rangle,|1\rangle sit at opposite poles.
Why remove global phase?
It is physically unobservable — measurement predictions are invariant under ψeiγψ|\psi\rangle\to e^{i\gamma}|\psi\rangle.
What does a Josephson junction provide in a transmon?
Anharmonicity, so the lowest two levels are uniquely addressable as a qubit.
Why cool superconducting qubits to ~15 mK?
To make kBTΔEk_BT\ll\Delta E so thermal excitation P1/P0=eΔE/kBTP_1/P_0=e^{-\Delta E/k_BT} is negligible.
Formula for thermal excitation ratio?
P1/P0=eΔE/kBTP_1/P_0=e^{-\Delta E/k_BT} (Boltzmann).
List the DiVincenzo criteria.
Scalable qubits; initialization; long coherence; universal gate set; qubit-specific measurement.
What is T1T_1?
Energy relaxation time; excited-state probability decays by 1/e1/e.
What is T2T_2?
Dephasing/coherence time; phase (off-diagonal) coherence decays by 1/e1/e.
Relation between T1,T2T_1,T_2?
1/T2=1/(2T1)+1/Tϕ1/T_2 = 1/(2T_1)+1/T_\phi, so T22T1T_2\le 2T_1.
Why must gates be unitary?
To preserve total probability (norm) — quantum evolution is reversible.
What does a Hadamard gate do to 0|0\rangle?
Creates equal superposition (0+1)/2(|0\rangle+|1\rangle)/\sqrt2.
Roughly how many gates before decoherence dominates?
About T2/tgT_2/t_g (coherence time over gate time).
How is a superconducting qubit read out?
Dispersive readout — a coupled resonator's frequency shifts with qubit state, seen in microwave transmission.
Why isn't nn qubits = 2n2^n classical bits of storage?
Measurement collapses to only nn classical bits; the 2n2^n amplitudes power interference, not readout.

Concept Map

state is

needs

enable

measured gives

reduce params via

leaves 2 params

physically built as

example

uses

others

threatened by

governed by

requires

Qubit two-level system

Superposition of 0 and 1

Complex amplitudes

Interference and speedup

Probabilities from amplitude squared

Normalization plus global phase

Bloch sphere

Physical platforms

Superconducting transmon

Josephson junction anharmonicity

Ions photons spins topological

Thermal noise

Boltzmann occupation ratio

Cooling to tens of mK

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, classical bit ek switch hai — ON ya OFF, bas. Lekin qubit ek ghoomti hui coin jaisa hai: jab tak spin ho raha hai, wo heads aur tails dono ek saath hai. Isko hum likhte hain ψ=α0+β1|\psi\rangle=\alpha|0\rangle+\beta|1\rangle, aur measure karne par 0|0\rangle milne ki probability α2|\alpha|^2 hoti hai. Yahan magic interference ka hai — complex amplitudes ke wajah se galat answers ek dusre ko cancel kar dete hain, jaise waves. Isiliye phase (complex number) zaroori hai, sirf probability se yeh cancel nahi hota.

Hardware ka pura khel yeh hai: coin ko ghoomta hua rakhna kitni der tak. Yeh time hai coherenceT1T_1 (energy leak hoke coin flat gir jaana) aur T2T_2 (spin toh chal raha, par direction ka pata kho jaana). Ek important rule: T22T1T_2 \le 2T_1, kyunki relaxation khud phase ko bhi tod deta hai. Gate karne me jitna time lagta hai (tgt_g), uske comparison me T2T_2 bada hona chahiye — roughly T2/tgT_2/t_g gates tak hi algorithm chal sakta hai.

Superconducting qubits ko 15 milliKelvin tak thanda karte hain. Kyun? Boltzmann formula P1/P0=eΔE/kBTP_1/P_0=e^{-\Delta E/k_BT} ke hisaab se, agar garam hua toh qubit apne aap excite ho jaayega aur initialize (known state se shuru karna) fail ho jaayega. Room temperature par toh coin poori tarah scramble ho jaati hai. Isiliye cold, quiet, isolated environment — aur touch bhi sirf perfectly-timed microwave/laser pulses se, jo Bloch sphere par rotation (unitary gate) dete hain.

Ek galatfehmi mat paalna: zyada qubits ka matlab automatic speed nahi. Agar qubits noisy hain toh error correction me hazaron physical qubits ek logical qubit banate hain. Quality (fidelity, coherence) > quantity. Aur 2n2^n amplitudes storage ke liye nahi, interference-based computation ke liye powerful hain — measure karoge toh sirf nn classical bits milenge.
