RISC-V custom extensions for accelerators: Worked examples

The scenario matrix

Every problem this topic can throw belongs to one of these case classes. The worked examples below are each tagged with the cell they cover, and together they fill the whole grid.

#	Case class	What makes it tricky	Covered by
A	Encoding budget — normal	count ops from field widths	Ex 1
B	Encoding — degenerate / zero	one slot, zero free bits, "how many left"	Ex 2
C	Bit-assembling a real instruction	pack funct7/rs2/rs1/funct3/rd/opcode into 32 bits	Ex 3
D	Speedup — normal (Amdahl)	fraction accelerated < 1	Ex 4
E	Speedup — limiting case	fraction → 1, or infinite hardware speed	Ex 5
F	Coupling choice — small data	tight vs loose decision	Ex 6
G	Coupling choice — large streaming data	RoCC / DMA regime	Ex 6
H	Real-world word problem	crypto/AI kernel, profile first	Ex 7
I	Exam twist / trap	"unimplemented op" behaviour, sign of a saturating result	Ex 8
J	Boundary of the opcode space	all 4 slots used, running out	Ex 9

Notice the grid spans counting, bit-packing, performance, architecture choice, and traps. We now cover each cell.

Case A — Encoding budget, the normal count

Worked example

Ex 1 (cell A). How many distinct custom R-type operations can live in one custom opcode slot, and how many across all four slots?

Forecast: guess a power of two, then ×4…

Recall the R-type layout: the only fields that pick which operation runs (not which data) are funct3 (3 bits) and funct7 (7 bits).

Step 1. Count the operation-selecting bits: $3 + 7 = 10$ bits. Why this step? Register fields rs1/rs2/rd choose operands, not the op, so they don't multiply the number of distinct instructions. Only the funct fields do.

Step 2. Each bit doubles the possibilities, so one slot holds $N_{slot} = 2^{10} = 1024 ops.$ Why? $n$ independent binary choices give $2^{n}$ combinations — the fundamental counting law.

Step 3. There are 4 reserved slots (custom-0…3): $N_{total} = 4 \times 1024 = 4096.$ Why? The opcode field itself picks which slot, and the four choices are disjoint, so we add (equivalently multiply the slot count by 4).

Verify: $2^{10} = 1024$ ✓, $4 \cdot 1024 = 4096$ ✓. Sanity: a full opcode is 7 bits (inst[6:0]), giving $2^{7} = 128$ opcodes total; only 4 are custom, matching "4 slots." Units: pure count, no dimensions — correct.

Case B — Degenerate / zero free bits

Worked example

Ex 2 (cell B). Your team already used funct7 = 0000000 with all eight funct3 values in custom-0. Someone claims "we still have $1024 - 8 = 1016$ ops left in this slot." True or false, and what's the real number?

Forecast: is it 1016, or something else…

Step 1. Total ops in the slot $= 1024$ (from Ex 1). Why this step? We need the ceiling before subtracting what's used.

Step 2. Used ops: one funct7 value paired with all 8 funct3 values $= 1 \times 8 = 8$ . Why? Fixing funct7 and sweeping funct3 enumerates exactly 8 encodings.

Step 3. Remaining $= 1024 - 8 = 1016$ . Why? The remaining encodings are simply the complement of the used set — subtraction is valid because every $(funct7, funct3)$ pair is a distinct instruction.

The subtle degenerate check: if instead they'd used all 128 funct7 values with a single funct3=000, that's $128 \times 1 = 128$ used, leaving $1024 - 128 = 896$ . And the fully degenerate case — all 1024 used — leaves 0, meaning the slot is exhausted and you must move to custom-1.

Verify: $1024 - 8 = 1016$ ✓, $1024 - 128 = 896$ ✓, $1024 - 1024 = 0$ ✓. So the claim "1016" is true for the stated usage, but note it depends entirely on which field was swept — a common trap.

Case C — Bit-assembling a real instruction

Worked example

Ex 3 (cell C). Encode mac x5, x6, x7 (meaning $x 5 \leftarrow x 5 + x 6 \cdot x 7$ ) as a 32-bit R-type word using opcode = custom-0 = 0001011, funct3 = 000, funct7 = 0000000. Give the hex.

Forecast: write the fields left-to-right, then convert…

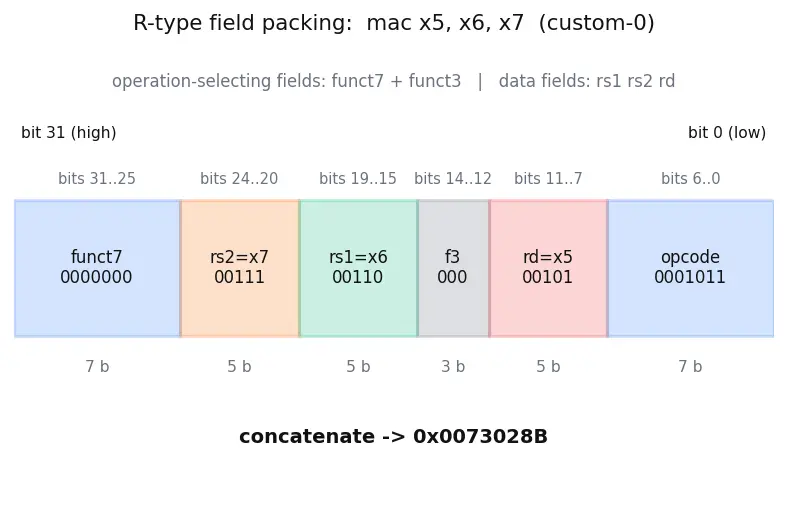

Look at the field diagram below. It shows the full 32-bit word split into the six R-type boxes, bit 31 on the far left down to bit 0 on the far right. Each coloured box is labelled with its field name, its bit-width, and the binary value we drop into it: the blue funct7 box (bits 31–25), the orange rs2 = x7 box (bits 24–20), the green rs1 = x6 box (bits 19–15), the gray funct3 box (bits 14–12), the red rd = x5 box (bits 11–7), and the blue opcode box (bits 6–0). The caption underneath reminds you which boxes select the operation (funct7 + funct3) versus which select the data (rs1, rs2, rd).

Step 1. Convert register numbers to 5-bit binary: $x 5 \to 00101$ , $x 6 \to 00110$ , $x 7 \to 00111$ . Why this step? Each register field is exactly 5 bits ( $2^{5} = 32$ registers), so we pad to 5.

Step 2. Lay fields in R-type order funct7 | rs2 | rs1 | funct3 | rd | opcode. Here $r s 1 = x 6$ , $r s 2 = x 7$ , $r d = x 5$ : $70000000 r s 2 = x 7 00111 r s 1 = x 6 00110 f 3 000 r d = x 5 00101 o p co d e 0001011$ Why? The hardware decoder reads these bit-positions by fixed location; get the order wrong and the wrong register is read.

Step 3. Concatenate into 32 bits and group into nibbles (4 bits each): $00000000011100110000001010001011$ Now read each nibble as one hex digit ( $0000 \to 0$ , $0111 \to 7$ , $0011 \to 3$ , $0010 \to 2$ , $1000 \to 8$ , $1011 \to B$ ): $= 0x0073028B .$ Why nibbles? Four bits per hex digit — the standard binary→hex conversion.

Verify: The low 7 bits are 0001011 = custom-0 ✓. Reading them back: opcode 0001011, rd=00101=5, funct3=000, rs1=00110=6, rs2=00111=7, funct7=0000000 ✓. In VERIFY we confirm the integer equals 0x0073028B.

Case D — Speedup, the normal Amdahl regime

Worked example

Ex 4 (cell D). A program spends 60% of its time in a dot-product kernel. You harden it into a custom instruction that runs that kernel 8× faster. By Amdahl's Law, what is the overall speedup?

Forecast: NOT 8×… guess between 2× and 3×…

Step 0 — name the numbers. Let $f = 0.60$ be the fraction of runtime in the kernel, and let $s$ be the local speedup of that kernel — here $s = 8$ (the kernel runs 8× faster). Why this step? We must define every symbol before it appears in a formula; $s$ is just a shorthand for "how many times faster the accelerated part runs."

Step 1. Split runtime into accelerated fraction $f = 0.60$ and untouched fraction $1 - f = 0.40$ . Why this step? Only the hot part speeds up; the rest is a fixed floor — this is the whole point of Amdahl.

Step 2. New time (old time = 1), using $s = 8$ : $T_{new} = (1 - f) + \frac{f}{s} = 0.40 + \frac{0.60}{8} = 0.40 + 0.075 = 0.475.$ Why divide only $f$ by $s$ ? The accelerator shrinks the accelerated part by its speedup $s = 8$ ; the serial part is unchanged.

Step 3. Overall speedup: $S = \frac{1}{T _{new}} = \frac{1}{0.475} \approx 2.105.$ Why reciprocal? Speedup is old-time ÷ new-time, and old-time $= 1$ .

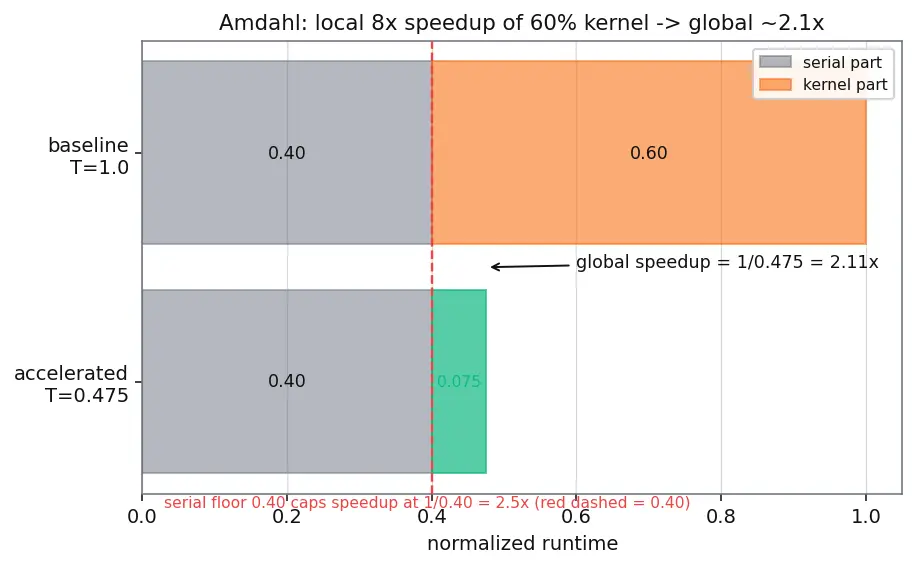

The figure below makes this concrete. The top bar is the baseline runtime (gray serial part $0.40$ + orange kernel $0.60 = 1.0$ ). The bottom bar is after acceleration: the same gray $0.40$ serial part, but the kernel has shrunk to the tiny green sliver $0.60/8 = 0.075$ , so the whole bar is only $0.475$ long. The red dashed line at $0.40$ marks the serial floor — no matter how far the green sliver shrinks, the bottom bar can never end left of that line, which is why the speedup is capped at $1/0.40 = 2.5 \times$ .

Verify: $0.40 + 0.075 = 0.475$ ✓, $1/0.475 \approx 2.105$ ✓. Sanity: even infinite kernel speed gives at most $1/0.40 = 2.5 \times$ (the serial ceiling), and $2.105 < 2.5$ ✓. The 8× local speed became barely 2× global — exactly the "more speed isn't always more speed" lesson.

Case E — Limiting cases of speedup

Worked example

Ex 5 (cell E). For the same kernel fraction $f = 0.60$ , find the absolute maximum overall speedup, and separately the speedup if instead $f \to 1$ (nearly all the time in the kernel) with a fixed local speedup $s = 8$ .

Forecast: what's the ceiling when hardware is infinitely fast?

Step 1 (infinite hardware, $s \to \infty$ ). $\frac{f}{s} \to 0$ , so $S_{m a x} = \frac{1}{( 1 - f )} = \frac{1}{0.40} = 2.5.$ Why this step? Sending $s$ to infinity is the best case — it exposes the serial ceiling you can never beat no matter how good the accelerator.

Step 2 ( $f \to 1$ , $s = 8$ ). Now $1 - f \to 0$ : $T_{new} \to 0 + \frac{1}{8} = 0.125, S = \frac{1}{0.125} = 8.$ Why? When everything is accelerated, the global speedup equals the local speedup $s$ — the serial floor vanishes.

Verify: $1/0.40 = 2.5$ ✓ and $1/0.125 = 8$ ✓. Two limits bracket reality: the true speedup for finite $f < 1$ and finite $s$ always sits strictly below both $s$ and $1/ (1 - f)$ . Ex 4's answer $2.105 < min (8, 2.5)$ ✓ — consistent.

Case F & G — Choosing the coupling

Worked example

Ex 6 (cells F & G). For each workload decide tightly-coupled (in-pipeline, register operands) vs loosely-coupled (RoCC coprocessor with its own memory port). (a) A single 64-bit population-count on a register. (b) AES-encrypt a 4 KiB network packet buffer in memory.

Forecast: which one needs its own memory port?

Step 1 — (a) data volume. Operand = one 64-bit register value, result = one register. Why this step? The deciding axis is data volume vs invocation latency (parent's rule).

Step 2 — (a) decision. Fits in registers, one-shot, latency-sensitive → tightly-coupled. Why? Reusing the register read/write ports gives a few-cycle result with near-zero plumbing, versus dispatch overhead that would dominate such a tiny op.

Step 3 — (b) data volume. 4 KiB = 4096 bytes must stream through many rounds of AES. Why? You can't hold a whole packet in the register file (only ~32 registers wide).

Step 4 — (b) decision. Large streaming buffer → loosely-coupled RoCC with DMA: the CPU issues one dispatch, the coprocessor walks memory independently while the CPU continues. Why? Feeding 4 KiB through register-file operands would cost thousands of load/store instructions — the exact overhead a memory-side coprocessor removes.

Verify: Cross-check against Memory-mapped I/O: MMIO would add hundreds of cycles per invocation, so for (a)'s tiny op MMIO is worst; for (b)'s single coarse offload the RoCC's per-invocation cost is amortized over 4096 bytes → acceptable. Decisions are consistent with the "coarse & large → loose, fine & small → tight" heuristic ✓.

Case H — Real-world word problem (profile first)

Worked example

Ex 7 (cell H). An image filter runs at 500 M instructions per frame. Profiling shows a 3×3 convolution kernel is 35% of those instructions and each of its instructions could be replaced by a custom op that does the work in 1/6 the cycles. Everything else is untouched. (i) What overall speedup do you expect? (ii) Would accelerating a different routine that is only 2% of runtime be worth the silicon?

Forecast: guess (i) near 1.4×, and (ii) obviously no…

Step 1. Identify $f = 0.35$ , local speedup $s = 6$ . Why this step? Profiling before designing is the "Profile" of "Profile, Pick, Pack, Plumb, Prove" — you harden only the measured hot kernel.

Step 2. Apply Amdahl: $T_{new} = 0.65 + \frac{0.35}{6} = 0.65 + 0.0583 \overline{3} = 0.70833 \overline{3},$ $S = \frac{1}{0.70833 3} \approx 1.4118.$ Why? Same law as Ex 4 — the un-accelerated 65% sets the floor.

Step 3 — (ii). The 2% routine: best possible overall speedup is $S_{m a x} = \frac{1}{1 - 0.02} = \frac{1}{0.98} \approx 1.0204,$ i.e. at most 2% faster even with infinite hardware. Why? By Amdahl, the upper bound of accelerating a fraction $f$ is $1/ (1 - f)$ . A 2% fraction can never repay verification + silicon area.

Verify: $0.65 + 0.35/6 = 0.708 \overline{3}$ ✓, reciprocal $\approx 1.4118$ ✓, $1/0.98 \approx 1.0204$ ✓. Conclusion: accelerate the convolution (≈1.41× real gain); skip the 2% routine (≤1.02× ceiling) — textbook 80/20 decision.

Case I — Exam trap: unimplemented op & saturating sign

Worked example

Ex 8 (cell I). Two-part trap. (a) A binary compiled with your custom mac runs on a standard RISC-V core that lacks it. What happens — wrong answer, or something else? (b) Your mac uses saturating signed 8-bit accumulation. Compute $r d \leftarrow r d + r s 1 \cdot r s 2$ for $r d = 100$ , $r s 1 = 20$ , $r s 2 = 3$ under signed 8-bit saturation (range $- 128 \dots 127$ ).

Forecast: (a) does NOT silently corrupt; (b) does it wrap to a negative, or clamp?

Step 1 — (a). The core decodes opcode 0001011, finds it unimplemented, and raises an illegal-instruction trap. Why? Reserved custom encodings are guaranteed not to alias a standard op, so the core never silently executes something wrong — it faults, and software can handle it. This kills the "custom instructions break compatibility" myth from the parent note.

Step 2 — (b) raw arithmetic. $r s 1 \cdot r s 2 = 20 \times 3 = 60$ ; then $r d + 60 = 100 + 60 = 160$ . Why this step? Do the true math first, then apply the saturation rule.

Step 3 — (b) saturate. $160 > 127$ (the signed 8-bit max), so clamp to 127, NOT wrap to $160 - 256 = - 96$ . Why? Saturating arithmetic clamps out-of-range results to the nearest representable value; it deliberately avoids the sign-flip wraparound of ordinary two's-complement — the trap is picking $- 96$ .

Verify: $20 \times 3 = 60$ ✓, $100 + 60 = 160$ ✓, clamp $(160, - 128, 127) = 127$ ✓, and the wrong wrap answer would be $- 96$ ✓ (shown so you can spot the trap). Part (a): unimplemented ⇒ trap, never silent corruption ✓.

Case J — Boundary of the opcode space

Worked example

Ex 9 (cell J). A giant accelerator design needs 4100 distinct custom R-type operations. Do the 4 reserved custom slots suffice? If not, by how much do you overflow, and what is one legitimate escape?

Forecast: 4096 vs 4100 — you can already feel it: the four slots fall just short. Guess the overflow count, then a way to buy thousands more ops without spending opcode bits…

Step 1. Capacity of all slots $= 4 \times 1024 = 4096$ (Ex 1). Why this step? This is the hard ceiling of pure R-type custom encodings — you cannot exceed it by cleverness within the R-type format alone.

Step 2. Overflow $= 4100 - 4096 = 4$ operations that cannot fit. Why? Once every $(slot, funct7, funct3)$ triple is used, there is literally no free R-type encoding left; the last 4 requested ops have nowhere to live.

Step 3. Escape route: encode a sub-op selector in an immediate field (use a different instruction format that carries a 12-bit immediate), or dispatch through a RoCC command whose function code is passed in a register — trading one opcode for thousands of coprocessor-side operations. Why? You stop spending scarce opcode bits per operation and instead select the operation with data, which is effectively unlimited: a single 12-bit immediate already names $2^{12} = 4096$ sub-ops behind one opcode.

Verify: $4 \cdot 1024 = 4096 < 4100$ ✓, overflow $= 4$ ✓. Sanity: a single 12-bit immediate alone already encodes $2^{12} = 4096$ sub-ops per instruction, dwarfing the 4-op shortfall ✓ — so the escape is more than sufficient.

Active recall

Recall Which cells did we cover, and can you reproduce one from each family?

Counting (A/B/J): $2^{10}$ per slot, $4096$ total, subtract used, escape via immediate.
Bit-packing (C): funct7|rs2|rs1|funct3|rd|opcode → hex.
Performance (D/E/H): $T = (1 - f) + f / s$ , ceiling $1/ (1 - f)$ .
Architecture (F/G): data volume vs latency → tight or RoCC.
Traps (I): unimplemented ⇒ trap; saturate clamps, not wraps.

Recall Quick self-tests

Encoding budget of one custom slot? ::: $2^{3} \times 2^{7} = 1024$ ops. Overall speedup if $f = 0.6$ , $s = 8$ ? ::: $1/ (0.4 + 0.075) = 1/0.475 \approx 2.11 \times$ . Absolute ceiling when $f = 0.6$ ? ::: $1/ (1 - 0.6) = 2.5 \times$ . Saturating signed-8 of $100 + 20 \cdot 3$ ? ::: clamp $(160) = 127$ , not $- 96$ . A standard core meets your custom op? ::: illegal-instruction trap, never silent wrong result.

Connections

RISC-V base ISA (RV32I / RV64I)
R-type instruction format
Amdahl's Law
Rocket Chip and RoCC coprocessor interface
Memory-mapped I/O
Hardware accelerators vs general-purpose CPUs
Vector / SIMD extensions (RVV)
Domain-specific architectures
Instruction Set Architecture

How many custom R-type ops fit in one opcode slot?

2^{10} = 1024

Hex encoding of mac x5,x6,x7 (custom-0, funct3=000, funct7=0)?

0x0073028B.
