Deep UV (DUV) lithography — Hardware notes

WHAT is DUV lithography?

Why "deep" UV? The UV band is subdivided; "deep UV" refers to the ~200 nm region, well below visible light (400–700 nm) and below near-UV (365 nm "i-line"). Going deeper in the UV means shorter $\lambda$ , which is the key lever for resolution.

WHY does wavelength control resolution? (Derivation from scratch)

The core limit is diffraction. Light passing through/around a mask feature spreads out; two nearby features blur into one if they're too close.

Step 1 — Diffraction sets a minimum resolvable spacing. From wave optics, the smallest half-pitch (minimum feature size) a projection system can resolve is proportional to $\lambda$ and inversely proportional to how steeply the lens can gather diffracted light. Define numerical aperture:

$\text{NA} = n\sin\theta$

Why this step? $\theta$ is the half-angle of the cone of light the lens captures; $n$ is the refractive index of the medium between lens and wafer. A wider cone (bigger $\theta$ ) captures more diffraction orders → sharper image.

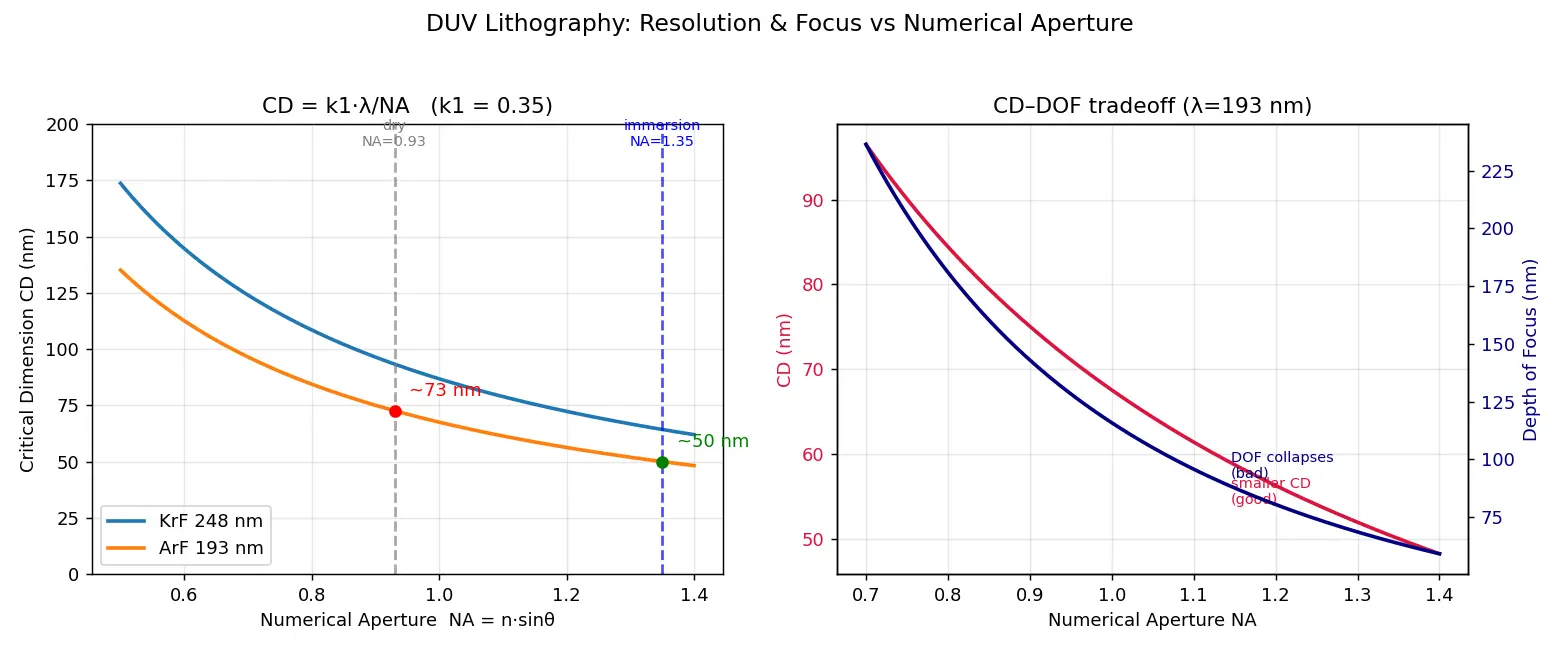

Step 2 — Rayleigh criterion for lithography. Combining the diffraction spreading ( $\propto \lambda$ ) with collection ability ( $\propto \text{NA}$ ), the minimum feature (critical dimension, CD) is:

Step 3 — Depth of focus (the price you pay). Same wave optics give the usable focus range:

HOW to beat the wavelength (three levers):

Lower $\lambda$ : 248 → 193 nm.
Raise NA: better lenses; and immersion — put ==water ( $n=1.44$ )== between lens and wafer so $\text{NA} = n\sin\theta$ can exceed 1 (up to ~1.35). This is 193i (immersion).
Lower $k_1$ : OPC, phase-shift masks, off-axis illumination, and multipatterning (splitting one dense pattern into several exposures).

HOW the exposure works (the excimer laser)

DUV light comes from an excimer laser (excited dimer). A gas mixture (e.g. Ar + F₂) forms a short-lived molecule (ArF*) only in the excited state; when it decays it emits a UV photon and the molecule falls apart — a natural population inversion.

Laser	$\lambda$	Gas	Era
KrF	248 nm	Kr + F₂	~250–130 nm nodes
ArF (dry)	193 nm	Ar + F₂	~90–45 nm
ArF immersion (193i)	193 nm (water)	Ar + F₂	~45 nm → 7 nm (w/ multipatterning)

Worked examples

Common mistakes (steel-manned)

Recall Feynman: explain to a 12-year-old

Imagine spray-painting a design using a stencil. If your spray nozzle makes fat blobs, you can only paint big shapes. To paint teeny-tiny shapes you need a finer spray. In chip-making the "spray" is light, and shorter light = finer spray. DUV uses super-short invisible purple light (193 nm). To go even finer without changing the light, engineers put a drop of water under the lens (it bends the light better) and cleverly print the pattern in two passes so the lines end up half as far apart. That's how a 193-billionths-of-a-meter light draws lines only 20-billionths wide!

Active recall

What two excimer lasers dominate DUV, and their wavelengths?

KrF at 248 nm and ArF at 193 nm.

State the Rayleigh resolution formula for lithography.

\text{CD}=k_1\,\lambda/\text{NA}

Why does shorter wavelength improve resolution?

Diffraction blur scales with

\lambda

; smaller

\lambda

→ smaller minimum resolvable feature (CD

\propto \lambda

What is numerical aperture NA?

\text{NA}=n\sin\theta

, where

\theta

is the half-angle of the light cone the lens captures and

n

the medium's refractive index.

How does immersion lithography (193i) shrink features without changing

\lambda

Water (

n\approx1.44

) between lens and wafer raises NA above 1 (up to ~1.35), so

\text{CD}=k_1\lambda/\text{NA}

falls.

Give the depth-of-focus formula and its key consequence.

\text{DOF}=k_2\,\lambda/\text{NA}^2

; raising NA shrinks DOF quadratically — the CD–DOF tradeoff.

What is the theoretical single-exposure floor for

k_1

0.25.

How does multipatterning (LELE) push below the

k_1=0.25

limit?

Splits a dense pattern into multiple exposures, each within the limit, so effective

k_1

is roughly halved per split.

Energy of a 193 nm photon and why it matters?

~6.4 eV — enough to break resist bonds directly (photochemistry, not heat).

Where does the immersion water actually sit?

A thin film only in the gap between the last lens element and the wafer, moving with the scanner.

DUV vs EUV wavelength?

DUV = 193/248 nm; EUV = 13.5 nm (much shorter, next generation).

Connections

Photolithography — DUV is a specific wavelength regime of it
Photoresist — DUV uses chemically amplified resists (photo-acid generators)
Numerical Aperture and Diffraction — the physics behind resolution
Immersion Lithography — 193i water technique
Multipatterning — LELE / SADP to beat single-exposure limits
EUV Lithography — the 13.5 nm successor to DUV
Optical Proximity Correction and Phase-Shift Mask — lower $k_1$
Semiconductor Node — nodes DUV can reach

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, chip banane mein hum ek chhote se stencil (mask) ke through light daalte hain photoresist par, taaki circuit ka pattern silicon par chhap jaaye. Sabse bada rule ye hai: jitni chhoti wavelength, utne chhote features print kar sakte ho. Isiliye DUV lithography short-wavelength light use karti hai — 248 nm (KrF laser) aur khaas kar 193 nm (ArF laser). Ye deep ultraviolet range hai, visible light se bahut neeche.

Formula yaad rakho: $\text{CD} = k_1 \lambda / \text{NA}$ . Yahan CD matlab smallest feature, $\lambda$ light ki wavelength, NA lens ki light-gathering power ( $n\sin\theta$ ), aur $k_1$ ek process factor hai. Toh feature chhota karne ke teen tareeke: wavelength ghatao (248→193), NA badhao, ya $k_1$ kam karo. NA badhane ka jugaad hai immersion — lens aur wafer ke beech paani ( $n=1.44$ ) daal do, taaki NA 1 se upar (1.35 tak) chala jaaye. Isse bina wavelength badle features ~30% chhote ho jaate hain.

Par ek catch hai: DOF $=k_2\lambda/\text{NA}^2$ . NA badhaoge toh depth of focus square ke hisaab se girta hai — matlab wafer bilkul flat aur resist patla hona chahiye. Ye CD aur DOF ke beech tradeoff hai. Aur jab single exposure ki physical limit ( $k_1=0.25$ ) aa jaati hai, toh engineers multipatterning karte hain — ek pattern ko do-do masks mein todke chhaapte hain, effectively features aur paas le aate hain. Isi jugaad se 193 nm light se log 20 nm tak features bana lete hain — kamaal hai na!
