Sequential logic and always blocks: Worked examples

The scenario matrix

Think of every sequential-logic question as living in one of these boxes. If we work one example from each box, we've covered the whole space.

#	Case-class	What makes it distinct	Covered by
A	Pure capture (D→Q)	one flop, no reset, `<=`	Ex 1
B	Blocking vs non-blocking order	same code, two operators, different hardware	Ex 2
C	Async reset	reset acts between edges	Ex 3
D	Sync reset	reset waits for the edge	Ex 4
E	Enable / hold (degenerate: no change)	edge arrives but value must not update	Ex 5
F	Counter with wrap (limiting value)	max value overflows to zero	Ex 6
G	Combinational trap: inferred latch	missing branch creates memory by accident	Ex 7
H	Real-world word problem	traffic-light / debouncer style timing	Ex 8
I	Exam twist: read-then-write in same block	`<=` self-reference confuses beginners	Ex 9

The two axes underneath this table are: (1) does time matter? (async vs sync vs pure-comb) and (2) does update order matter? (= vs <=). Every row is one combination of those two questions.

Reading a timing diagram (build the picture first)

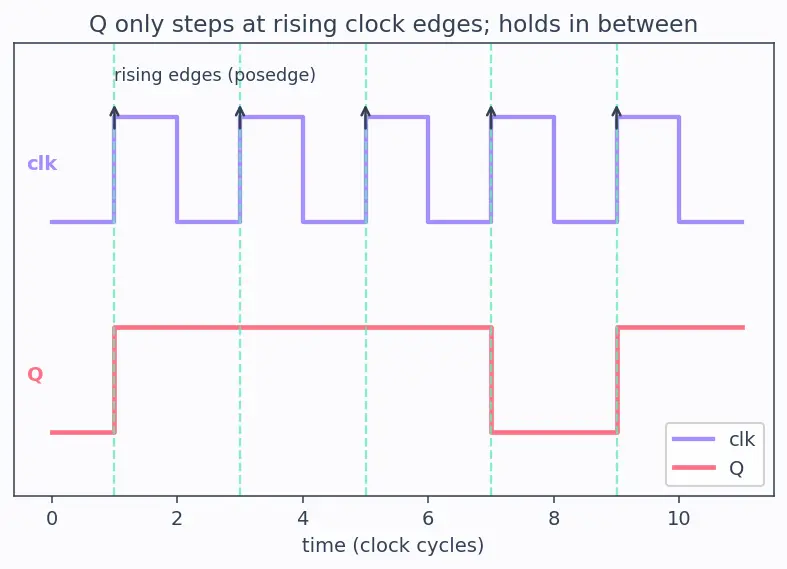

Before any example, here is the one picture everything below refers to. We draw the clock as a square wave, mark its rising edges (the $0 \to 1$ jumps), and show that a flip-flop's output Q only steps at those rising edges.

Figure — Sequential logic and always blocks

Ex 1 — Case A: pure D→Q capture

Worked example One flip-flop, no reset

always @(posedge clk)
  q <= d;

d is 0,1,1,0,1 on the cycles just before edges 1–5. What is q after each edge?

Forecast: guess the sequence of q values before reading on.

At edge 1, sample the value d held before the edge: d=0, so q←0. Why this step? The flop captures the input as it stood an instant before the clock ticked — that's the definition of "sample at the edge."
At edge 2, d=1 → q←1.
At edge 3, d=1 → q←1.
At edge 4, d=0 → q←0.
At edge 5, d=1 → q←1. Why the same rule every time? One flop = one identical event handler; nothing about it changes between cycles.

Verify: q sequence is 0,1,1,0,1 — an exact copy of d delayed by one cycle. A single D flop always produces its input delayed by one clock. See the D flip-flops and latches note for the gate-level why.

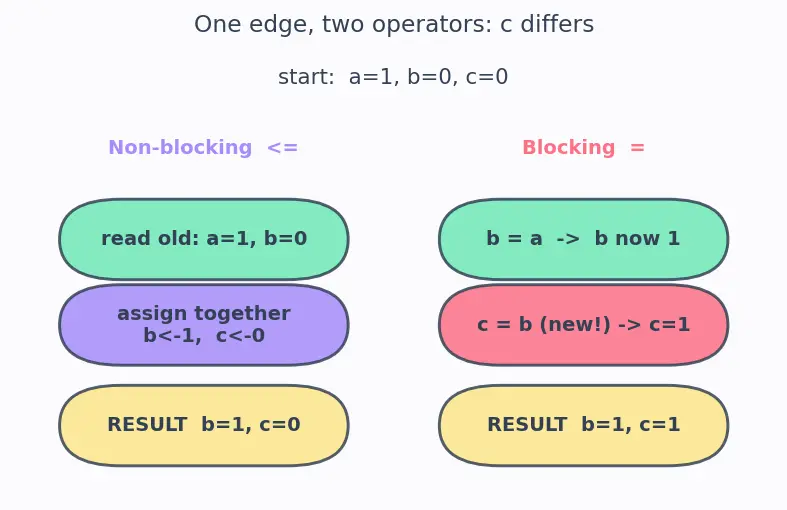

Ex 2 — Case B: the operator changes the hardware

Worked example Same three lines, two meanings

Initial state: a=1, b=0, c=0. On one clock edge, compare:

// Version NB (non-blocking)      // Version B (blocking)
b <= a;                           b = a;
c <= b;                           c = b;

After one edge, what are b and c in each version?

Forecast: are the two versions equal? (Most people wrongly say yes.)

Version NB — evaluate all RHS first using old values: RHS of line 1 is old a=1; RHS of line 2 is old b=0. Why this step? Non-blocking <= freezes every right-hand side at the pre-edge values, then assigns together — modelling a rank of flops clocking at the same instant.
Now assign: b←1, c←0. Result NB: b=1, c=0.
Version B — execute in order like software. Line 1: b = a → b becomes 1 immediately. Why this step? Blocking = completes before the next line runs, so later lines see the new value.
Line 2: c = b, but b is already 1 → c becomes 1. Result B: b=1, c=1.

Verify: NB gives c=0 (the old b), B gives c=1 (the new b). They differ — proving the operator is not cosmetic. See Blocking vs non-blocking assignments for the general rule.

Ex 3 — Case C: asynchronous reset acting between edges

Worked example Reset that does not wait

always @(posedge clk or posedge rst) begin
  if (rst) q <= 1'b0;
  else     q <= d;
end

Timeline: q=1. Then rst rises in the middle of a clock-high phase, far from any edge, and d=1 throughout. When does q become 0?

Forecast: at the next clock edge, or immediately?

rst is in the sensitivity list, so its rising edge itself wakes the block. Why this step? posedge rst is a trigger event just like posedge clk. The block does not care that no clock edge happened.
Inside, if (rst) is true → q ← 0 immediately, mid-cycle. Why check rst first? Priority: reset must dominate normal capture.
While rst stays high, any later clock edge also enters the block, still sees rst=1, and keeps q=0.

Verify: q drops to 0 at the moment rst rises — not at a clock edge. That is the whole point of asynchronous. Compare with Ex 4.

Ex 4 — Case D: synchronous reset waits for the edge

Worked example Same intent,

rst NOT in the list

always @(posedge clk) begin      // rst not in sensitivity list
  if (rst) q <= 1'b0;
  else     q <= d;
end

Same timeline as Ex 3: q=1, rst rises mid-cycle, d=1. When does q become 0?

Forecast: compare your answer to Ex 3.

The only trigger is posedge clk. rst rising mid-cycle does nothing — the block is asleep. Why this step? A signal not in the sensitivity list cannot wake the block; it is only read when the block is already running.
At the next rising clock edge, the block runs, sees rst=1, and sets q ← 0. Why the delay? The reset only "takes" when sampled by the clock — that's synchronous.

Verify: async (Ex 3) → q=0 mid-cycle; sync (Ex 4) → q=0 only at the next edge. Same source lines minus one word in the sensitivity list = different real hardware and different timing per Clocking and timing constraints.

Ex 5 — Case E (degenerate): enable holds the value

Worked example Edge arrives but nothing must change

always @(posedge clk)
  if (en) q <= d;      // no else!

Here no else is intentional. q=1. Clock edges arrive with en=0 on edges 1–2, then en=1, d=0 on edge 3.

Forecast: does the missing else create a latch here like it would in @(*)?

Edges 1–2, en=0: the if is false, no assignment runs, q holds at 1. Why this step? In a clocked block, "no assignment this edge" means the flip-flop simply keeps its stored value — that is normal, correct memory, not an inferred latch.
Edge 3, en=1, d=0: q ← 0. Why no latch bug here (unlike Ex 7)? An inferred latch is a bug only in combinational always @(*). In an edge-triggered block the flop already is the memory, so holding is expected.

Verify: q sequence over edges 1,2,3 = 1,1,0. The degenerate "do nothing" case is legal and desirable for clock-enabled registers.

Ex 6 — Case F (limiting value): counter that wraps

Worked example 3-bit up-counter, overflow behaviour

always @(posedge clk)
  count <= count + 1;   // count is 3 bits: 0..7

Start count=6. Trace the next four edges. What happens at the top?

Forecast: what comes after 7 in a 3-bit register?

Edge 1: 6 + 1 = 7. Fits in 3 bits ( $7 = 11 1_{2}$ ). count←7. Why 3 bits matters? A 3-bit register can only hold $0$ to $2^{3} - 1 = 7$ .
Edge 2: 7 + 1 = 8 = 1000_2, but only 3 bits are kept → the top bit is dropped → 000_2 = 0. count←0. Why does it wrap? Fixed-width binary addition discards the carry-out; $8 mod 8 = 0$ . This is the limiting/overflow case.
Edge 3: 0 + 1 = 1. Edge 4: 1 + 1 = 2. Why does counting resume normally? Nothing special happened at wrap — it's just modular arithmetic.

Verify: sequence 6 → 7 → 0 → 1 → 2. In general an $n$ -bit counter follows $count_{next} = (count + 1) mod 2^{n}$ , here $2^{3} = 8$ .

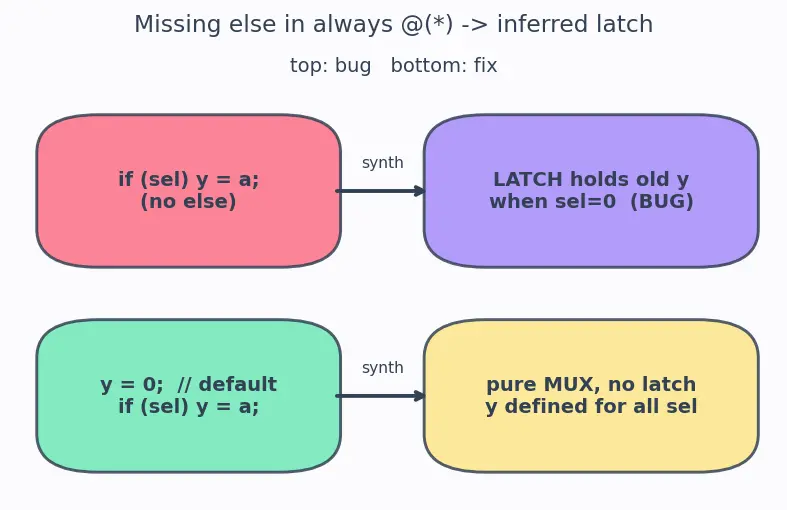

Ex 7 — Case G: the inferred-latch trap

Worked example Combinational block missing a branch

always @(*) begin
  if (sel) y = a;      // no else — y unassigned when sel=0
end

sel goes 1 → 0, with a=1 then some new a. What does the synthesizer build, and why is it a bug?

Forecast: what is y when sel=0?

When sel=1: y = a, fine, purely combinational.
When sel=0: the code assigns nothing to y. But @(*) promises a pure function of inputs — so the tool must give y some value. Why this step? To "remember" the last y when sel=0, the synthesizer inserts a latch — a level-sensitive memory element you never asked for.
This latch is a bug: it holds stale data, is hard to time, and often mismatches simulation. Why not in Ex 5? Ex 5 was @(posedge clk) — an edge-triggered flop already provides intended memory. This is @(*), where memory is never wanted.

Verify (the fix): add a default y = 0; at the top, or an else y = b;. Then y is defined for every sel, no latch. See Combinational logic and assign statements and D flip-flops and latches.

Ex 8 — Case H: real-world word problem (pedestrian button)

Worked example Latching a button press across cycles

A crossing button btn is pressed for one clock cycle. The controller must remember the request (req) until the walk light services it (serviced). Design and trace it.

always @(posedge clk or posedge rst) begin
  if (rst)            req <= 1'b0;
  else if (btn)       req <= 1'b1;   // capture press
  else if (serviced)  req <= 1'b0;   // clear once handled
  // else: hold (no assignment) — legitimate register hold
end

Trace: edge1 btn=1; edge2 btn=0; edge3 btn=0; edge4 serviced=1. Assume rst=0 after start.

Forecast: on which edge does req go back to 0?

Edge 1, btn=1: priority chain — rst false, btn true → req ← 1. Why priority order? if/else if builds a fixed priority: reset beats capture beats clear.
Edge 2 & 3, btn=0, serviced=0: none of the branches fire → req holds at 1. Why holding is correct here? This is the enable-hold pattern (Case E): the flop keeps the pending request until serviced.
Edge 4, serviced=1: third branch fires → req ← 0.

Verify: req over edges 1–4 = 1,1,1,0. The request survives the one-cycle press and clears exactly when serviced — the memory behaviour we needed. This is a tiny FSM-style latch of intent.

Ex 9 — Case I (exam twist): self-referencing non-blocking

Worked example

q <= q + something in one block

always @(posedge clk) begin
  a <= b + 1;
  b <= a + 1;
end

Start a=2, b=5. After one edge, find a and b. (The trap: people plug in updated values.)

Forecast: guess a and b.

Freeze all RHS at old values (non-blocking rule): old a=2, old b=5. Why this step? <= reads every right side before any left side changes — same rule as Ex 2, now with mutual references.
Compute: RHS of line 1 = b+1 = 6; RHS of line 2 = a+1 = 3. Why not use the new a? Because line 2's a is still the old 2 — the assignment to a hasn't "landed" yet.
Assign together: a←6, b←3.

Verify: a=6, b=3 after one edge. The naive blocking-style guess (a=6 then b = 6+1 = 7) is wrong; the two flops swap-ish because they read the pre-edge snapshot. This is exactly why clocked logic uses <=.

Coverage check

Every matrix cell A–I now has a worked example. Re-map yourself:

Recall Which example covered which cell?

A pure capture ::: Ex 1 B blocking vs non-blocking ::: Ex 2 C async reset ::: Ex 3 D sync reset ::: Ex 4 E enable/hold degenerate ::: Ex 5 F counter wrap (limiting) ::: Ex 6 G inferred latch trap ::: Ex 7 H real-world word problem ::: Ex 8 I exam twist self-reference ::: Ex 9
