Body effect and substrate bias

1,857 words8 min readdifficulty · medium1 backlinks

WHAT is the body effect?

The controlling quantity is VSBV_{SB} (for an nMOS, source-to-bulk). The parameter that sets how strongly VTV_T responds is the body-effect coefficient γ\gamma (gamma).


WHY does it happen? (first-principles story)

The gate charge QGQ_G must balance two things inside the semiconductor:

  1. the inversion charge QinvQ_{inv} — the actual channel electrons we want, and
  2. the depletion charge QdepQ_{dep} — the immobile ionised acceptor ions in the depleted region below the channel.

QG=Qinv+QdepQ_G = Q_{inv} + Q_{dep}

To turn on the transistor we need enough gate voltage to (a) create the depletion region and (b) then invert the surface. So threshold is roughly

VT=VFB+2ϕF+QdepCoxV_T = V_{FB} + 2\phi_F + \frac{Q_{dep}}{C_{ox}}

where VFBV_{FB} is flat-band voltage, 2ϕF2\phi_F is the surface potential needed for strong inversion, and Qdep/CoxQ_{dep}/C_{ox} is the gate voltage "used up" supporting the depletion charge.


HOW do we derive the depletion charge?

Why this step? Poisson's equation d2ψdx2=ρε\dfrac{d^2\psi}{dx^2}=-\dfrac{\rho}{\varepsilon} with a constant charge density ρ=qNA\rho=-qN_A integrates twice to a parabola; evaluating from the edge to the surface pins ψW2\psi \propto W^2. Inverting for WW and multiplying by qNAqN_A gives the square-root law — depletion charge grows only as ψ\sqrt{\psi}, not linearly.

Now the band bending needed at threshold. With no back-bias the surface must bend by 2ϕF2\phi_F. With a reverse source-body bias VSBV_{SB}, the total potential the depletion region must sustain is 2ϕF+VSB2\phi_F + V_{SB}:

Qdep(VSB)=2qεsiNA(2ϕF+VSB)Q_{dep}(V_{SB}) = \sqrt{2\,q\,\varepsilon_{si}\,N_A\,(2\phi_F+V_{SB})}

Plug into VTV_T and split the increase from the VSB=0V_{SB}=0 baseline:

Why the subtraction of 2ϕF\sqrt{2\phi_F}? Because VT0V_{T0} (threshold at VSB=0V_{SB}=0) already includes the depletion charge for band bending 2ϕF2\phi_F. We only add the extra charge caused by the back-bias, so we subtract the baseline term. Otherwise we'd double-count.

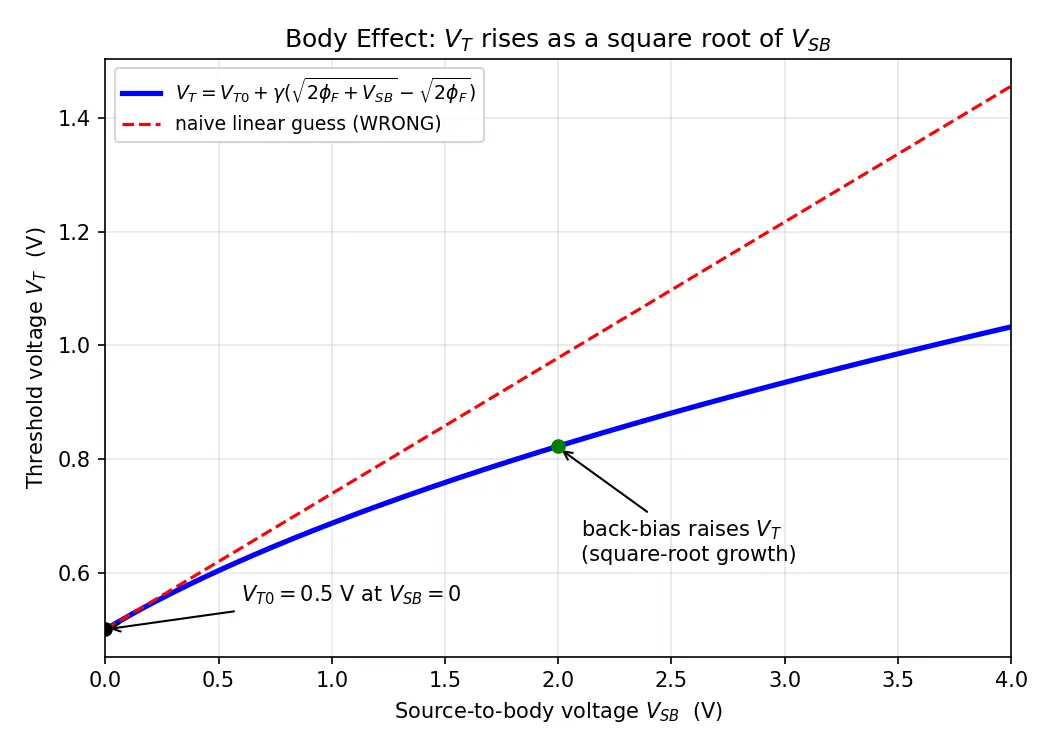

Figure — Body effect and substrate bias

Worked examples


Common mistakes


Active recall

Recall Explain to a 12-year-old (Feynman)

Imagine the channel is a tiny water pipe and the gate is a hand pressing to open it. Below the pipe there is soft mud (mobile carriers). If you suck the source higher than the ground (that's the back-bias), you pull the soft mud away and expose hard, dry, stuck rocks (the fixed ions). Now your hand (the gate) has to push harder just to clear the rocks before it can even start opening the pipe. So the "minimum push to turn on" — the threshold — goes up. And because clearing rocks gets easier per extra scoop, the extra push grows like a square root, not a straight line.

Flashcards

What is the body effect?
The dependence of MOSFET threshold voltage VTV_T on source-to-body voltage VSBV_{SB}; reverse bias widens depletion, raising VTV_T.
Give the body-effect threshold equation.
VT=VT0+γ(2ϕF+VSB2ϕF)V_T=V_{T0}+\gamma(\sqrt{2\phi_F+V_{SB}}-\sqrt{2\phi_F}).
Define the body-effect coefficient γ\gamma.
γ=2qεsiNA/Cox\gamma=\sqrt{2q\varepsilon_{si}N_A}/C_{ox}, units V\sqrt{V}.
Why does VTV_T increase with VSBV_{SB}?
Reverse bias widens the depletion region, exposing more fixed acceptor ions, so QdepQ_{dep} grows and more gate voltage is needed.
Is the VTV_TVSBV_{SB} relation linear?
No — square-root, because Qdep2ϕF+VSBQ_{dep}\propto\sqrt{2\phi_F+V_{SB}} from Poisson's equation.
Why does high channel doping NAN_A increase γ\gamma?
More ionised acceptors per volume means more depletion charge per unit band bending, so VTV_T responds more strongly.
Why does thick oxide increase γ\gamma?
Cox=εox/toxC_{ox}=\varepsilon_{ox}/t_{ox} shrinks, so each unit of depletion charge costs more gate voltage.
Why do stacked (series) transistors suffer body effect?
Upper devices have source lifted above ground, giving VSB>0V_{SB}>0, raising their VTV_T and reducing drive current.
Derive QdepQ_{dep} vs band bending ψ\psi.
Poisson gives ψ=qNAW2/2εsi\psi=qN_AW^2/2\varepsilon_{si}, so W=2εsiψ/qNAW=\sqrt{2\varepsilon_{si}\psi/qN_A} and Qdep=qNAW=2qεsiNAψQ_{dep}=qN_AW=\sqrt{2q\varepsilon_{si}N_A\psi}.
Why subtract 2ϕF\sqrt{2\phi_F} in the formula?
Because VT0V_{T0} already includes depletion charge for band bending 2ϕF2\phi_F; we add only the extra caused by back-bias.

Connections

  • MOSFET threshold voltage — body effect modifies VT0V_{T0}.
  • Depletion region and Poisson's equation — source of the √ law.
  • Oxide capacitance Cox — sets the γ\gamma scale.
  • CMOS NAND gate delay — practical impact via series stacks.
  • Channel-length modulation — another "VTV_T/current is not constant" effect.
  • Flat-band voltage and work function — the VFBV_{FB} term in VTV_T.

Concept Map

widens

exposes

derived from Poisson eqn

feeds

adds Qdep/Cox to

rises with VSB

sets strength of

splits into

splits into

channel electrons for

acts as second gate

Source-to-body voltage VSB

Depletion region

Depletion charge Qdep

Qdep = sqrt 2q eps NA psi

Band bending psi = 2phiF + VSB

Threshold voltage VT

Body effect

Body-effect coeff gamma

Gate charge QG

Inversion charge Qinv

Substrate as back-gate

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, MOSFET ka threshold voltage VTV_T koi fixed constant nahi hai. Jab hum source ko body (substrate) ke comparison mein upar utha dete hain — matlab VSB>0V_{SB}>0 (reverse bias) — tab channel ke neeche jo depletion region hoti hai wo wide ho jaati hai. Zyada depletion region ka matlab zyada fixed ionised acceptor ions expose ho gaye. Ab gate ko pehle in ions ko "support" karna padta hai, tabhi channel invert hoga. Isliye transistor ko ON karne ke liye zyada gate voltage chahiye — yaani VTV_T badh jaata hai. Isi ko body effect kehte hain.

Formula yaad rakho: VT=VT0+γ(2ϕF+VSB2ϕF)V_T = V_{T0} + \gamma(\sqrt{2\phi_F + V_{SB}} - \sqrt{2\phi_F}). Yahan γ\gamma (gamma) body-effect coefficient hai, aur wo depend karta hai channel doping NAN_A aur oxide capacitance CoxC_{ox} par: γ=2qεsiNA/Cox\gamma = \sqrt{2q\varepsilon_{si}N_A}/C_{ox}. High doping ya thick oxide ho to γ\gamma bada — matlab body effect strong. Sabse important baat: yeh relation linear nahi, square-root hai. Poisson equation se depletion charge ψ\sqrt{\psi} ke saath badhta hai, isliye shuru mein VTV_T tezi se badhta hai phir dheere.

Ye matter kyun karta hai? Real circuits mein, jaise NAND gate ke andar series-connected transistors, upar wale transistor ka source ground se upar chala jaata hai, to uska VSB>0V_{SB}>0 ho jaata hai. Body effect uska VTV_T badha deta hai, overdrive (VGSVT)(V_{GS}-V_T) kam ho jaata hai, current girta hai, gate slow ho jaata hai. Isiliye VLSI designers body effect ko kabhi ignore nahi kar sakte. Bas mantra yaad rakho: "Source up, threshold up — by a root."
