2.2.2Doping & PN Junctions

P-type doping with acceptor atoms (boron)

1,859 words8 min readdifficulty · medium1 backlinks

WHAT is happening?

WHY "acceptor"? Because that empty bond will happily accept an electron from a neighbouring bond. When it does, the hole simply moves to where that electron came from — so charge conduction = holes hopping.


HOW does boron create a mobile hole?

Silicon has 4 valence electrons, forming 4 covalent bonds with neighbours. Boron has 3.

  1. Boron replaces one Si atom. It bonds with 3 neighbours using its 3 electrons.
  2. The 4th neighbouring Si still offers an electron for a bond, but boron has no electron to complete it → one incomplete bond = one hole.
  3. Very little energy (an acceptor level just above the valence band) lets a valence electron jump in to fill boron's bond. Boron becomes a fixed negative ion (BB^-), and a free hole is left in the valence band.

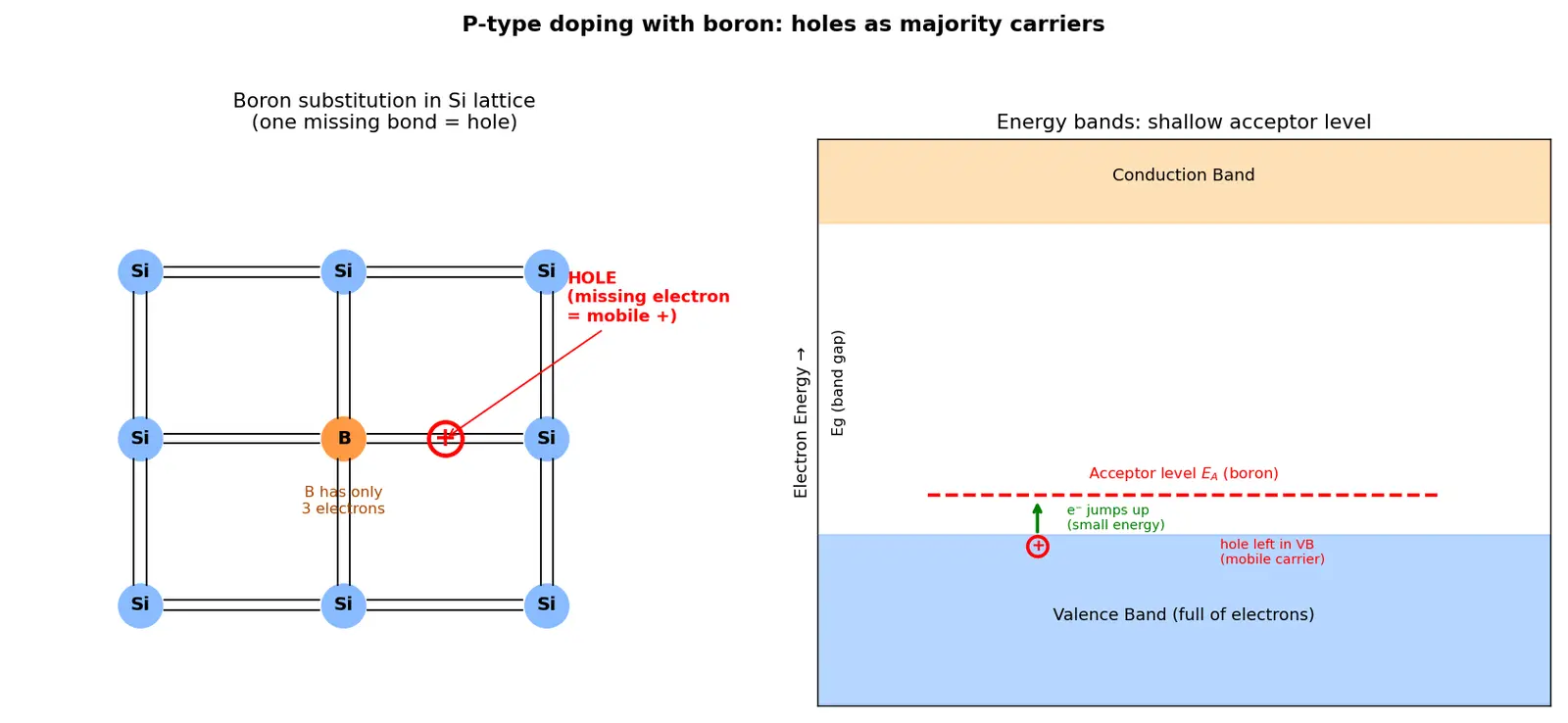

Figure — P-type doping with acceptor atoms (boron)

DERIVATION: carrier concentrations from first principles

Now impose charge neutrality. The crystal has no net charge, so: pholes+ND+ionized donors=nelectrons+NAionized acceptors\underbrace{p}_{\text{holes}} + \underbrace{N_D^+}_{\text{ionized donors}} = \underbrace{n}_{\text{electrons}} + \underbrace{N_A^-}_{\text{ionized acceptors}}

For pure p-type doping, ND=0N_D = 0 and at room temperature all acceptors are ionized (NANAN_A^- \approx N_A): p=n+NAp = n + N_A

Substitute n=ni2/pn = n_i^2/p: p=ni2p+NA    p2NApni2=0p = \frac{n_i^2}{p} + N_A \;\Rightarrow\; p^2 - N_A\,p - n_i^2 = 0

Solve the quadratic (take positive root, since p>0p>0): p=NA+NA2+4ni22\boxed{\,p = \frac{N_A + \sqrt{N_A^2 + 4n_i^2}}{2}\,}


Worked Examples


Common Mistakes (Steel-manned)


Recall Feynman: explain to a 12-year-old

Imagine a full parking lot where every car (electron) is parked and can't move — that's pure silicon, no traffic. Now put in a special spot that's designed for a car but left empty (that's boron). A neighbouring car slides into the empty spot, but now its old spot is empty. The empty spot keeps moving around the lot — and moving an empty spot to the left is the same as a "positive nothing" moving to the right. That travelling empty spot is a hole, and it lets electricity flow. Boron's whole job is to create these travelling empty spots.


Active Recall

How many valence electrons does boron have vs silicon?
Boron 3, silicon 4 — one fewer, so it creates a hole.
What is a hole?
A missing electron in a covalent bond that behaves as a mobile positive charge.
In p-type material, which are the majority carriers?
Holes (electrons are minority carriers).
Why is a p-type crystal electrically neutral?
Each mobile positive hole is balanced by a fixed negative acceptor ion (BB^-).
State the mass-action law.
np=ni2n\,p = n_i^2 at thermal equilibrium.
Write the charge-neutrality equation for p-type silicon.
p=n+NAp = n + N_A^- (with ND=0N_D=0).
Full expression for hole concentration?
p=12(NA+NA2+4ni2)p = \tfrac{1}{2}\left(N_A + \sqrt{N_A^2 + 4n_i^2}\right).
Approximate pp and nn when NAniN_A \gg n_i?
pNAp \approx N_A, nni2/NAn \approx n_i^2/N_A.
Why is boron called an "acceptor"?
Its empty bond accepts an electron from a neighbour, becoming BB^- and releasing a mobile hole.
When does p=NAp = N_A break down?
When NAN_A is comparable to nin_i, or at low T when acceptors freeze out (not fully ionized).
Formula for conductivity of p-type Si?
σqpμp\sigma \approx q\,p\,\mu_p (holes dominate).

Connections

  • Intrinsic Semiconductors — baseline n=p=nin=p=n_i before doping.
  • N-type doping with donor atoms (phosphorus) — the mirror image; Group V, extra electron.
  • PN Junction Formation — p-type meets n-type; holes diffuse across.
  • Mass-Action Law and Carrier Statistics — source of np=ni2np=n_i^2.
  • Fermi Level in Doped SemiconductorsEFE_F shifts toward the valence band in p-type.
  • Drift and Diffusion Currents — how holes actually carry current.

Concept Map

substituted by

leaves incomplete bond

electron jumps in

releases

acts as mobile positive charge

defines

fixed minus cancels mobile plus

combined with

assume NA ionized, ND=0

substitute n=ni^2/p

Pure silicon 4 valence e-

Boron 3 valence e-

Hole missing bond

Acceptor level near valence band

Fixed B minus ion

P-type semiconductor

Holes majority carriers

Mass-action n p = ni^2

Charge neutrality

p = n + NA

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, pure silicon me har electron apne bond me phasa hota hai, isliye current nahi behta. Ab hum ek chota sa trick karte hain: silicon me boron milate hain. Boron ke paas sirf 3 valence electrons hote hain, silicon ke 4 ke muqable ek kam. Isliye jab boron lattice me baithta hai, uska ek bond adhoora reh jaata hai — yahi khaali jagah ko hum hole kehte hain. Ye hole ek positive mobile charge ki tarah behave karta hai, aur crystal me ghoomta hai. Isi wajah se material p-type ban jaata hai (p = positive-jaisa carrier).

Ab dhyaan do: hole positive hai, par pura crystal neutral rehta hai. Kyunki jaise hi boron neighbour se electron leta hai (isliye naam "acceptor"), boron khud fixed negative ion BB^- ban jaata hai. To mobile positive hole + fixed negative boron = net charge zero. Sirf conduction positive-type dikhta hai. Ye confusion bahut students ko hoti hai, to yaad rakho — charge neutral, carriers positive.

Number nikalne ke liye do rules kaafi hain: mass-action law np=ni2n\,p = n_i^2 aur charge neutrality p=n+NAp = n + N_A. Inko solve karo to p=NA+NA2+4ni22p = \frac{N_A + \sqrt{N_A^2 + 4n_i^2}}{2} milta hai. Real me NAN_A (1016\sim10^{16}) hamesha nin_i (1.5×1010\sim1.5\times10^{10}) se bahut bada hota hai, to seedha bol sakte ho pNAp \approx N_A aur nni2/NAn \approx n_i^2/N_A. Matlab holes majority, electrons minority. Bas ek jagah savdhan raho — agar doping intrinsic ke kareeb ho ya temperature bahut kam ho, tab poora quadratic use karna padta hai.

Mnemonic yaad rakho: "Boron Borrows" — boron electron borrow/accept karta hai aur peeche hole chhod deta hai. Group III → p-type. Yahi core idea hai jo aage PN junction samajhne me kaam aayega.
