Which has the larger bandgap, Si or Ge, and by how much?
Silicon (~1.12 eV) vs Germanium (~0.66 eV); Si is larger by 0.46 eV.
Why does a larger bandgap reduce OFF-state leakage? ::: Fewer electrons have enough thermal energy to jump the gap, so fewer thermally-generated intrinsic carriers → less leakage current.
What is the temperature-dependence of intrinsic carrier concentration? ::: ni∝T3/2e−Eg/2kBT.
Why is there a factor of 2 in e−Eg/2kBT? ::: Because ni=np and the pair product np∝e−Eg/kBT; the square root halves the exponent.
What is the single most decisive process advantage of silicon? ::: Its stable, insulating native oxide SiO₂ (whereas GeO₂ is water-soluble and unstable).
Give one area where germanium still beats silicon. ::: Higher carrier mobility (faster switching, used in SiGe RF) or better infrared/fiber-optic photodetection.
Roughly how many more intrinsic carriers does Ge have than Si at 300 K? ::: About 3–4 orders of magnitude more (1013 vs 1010 cm⁻³).
Why does higher Eg raise the maximum operating temperature?
Intrinsic carriers rise more slowly with T, so they overwhelm the dopants only at a higher temperature.
What material was the first transistor made of, and what replaced it?
Germanium (1947); silicon replaced it due to oxide and thermal stability.
Recall Feynman: explain it to a 12-year-old
Imagine two gates guarding a field of free-roaming electrons. Silicon's gate is TALL, germanium's gate is SHORT. Heat is like kids trying to jump over. Over the short gate, lots of kids sneak through even when you don't want them to — that's leakage, and it makes germanium chips overheat and misbehave. The tall silicon gate keeps things quiet until you choose to let electrons through. Bonus: when you leave silicon out in the air, it grows its own perfect glassy raincoat (SiO₂) that we use to build the tiny switches. Germanium's raincoat dissolves in water. Plus silicon is basically sand — dirt cheap. Taller gate + free raincoat + cheap = silicon wins.

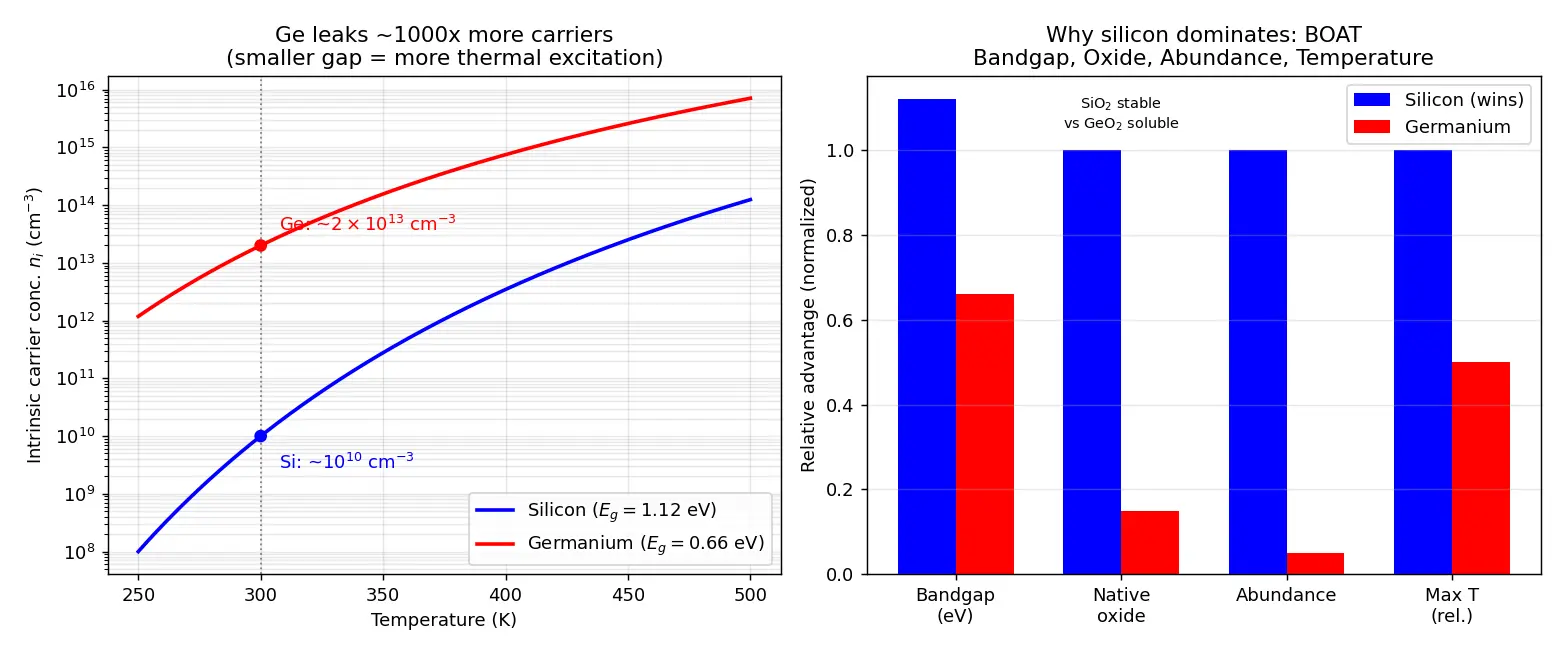

Dekho, Silicon aur Germanium dono group-IV semiconductor hain, dono ke paas 4 valence electrons hote hain, dono ko dope karke transistor bana sakte ho. Phir bhi poori industry silicon pe standardize kyu hui? Sabse bada reason hai bandgap. Silicon ka gap ~1.12 eV hai, Germanium ka sirf ~0.66 eV. Bandgap matlab electron ko free hone ke liye kitni energy chahiye. Chota gap matlab room temperature ki garmi se hi bahut saare electron upar jump kar jaate hain — yeh leakage current hai. Formula ni∝e−Eg/2kBT bolta hai ki Germanium mein silicon se hazaaron guna zyada intrinsic carriers hote hain. Isliye Ge transistor garam hote hi (70-100°C) kaam karna band kar dete hain, jabki silicon 150°C tak chill rehta hai.
Doosra killer reason hai oxide. Chip banane ke liye insulation, masking, aur MOSFET gate chahiye. Silicon ko oxygen mein garam karo toh apne aap ek strong, stable glass SiO₂ ban jaata hai — yeh poore planar process aur har MOSFET gate ki neev hai. Germanium ka oxide GeO₂ paani mein ghul jaata hai (soluble!) aur unstable hai. Iske bina mass-produced IC banana practically impossible hai. Ismein silicon ko nature ka ek jackpot mila.
Teesra aur chautha: silicon basically ret (sand) hai — Earth crust ka 28%, sasta aur asaani se purify hota hai. Germanium trace element hai, mehenga. Aur bada bandgap matlab zyada temperature tolerance. Yaad rakhne ke liye BOAT: Bandgap, Oxide, Abundance, Temperature.
Ek important baat — Germanium bekaar nahi hai. Uski electron mobility zyada hai (isliye SiGe high-frequency RF transistors mein use hota hai) aur infrared/fiber-optic photodetectors mein bhi. Pehla transistor (1947) bhi Germanium ka tha! Lekin real chips mein speed se zyada important hai leakage, heat, aur manufacturability — aur wahaan silicon jeet jaata hai.
