Before you can read $V_{o u t} = V_{in} \frac{R _{2}}{R _{1} + R _{2}}$ , you need to know what each of those marks means as a picture. Let's earn them one at a time, in the order they build on each other.

1. Voltage — the "push"

The picture. Think of a hill. Water at the top has a lot of "wanting to fall"; water at the bottom has none. Voltage is exactly that height difference. It is always measured between two points — the top of the hill relative to the bottom. A single point alone has no voltage, just like a single spot has no "height difference" until you name a reference floor.

Why the topic needs it. The whole divider is about one push, $V_{in}$ , getting split into a smaller push, $V_{o u t}$ . Without the idea of "push measured between two points," the word divider means nothing.

Figure — Build and analyze a voltage divider

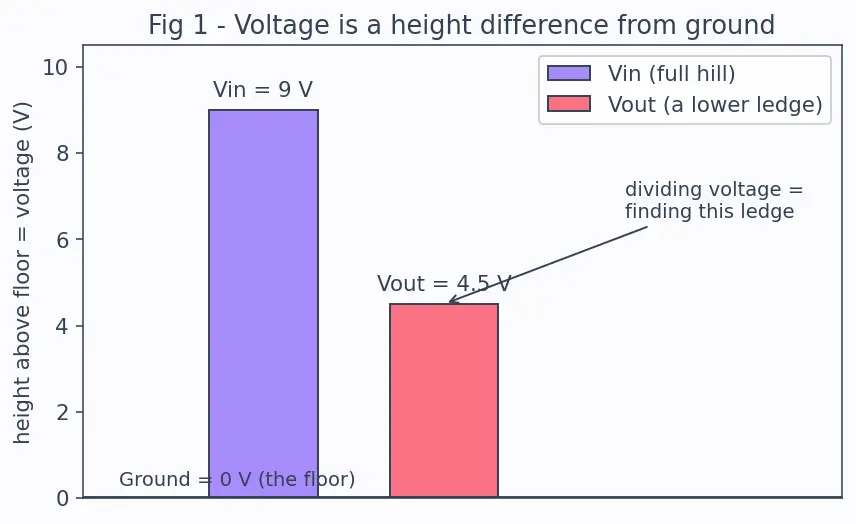

Look at figure 1: the tall lavender bar is $V_{in}$ (the full hill), the short coral bar is $V_{o u t}$ (a lower ledge partway down). "Dividing voltage" means finding that ledge.

2. Ground — the reference floor (voltage's zero)

The picture. Height only makes sense if you pick "sea level." Ground is the electrical sea level: the bottom of the hill. Whenever you see that shrinking stack of three horizontal lines on a circuit drawing, read it as "this node is the 0 V floor." Every " $V_{o u t} =$ something volts" secretly means "that many volts above ground."

Why the topic needs it. $V_{o u t}$ is one number, but a voltage needs two points (Section 1). Ground supplies the second point silently, so we can say " $V_{o u t} = 4.5$ V" instead of " $V_{o u t}$ between the middle joint and the floor $= 4.5$ V."

3. Current $I$ — the flow (and its arrow)

The picture. Back to water: voltage is the height/push, current is how much water actually flows per second through the pipe. Big push through a wide pipe → lots of flow.

Which way does the arrow point? By universal convention the current arrow points out of the + terminal of the source, through the circuit, and back to the – terminal — i.e. from high voltage toward low voltage, "downhill." In the divider that means straight down: in at the top ( $V_{in}$ ), through $R_{1}$ , through $R_{2}$ , into ground. The butter-coloured arrow in figure 3 shows this one direction, and because the resistors are in one line, that same arrow (same $I$ ) passes through both.

Why the topic needs it. Ohm's Law and KVL both need a fixed direction to be consistent — you can't say "voltage drops as current flows through" until you've committed to which way the current flows. See Ohm's Law.

4. Resistance $R$ — the "narrowness" (and the names $R_{1}, R_{2}$ )

The picture. A narrow, gravelly pipe resists water; a wide smooth one lets it gush. A resistor is a deliberately "narrow" spot. The symbol looks like a little zigzag box in circuit drawings.

Why the topic needs it. The two resistors $R_{1}$ and $R_{2}$ are the whole show — they're what the voltage gets divided between. The subscripts $1$ and $2$ are just name tags: "resistor number one" (the top one) and "resistor number two" (the bottom one, next to ground), nothing mathematical.

5. Ohm's Law — the bridge between push, flow, and narrowness

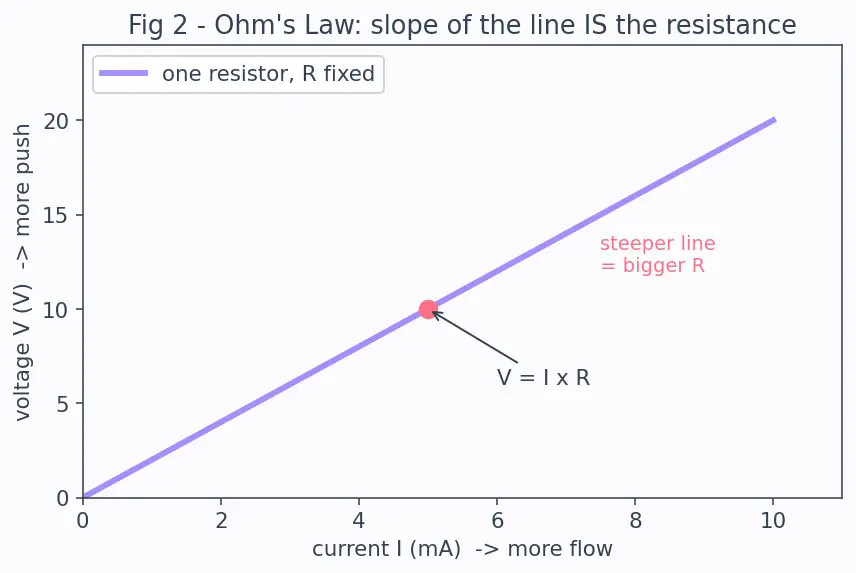

The picture. For a fixed pipe (fixed $R$ ), pushing harder (bigger $V$ ) makes more water flow (bigger $I$ ). For a fixed push, a narrower pipe (bigger $R$ ) throttles the flow (smaller $I$ ). Figure 2 shows this as a straight line: $V$ on the up-axis, $I$ on the across-axis, and the steepness of the line is the resistance.

Polarity — where the + and – go. When current $I$ flows into one end of a resistor and out the other, the end it enters is the more-positive end (+) and the end it leaves is the less-positive end (–). The voltage $V = I R$ is that + minus – difference — the "drop" across the resistor. So the sign of a voltage always rides on which end you call + and which you call –; flip the arrow and the sign flips. This is the rule we lean on in KVL (Section 8).

Why this tool and not another? We need one honest relationship linking the three quantities we just defined ( $V$ , $I$ , $R$ ). Ohm's Law is that relationship for a resistor. We'll use it twice in the derivation below. See Ohm's Law.

6. Series — one single path

The picture. Two narrow pipes bolted together into one longer pipe. Water entering the top must pass through pipe 1, then all of it through pipe 2 — there's nowhere else to go. That "nowhere else to go" is the whole reason the current is identical in both.

Why the topic needs it. The divider is two resistors in series (parent Step 1). "Same current in both" is the fact that lets the voltage split cleanly. See Series and Parallel Resistors.

Figure 3 is the actual divider drawn as a pipe-hill: $V_{in}$ at the top, $R_{1}$ then $R_{2}$ stacked, the middle joint tapped off as $V_{o u t}$ , the butter current arrow going straight down, and the bottom sitting on the ground symbol.

7. Putting it together — deriving $V_{o u t}$ from zero

Now every symbol is earned, so we can actually build the formula (not just quote it). Three small moves, each one a tool we already defined:

That's the whole formula, earned. The fraction that fell out has a name and a picture of its own — next section.

The picture. If a pizza is cut so $R_{2}$ owns 1 slice out of 3 total, its share is $\frac{1}{3}$ . If $R_{2}$ is huge compared to $R_{1}$ , its share nears 1 (it hogs almost all the voltage). If $R_{2}$ is tiny, its share nears 0. This single number, times $V_{in}$ , is $V_{o u t}$ .

Why the topic needs it. This is the divider formula's heart (see the Move-3 result above). It answers "what fraction of the push does the bottom resistor keep?"

All the boundary cases (so nothing surprises you later):

If...	Share $\frac{R _{2}}{R _{1} + R _{2}}$	$V_{o u t}$	Picture
$R_{1} = R_{2}$	$\frac{1}{2}$	half of $V_{in}$	equal pipes, even split
$R_{2} ≫ R_{1}$	near $1$	almost all of $V_{in}$	$R_{2}$ hogs the drop
$R_{2} ≪ R_{1}$	near $0$	almost none	$R_{1}$ hogs the drop
$R_{2} = 0$	$0$	$0$ V	bottom is a plain wire, no drop
$R_{1} = 0$	$1$	full $V_{in}$	top is a plain wire, all drop on $R_{2}$
$R_{1} = R_{2} = 0$	undefined ( $0/0$ )	—	forbidden: no resistance at all

9. Kirchhoff's Voltage Law — the drops add back up

First, the notation. $V_{R_{1}}$ means "the voltage drop across resistor $R_{1}$ " — the + end minus the – end of $R_{1}$ (Section 5's polarity rule). Likewise $V_{R_{2}}$ is the drop across $R_{2}$ . The subscript is just naming which component we're measuring across; it is $V_{o u t} = V_{R_{2}}$ for the bottom resistor.

Why the signs work that way. Fix one loop direction (we use the current's, downhill). Every drop you descend counts with a minus; the source you climb counts with a plus. Because a voltage is a height difference and you end back where you started, the total height change around the loop must be exactly zero — that's what forces the plus/minus bookkeeping to balance.

The picture. You have $9 (that's $V_{in}$ ). You spend $V_{R_{1}}$ on $R_{1}$ and $V_{R_{2}}$ on $R_{2}$ ; your spending must total exactly $9. This is the parent note's "KVL check ✓." It's also the sanity test: if your $V_{R_{1}}$ and $V_{R_{2}}$ don't add to $V_{in}$ , you made an error. See Kirchhoff's Voltage Law.

10. Load $R_{L}$ and the parallel symbol $∥$ — for later

The picture (figure 4). The load $R_{L}$ clips onto the exact same two nodes as $R_{2}$ — the middle joint above and ground below. Now current leaving the joint can go through $R_{2}$ or through $R_{L}$ : two side-by-side pipes carry more flow together, so their combined resistance is smaller than either alone. That smaller effective bottom resistance is why $V_{o u t}$ droops when a load is attached. The full story is in Series and Parallel Resistors; the fix — a buffer that draws almost no current — is in Op-amp Buffer.

Why introduce it now? Only so the symbol $∥$ , and the idea of a "load," aren't a shock when the parent note writes $R_{2} ∥ R_{L}$ .

How the foundations feed the topic

The diagram below is a prerequisite map: read each arrow as "this idea is needed to understand the next." Follow it from the three basics at the top (voltage, current, resistance) down to the divider formula at the bottom — that top-to-bottom path is exactly the order of Sections 1–9.

Equipment checklist

Test yourself — you're ready when you can reveal each without hesitation.

What does voltage measure, and between how many points?

The electrical "push," always measured between two points (relative to a reference).

What is ground, and how is it drawn?

The point we declare to be 0 V; drawn as the three-stacked-lines symbol (⏚) — the reference floor for all other voltages.

What does current

I

describe, and which way does its arrow point?

The rate of charge flow (in amperes); the arrow points from + to – of the source, "downhill" — in the divider, straight down through both resistors.

What does resistance

R

describe?

How much a component fights the flow of current, in ohms.

State Ohm's Law three ways.

V = I R

I = V / R

R = V / I

On a resistor with current flowing through it, which end is +?

The end the current enters is + ; the end it leaves is –;

V = I R

is that + minus – drop.

In the symbol

R_{2}

, what is the small

2

A name tag — "resistor two," not an exponent or multiplier.

What does

V_{R_{1}}

mean?

The voltage drop across resistor $R_{1}$ (its + end minus its – end).

What is true about current in a series connection?

The same current flows through every part (one path, no branches).

Why do series resistances add?

All the current meets both, so the fights combine:

R_{t o t a l} = R_{1} + R_{2}

Sketch the derivation of

V_{o u t}

in three moves.

(1)

R_{t o t a l} = R_{1} + R_{2}

; (2)

I = V_{in} / (R_{1} + R_{2})

; (3)

V_{o u t} = I R_{2} = V_{in} R_{2} / (R_{1} + R_{2})

What does the fraction

\frac{R _{2}}{R _{1} + R _{2}}

represent?

R_{2}

's share of the total resistance — a number between 0 and 1.

Why must

R_{1} + R_{2} > 0

The formula divides by

R_{1} + R_{2}

; both zero means a short circuit (division by zero, undefined).

Why does KVL's plus/minus bookkeeping sum to zero?

Voltage is a height difference; going around one loop back to the start, total height change must be zero.

What does

R_{2} ∥ R_{L}

compute, and where does

R_{L}

attach?

The parallel combination

\frac{R _{2} R _{L}}{R _{2} + R _{L}}

; the load

R_{L}

attaches across the same two nodes as

R_{2}

(middle joint to ground).

R_{1} = R_{2}

, what fraction of

V_{in}

appears at

V_{o u t}

One half.
