NumPy — ndarray structure, dtype, shape, strides: Worked examples

You have met the parent idea: an array is one flat row of bytes plus three bookkeeping numbers. Here we prove we understand it by walking every situation you could ever be handed. Not "here is a formula" — here is every kind of question the formula must survive.

We rely on three earned facts from the parent. Before using anything, re-say it in plain words:

Recall The three tools we will use over and over

dtype ::: the "fatness" of one number — how many bytes it occupies. int64 = 8 bytes. shape (d0, d1, …) ::: how many entries pretend to live along each direction (axis). strides ::: how many bytes you jump to move one step along an axis. Units are bytes, never elements. byte offset formula ::: to find element at indices $(i_{0}, i_{1}, \dots)$ , compute $offset = \sum_{k} i_{k} \cdot stride_{k}$ . This is the single machine we test below.

The scenario matrix

Every question about ndarray memory falls into one of these cells. The worked examples that follow each carry a [cell] tag so you can see we left no gap.

Cell	What makes it tricky	Covered by
A. Plain C-order	the "normal" row-major case	Ex 1
B. dtype changes the step	strides scale with itemsize	Ex 2
C. Transpose (F-order)	strides swap, no copy	Ex 3
D. Slice = view (aliasing danger)	offset base + shared memory	Ex 4
E. Non-contiguous / step slice	stride becomes a multiple	Ex 5
F. Degenerate: 1-D & size-1 axis	stride of a length-1 axis is "don't care"	Ex 6
G. Zero-size / empty array	limiting case, product = 0	Ex 7
H. reshape that MUST copy	when the layout is impossible	Ex 8
I. Word problem (real data)	image rows/columns, pick the axis	Ex 9
J. Exam twist: negative stride	reversed views	Ex 10

Example 1 — the plain C-order case [cell A]

Forecast first. Before reading on, guess the two stride numbers. (Hint: itemsize is 8.)

Itemsize. int64 ⇒ each element is $s = 8$ bytes. Why this step? Strides are measured in bytes, so we always start by pinning down the fatness of one element.
Last-axis stride. Neighbours along the last axis (columns) sit right next to each other in memory, so $stride_{1} = s = 8$ . Why? The parent built the buffer row by row — within a row consecutive columns are adjacent.
First-axis stride. To drop one row you skip a whole row of $C = 4$ elements: $stride_{0} = C \cdot s = 4 \cdot 8 = 32$ . Why? Formula $stride_{k} = s \cdot \prod_{m > k} d_{m}$ ; for $k = 0$ the only later axis has size 4.
Offset of A[2,1]. $offset = 2 \cdot 32 + 1 \cdot 8 = 72$ bytes. Why? Apply $\sum_{k} i_{k} \cdot stride_{k}$ .

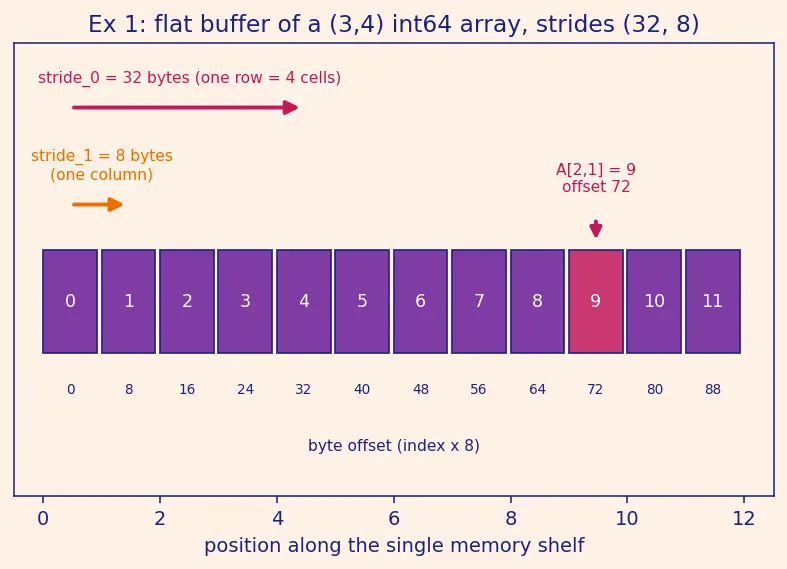

Look at the figure: the flat shelf of books, and the two "jump sizes" drawn as arrows.

Figure — NumPy — ndarray structure, dtype, shape, strides

Verify. A.strides == (32, 8). Element index $= 72/8 = 9$ , and independently the flat index is $2 \cdot 4 + 1 = 9$ . Both give A[2,1] == 9. ✓

Example 2 — dtype changes the step [cell B]

Forecast. Half the fatness of int16 vs int64? Actually int16 = 2 bytes. Guess before continuing.

Itemsize. int16 ⇒ $s = 2$ bytes. Why? "16" means 16 bits; 8 bits per byte ⇒ 2 bytes.
Strides. $stride_{1} = 2$ , $stride_{0} = 4 \cdot 2 = 8$ . Why? The shape is identical to Ex 1, so the pattern is identical — only the scale factor $s$ shrank. This is the whole point of measuring strides in bytes: change the dtype, and the strides recompute automatically.
nbytes. $12 \times 2 = 24$ bytes.

Verify. B.strides == (8, 2), B.nbytes == 24. Notice this equals A.nbytes from Ex 1? No — A was int64 (96 bytes). Same count, different bytes. ✓

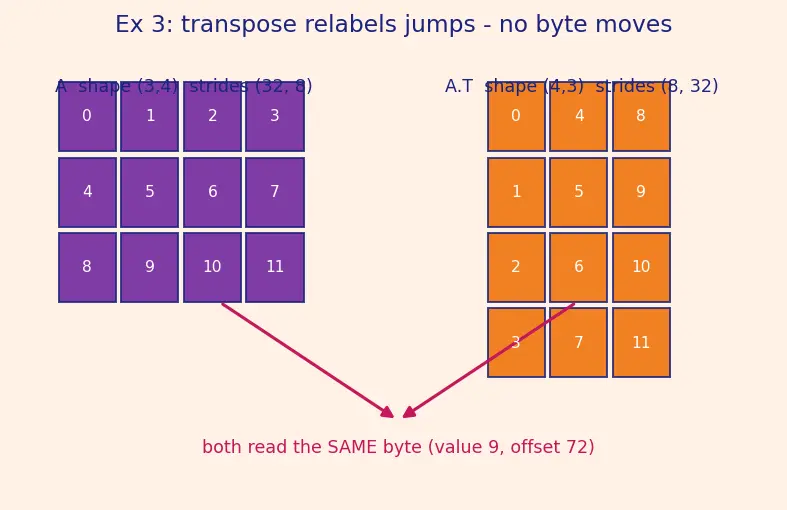

Example 3 — transpose swaps strides, moves nothing [cell C]

Worked example Where does

A.T[1, 2] live?

A  = np.arange(12, dtype=np.int64).reshape(3, 4)  # strides (32, 8)
At = A.T                                           # shape (4, 3)

Predict At.strides and the byte offset of At[1, 2].

Forecast. Transpose flips rows and columns — does it re-lay the memory?

New shape. $(3, 4) \to (4, 3)$ . Swap. Why? Transpose relabels which axis is "rows".
New strides = old strides, swapped. At.strides == (8, 32). Why? No byte moved. To move down a row of At (which is a column of A) you must step by A's old column-to-column-in-next-row jump, i.e. its old stride_0 = 32. NumPy just relabels the jump sizes.
Offset of At[1,2]. $1 \cdot 8 + 2 \cdot 32 = 8 + 64 = 72$ bytes. Why? Same $\sum i_{k} stride_{k}$ with the swapped strides.

Verify. Offset 72 ⇒ element index $72/8 = 9$ . And At[1,2] == A[2,1] == 9. The transpose reads the same byte. np.shares_memory(A, At) is True, and At is F_CONTIGUOUS. ✓

Example 4 — a slice is a view; mutation leaks [cell D]

Forecast. Python list slices copy — does NumPy?

sub is a view. Its data pointer starts partway into A's buffer: at offset $1 \cdot 32 = 32$ bytes (skip row 0). Why? Row-slicing changes only the starting offset and the axis-0 length; it does not copy.
Strides unchanged. sub.strides == (32, 8) — same as A. Why? The layout inside the block is untouched; you only chose a window.
sub[0,0] is A[1,0]. Writing 99 writes into A's buffer.

Verify. A[1,0] == 99 after the write. np.shares_memory(sub, A) is True. To be safe you would use A[1:3,:].copy(). ✓

Example 5 — step-slicing multiplies the stride [cell E]

Forecast. Taking every 2nd column — does the column-stride stay 8?

Shape. Columns 0,2 out of 0,1,2,3 ⇒ 2 columns. C.shape == (3, 2).
Column stride doubles. Stepping "one column of C" means stepping two real columns: $2 \cdot 8 = 16$ bytes. So C.strides == (32, 16). Why? A step-k slice multiplies that axis's stride by k. The array is now non-contiguous — its last-axis stride (16) is no longer equal to itemsize (8).
Consequence. C.flags['C_CONTIGUOUS'] is False. Why? C-contiguity demands the last-axis stride equals itemsize; 16 ≠ 8.

Verify. C.strides == (32, 16), C.shape == (3, 2), and C[0].tolist() == [0, 2]. ✓

Example 6 — degenerate: 1-D array and a length-1 axis [cell F]

Forecast. What stride does an axis of length 1 get?

1-D strides. v.strides == (8,). One axis, contiguous, step = itemsize. Why? A 1-D array is both C- and F-contiguous — there is only one direction to walk.
Length-1 axis. w.strides == (32, 8). Why? Axis 0 has size 1, so you can never actually take a step along it — its stride value is a formula output ( $4 \cdot 8 = 32$ ) but you'll never multiply it by any $i_{0} > 0$ . It is a "don't care" that broadcasting later exploits (see NumPy — broadcasting).

Verify. v.strides == (8,) and w.strides == (32, 8). The size-1 axis is why w can be broadcast against a (3,4) array. ✓

Example 7 — the empty / zero-size limit [cell G]

Forecast. Shape has a 0 in it — is this even legal?

Size is the product of the shape. $\prod = 0 \cdot 4 = 0$ . Why? size = product of shape; any zero factor kills it. Zero elements is perfectly legal — it is the limiting case of "reshape to nothing."
nbytes. $0 \times 8 = 0$ bytes. No buffer content to store.
shape still valid. E.shape == (0, 4) — the "4" is retained metadata even with no rows, so future concatenation knows the column count.

Verify. E.size == 0, E.nbytes == 0, E.shape == (0, 4). ✓

Example 8 — the reshape that is FORCED to copy [cell H]

Worked example When metadata alone cannot save you

A  = np.arange(12, dtype=np.int64).reshape(3, 4)
At = A.T                       # non-contiguous, strides (8, 32)
R  = At.reshape(12)            # flatten the transpose

Does R share memory with A?

Forecast. Parent said reshape is usually free. Is it free here?

At is non-contiguous. Its strides (8,32) do not decrease with axis index, so its logical row-major order (0,4,8,1,5,9,…) is not the physical buffer order (0,1,2,…). Why? Flattening must produce elements in logical order; but no single new stride can reproduce that scrambled order over the existing buffer.
So NumPy copies. R gets a fresh contiguous buffer. Why? The requested 1-D layout is impossible as a view — this is the one exception the parent warned about.

Verify. np.shares_memory(R, A) is False, while R.tolist() == [0,4,8,1,5,9,2,6,10,3,7,11] (transpose order, contiguous copy). ✓

Example 9 — word problem: a grayscale image [cell I]

Forecast. Vertical neighbours — near in the picture. Near in memory?

Itemsize. uint8 ⇒ $s = 1$ byte.
Strides of the image. Shape $(1080, 1920)$ , C-order: $stride_{1} = 1$ , $stride_{0} = 1920 \cdot 1 = 1920$ bytes. Why? Moving down one row skips a whole row of 1920 pixels.
The vertical strip img[:, 1000]. Stepping "one pixel down" uses stride_0 = 1920 bytes. That is far — the strip is not contiguous; each pixel sits a full row apart. Why? Row-major storage makes horizontal neighbours cheap and vertical neighbours expensive. This is exactly why column access is cache-unfriendly and why C vs Fortran order matters for performance.

Verify. For img of shape (1080,1920) uint8, img.strides == (1920, 1); the column view img[:, 1000].strides == (1920,). ✓

Example 10 — exam twist: negative stride (reversed view) [cell J]

Forecast. Reversing — surely that must copy to flip the order?

Negative stride. r.strides == (-8,). Why? NumPy starts the data pointer at the last element and steps backward 8 bytes each index. The offset formula still holds: with a negative stride, increasing $i$ decreases the byte address.
No copy. r is a view; only the start offset and the sign of the stride changed. Why? The same bytes, read right-to-left. This is the elegant edge case — the formula $\sum i_{k} stride_{k}$ never assumed the strides were positive.

Verify. r.strides == (-8,), np.shares_memory(r, v) is True, and r.tolist() == [4,3,2,1,0]. ✓

Recall One-line summary of the whole matrix

The single formula $offset = \sum_{k} i_{k} \cdot stride_{k}$ survives EVERY case ::: bigger/smaller dtype (scale $s$ ), transpose (swap strides), slice (shift start), step-slice (multiply stride), length-1 axis (unused stride), empty (product 0), forced copy (impossible layout), and negative stride (reversed).
