NumPy — ndarray structure, dtype, shape, strides

WHAT is an ndarray, really?

WHY this design? Because storing a 2-D table as a real 2-D structure (list of lists / pointers) is slow and memory-scattered. Instead NumPy keeps everything in ONE cache-friendly block and uses math (strides) to fake dimensions. This is what makes NumPy fast.

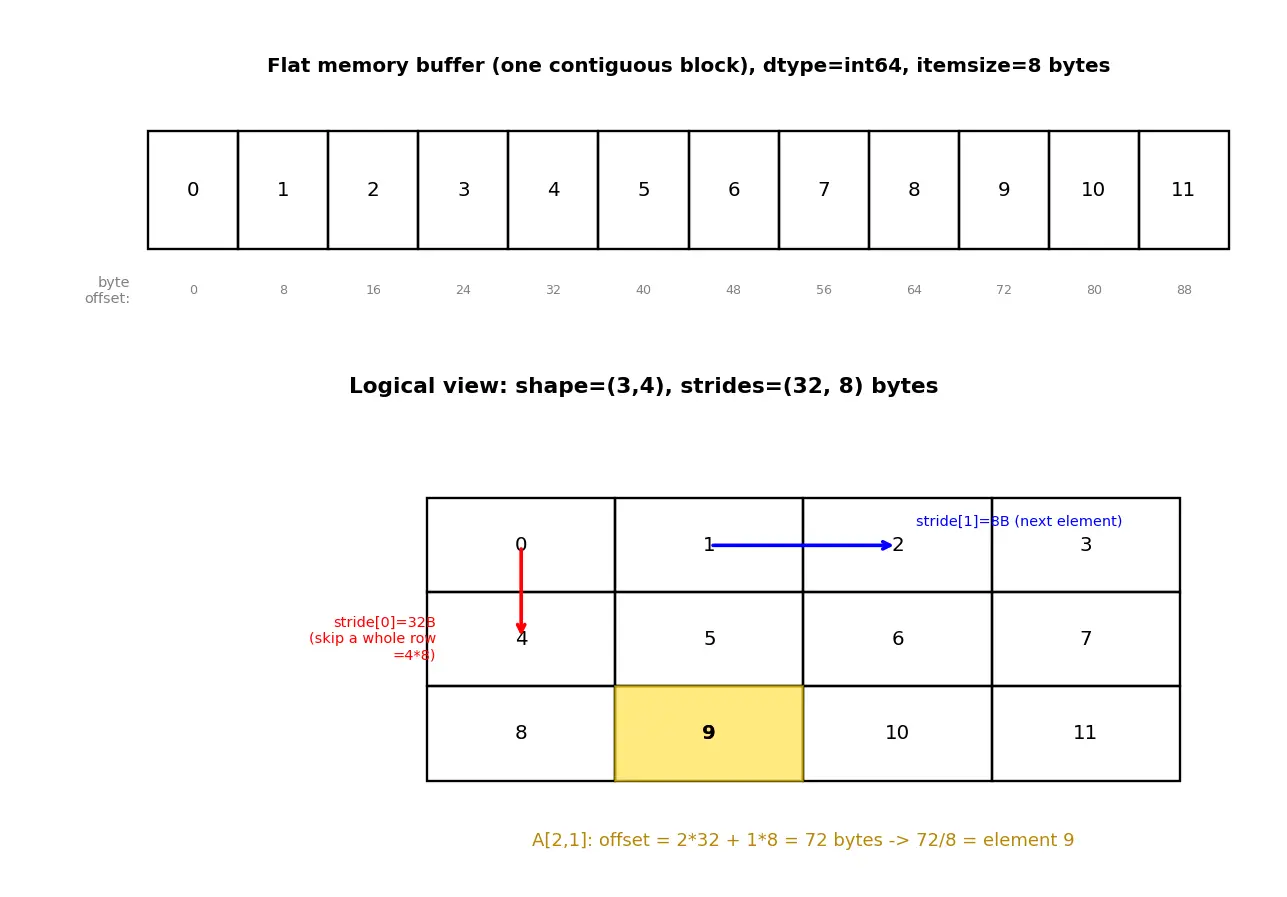

Figure — NumPy — ndarray structure, dtype, shape, strides

dtype — WHAT each element is

Every element in an ndarray has the same dtype — that's why arrays are homogeneous (unlike Python lists). Homogeneity is exactly what lets NumPy step a fixed number of bytes each time.

Worked example Inspecting dtype

a = np.array([1, 2, 3])
a.dtype        # dtype('int64')   (platform default int)
a.itemsize     # 8  bytes per element
a.nbytes       # 24 = 3 * 8

Why this step? itemsize × number_of_elements = nbytes. If you understand this you already understand 80% of memory in NumPy.

shape — HOW the grid is sized

Worked example

b = np.arange(12).reshape(3, 4)
b.shape   # (3, 4)
b.ndim    # 2
b.size    # 12 = 3*4

Why this step? arange(12) made 12 elements in a flat buffer; reshape only changed metadata, not the bytes. The data didn't move.

strides — HOW NumPy walks memory (the heart)

Derivation from first principles

Lay out a 2-D array row by row (C/"row-major" order). For shape (R, C) with itemsize = s bytes, the flat position of A[i, j] (counting elements) is:

$\text{flat\_index}(i,j) = i\cdot C + j$

Why? To skip to row i you must pass i full rows, each of length C; then move j within the row.

Convert to bytes by multiplying by s:

$\text{byte\_offset}(i,j) = (i\cdot C + j)\cdot s = i\,(C\cdot s) + j\,(s)$

Match this to the general stride formula

$\boxed{\;\text{byte\_offset} = \sum_k i_k \cdot \text{stride}_k\;}$

By comparison, the strides are:

$\text{stride}_0 = C\cdot s, \qquad \text{stride}_1 = s$

Worked example Strides of a (3,4) int64 array

b = np.arange(12).reshape(3, 4)   # int64, s = 8
b.strides   # (32, 8)

Check: stride_1 = s = 8 ✓. stride_0 = C*s = 4*8 = 32 ✓. Why this step? Moving one row down (i→i+1) skips an entire row of 4 elements = 4×8 = 32 bytes.

Views vs copies (the big payoff)

Worked example Transpose just swaps strides

b = np.arange(12).reshape(3, 4)   # shape (3,4) strides (32,8)
bt = b.T                          # shape (4,3) strides (8,32)
bt.base is b.base                 # True -> shares memory

Why? Transpose reinterprets the same bytes by swapping which axis owns which stride. After .T the array is F-contiguous (column-major) but no data moved.

Worked example: predict the offset by hand

Worked example Find

A[2,1] location

A = np.arange(12, dtype=np.int64).reshape(3,4)
# strides = (32, 8)

Step 1 — byte offset: $2\cdot 32 + 1\cdot 8 = 72$ bytes. Why? Apply $\sum i_k\,\text{stride}_k$ . Step 2 — element index: $72 / 8 = 9$ , so value is 9. Check: A[2,1] == 9 ✓. Why? Flat index $= 2\cdot4+1 = 9$ , consistent.

Common mistakes

Recall Feynman: explain to a 12-year-old

Imagine a long single shelf of numbered books — that's the memory. You pretend it's a bookcase with rows and columns. To find "row 2, column 1" you don't really walk a bookcase; you do quick maths: "skip 2 rows worth of books, then 1 more." The "skip-amount" for each direction is the stride. The shape says how many rows/columns you're pretending to have, and the dtype says how fat each book is. Flipping the bookcase sideways (transpose) doesn't move a single book — you just swap which skip-number means "row" and which means "column."

Flashcards

What three pieces of metadata interpret an ndarray's flat buffer?

dtype (element type/size), shape (size per axis), strides (bytes to step per axis).

What are the units of strides?

Bytes (not elements).

Formula for byte offset of element with indices i_k?

offset = Σ_k i_k · stride_k.

For a C-contiguous (3,4) int64 array, what are the strides?

(32, 8): last axis 8 = itemsize, first axis 4×8 = 32.

Does reshape usually copy data?

No — it returns a view, only changing metadata (unless the layout is incompatible).

What does .T (transpose) do to memory?

Nothing to the buffer; it swaps the strides (and shape). A C-array becomes F-contiguous.

Why are NumPy arrays homogeneous (all one dtype)?

So each element is a fixed byte size, letting strides step a constant amount → fast indexing.

How do you get a real independent array from a slice?

Use .copy(); check sharing with np.shares_memory.

C-contiguous stride of axis k formula?

stride_k = itemsize · product of shape sizes for axes after k.

Difference between .size and .nbytes?

size = number of elements (product of shape); nbytes = size × itemsize.

Connections

NumPy — broadcasting (uses 0-stride tricks to "stretch" axes)
NumPy — views vs copies & np.shares_memory
NumPy — vectorization & performance
CPU cache & memory locality
Row-major vs column-major (C vs Fortran order)
Python lists vs arrays

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, NumPy ka ndarray asal mein ek ek hi lambi line of bytes hoti hai memory mein — bas ek flat block. Uske upar NumPy teen chhote numbers rakhta hai: dtype (har element kitne bytes ka hai, jaise int64 = 8 bytes), shape (kitne rows-columns dikhane hain), aur strides (ek step lene ke liye kitne bytes aage jaana hai). Yahi teen cheezein decide karti hain ki flat bytes ko hum 2-D ya 3-D grid ki tarah kaise "padhein".

Magic ye hai ki jab tum reshape ya transpose karte ho, to data hilta hi nahi — sirf ye metadata badalta hai. Isliye ye operations bahut fast hote hain (O(1)). Element A[i,j] ka byte offset nikalne ka formula simple hai: offset = i*stride0 + j*stride1. C-order (row-major) mein last axis ka stride sabse chhota hota hai (= itemsize), kyunki row ke andar wale neighbours memory mein bilkul saath-saath hote hain.

Ek important trap: Python list ka slice copy banata hai, par NumPy ka slice ek view hai — same memory share karta hai. Agar tum view ko change karoge to original bhi change ho jaayega! Independent chahiye to .copy() use karo, aur np.shares_memory() se check kar lo. Aur yaad rakho — strides hamesha bytes mein hote hain, elements mein nahi; element step chahiye to itemsize se divide karo.

Ye chapter isliye important hai kyunki yahi NumPy ki speed ka raaz hai: ek cache-friendly flat block + thoda sa maths (strides). Jab tum ye samajh jaate ho, to broadcasting, vectorization, aur views-vs-copies sab apne aap clear ho jaate hain. Bas mantra yaad rakho: Data Size, Shape, Step.
