Overview

Broadcasting is NumPy's mechanism for performing element-wise operations on arrays of different shapes without explicitly replicating data. It's the secret behind fast, memory-efficient vectorized code—but only if you understand when and how it works.

Think of it like painting: you have a giant canvas (large array) and a small stamp (small array). Broadcasting tells you exactly when and how you can "tile" that stamp across the canvas—without physically making copies of the stamp.

The Three Broadcasting Rules

1. Rule 1 (Equality): The dimensions are equal, OR
2. Rule 2 (Singleton): One of them is 1, OR
3. Rule 3 (Missing): One of the dimensions doesn't exist (the array has fewer dimensions)

If all dimension pairs satisfy at least one rule, broadcasting succeeds. Otherwise, you get ValueError: operands could not be broadcast together.

Why Start from the Rightmost Dimension?

This aligns with how NumPy stores arrays in memory (row-major order). The rightmost dimension changes fastest as you iterate. Starting from the right makes the memory access patterns predictable and cache-friendly.

Step 1: Right-align the shapes (pad missing dimensions with 1 on the left)

A:      a₁  a₂  a₃  a₄
B:   1  b₁  b₂  b₃  b₄  (if B has fewer dims)

Step 2: For each dimension pair (aᵢ, bᵢ):

• If aᵢ == bᵢ: Output dimension is aᵢ
• If aᵢ == 1: Output dimension is bᵢ (stretch A)
• If bᵢ == 1: Output dimension is aᵢ (stretch B)
• Else: Error

Step 3: Result shape is the element-wise maximum of aligned shapes.

$\text{result.shape}[i] = \max(A.\text{shape}[i], B.\text{shape}[i])$

where we treat missing dimensions as 1.

Derivation from First Principles: Why does this work? Element-wise operations require pairs of elements. Broadcasting creates a virtual grid where:

• If dimension size is 1, that single slice repeats along the axis
• If dimension is missing, the array acts as if it has size 1 in that axis
• The output must accommodate the larger size in each dimension

Worked Examples

A = np.array(1, 2, 3, [4, 5, 6]]) # shape (2, 3) b = 10 # shape () — a 0-D scalar

result = A + b

Shape analysis:

A (2, 3)

b: shape () — has NO axes at all

Missing axes get padded with 1 on the LEFT:

Aligned: (2, 3)

(1, 1) → stretches to (2, 3)

Result: (2, 3)

**Why this step?** The scalar `b` has shape `()` — it is **zero-dimensional** (no axes at all), NOT a 1-D array of length 1. During broadcasting, NumPy pads the missing axes with 1 on the left, so `()` becomes an effective `(1, 1)` when aligned against `(2, 3)`:
- Dimension -1 (rightmost): `3 vs missing → 1` → Rule 3 then Rule 2, stretch to 3
- Dimension -2: `2 vs missing → 1` → Rule 3 then Rule 2, stretch to 2

Result: Every element of A gets 10 added to it.

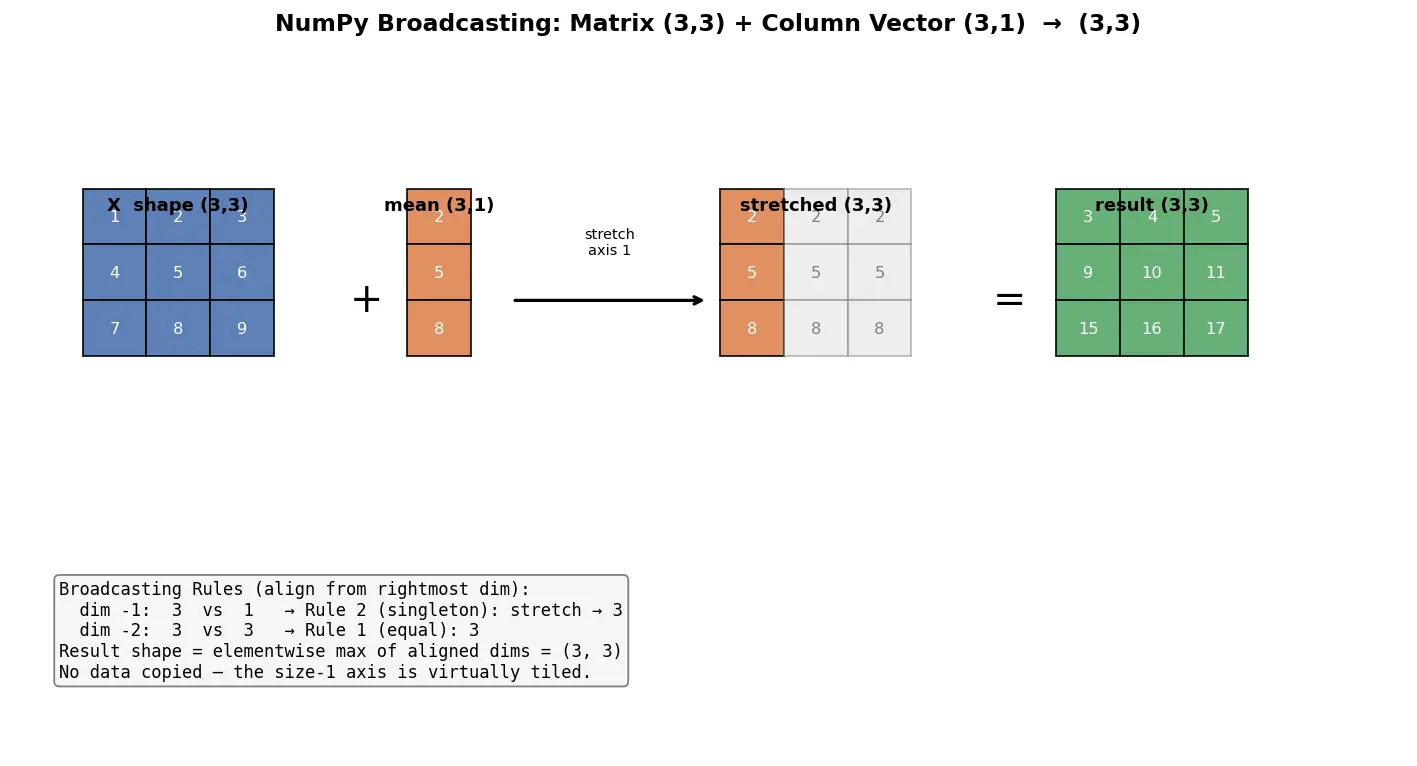

> [!example] Example 2: Matrix + Column Vector (Normalization Pattern)
> ```python
> X = np.array([[1, 2, 3],
>               [4, 5, 6],
>               [7, 8, 9]])     # shape (3, 3)

mean = np.array([[2],
                 [5],
                 [8]])         # shape (3, 1)

centered = X - mean
# Shape analysis:
# X:    (3, 3)
# mean: (3, 1)
# Dimension -1: 3 vs 1 → Rule 2, stretch mean's columns to 3
# Dimension -2: 3 vs 3 → Rule 1, already match
# Result:       (3, 3)

Why this step? The column vector (3, 1) has a singleton in the last dimension. Broadcasting repeats that column 3 times horizontally (without copying memory). Each row of X gets its corresponding mean value subtracted.

Mental model: Think of mean as a stencil that slides along each row of X.

Reshape to force outer product structure

a_col = a[:, np.newaxis] # shape (3, 1) outer = a_col * b # b remains (4,)

Shape analysis:

a_col: (3, 1)

b: (4,) → right-aligned: (1, 4) effectively

Actually, (4,) right-aligns as:

(3, 1)

( 4) ← treated as (1, 4) when aligned

Dimension -1: 1 vs 4 → stretch a_col

Dimension -2: 3 vs missing (1) → stretch b

Result: (3, 4)

**Why this step?** By reshaping `a` to `(3, 1)`, we create explicit dimensions for broadcasting. The `(3, 1)` array stretches right, the `(4,)` array stretches left (treated as `(1, 4)`), creating all pairwise products.

Result:

10 20 30 40 [ 20 40 60 80] [ 30 60 90 120]]

> [!example] Example 4: Broadcasting Failure
> ```python
> A = np.array([[1, 2, 3]])  # shape (1, 3)
> B = np.array([[1],
>               [2]])         # shape (2, 1)

result = A + B  # This WORKS! → (2, 3)

# But this fails:
C = np.array([[1, 2]])     # shape (1, 2)
D = np.array([[1, 2, 3]])  # shape (1, 3)

# result = C + D  # ValueError!
# Dimension -1: 2 vs 3 → NEITHER equal, singleton, nor missing

Why the first works? (1, 3) and (2, 1):

• Dimension -1: 3 vs 1 → Rule 2, stretch B
• Dimension -2: 1 vs 2 → Rule 2, stretch A
• Result: (2, 3)

Why the second fails? (1, 2) and (1, 3):

• Dimension -1: 2 vs 3 → No rule applies (not equal, neither is 1)

X = np.random.rand(100, 3)  # 100 samples, 3 features
weights = np.array([0.5, 0.3, 0.2])  # shape (3,)

# This WORKS as expected: (100, 3) and (3,)
# dim -1: 3 vs 3 → match! Each column scaled by its weight
weighted = X * weights

Why it feels right: You're thinking "3 features × 3 weights = match!", which is correct only because the 3 lands on the rightmost dimension.

The mistake version (transposed data):

X = np.random.rand(3, 100)  # 3 features, 100 samples (transposed)
weights = np.array([0.5, 0.3, 0.2])  # shape (3,)

# X * weights  → ValueError!
# Right-align: (3, 100) and (3,) → (3, 100) vs (1, 3) effectively
# dim -1: 100 vs 3 → NO rule applies → ValueError

Why the mistake happens: Broadcasting always aligns from the right. Here the (3,) weights align against the last dimension 100, not against the 3. Since 100 ≠ 3 and neither is 1, NumPy raises ValueError.

The fix: Reshape the weights to a column so they broadcast along the correct axis:

result = X * weights[:, np.newaxis]  # weights becomes (3, 1)
# (3, 100) and (3, 1) → dim -1: 100 vs 1 (stretch), dim -2: 3 vs 3 (match)
# Result: (3, 100) ✓

Always visualize the right-alignment mentally before writing the operation.

A = np.array([[[1, 2]]])  # shape (1, 1, 2)
B = np.array([[3], [4]])  # shape (2, 1)

# Student thinks: These look totally different, it'll fail!
# Actually works:
result = A + B  # shape (1, 2, 2)

Why it feels right: The shapes (1, 1, 2) and (2, 1) look totally different in rank and size.

Why it's wrong:

• Right-align: (1, 1, 2) and (2, 1) → pad B on the left → (1, 1, 2) and (1, 2, 1)
• Dimension -1: 2 vs 1 → Rule 2 (singleton), stretch to 2
• Dimension -2: 1 vs 2 → Rule 2 (singleton), stretch to 2
• Dimension -3: 1 vs 1 → Rule 1 (equal), stays 1
• Result: (1, 2, 2)

The fix: Remember that 1 is the magic number. Any dimension of size 1 can stretch to match any other size, and missing dimensions are padded with 1 on the left.

Active Recall

Instead of buying 100 toy cars (one for each block), which would be expensive and wasteful, you use a magic rule: "One car can magically appear next to each block when needed." That's broadcasting!

NumPy has three simple rules to check if your "magic appearance" works:

1. If both have the same number of blocks in a direction, great!
2. If one side has only 1 block (like your single car), it magically copies itself to match the other side.
3. If one side doesn't even have that direction (like a single number has no rows or columns), we pretend it's size 1 and use rule 2.

You always check from right to left (like reading numbers: units, tens, hundreds). If every direction passes one of these three tests, the magic works! If not, NumPy says "Sorry, can't make this magic happen."

Think: "Right Equation, Stretch it!"

Connections

• 1.4.03-NumPy-array-indexing-slicing: Broadcasting often follows slicing operations
• 1.4.04-NumPy-vectorization: Broadcasting is what makes vectorized operations possible on mismatched shapes
• 1.4.06-NumPy-performance-optimization: Understanding broadcasting prevents unnecessary np.tile() or np.repeat() calls
• 2.1.02-Feature-normalization-standardization: Broadcasting enables efficient batch normalization
• 3.2.04-Matrix-operations-in-neural-networks: Weight matrices broadcast with bias vectors in every layer
• 1.2.04-Memory-efficient-Python-patterns: Broadcasting avoids memory-heavy array duplication
