2D plots — line, scatter, bar, histogram, contour, imshow
WHY these six exist (the decision tree)
WHAT distinguishes the six: what they assume about your data.
| Plot | Data shape | Implied meaning | Key question |
|---|---|---|---|
plot |
y vs ordered x | points are connected (a function/series) | "trend?" |
scatter |
(x, y) pairs | points are independent | "correlation/cluster?" |
bar |
category → value | discrete groups | "which is biggest?" |
hist |
one array of samples | frequency of value ranges | "what's the distribution?" |
contour |
grid Z[i,j]=f(x,y) | a height map (level curves) | "shape of surface?" |
imshow |
2D array of values | colored pixel grid | "the matrix/image itself?" |
1. Line plot — ax.plot
import numpy as np
import matplotlib.pyplot as plt
x = np.linspace(0, 2*np.pi, 200) # 200 pts -> smooth
y = np.sin(x)
fig, ax = plt.subplots()
ax.plot(x, y, color="tab:blue", lw=2, label="sin x")
ax.set_xlabel("x (rad)"); ax.set_ylabel("sin x")
ax.legend(); ax.grid(True)
plt.show()2. Scatter — ax.scatter
rng = np.random.default_rng(0)
x = rng.normal(size=100)
y = 2*x + rng.normal(size=100) # correlated
ax.scatter(x, y, s=30, c=x, cmap="viridis", alpha=0.7)3. Bar — ax.bar
labels = ["A", "B", "C"]; vals = [5, 9, 3]
ax.bar(labels, vals, width=0.6, color="tab:orange")WHY categorical x: Matplotlib places category at integer position and prints the label under it.
4. Histogram — ax.hist
data = rng.normal(loc=0, scale=1, size=5000)
ax.hist(data, bins=40, density=True, color="tab:green", alpha=0.8)5. Contour — ax.contour / ax.contourf
xs = np.linspace(-3, 3, 100); ys = np.linspace(-3, 3, 100)
X, Y = np.meshgrid(xs, ys)
Z = np.exp(-(X**2 + Y**2)) # a Gaussian bump
cs = ax.contour(X, Y, Z, levels=8, cmap="plasma")
ax.clabel(cs, inline=True) # label each level
# ax.contourf(...) fills between levels with color instead of lines6. imshow — ax.imshow
ax.imshow(Z, origin="lower", extent=[-3,3,-3,3], cmap="inferno", aspect="auto")

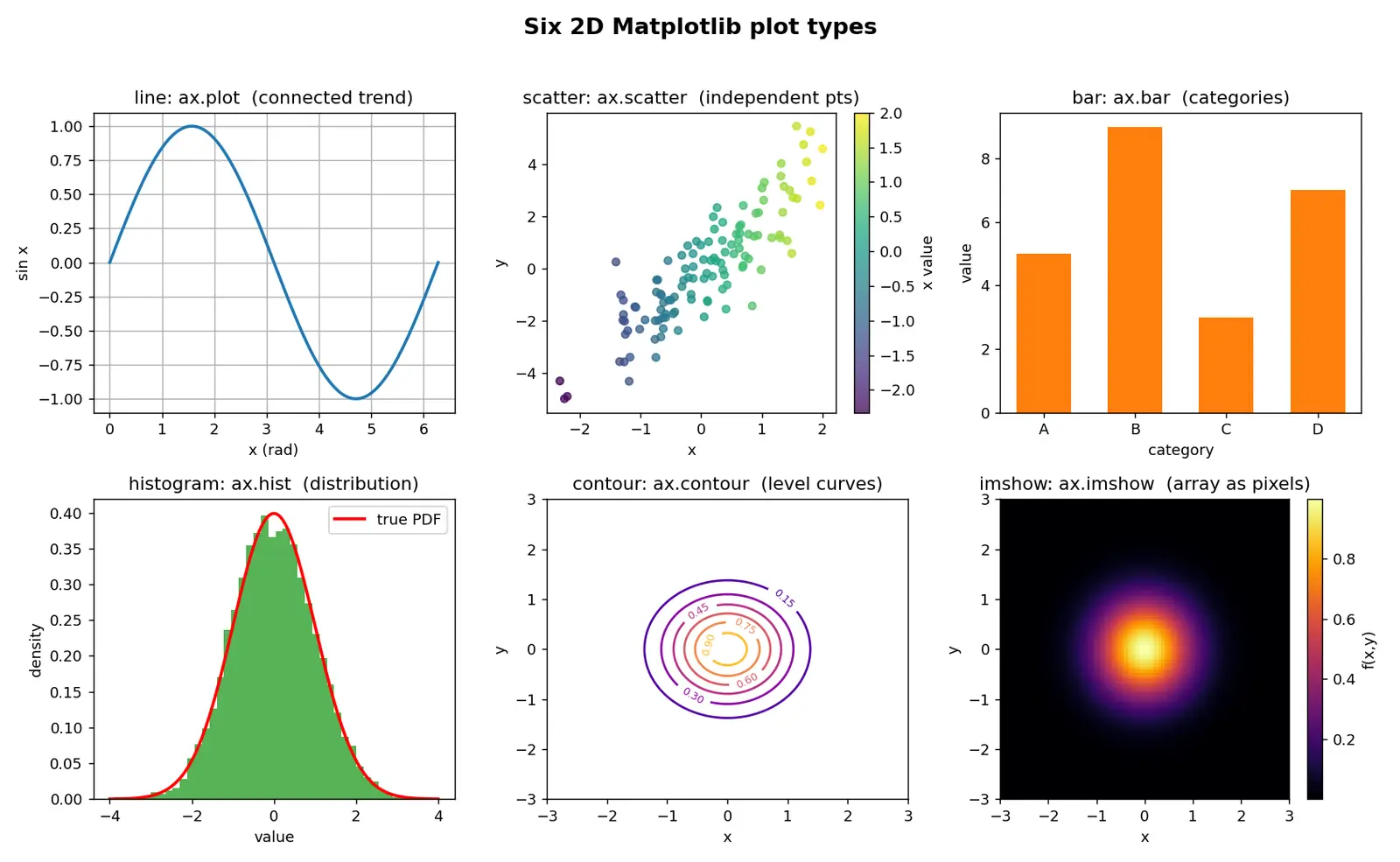

fig.colorbar(ax.images[0], ax=ax, label="f(x,y)")Putting it together (the cheat figure)
Recall Feynman: explain to a 12-year-old
Think of graph paper. Line: I plot a few dots and connect them like a join-the-dots puzzle — good for "how did temperature change all day." Scatter: I just sprinkle dots, no lines — good for "do taller kids weigh more?" Bar: tall blocks for each thing — "who scored most goals?" Histogram: I sort everyone's height into boxes (140-150cm, 150-160cm...) and count how many in each box — shows the shape of the group. Contour: like a treasure map showing hills with rings. imshow: I color every little square of graph paper by its number, like a paint-by-numbers — that's how a photo or a heatmap works.
