NumPy — ndarray structure, dtype, shape, strides: Exercises

Before we start, one reference picture of the two ideas we lean on most.

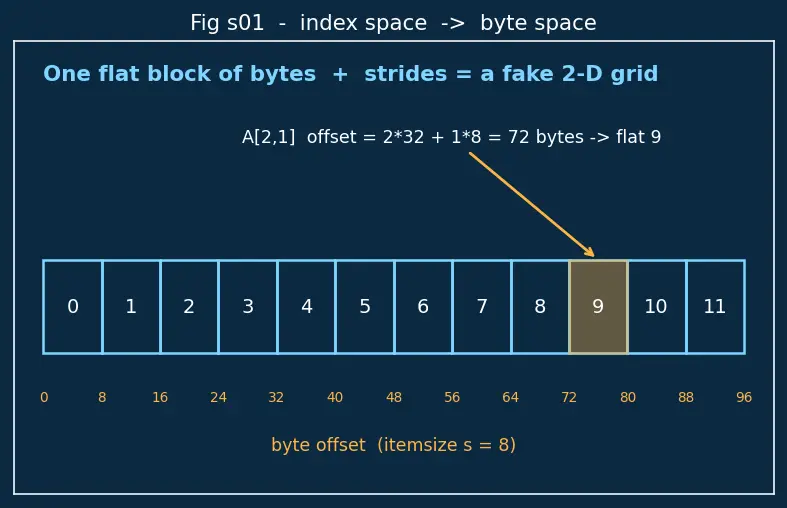

Figure — NumPy — ndarray structure, dtype, shape, strides

Level 1 — Recognition

(Can you read the metadata and say what it means?)

Problem 1.1

An array reports dtype = int64, size = 20. What is nbytes?

Recall Solution 1.1

itemsize for int64 is $8$ bytes (the "64" means 64 bits, and $64/8 = 8$ bytes). $nbytes = size \times itemsize = 20 \times 8 = 160 bytes.$ What we did: multiplied element count by bytes-per-element. Why: every element is the same fixed size (homogeneity), so total bytes is just a product.

Problem 1.2

a = np.arange(6) on a default platform. State a.shape, a.ndim, a.size.

Recall Solution 1.2

arange(6) produces the flat sequence [0 1 2 3 4 5].

shape = (6,) — a 1-D array with 6 entries. (The trailing comma means "tuple with one element", not a typo.)
ndim = 1 — one axis.
size = 6 — product of the shape tuple $= 6$ .

Problem 1.3

For a C-contiguous float32 array of shape (5, 3), what is the stride of the last axis?

Recall Solution 1.3

float32 = 32 bits = $4$ bytes, so itemsize = 4. The last axis in C-order always has stride equal to itemsize, because neighbours along the last axis sit next to each other in memory. $stride_{last} = 4 bytes.$

Level 2 — Application

(Plug into the offset formula and the C-stride formula.)

Problem 2.1

A = np.arange(20, dtype=np.int64).reshape(4, 5). Compute A.strides by hand, then find the byte offset and the value of A[3, 2].

Recall Solution 2.1

Strides. Shape $(4, 5)$ , itemsize $s = 8$ . Using the C-contiguous rule $stride_{k} = s \cdot \prod_{m = k + 1} d_{m}$ :

$stride_{1} = s = 8$ (last axis).
$stride_{0} = s \cdot d_{1} = 8 \cdot 5 = 40$ (skip one whole row of 5 elements). $strides = (40, 8) .$ Byte offset of $A [3, 2]$ : $3 \cdot 40 + 2 \cdot 8 = 120 + 16 = 136 bytes.$ Value. Divide by itemsize to get the flat element index: $136/8 = 17$ . Since arange fills $0, 1, 2, \dots$ , the element at flat index 17 is the number 17. Cross-check with the flat-index formula $i \cdot C + j = 3 \cdot 5 + 2 = 17$ ✓.

Problem 2.2

An array has shape (2, 3, 4), dtype int32. Give its C-contiguous strides.

Recall Solution 2.2

int32 → $s = 4$ bytes. Axes are $d_{0} = 2, d_{1} = 3, d_{2} = 4$ .

$stride_{2} = s = 4$ .
$stride_{1} = s \cdot d_{2} = 4 \cdot 4 = 16$ .
$stride_{0} = s \cdot d_{2} \cdot d_{1} = 4 \cdot 4 \cdot 3 = 48$ . $strides = (48, 16, 4) .$ Why this shape of answer: to step one unit along axis 0 you must jump over an entire $3 \times 4$ plane $= 12$ elements $= 48$ bytes. To step along axis 1 you jump one row of 4 elements $= 16$ bytes. The last axis is neighbours: 4 bytes.

Problem 2.3

b.nbytes is 96 and b.itemsize is 8. If b.shape = (d, 3, 2), find d.

Recall Solution 2.3

$size = nbytes / itemsize = 96/8 = 12$ elements. Size is the product of the shape: $d \cdot 3 \cdot 2 = 12 \Rightarrow 6 d = 12 \Rightarrow d = 2$ .

Level 3 — Analysis

(Reason about what stays the same when metadata changes.)

Problem 3.1

b = np.arange(12).reshape(3,4) (int64). What are the shape and strides of b.T? Does b.T share memory with b?

Recall Solution 3.1

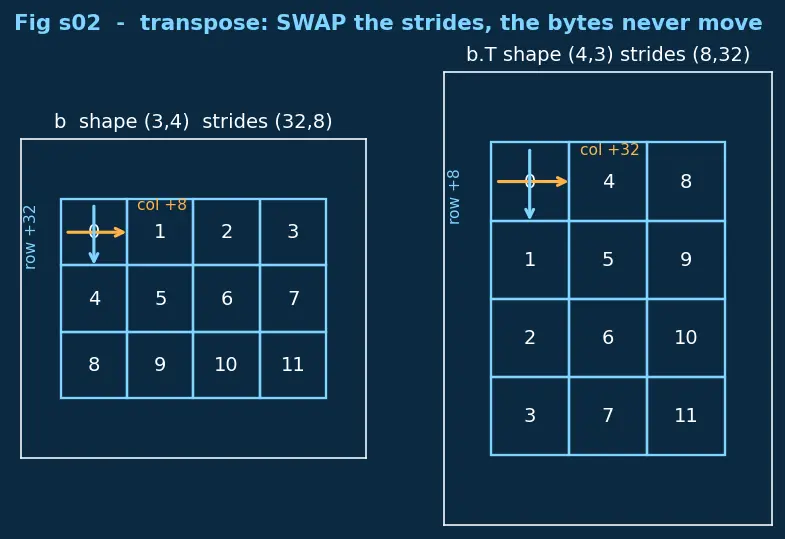

Original: shape $(3, 4)$ , strides $(32, 8)$ . Transpose swaps the axes, which means it swaps both the shape entries and the stride entries: $shape = (4, 3), strides = (8, 32) .$ Shares memory? Yes. Transpose is a view: not a single byte moved. np.shares_memory(b, b.T) → True. Look at figure s02: the arrows (the strides) get their labels swapped, but the block of numbers is untouched.

Problem 3.2

After the transpose above, is b.T C-contiguous, F-contiguous, both, or neither?

Recall Solution 3.2

Rules: C-contiguous ⇔ last-axis stride $= s$ and strides decrease as axis index rises. F-contiguous ⇔ first-axis stride $= s$ . b.T has strides $(8, 32)$ , itemsize $8$ .

Last-axis stride is $32 \neq = 8$ → not C-contiguous.
First-axis stride is $8 = s$ → F-contiguous. ✓ So the transpose of a C-array is F-contiguous only. (A byte block written in row-major, read column-major, is column-major.)

Problem 3.3

sub = A[1:3, :] where A = np.arange(12).reshape(3,4). You run sub[0,0] = 99. What is A[1,0] afterward, and why?

Recall Solution 3.3

A[1:3, :] is a view — it points at the same buffer starting one row down. The offset of sub[0,0] is the offset of A[1,0]. $A [1, 0]$ has flat index $1 \cdot 4 + 0 = 4$ ; writing there sets that byte. Therefore A[1,0] == 99. Why not a copy? In plain Python, list slices copy; NumPy slices view by adjusting the start pointer and shape — no bytes duplicated. Confirm with np.shares_memory(sub, A) → True.

Level 4 — Synthesis

(Combine dtype, shape, strides, views, and edge cases.)

Problem 4.1

x = np.arange(10, dtype=np.int64); y = x[::2] (every 2nd element). Give y.shape, y.strides, and whether y shares memory with x.

Recall Solution 4.1

x has strides $(8,)$ (1-D, itemsize 8). Slicing [::2] keeps every 2nd element: it doubles the step and picks $⌈ 10/2 ⌉ = 5$ elements.

shape = (5,).
strides = (16,) — step $2 \times 8 = 16$ bytes to skip the element in between.
Shares memory? Yes — a strided slice is a view. No data copied; NumPy just walks with a bigger stride. np.shares_memory(x, y) → True. Key insight: strides need not equal itemsize. Any integer step is legal, which is exactly how views with gaps work.

Problem 4.2

You have A = np.arange(6).reshape(2,3) (C-contiguous, strides (24,8)). You call A.T.reshape(6). Does this return a view or force a copy? Explain via strides.

Recall Solution 4.2

A.T has shape $(3, 2)$ , strides $(8, 24)$ — this is F-contiguous, not C-contiguous. reshape(6) wants a flat 1-D array whose memory order matches the requested (default C) walk. But reading A.T in C-order (row by row of the transposed view) hops around the buffer non-contiguously — no single constant stride can describe that flat sequence. Therefore reshape must COPY. It allocates a fresh contiguous buffer and reorders. Check: np.shares_memory(A, A.T.reshape(6)) → False. Contrast: A.reshape(6) (on the original C-array) is a view — reshape only copies when the requested layout is impossible on the existing strides.

Problem 4.3

Predict np.int8(100) + np.int8(50) and explain the surprising result using dtype range.

Recall Solution 4.3

int8 stores integers in the range $[- 128, 127]$ (8 bits, signed). The true sum $150$ is above 127, so it wraps around (two's-complement overflow): $150 - 256 = - 106.$ So the result is -106, dtype still int8. Why: dtype fixes not just speed but representable range. Homogeneity means the result cell is still one int8 — it cannot magically grow to hold 150. Fix in practice: cast up first, e.g. np.int8(100).astype(np.int16) + 50 → 150.

Level 5 — Mastery

(Design metadata / reverse-engineer / edge & degenerate cases.)

Problem 5.1

A buffer holds 12 int64 values. Someone constructs an array with shape (3,4) but strides (8, 24). Reading M[i,j], what does this array actually look like compared to the normal C-array np.arange(12).reshape(3,4)?

Recall Solution 5.1

Normal C-array: strides $(32, 8)$ → moving along axis 1 (columns) steps 8 bytes = 1 element; moving along axis 0 (rows) steps 32 bytes = 4 elements. Here strides are $(8, 24)$ :

Axis 0 step $= 8$ bytes $= 1$ element.
Axis 1 step $= 24$ bytes $= 3$ elements. Offset in elements $= i \cdot 1 + j \cdot 3$ . So $M [i, j] =$ value at flat index $i + 3 j$ . $M = 01234567891011$ That is exactly the transpose of arange(12).reshape(4,3) — i.e. reading the same 12 bytes in column-major order. Custom strides literally re-interpret a fixed buffer. (This is what as_strided does; the parent's mantra "data is sacred, metadata is cheap" in action.)

Problem 5.2

Degenerate/edge case. What is the shape, size, and nbytes of np.zeros((3, 0, 5), dtype=np.float64)? Is such an array valid?

Recall Solution 5.2

A zero-length axis is perfectly legal.

shape = (3, 0, 5).
size = 3 \times 0 \times 5 = 0 — empty: it contains no elements.
nbytes = size × itemsize = 0 × 8 = 0 bytes. The array object still exists (valid metadata, valid — empty — buffer). Indexing any element is impossible, but the shape carries real structural information (used by broadcasting and concatenation). Edge insight: the product formula handles zero automatically — no special case needed.

Problem 5.3

Reverse-engineer. An int64 array prints strides = (8, 40) and shape = (5, 3). Was this array originally built C-contiguous or F-contiguous, and how do you know?

Recall Solution 5.3

Test the definitions with $s = 8$ :

C-contiguous? needs last-axis stride $= s = 8$ . Here last-axis stride is $40 \neq = 8$ . No.
F-contiguous? needs first-axis stride $= s = 8$ . Here first-axis stride is $8 = s$ . Yes. ✓ So this array is F-contiguous (column-major). Sanity: for F-order shape $(5, 3)$ , the strides are $(s, s \cdot d_{0}) = (8, 8 \cdot 5) = (8, 40)$ ✓ — matches. It's likely np.arange(15).reshape(5,3, order='F') or the .T of a C-array of shape $(3, 5)$ .

Connections

NumPy — views vs copies & np.shares_memory — Problems 3.3, 4.1, 4.2 live here.
Row-major vs column-major (C vs Fortran order) — Problems 3.2, 5.1, 5.3.
NumPy — broadcasting — the "0-stride" cousin of these tricks.
NumPy — vectorization & performance — why contiguity matters for speed.
CPU cache & memory locality — why stride patterns change runtime.
Python lists vs arrays — why NumPy slices view where list slices copy.

Recall One-line self-test

Given shape (a,b,c) C-contiguous itemsize s, the strides are? ::: $(s b c, s c, s)$ — each axis skips the product of the sizes of all axes after it, times s.
