Arrays and pointers — array name decays to pointer: Worked examples

For every example below we assume a typical machine where int is 4 bytes and a pointer is 8 bytes (64-bit). If your machine differs, only the numbers scale — the reasoning is identical.

#	Cell class	What makes it tricky	Covered by
A	Plain decay in a value expression	array name → `T*` silently	Ex 1
B	`sizeof` exception (no decay)	you get whole-array bytes	Ex 1, Ex 2
C	`&arr` exception (no decay)	type becomes `T(*)[N]`, `+1` jumps far	Ex 3
D	Passing to a function (size lost)	`int a[]` param is really `int*`	Ex 4
E	`arr[i] == *(arr+i) == i[arr]` identity	commutativity of `+`	Ex 5
F	2-D / multidimensional decay	only the outermost dimension peels off	Ex 6
G	`char[]` vs `char*` string literal	initialiser is the 3rd exception	Ex 7
H	Degenerate / edge inputs	1-element array, `sizeof` of a param, `&arr[0]` vs `arr`	Ex 8
I	Real-world word problem	sum a sensor buffer safely	Ex 9
J	Exam-style twist	`sizeof(a)/sizeof(a[0])` element count trick	Ex 10

Worked Examples

Worked example 1 — Plain decay vs

sizeof (cells A, B)

int a[10];
int *p = a;                  // (1)
printf("%zu\n", sizeof(a));  // (2)
printf("%zu\n", sizeof(p));  // (3)

Forecast: guess the two printed numbers before reading on.

Step 1 — int *p = a; Why this step? Assignment is a value context, so a decays to &a[0] of type int*. p now holds the base address. WHAT it looks like: an arrow pointing at box #0 of the row.

Step 2 — sizeof(a) Why this step? sizeof is exception #1 — the name does not decay. It sees the full type int[10], so it reports $10 \times 4 = 40$ bytes.

Step 3 — sizeof(p) Why this step? p is a genuine pointer variable, so you get the pointer width: 8.

Verify: $10 \times 4 = 40$ ✓, pointer width $= 8$ ✓. Different numbers = proof that an array is not a pointer.

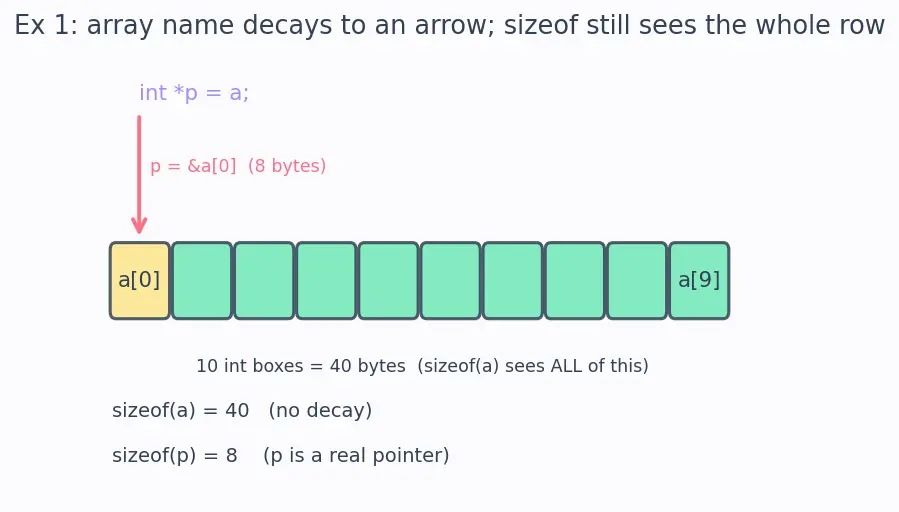

Figure — Arrays and pointers — array name decays to pointer

Worked example 2 —

sizeof on a bigger element type (cell B, edge on sizeof(T))

double d[6];
printf("%zu\n", sizeof(d));       // (1)
printf("%zu\n", sizeof(d[0]));    // (2)
printf("%zu\n", sizeof(d)/sizeof(d[0])); // (3)

Forecast: with double = 8 bytes, guess all three.

Step 1 — sizeof(d) Why this step? No decay (exception). Whole array of 6 doubles: $6 \times 8 = 48$ .

Step 2 — sizeof(d[0]) Why this step? d[0] is one element of type double: 8.

Step 3 — the ratio Why this step? $48/8 = 6$ recovers the element count. This trick only works where the array is declared (no decay yet).

Verify: $6 \times 8 = 48$ ✓, $48/8 = 6$ = the declared length ✓.

Worked example 3 —

&arr steps by the whole array (cell C)

int a[5];
int   *p    = a;    // int*        -> a[0]
int (*q)[5] = &a;   // int(*)[5]   -> whole array
// numeric addresses: p == q
// p+1 vs q+1 ?

Forecast: if the base address is $1000$ , what are p+1 and q+1?

Step 1 — p decays. Why this step? int *p = a; → a decays, p points at a[0], type int*.

Step 2 — &a does NOT decay. Why this step? Exception #2. &a has type int(*)[5] — a pointer to the whole 5-int row. Same numeric value as p, different type.

Step 3 — pointer arithmetic scales by the pointed-to size. Why this step? Adding 1 to int* steps sizeof(int) = 4 bytes ⇒ p+1 = 1004. Adding 1 to int(*)[5] steps sizeof(int[5]) = 20 bytes ⇒ q+1 = 1020.

Verify: $1000 + 4 = 1004$ ✓, $1000 + 5 \times 4 = 1020$ ✓. Same start, different stride — the type decides the step.

Worked example 4 — The size is lost across a call (cell D)

void f(int arr[100]) {          // rewritten to int *arr
    printf("%zu\n", sizeof(arr)); // (1)
}
int main(void){ int a[100]; f(a); }

Forecast: does the 100 inside the brackets protect us? Guess the print.

Step 1 — the parameter is a lie. Why this step? C ignores the 100: any array parameter int arr[...] is rewritten to int *arr. The size annotation is decoration only.

Step 2 — at the call f(a), a decays. Why this step? Value context → a becomes &a[0]. The function receives only an 8-byte address; it never learns the length.

Step 3 — sizeof(arr) inside f. Why this step? arr is genuinely a pointer here ⇒ 8, not 400.

Verify: printed value = pointer width $= 8$ ✓ (NOT $100 \times 4 = 400$ ). Rule: only sizeof an array in the scope where it is declared (that's why Ex 2 worked and this doesn't).

Worked example 5 —

arr[i] == *(arr+i) == i[arr] (cell E)

int a[4] = {10, 20, 30, 40};
// all four print the same value:
printf("%d %d %d %d\n", a[2], *(a+2), *(2+a), 2[a]);

Forecast: which of these is illegal? (Trick: none are.)

Step 1 — the definition. Why this step? The C standard defines a[i] as *(a + i). Here a decays to &a[0].

Step 2 — commutativity. Why this step? Addition commutes: a + 2 == 2 + a. So *(a+2) == *(2+a).

Step 3 — un-sugar the second form. Why this step? 2[a] is defined as *(2 + a) — the compiler applies the same rule with operands swapped. Therefore 2[a] == a[2].

Verify: all four expressions read the element at offset 2 = 30 ✓. Weird syntax, one arithmetic.

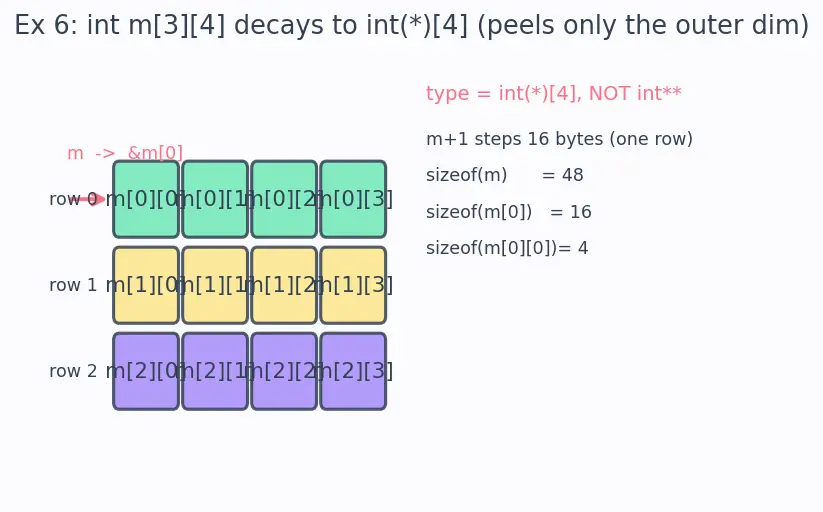

Worked example 6 — 2-D decay peels one layer (cell F)

int m[3][4];
// type of m  when used as value?
// sizeof(m), sizeof(m[0]), sizeof(m[0][0]) ?

Forecast: does m decay to int**? (No! Guess the real type.)

Step 1 — what m decays to. Why this step? m is an array of 3 rows, each row being int[4]. Decay peels only the outermost dimension: m → pointer to its first element, and its first element is int[4]. So m → int(*)[4], not int**.

Step 2 — sizeof(m) (no decay). Why this step? Whole 2-D block: $3 \times 4 \times 4 = 48$ bytes.

Step 3 — sizeof(m[0]) and sizeof(m[0][0]). Why this step? m[0] is one row int[4] ⇒ $4 \times 4 = 16$ . m[0][0] is one int ⇒ 4.

Verify: $48/16 = 3$ rows ✓, $16/4 = 4$ columns ✓, and m+1 steps 16 bytes (a whole row) because m is int(*)[4] ✓.

Worked example 7 —

char[] vs char* and the literal exception (cell G)

char s[] = "hi";     // (1) array of 3 chars: 'h','i','\0'
char *t  = "hi";     // (2) pointer to a read-only literal
printf("%zu %zu\n", sizeof(s), sizeof(t)); // (3)

Forecast: how many bytes does "hi" really occupy, and what are the two sizeofs?

Step 1 — char s[] = "hi"; Why this step? Exception #3: a string literal initialising a char[] does not decay — its characters are copied into s. s holds 'h', 'i', and the terminating '\0' ⇒ 3 bytes.

Step 2 — char *t = "hi"; Why this step? Here the literal is a value, so it decays to a char* pointing at read-only storage. t is an 8-byte pointer; writing through it is undefined behaviour.

Step 3 — the two sizeofs. Why this step? sizeof(s) = whole array = 3 (no decay). sizeof(t) = pointer width = 8.

Verify: "hi" = 2 visible chars + 1 null = 3 ✓; sizeof(s)=3 ✓, sizeof(t)=8 ✓.

Worked example 8 — Degenerate inputs: 1-element array and

arr vs &arr[0] (cell H)

int one[1] = {42};
printf("%zu\n", sizeof(one));        // (1)
printf("%d\n",  one == &one[0]);     // (2)  same value?
printf("%d\n",  (void*)&one == (void*)one); // (3) same address?

Forecast: even with a single box, does decay still happen? Guess all three prints.

Step 1 — sizeof(one). Why this step? No decay in sizeof, even for length 1: $1 \times 4 = 4$ .

Step 2 — one == &one[0]. Why this step? In this comparison one decays to &one[0]. Both sides are the same int* value ⇒ comparison is 1 (true).

Step 3 — &one numeric value. Why this step? &one (type int(*)[1]) has the same numeric address as one, just a different type. Cast both to void* ⇒ equal ⇒ 1.

Verify: $1 \times 4 = 4$ ✓, one == &one[0] = 1 ✓, address equality = 1 ✓. Edge case behaves exactly like the general rule.

Worked example 9 — Real-world: sum a sensor buffer safely (cell I)

A temperature logger fills int temps[8] = {21,22,20,23,25,24,22,21}. You must pass it to int sum(int *buf, int n) and total it. Why can't sum just call sizeof?

Forecast: what length must you pass, and what is the total?

Step 1 — compute the length where the array is declared. Why this step? Only in main (declaration scope) does sizeof(temps)/sizeof(temps[0]) work — it gives $32/4 = 8$ . Inside sum, buf is int*, so sizeof there would give 8 bytes (pointer), useless.

Step 2 — call sum(temps, 8). Why this step? temps decays to &temps[0]; the function walks buf[0..7] using pointer arithmetic. The length must ride along separately because decay erased it.

Step 3 — add them up. Why this step? $21 + 22 + 20 + 23 + 25 + 24 + 22 + 21$ .

Verify: length $= 32/4 = 8$ ✓; sum $= 178$ ✓ (units: °C·count is meaningless as a physical unit — this is a raw total, mean would be $178/8 = 22.25$ °C).

Worked example 10 — Exam twist: the element-count trap (cell J)

int a[10];
// Question: does this print 10 in BOTH places?
int n1 = sizeof(a)/sizeof(a[0]);   // in main
int g(int a[]) { return sizeof(a)/sizeof(a[0]); } // in a function

Forecast: the classic exam gotcha — do n1 and g(a) agree?

Step 1 — n1 in main. Why this step? No decay here: $\frac{40}{4} = 10$ . Correct count.

Step 2 — inside g. Why this step? a is really int*. sizeof(a) = 8 (pointer), sizeof(a[0]) = 4 (one int). Ratio $= 8/4 = 2$ — wrong, and machine-dependent!

Step 3 — the lesson. Why this step? The sizeof/sizeof idiom is valid only in declaration scope. Across a call, decay destroyed the size, so the idiom silently returns garbage (here 2).

Verify: $40/4 = 10$ ✓ (main), $8/4 = 2$ ✓ (function, the trap). They do not agree — that is the whole point of the exam question.

Recall Quick self-test over the whole matrix

sizeof(a) for int a[10]? ::: 40 (no decay, whole array). sizeof(p) for int *p = a;? ::: 8 (pointer width). Type m decays to for int m[3][4]? ::: int(*)[4], not int**. sizeof(m) for int m[3][4]? ::: 48 bytes ( $3 \times 4 \times 4$ ). sizeof(s) for char s[]="hi";? ::: 3 (h, i, \0). sizeof(t) for char *t="hi";? ::: 8 (pointer). Element count of int a[10] inside g(int a[])? ::: 2 on a 64-bit machine (8/4) — the trap; decay lost the size. q+1 for int(*q)[5] at base 1000? ::: 1020 (steps 20 bytes = whole 5-int array). Sum of {21,22,20,23,25,24,22,21}? ::: 178.

Connections

Pointer Arithmetic — why p+1 and q+1 step different byte distances (Ex 3, 6).
Passing Arrays to Functions — the lost-size fallout (Ex 4, 9, 10).
sizeof Operator — the #1 no-decay exception, used in every example.
Multidimensional Arrays — decay peels only the outer dimension (Ex 6).
Strings in C — char[] vs char* and literal decay (Ex 7).
Memory Layout and Addresses — contiguous boxes underlie every stride computation.
