Arrays and pointers — array name decays to pointer: Visual walkthrough

This page goes deeper than the parent note on one thing: the mechanical, byte-by-byte derivation of indexing. Keep Pointer Arithmetic and Memory Layout and Addresses open in another tab — we lean on both.

Step 1 — Memory is a numbered street of boxes

WHAT. Before we say a single word about arrays, look at what "memory" is: a long row of one-byte boxes, each with a number (its address). Think house numbers on a street.

WHY. Every later idea — pointers, decay, indexing — is just arithmetic on these house numbers. If we don't nail down "memory = numbered boxes", nothing else can be earned honestly.

PICTURE. The street below runs left to right. Each little cell is one byte. The number under a cell is its address.

Figure — Arrays and pointers — array name decays to pointer

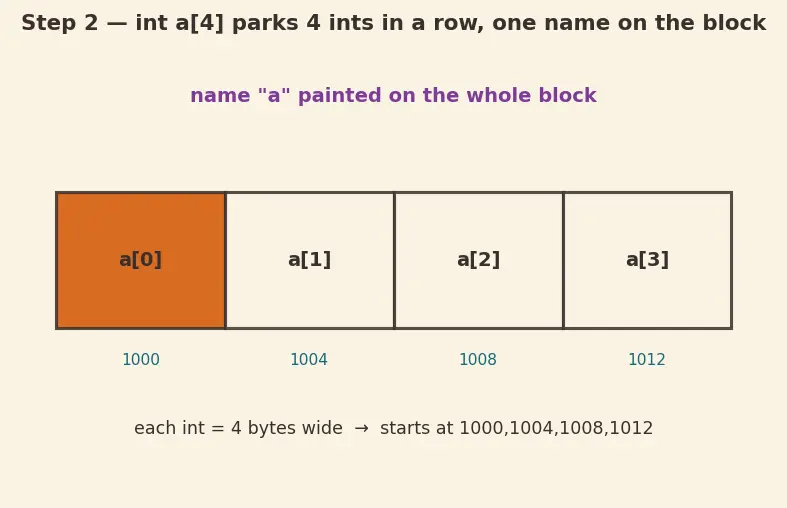

Step 2 — An array parks contiguous boxes and gives them one name

WHAT. When you write int a[4];, C reserves 4 ints in a row — no gaps. On a typical machine an int is 4 bytes, so the array occupies $4 \times 4 = 16$ consecutive boxes. The name a is painted on this whole block.

WHY. "Contiguous" (no gaps) is the secret ingredient. Because element $i$ always sits exactly $i$ elements past the start, we will later be able to compute its location instead of searching for it.

PICTURE. The four ints a[0] a[1] a[2] a[3] are the four wide cells. The base address (address of a[0]) is 1000; each int is 4 bytes wide, so the starts fall on 1000, 1004, 1008, 1012.

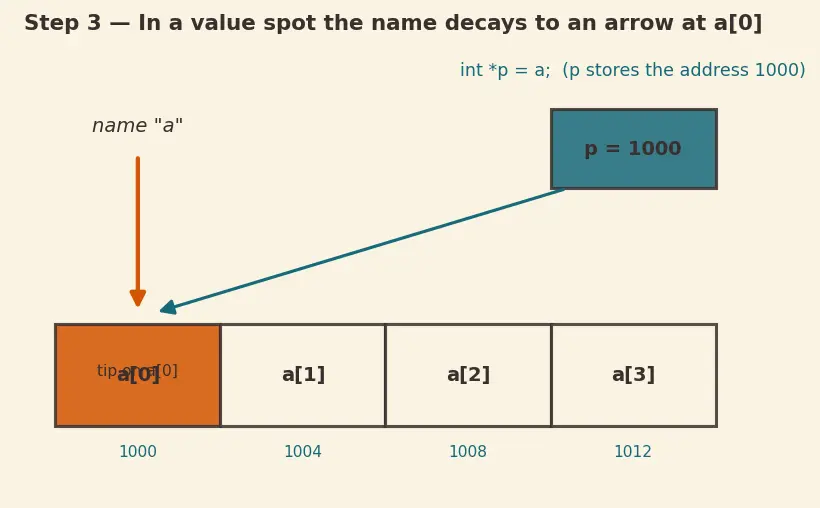

Step 3 — Say the name in a value spot → it decays to an arrow

WHAT. The moment you use a where a value is expected (like in a + 1, or int *p = a;), C does not hand you all 16 bytes. It quietly converts a into a small arrow pointing at a[0]. That arrow is a pointer; its stored value is the address 1000.

WHY this conversion at all? Carrying 16 (or 4000) bytes around is wasteful. An arrow is just one address — cheap to copy. So C collapses the name into "here's where it starts." This collapse is called decay (see Passing Arrays to Functions for the payoff).

WHY an arrow to a[0] specifically (not a[2])? Because the front of the block is the only landmark every element can be measured from. Give me the front + a count and I can reach any car.

PICTURE. The name tag a dissolves into a burnt-orange arrow whose tip lands on box 1000. The pointer p now literally stores the number 1000.

Step 4 — Adding `1` to a pointer moves by one element, not one byte

WHAT. Here is the rule that makes indexing work: for a pointer of type int*, p + 1 is not address $1001$ . It is address $1000 + 1 \times sizeof(int) = 1004$ — the next int.

WHY does C scale by the element size? Because a pointer knows the type it points at. If p + 1 only moved one byte, it would land inside a[0], halfway through an integer — useless. Scaling by sizeof(int) guarantees p + 1 always lands on a whole element. This is the whole reason pointer arithmetic exists (full story: Pointer Arithmetic).

PICTURE. Three arrows fan out from the base: p+0 → 1000, p+1 → 1004, p+2 → 1008. Under each hop is the label +4 bytes, but the count on top is +0, +1, +2.

Step 5 — The star `*` reads the box the arrow points at

WHAT. *(...) is the dereference operator: "go to the address inside the parentheses and read the value living there." So *(p + 2) means: compute the address 1008, then hand back the int stored in that box.

WHY do we need a separate operator? Step 4 only gave us a location (1008). We usually want the contents of that location, not the number itself. * is the "open the box and take out what's inside" step.

PICTURE. The arrow p+2 points at box 1008; a plum bubble labelled *(p+2) reaches into that box and pulls out its value (say 70).

Step 6 — Snap it together: `a[i]` is defined as `*(a + i)`

WHAT. Now chain Steps 3–5 for the expression a[i]:

a decays → arrow at 1000 (Step 3),
a + i → address $1000 + i \times 4$ (Step 4),
*(a + i) → read the int there (Step 5).

That is exactly "the $i$ -th box". So the C standard simply defines the bracket notation as this chain: $a[i] \equiv *(a + i)$

WHY is this "just notation"? Because there is no separate machinery for []. The brackets are pure sugar for one decay + one add + one dereference. Nothing else is happening.

THE FUN CONSEQUENCE. Ordinary + doesn't care about order: a + i == i + a. So $a[i] = *(a+i) = *(i+a) = i[a] .$ That is why 2[a] compiles and equals a[2] — living proof that indexing is only arithmetic.

PICTURE. Two roads leading to the same box 1008: the left road labelled a[2], the right road labelled 2[a], both funnelling through *(1000 + 2×4).

Step 7 — Edge case: change the pointer's type, change the step

WHAT. a decays to int* (steps by 4). But &a is different: its type is int(*)[4] — a pointer to the whole array. Numerically &a and a are the same address 1000, yet +1 behaves differently.

WHY show this? It proves the × sizeof in Step 4 is driven by type, not by the address value. Same starting number, two different jump sizes:

int *p = a; → p + 1 = 1004 (step = sizeof(int) = 4)
int (*q)[4] = &a; → q + 1 = 1016 (step = sizeof(int[4]) = 16)

This is exactly the sizeof/&arr non-decay behaviour from the parent, seen as geometry. (More: sizeof Operator and Multidimensional Arrays, where decay peels only the outer dimension.)

PICTURE. Two arrows leave the same base 1000: the teal int* makes a short +4 hop; the plum int(*)[4] makes a long +16 hop that clears the entire block.

Step 8 — Degenerate case: `a[0]`, and why the array never moves

WHAT. Plug i = 0: a[0] == *(a + 0) == *a. The address is 1000 + 0×4 = 1000 — the base itself. So *a and a[0] are the same box.

WHY mention it? It shows the base is just element $0$ (no off-by-one), and it exposes a limit of decay: you cannot write a = p;. The name a is not a storage slot you can repoint — it is the fixed block. Only its decayed copy (a real pointer variable like p) can be reassigned.

PICTURE. i = 0 collapses the fan of arrows from Step 4 back onto the single base box 1000; a struck-through a = p; reminds us the name itself can't be moved.

Recall

*a equals which element? ::: a[0] — because a[0] == *(a+0) == *a. Can you reassign a with a = p;? ::: No — the array name is not an lvalue you can repoint; only a real pointer variable can be reassigned.

The one-picture summary

Everything above is one straight pipeline: name → decays to arrow → add scaled by type → dereference → the box.

Recall Feynman retelling of the whole walkthrough

Memory is a street of numbered boxes. When you declare int a[4], four int-sized boxes park in a row and get one name painted on the block. The instant you use that name in a value spot, C throws away the block and keeps only a little arrow pointing at the front box — that's decay. Now a[i] is a three-move dance: the name becomes the arrow (front address), you slide the arrow forward by i elements — and because the arrow knows it points at ints, "forward by i" secretly means "forward by i × 4 bytes" — and finally the star * opens whatever box the arrow now rests on. That's it. Because sliding forward is plain addition, i + a reaches the same box, so i[a] == a[i]. Swap the arrow's type (as &a does) and the slide-length changes even though the starting number is identical. And with i = 0 you land right back on the front box — which is why the name can never be told to point somewhere else: it is the street, not an arrow you carry.

Connections

Pointer Arithmetic — Steps 4 & 7 are exactly this.
sizeof Operator — the hidden multiplier in every hop.
Passing Arrays to Functions — decay (Step 3) is why size is lost at a call.
Multidimensional Arrays — decay peels only the outer dimension.
Memory Layout and Addresses — the numbered-boxes picture of Step 1.
Strings in C — char[] vs char* seen through the same lens.
